GDL3

Bomba centrífuga vertical multifásica de alta presión

Descripción técnica
Nueva bomba centrífuga vertical multifásica
Diseño original puro
• motores cuadrados y circulares disponibles
Motor de alta eficiencia ye3, clase de protección ip55 F
Carcasa de la bomba con recubrimiento anticorrosivo
El eje está hecho de acero inoxidable Aisi 304 o hierro galvanizado
Succión y descarga de hilo de hierro fundido G20
Rodamientos NSK de alta calidad, sellos mecánicos resistentes al desgaste

3D PRODUCT CHAT NOW

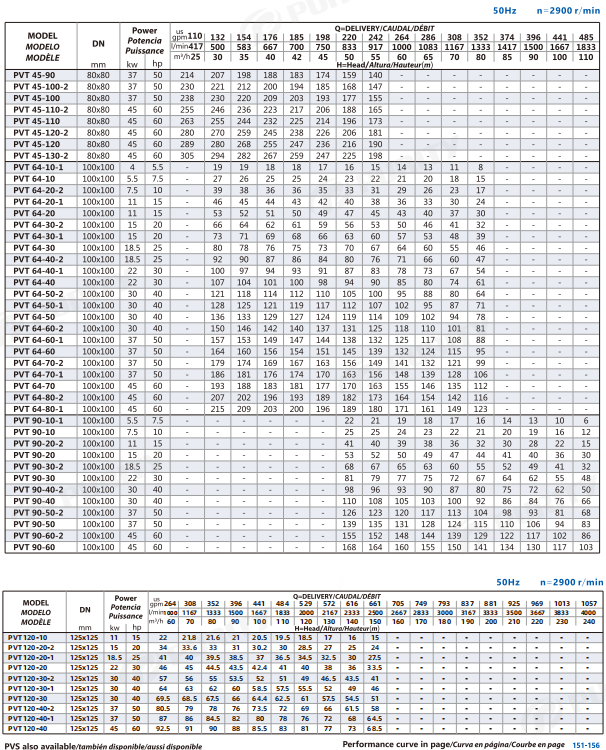

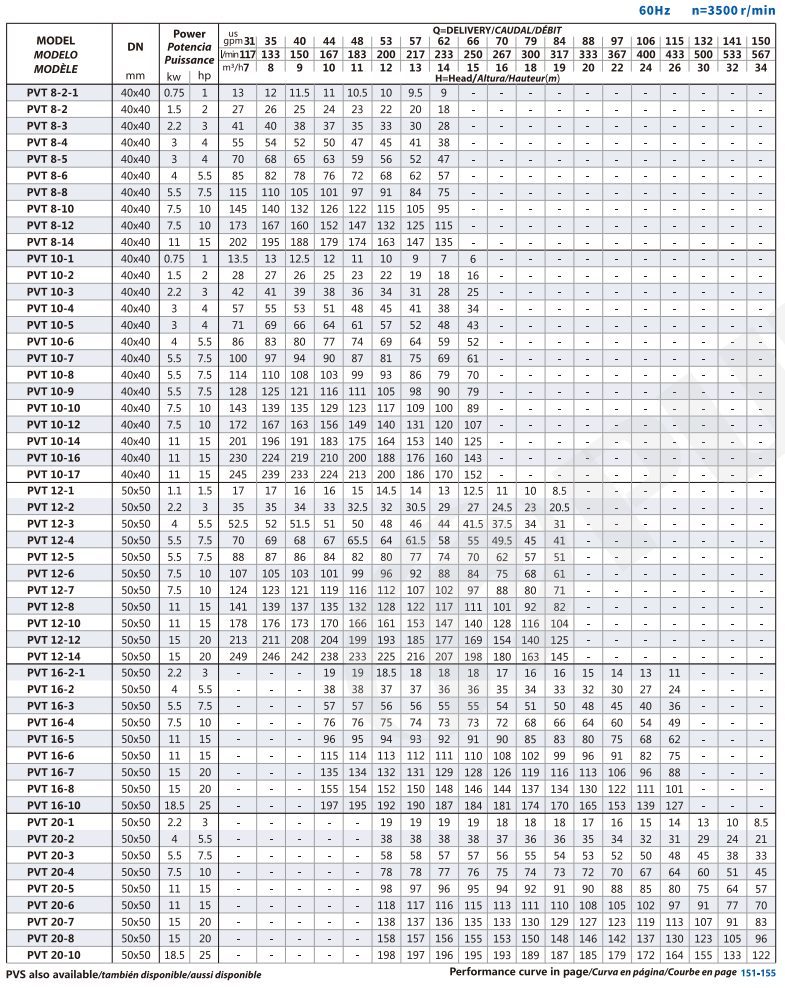

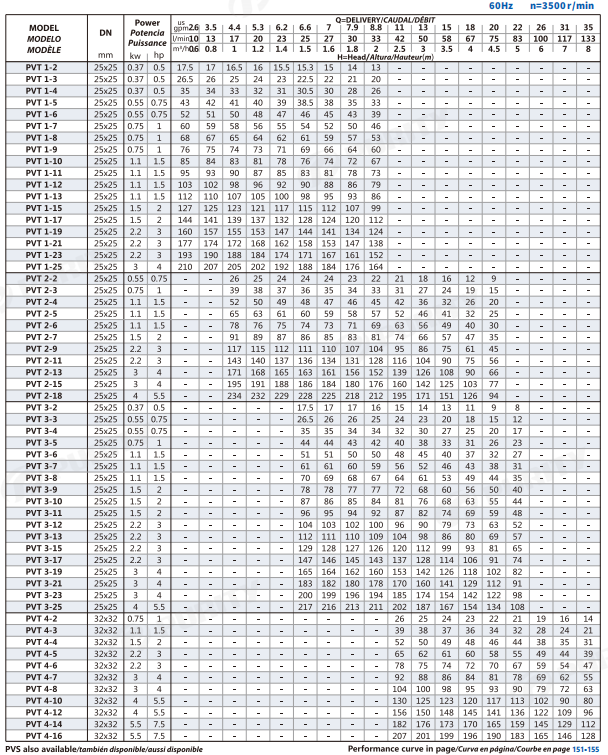

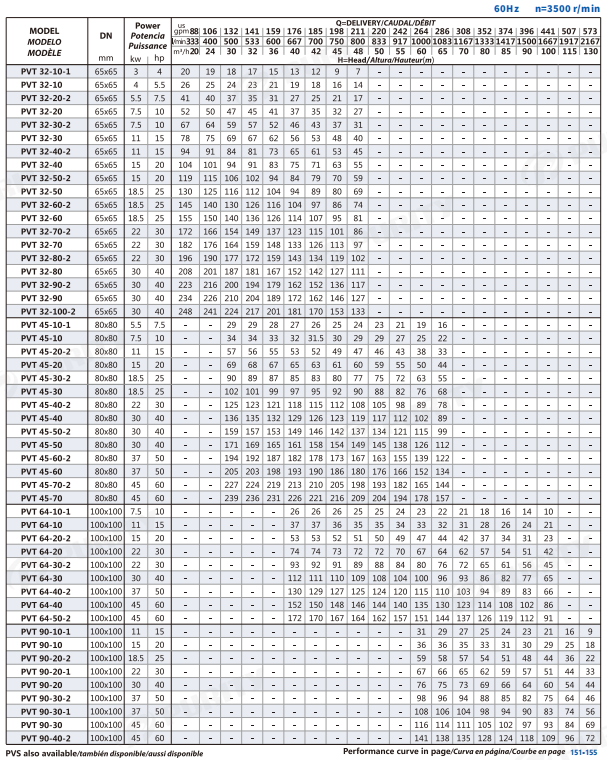

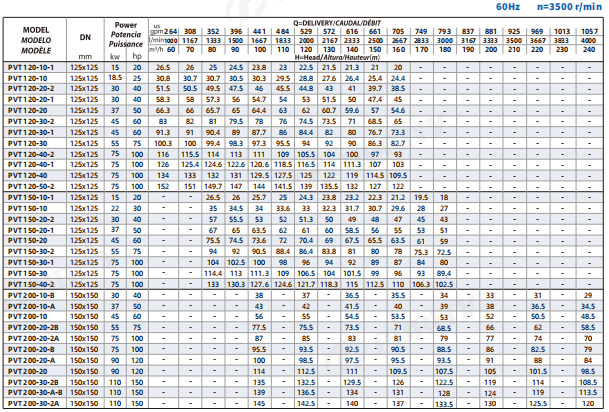

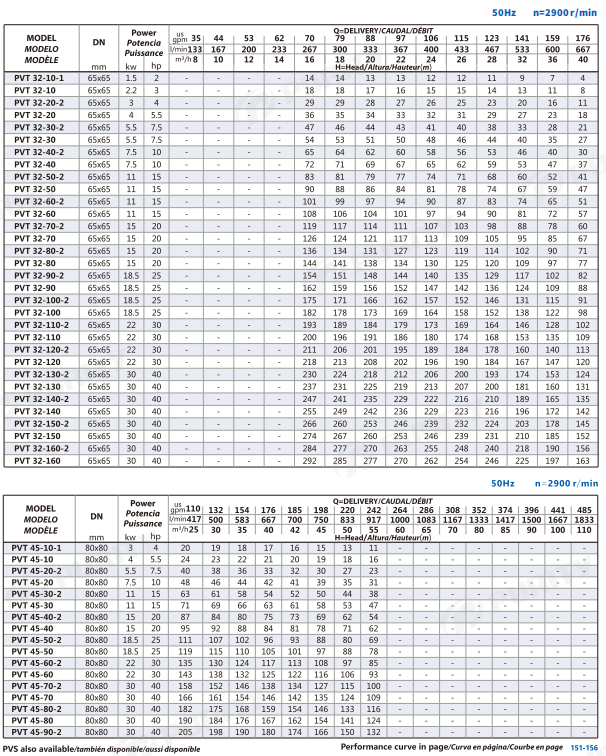

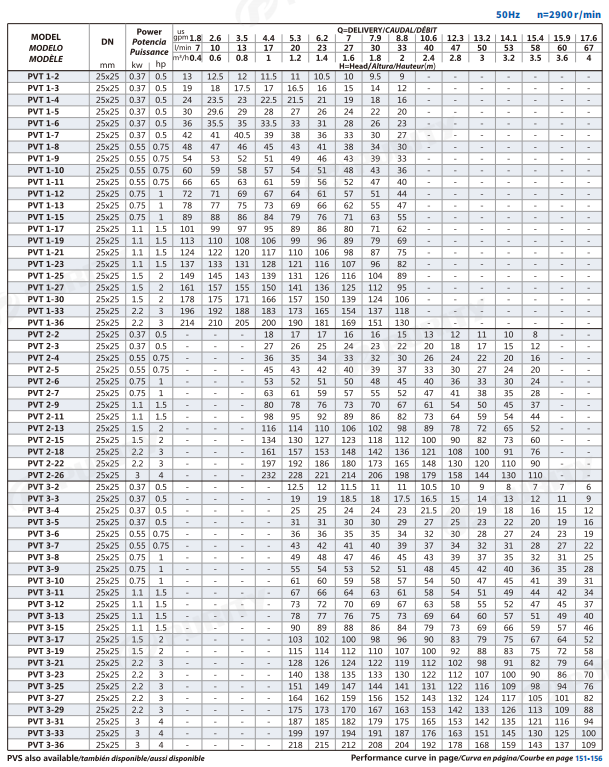

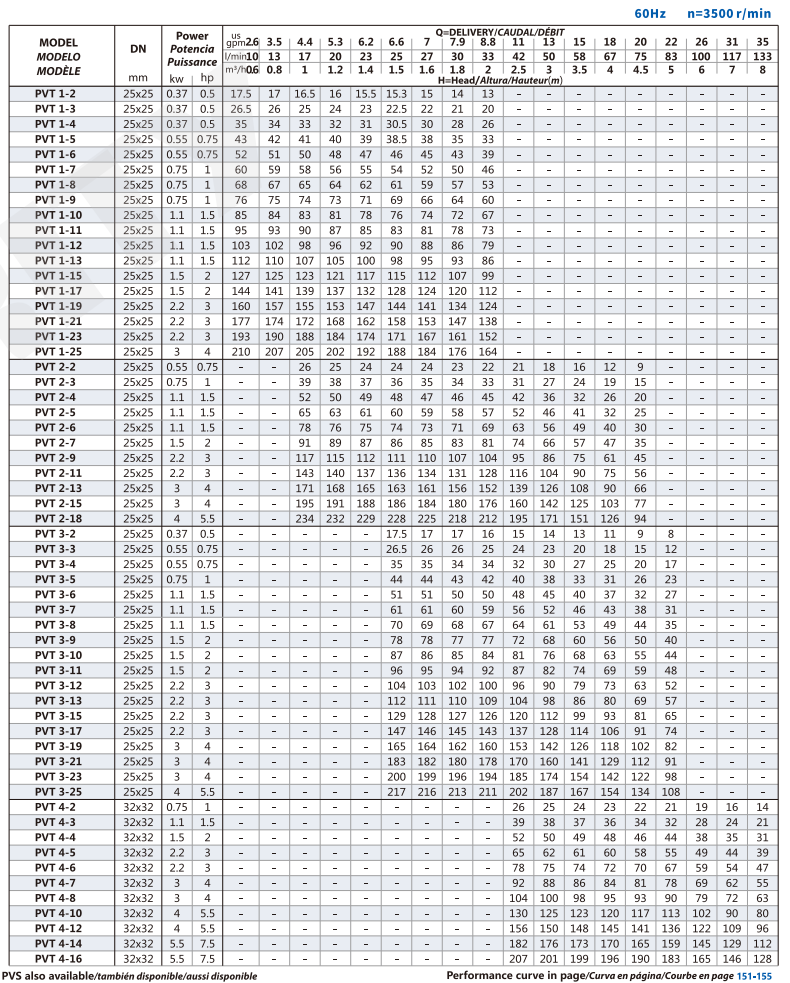

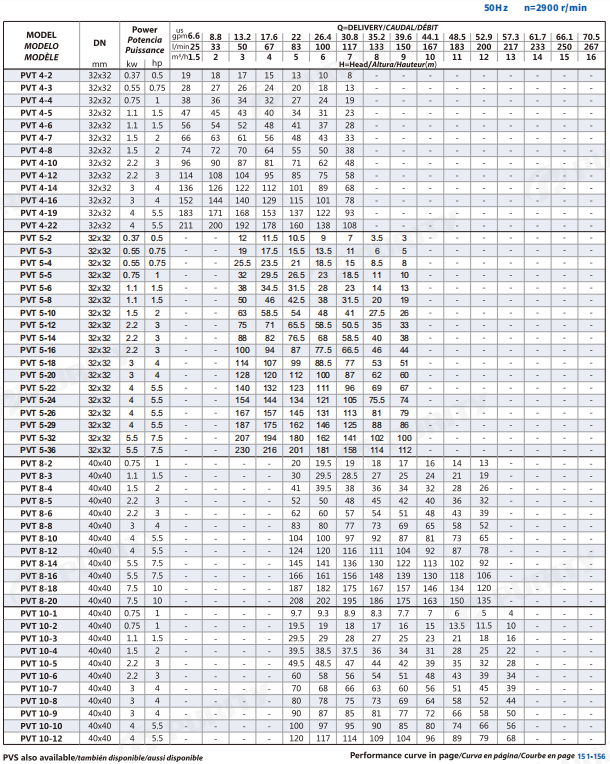

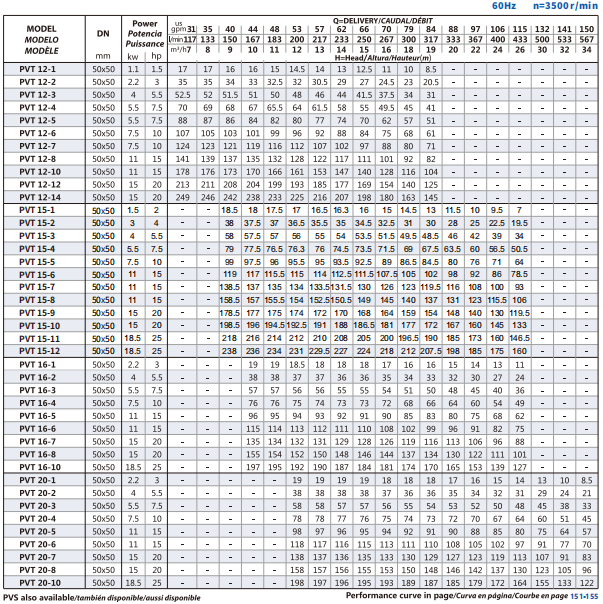

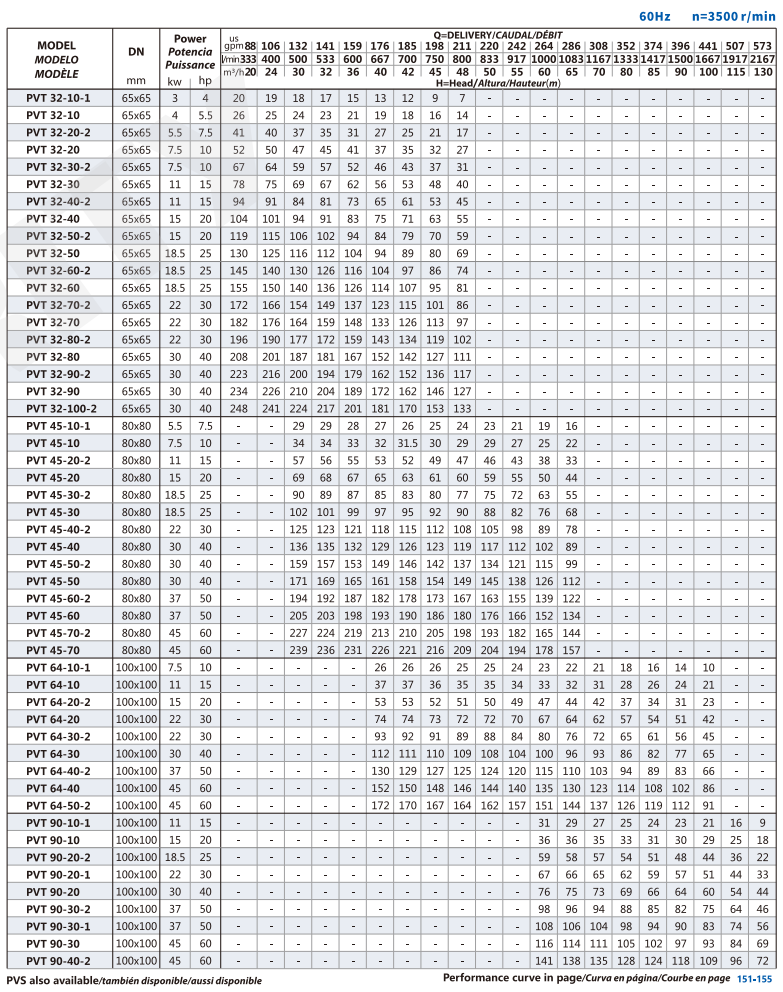

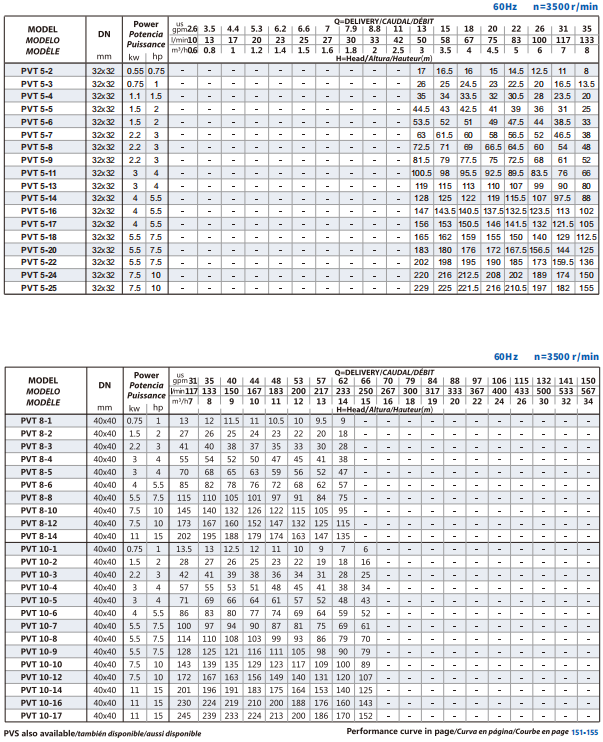

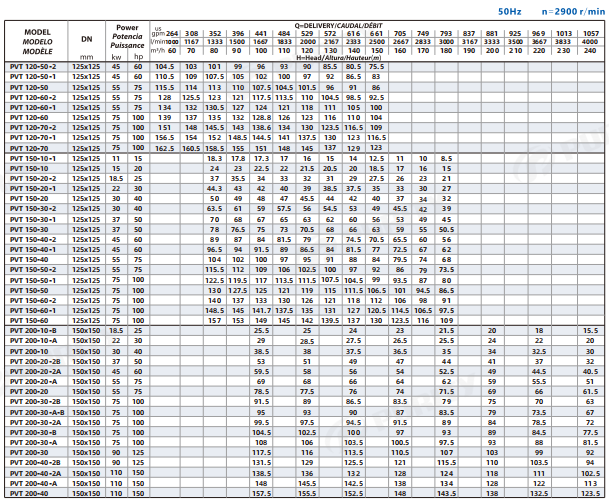

Product Specification (50HZ) 60HZ

Product Description

TECHNICAL DESCRIPTION
New vertical multistage centrifugal pump
Original design by PURITY
Both square motor & round motor available
YE3 high efficient motor, with protection IP55 class F
Pump case with anti-corrosive coating
Shaft in stainless steel AISI 304 or galvanized iron
Suction and discharge port in cast iron G20 thread
Quality NSK bearing, wear resistance mechanical seal
APPLICATIONS
Suitable for use with clean water and liquids that are not chemically
aggressive towards the materials from which the pump is made.
The high efficiency and adaptability of these pumps to even the most
unusual of applications, makes them ideal for use in the domestic,
civil and industrial sectors; in particular for the distribution of water
in combination with pressure sets and for pressure boosting.
USING LIMITS
Medium temperature: -15℃~+120℃
Maximum working pressure: 2.5MPa
Ambient temperature: ≤+40℃
