[PC] auto - purificación de la bomba centrífuga de orificio roscado de la bomba de agua integral

Descripción técnica
Bomba centrífuga de nuevo tipo con agujero roscado
Diseño original de pureza (patente)
• motores cuadrados y circulares disponibles
Motor de alta eficiencia ye3, clase de protección ip55 F
Carcasa de la bomba con recubrimiento anticorrosivo
Impulsor de latón o hierro fundido
El eje está hecho de acero inoxidable Aisi 304 o hierro galvanizado
• succión y descarga en hilos G20
Rodamientos NSK de alta calidad, sellos mecánicos resistentes al desgaste

3D PRODUCT CHAT NOW

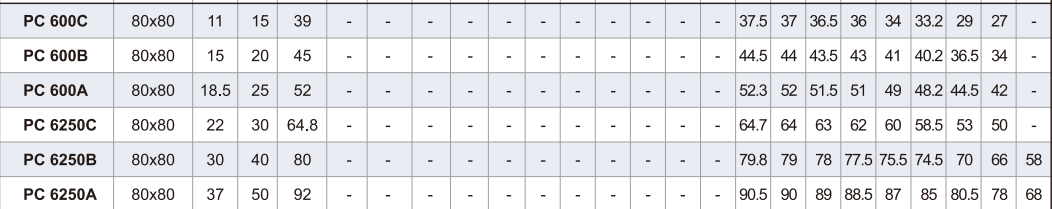

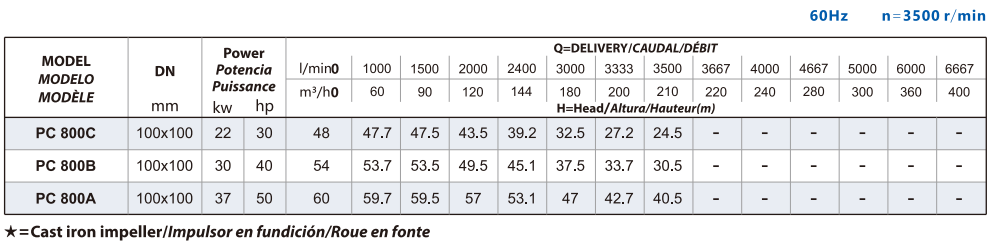

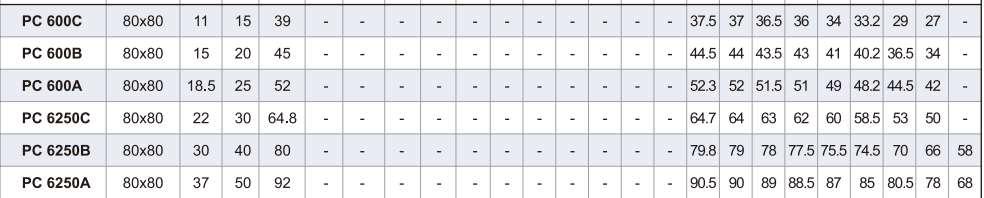

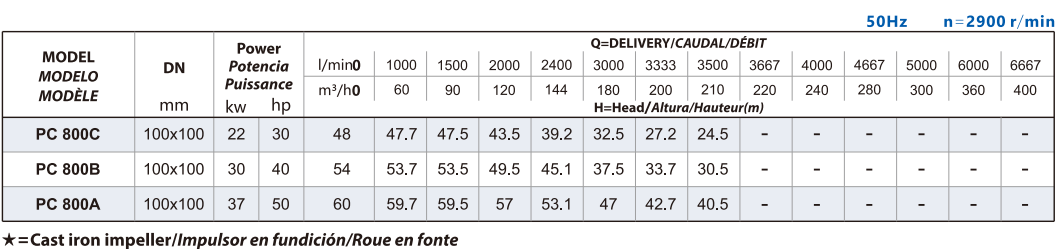

Product Specification (50HZ) 60HZ

Product Description

TECHNICAL DESCRIPTION

New thread port centrifugal pump

Original design by PURITY (patented)

Both square motor & round motor available

YE3 high efficient motor, with protection IP55 class F

Pump case with anti-corrosive coating

Impeller in brass or cast iron

Shaft in stainless steel AISI 304 or galvanized iron

Suction and discharge port in G20 thread

Quality NSK bearing, wear resistance mechanical seal

APPLICATIONS

The high efficiency and continuous duty capabilities makes these pumps

ideal for use in activities such as flood and spray irrigation,

drawing water from lakes, rivers and wells,

or for any number of different industrial applications where the

characteristics of high flow rates and mid to low head are required.

Suitable for use in civil and agricultural applications.

USING LIMITS

Liquid temperature between -10℃ and +120℃

Ambient temperature up to +50℃

Max. working pressure 16 bar

Continuous service S1

PATENTS

Registered model PC

Registered Patent Design n° 201530476290.2

TECHNICAL DATA

Please send inquiry to mina@cnpurity.com for prompt reply !

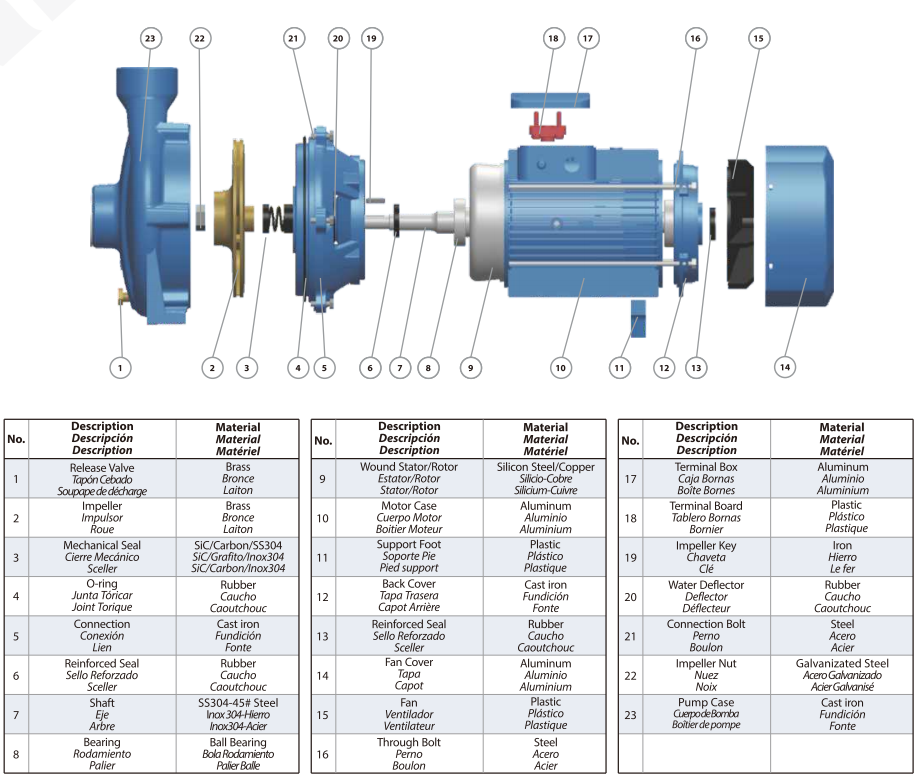

MATERIAL DESCRIPTION

No.	Description	Material	No.	Description	Material	No.	Description	Material
1	Release Valve	Brass	9	Wound Stator/Rotor	Silicon Steel/Copper	17	Terminal Box	Aluminum
2	Impeller	Brass	10	Motor Case	Aluminum	18	Terminal Board	Plastic
3	Mechanical Seal	SiC/Carbon/SS304	11	Support Foot	Plastic	19	Impeller Key	Iron
4	O-ring	Rubber	12	Back Cover	Cast iron	20	Water Deflector	Rubber
5	Connection	Cast iron	13	Reinforced Seal	Rubber	21	Connection Bolt	Steel
6	Reinforced Seal	Rubber	14	Fan Cover	Aluminum	22	Impeller Nut	Galvanizated Steel
7	Shaft	SS304/45# Steel	15	Fan	Plastic	23	Pump Case	Cast iron
8	Bearing	Ball Bearing	16	Through Bolt	Steel

DIMENSIONS AND WEIGHT
