Product Description
PTD Inline Circulation Pump
TECHNICAL DESCRIPTION
New Inline circulation pump
YE3 high efficient motor, with protection IP55 class F
Pump case with anti-corrosive coating
Easily back pull-out from driver
Impeller in stainless steel AISI 304 or cast iron
Shaft in stainless steel AISI 304 or galvanized iron
Galvanized counter flange with bolts, nuts and gaskets
Quality NSK bearing, wear resistance mechanical seal
APPLICATIONS
Suitable for use with clean water and liquids that are not chemically
aggressive towards the materials from which the pump is made.
The Inline circulation pumps are recommended for use in water supply,
cleaning sets, pressure boosting, firefighting sets, irrigation, industrial
applications, water circulation in climatisation sets, agricultural.
USING LIMITS
Liquid temperature between -10℃ and +120℃
Ambient temperature up to +50℃
Max. working pressure 16 bar
Continuous service S1

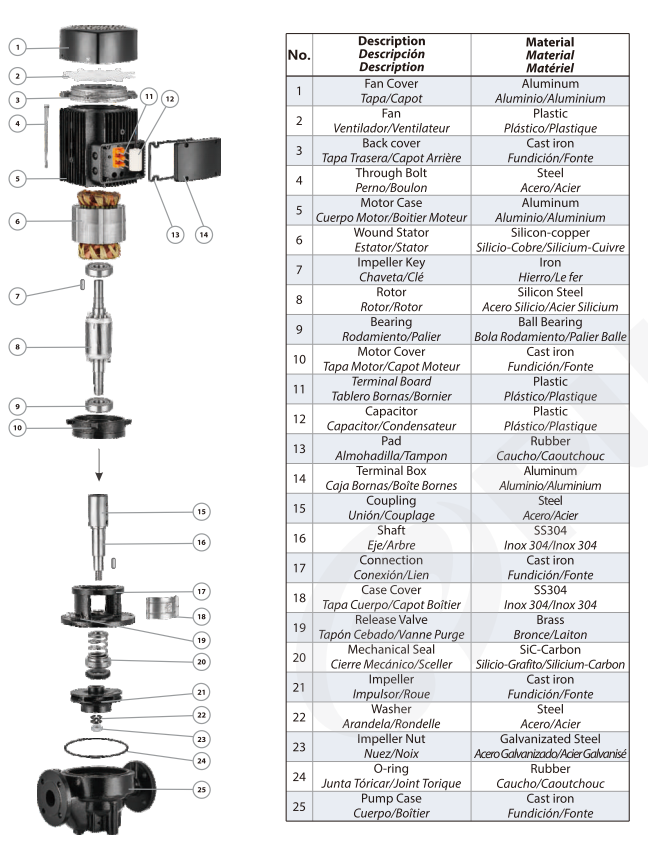

MATERIAL DESCRIPTION
|
No. |
Description |
Material |
No. |
Description |
Material |
No. |
Description |
Material |
|
1 |
Fan Cover |
Aluminum |
10 |
Motor Cover |
Cast iron |
19 |
Release Valve |
Brass |
|
2 |
Fan |
Plastic |
11 |
Terminal Board |
Plastic |
20 |
Mechanical Seal |
SiC/Carbon/SS304 |
|
3 |
Back cover |
Cast iron |
12 |
Capacitor |
Plastic |
21 |
Impeller |
SS304/Cast iron |
|
4 |
Through Bolt |
Steel |
13 |
Pad |
Rubber |
22 |
Washer |
Steel |
|
5 |
Motor Case |
Aluminum |
14 |
Terminal Box |
Aluminum |
23 |
Impeller Nut |
Galvanizated Steel |
|
6 |
Wound Stator |
Silicon Steel/copper |
15 |
Coupling |
Steel |
24 |
O-ring |
Rubber |
|
7 |
Impeller Key |
Iron |
16 |
Shaft |
SS304/45# Steel |
25 |
Pump Case |
Cast iron |
|
8 |
Rotor |
Silicon Steel |
17 |
Connection |
Cast iron |
|||
|
9 |
Bearing |
Ball Bearing |
18 |
Case Cover |
SS304 |
TECHNICAL DATA 50Hz n=2900 1/min
Other sizes can provide on request.
Contact Us
Please send inquiry to mina@purityfire.com for prompt reply !
Production Line
Packaging & Shipping
Our Exhibition
Certifications
Related Products
Product Description
PTD Inline Circulation Pump
TECHNICAL DESCRIPTION
New Inline circulation pump
YE3 high efficient motor, with protection IP55 class F
Pump case with anti-corrosive coating
Easily back pull-out from driver
Impeller in stainless steel AISI 304 or cast iron
Shaft in stainless steel AISI 304 or galvanized iron
Galvanized counter flange with bolts, nuts and gaskets
Quality NSK bearing, wear resistance mechanical seal
APPLICATIONS
Suitable for use with clean water and liquids that are not chemically
aggressive towards the materials from which the pump is made.
The Inline circulation pumps are recommended for use in water supply,
cleaning sets, pressure boosting, firefighting sets, irrigation, industrial
applications, water circulation in climatisation sets, agricultural.
USING LIMITS
Liquid temperature between -10℃ and +120℃
Ambient temperature up to +50℃
Max. working pressure 16 bar
Continuous service S1
MATERIAL DESCRIPTION
|
No. |
Description |
Material |
No. |
Description |
Material |
No. |
Description |
Material |
|
1 |
Fan Cover |
Aluminum |
10 |
Motor Cover |
Cast iron |
19 |
Release Valve |
Brass |
|
2 |
Fan |
Plastic |
11 |
Terminal Board |
Plastic |
20 |
Mechanical Seal |
SiC/Carbon/SS304 |
|
3 |
Back cover |
Cast iron |
12 |
Capacitor |
Plastic |
21 |
Impeller |
SS304/Cast iron |
|
4 |
Through Bolt |
Steel |
13 |
Pad |
Rubber |
22 |
Washer |
Steel |
|
5 |
Motor Case |
Aluminum |
14 |
Terminal Box |
Aluminum |
23 |
Impeller Nut |
Galvanizated Steel |
|
6 |
Wound Stator |
Silicon Steel/copper |
15 |
Coupling |
Steel |
24 |
O-ring |
Rubber |
|
7 |
Impeller Key |
Iron |
16 |
Shaft |
SS304/45# Steel |
25 |
Pump Case |
Cast iron |
|
8 |
Rotor |
Silicon Steel |
17 |
Connection |
Cast iron |
|||
|
9 |
Bearing |
Ball Bearing |
18 |
Case Cover |
SS304 |

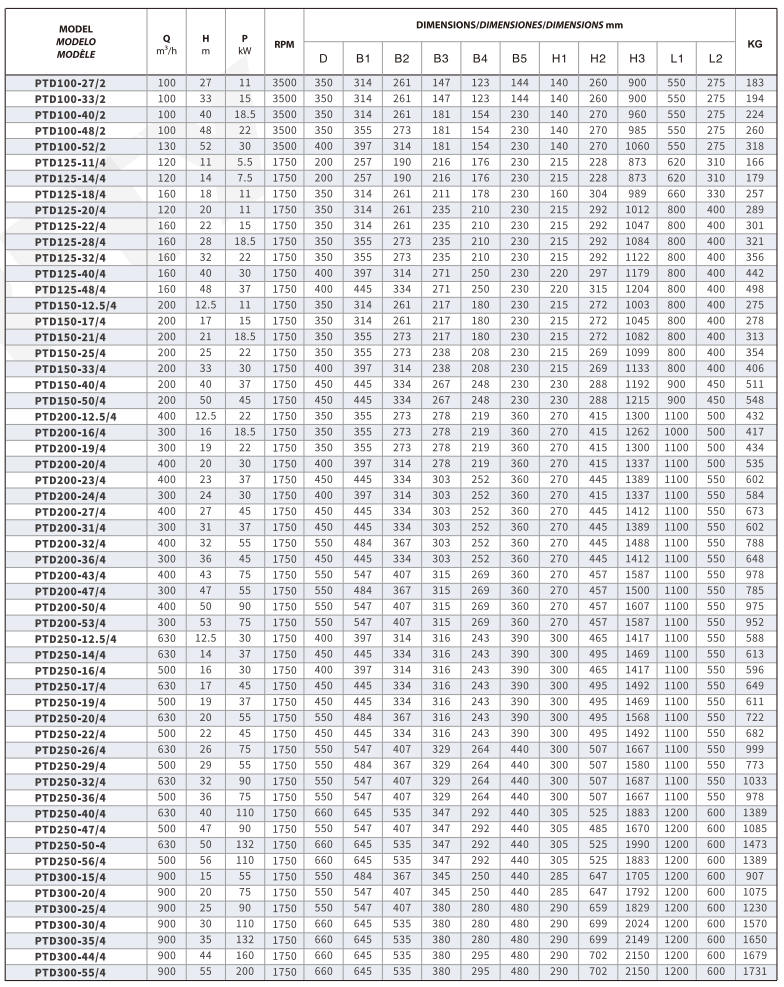

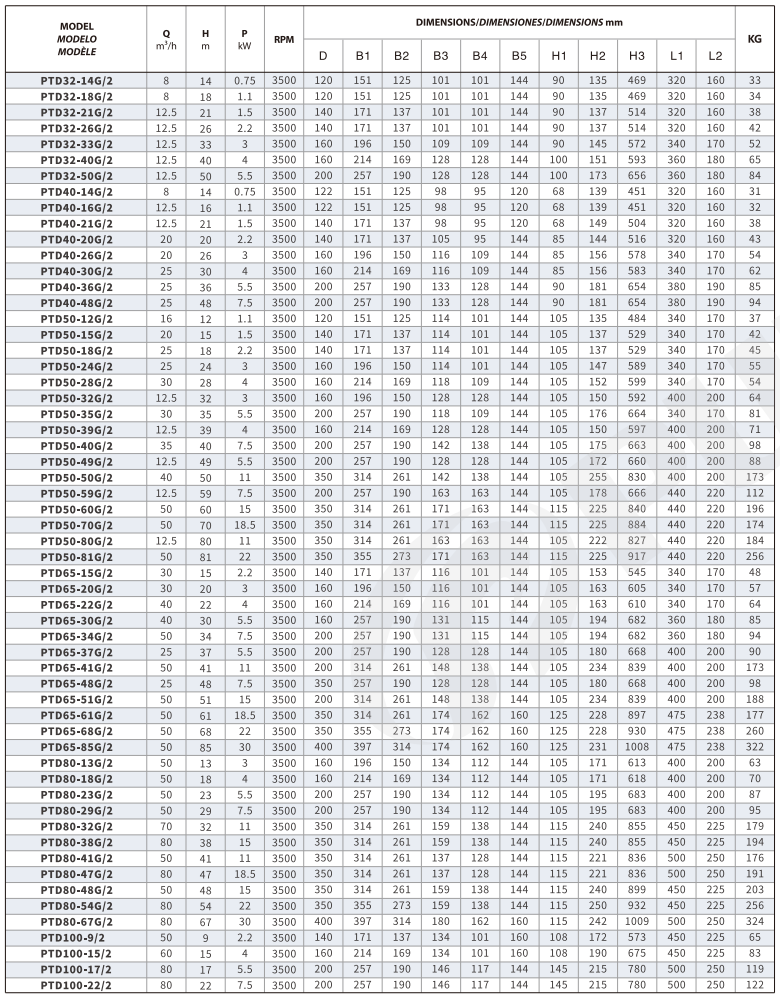

TECHNICAL DATA 60Hz n=3500 1/min
Other sizes can provide on request.
