[PV] Bomba jockey vertical multietapa de alta presión serie PV Filipinas de Purity para extinción de

DESCRIPCIÓN TÉCNICA
· Nueva bomba centrífuga vertical multietapa
· Diseño original de PURITY
· Motor cuadrado y motor redondo disponibles
· Motor YE3 de alta eficiencia, con protección IP55 clase F
· Carcasa de bomba con revestimiento anticorrosivo
· Impulsor en tecnopolímero
· Eje en acero inoxidable AISI 304 o hierro galvanizado
· Puerto de aspiración y descarga en hierro fundido rosca G20
· Rodamiento NSK de calidad, sello mecánico resistente al desgaste

3D PRODUCT CHAT NOW

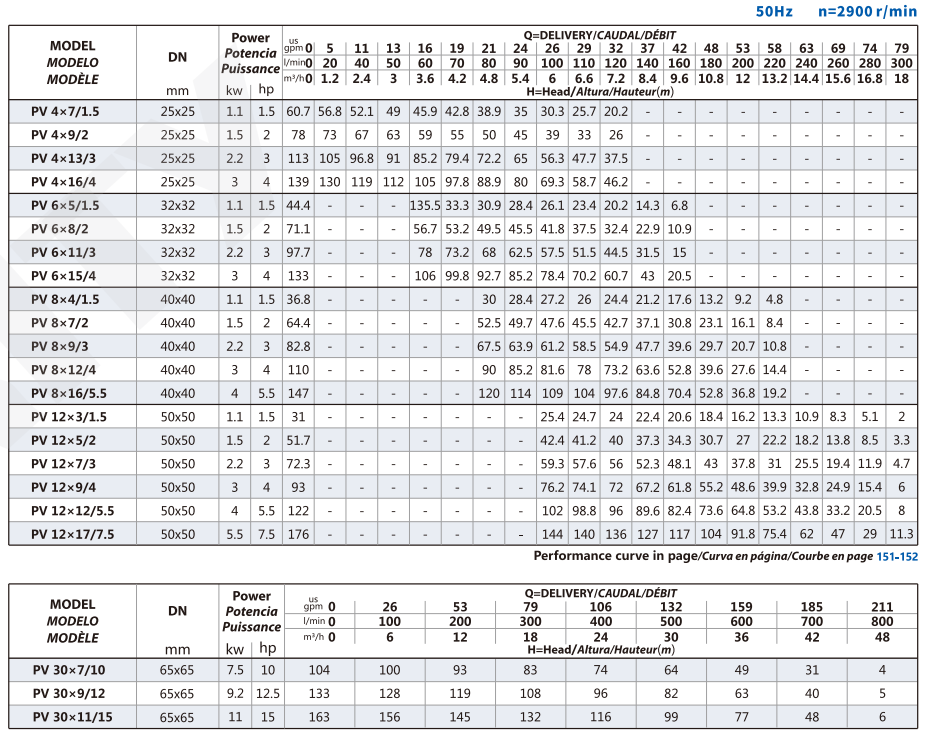

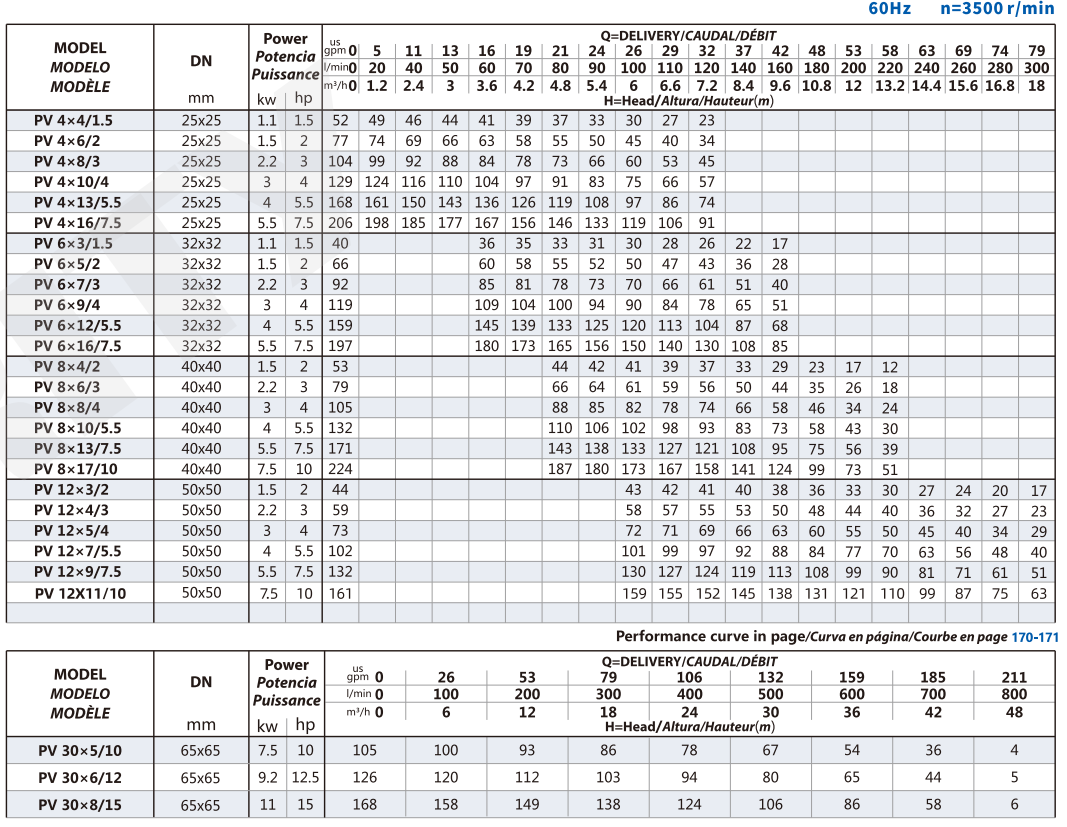

Product Specification (50HZ) 60HZ

Product Description

TECHNICAL DESCRIPTION
New vertical multistage centrifugal pump
Original design by PURITY
Both square motor & round motor available
YE3 high efficient motor, with protection IP55 class F
Pump case with anti-corrosive coating
Impeller in techno-polimer
Shaft in stainless steel AISI 304 or galvanized iron
Suction and discharge port in cast iron G20 thread
Quality NSK bearing, wear resistance mechanical seal

APPLICATIONS
Suitable for use with clean water and liquids that are not chemically

aggressive towards the materials from which the pump is made.

The high efficiency and adaptability of these pumps to even the most

unusual of applications, makes them ideal for use in the domestic,

civil and industrial sectors; in particular for the distribution of water

in combination with pressure sets and for pressure boosting.

USING LIMITS
Liquid temperature between -10℃ and +120℃
Ambient temperature up to +50℃
Max. working pressure 25 bar
Continuous service S1

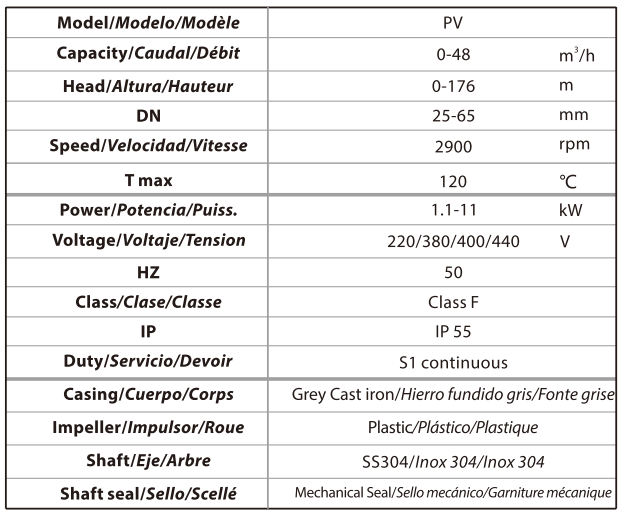

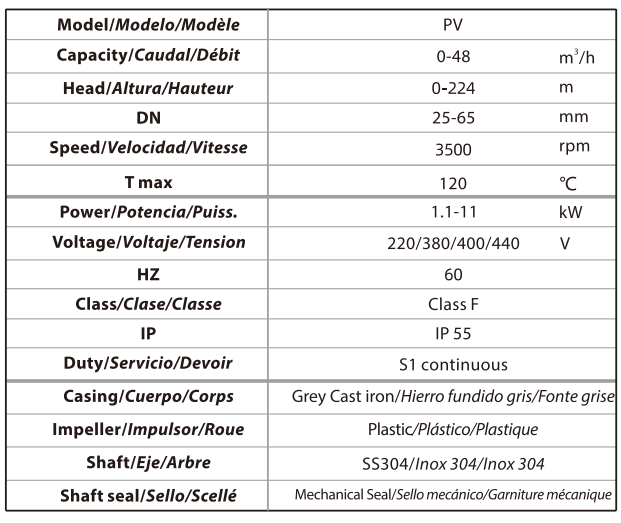

TECHNICAL DATA
