[WQV] Bomba de corte sumergible para aguas residuales de PURITY

• Nuevas bombas de corte sumergibles para aguas residuales
• Equipado con impulsor de aleación de vórtice con 48HR (dureza)
• Mejores características hidráulicas
• Carcasa de la bomba en hierro fundido robusto HT250 de gran calibre
• Carcasa resistente a la abrasión y duradera
• Motor YE3 de alta eficiencia, con protección IP68 clase F
• Eje en acero inoxidable AISI 304 o hierro galvanizado
• Puerto de descarga con pernos, tuercas y juntas
• Rodamiento NSK de calidad, sello mecánico resistente al desgaste
3D PRODUCT CHAT NOW

Related Products



Product Description


WQV Vortex Cutting Submersible Pump

TECHNICAL DESCRIPTION
New cutting submersible sewage pumps
Equipped with vortex alloy impeller with 48HR(hardness)
Better hydraulic characteristics
Pump case in heavy gauge robust cast iron HT250
Casing resistant to abrasion and long-lasting
YE3 high efficient motor, with protection IP68 class F
Shaft in stainless steel AISI 304 or galvanized iron
Discharge port with bolts,nuts and gastkets
Quality NSK bearing, wear resistance mechanical seal
APPLICATIONS
The WQV series pumps, manufactured from heavy gauge robust cast iron,resistant to
abrasion and long-lasting, are equipped with a VORTEX impeller and are therefore
suitable for draining dirty, filthy and refluent water,and water mixed with putrid mud.
They are suitable for installation in sewers,tunnels,canal,excavations,underground car parks,etc.
USING LIMITS
Temperature of the liquid to +40 °C
10 m maximum immersion depth
(with a sufficiently long power cable)
Solids passage:
from 25mm to 65mm

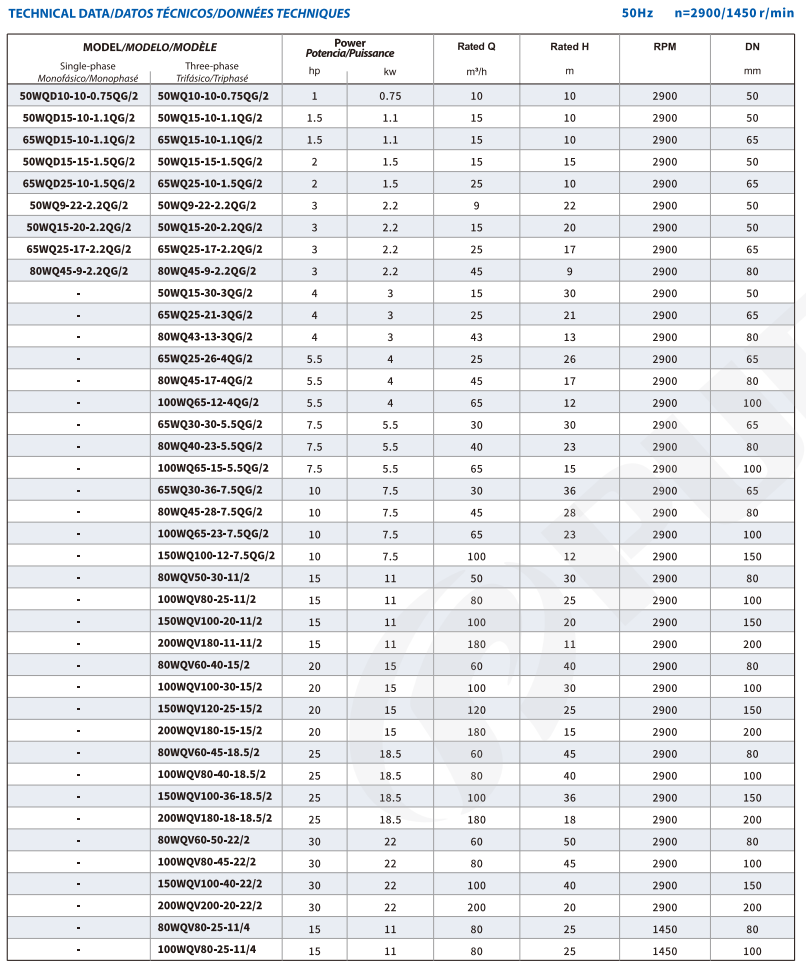

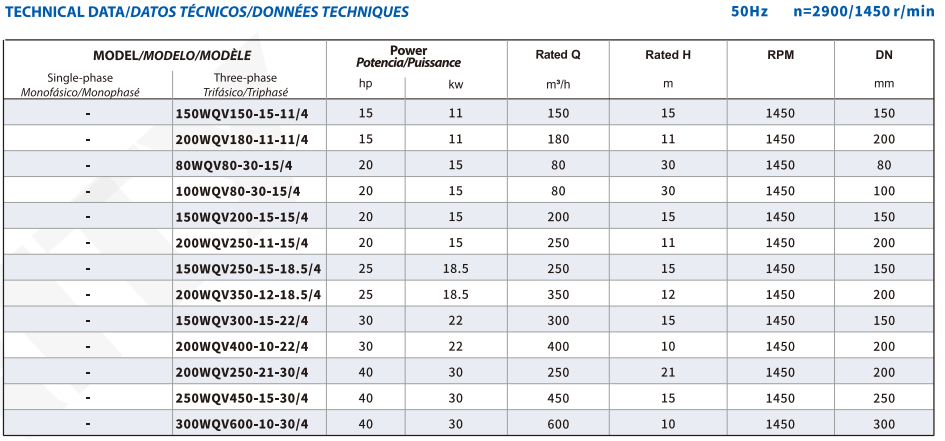

TECHNICAL DATA                    50Hz  n=2900/1450  1/min


No.

Description

Material

No.

Description

Material

1

Motor cover

Cast iron

9

Base

Cast iron

2

Plate

Cast iron

10

Cutter plate

Alloy 48HR

3

Motor Case

Cast iron

11

Pump Case

Cast iron

4

Wound Stator/Rotor

Silicon Steel/Copper

12

Impeller Nut

Galvanizated Steel

5

Bearing

Ball Bearing

13

Impeller

Alloy 48HR

6

Shaft

SS304/45# Steel

14

Mechanical Seal

SiC/Carbon/SS304

7

Chamber

Cast iron

15

Seal plate

Cast iron

8

Output flange

Cast iron



Contact Us



Please send inquiry to mina@cnpurity.com for prompt reply !



Production Line



Packaging & Shipping



Our Exhibition



Certifications



Related Products



Product Description


WQV Vortex Cutting Submersible Pump

TECHNICAL DESCRIPTION
New cutting submersible sewage pumps
Equipped with vortex alloy impeller with 48HR(hardness)
Better hydraulic characteristics
Pump case in heavy gauge robust cast iron HT250
Casing resistant to abrasion and long-lasting
YE3 high efficient motor, with protection IP68 class F
Shaft in stainless steel AISI 304 or galvanized iron
Discharge port with bolts,nuts and gastkets
Quality NSK bearing, wear resistance mechanical seal
APPLICATIONS
The WQV series pumps, manufactured from heavy gauge robust cast iron,resistant to
abrasion and long-lasting, are equipped with a VORTEX impeller and are therefore
suitable for draining dirty, filthy and refluent water,and water mixed with putrid mud.
They are suitable for installation in sewers,tunnels,canal,excavations,underground car parks,etc.
USING LIMITS
Temperature of the liquid to +40 °C
10 m maximum immersion depth
(with a sufficiently long power cable)
Solids passage:
from 25mm to 65mm

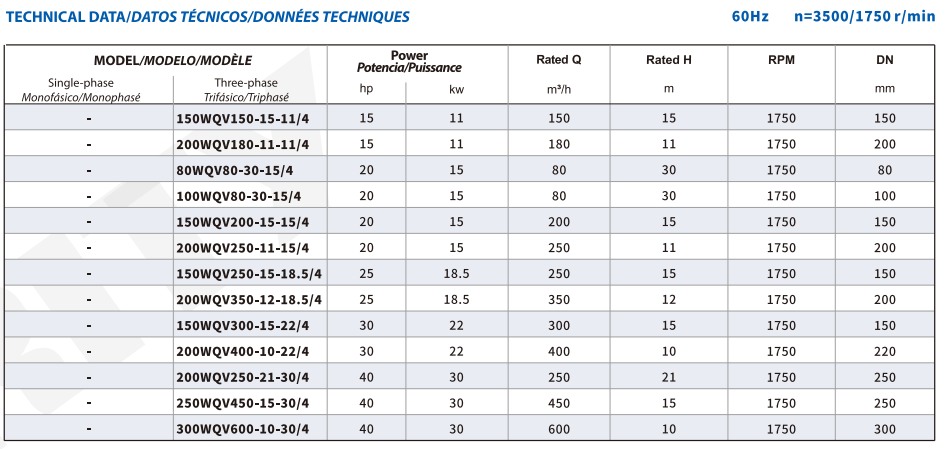

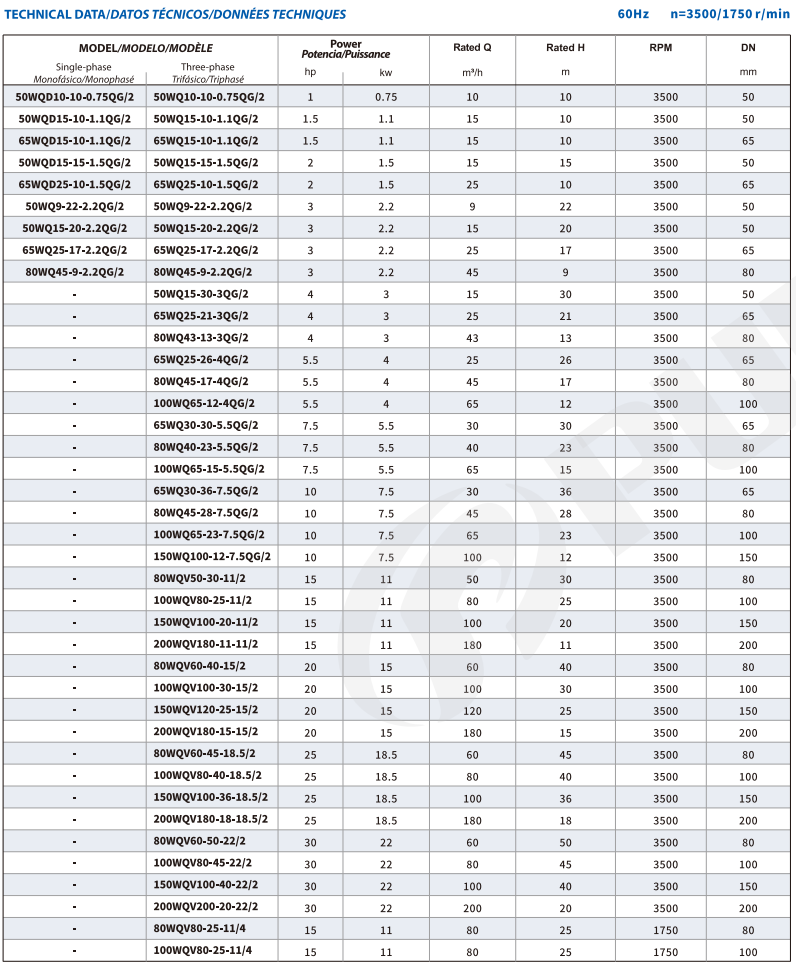

TECHNICAL DATA                     60Hz  n=3500/1750  1/min


No.

Description

Material

No.

Description

Material

1

Motor cover

Cast iron

9

Base

Cast iron

2

Plate

Cast iron

10

Cutter plate

Alloy 48HR

3

Motor Case

Cast iron

11

Pump Case

Cast iron

4

Wound Stator/Rotor

Silicon Steel/Copper

12

Impeller Nut

Galvanizated Steel

5

Bearing

Ball Bearing

13

Impeller

Alloy 48HR

6

Shaft

SS304/45# Steel

14

Mechanical Seal

SiC/Carbon/SS304

7

Chamber

Cast iron

15

Seal plate

Cast iron

8

Output flange

Cast iron
