[PGW] Bomba centrífuga de circulación horizontal Bomba de agua de tubería

DESCRIPCIÓN TÉCNICA
· Nueva bomba centrífuga
· Diseño original de PURITY (patentado)
· Motor YE3 de alta eficiencia, con protección IP55 clase F
· Carcasa de bomba con revestimiento anticorrosivo
· Impulsor en acero inoxidable AISI 304 o hierro fundido
· Eje en acero inoxidable AISI 304 o hierro galvanizado
· Rodamiento de calidad, sello mecánico resistente al desgaste

3D PRODUCT CHAT NOW

Product Specification (50HZ) 60HZ

Related Products

Product Description

TECHNICAL DESCRIPTION

New centrifugal pump

Original design by PURITY (patented)

YE3 high efficient motor, with protection IP55 class F

Pump case with anti-corrosive coating

Impeller in stainless steel AISI 304 or cast iron

Shaft in stainless steel AISI 304 or galvanized iron

Quality bearing, wear resistance mechanical seal

APPLICATIONS

Suitable for use with clean water and liquids that are not chemically

aggressive towards the materials from which the pump is made.

The centrifugal pumps are recommended for use in water supply,

cleaning sets, pressure boosting, firefighting sets, irrigation, industrial

applications, water circulation in climatisation sets, agricultural.

USING LIMITS

Liquid temperature between -10℃ and +120℃

Ambient temperature up to +50℃

Max. working pressure 16 bar

Continuous service S1

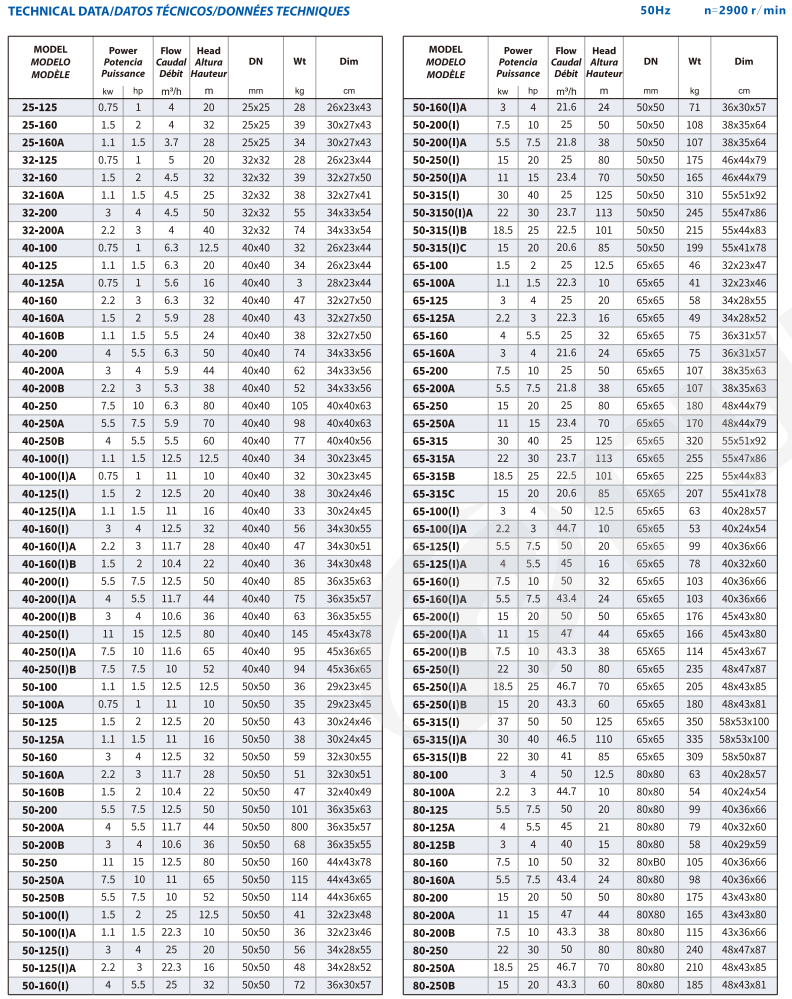

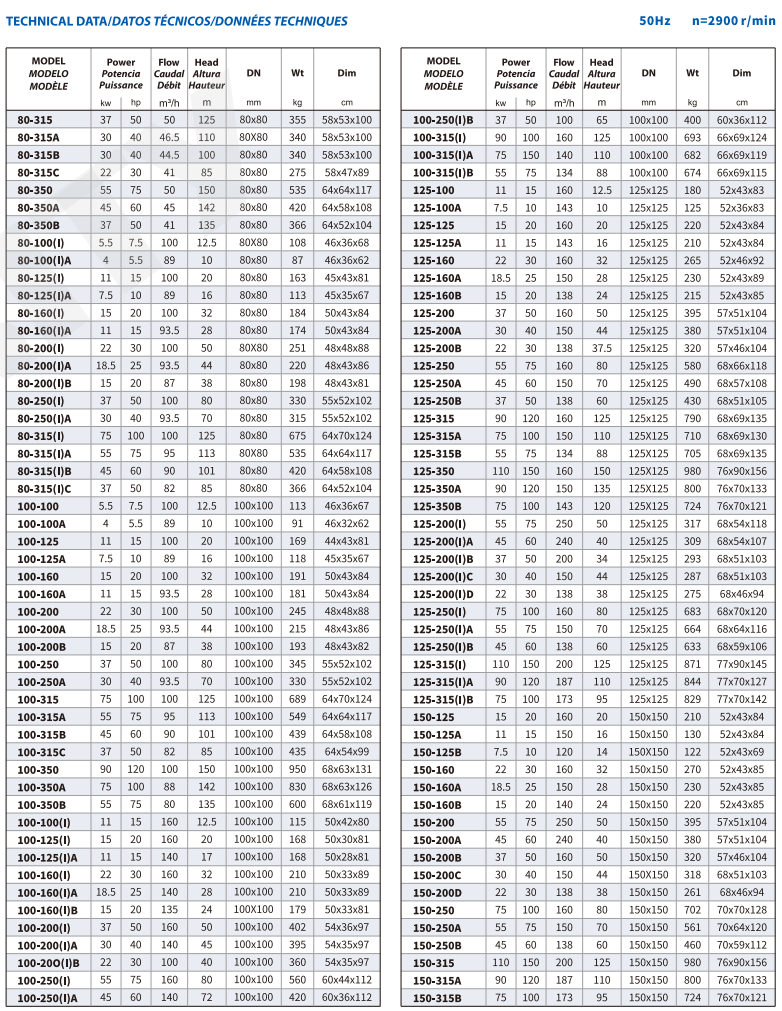

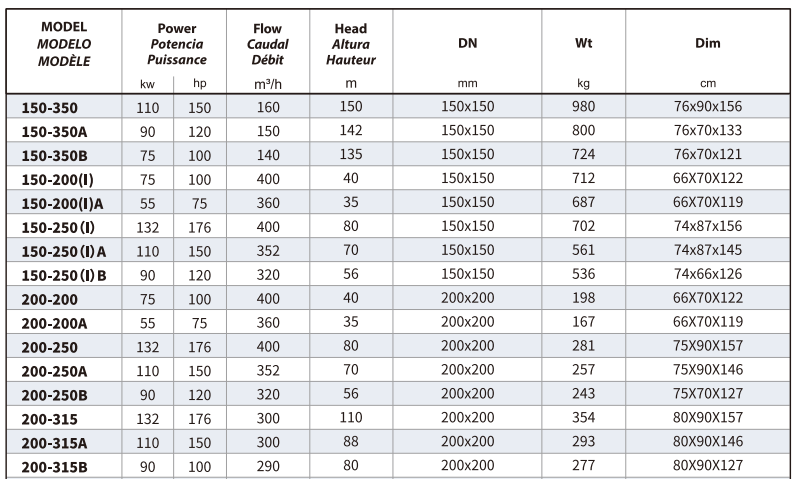

TECHNICAL DATA / DATOS TéCNICOS 50Hz n=2900 1/min

TECHNICAL DATA / DATOS TéCNICOS 50Hz n=1450 1/min

No.	Description	Material	No.	Description	Material	No.	Description	Material
1	Bearing	Ball Bearing	4	Impeller	SS304/Cast iron	7	Mechanical Seal	SiC/Carbon/SS304
2	Water Deflector	Rubber	5	Impeller Nut	Galvanizated Steel	8	Connection	Cast iron
3	Pump Case	Cast iron	6	Shaft	SS304/45# Steel	9	Motor	IP55 Class F
