WQV

[WQV] Bomba de aguas residuales de corte de vórtice de la bomba de pureza para agua sucia

DESCRIPCIÓN TÉCNICA
· Nuevo diseño de bomba para extinción de incendios
· Diseño original de PURITY (patentado)
· Motor cuadrado y motor redondo disponibles
· Motor YE3 de alta eficiencia, con protección IP55 clase F
· Carcasa de bomba con revestimiento anticorrosivo
· Impulsor en acero inoxidable AISI 304 o latón
· Eje en acero inoxidable AISI 304
· Contrabrida galvanizada con pernos, tuercas y juntas
· Rodamiento NSK de calidad, sello mecánico resistente al desgaste
· Modelos para capacidades desde 80-5000 US GPM

3D PRODUCT CHAT NOW

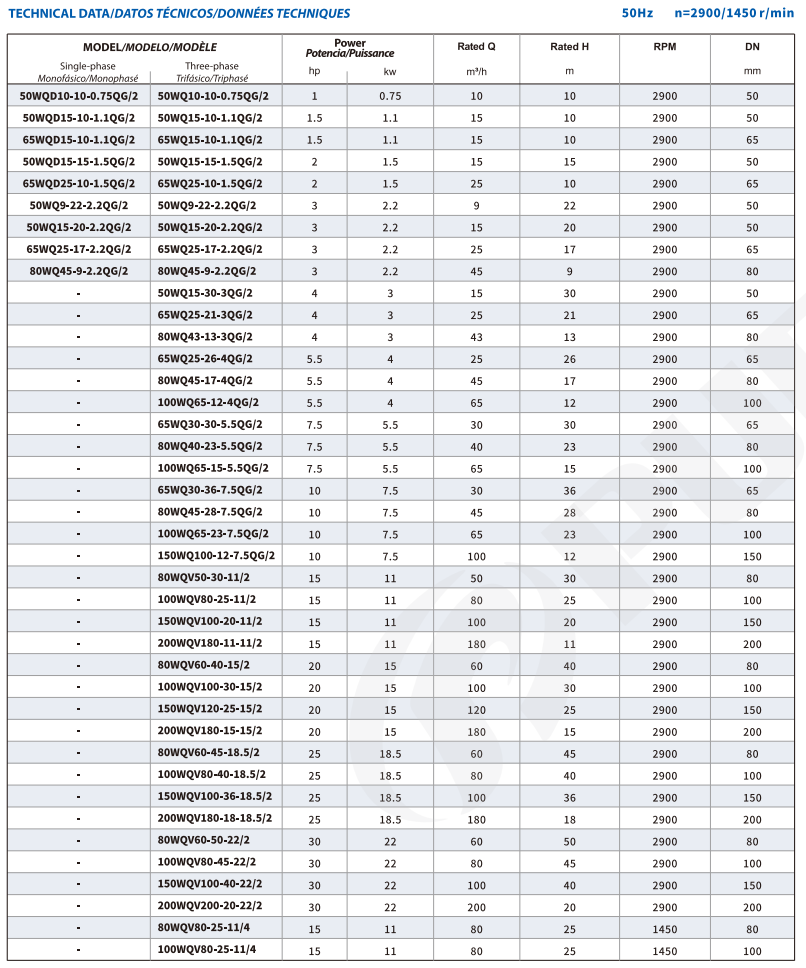

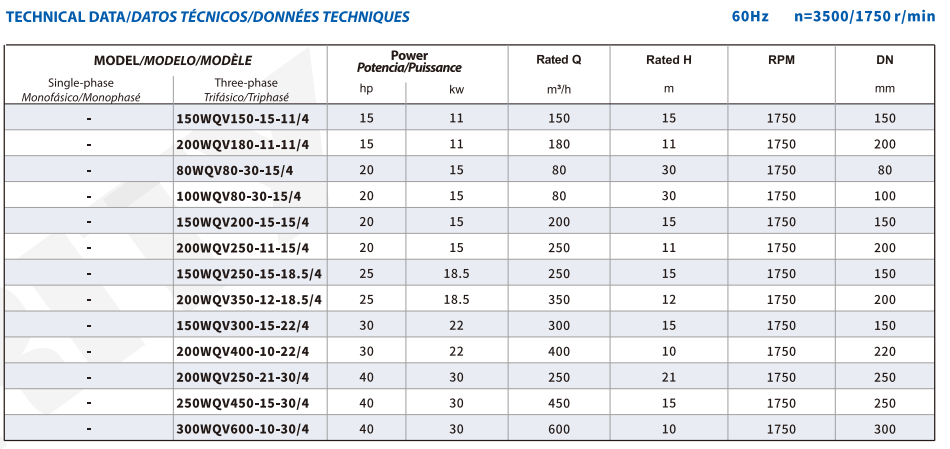

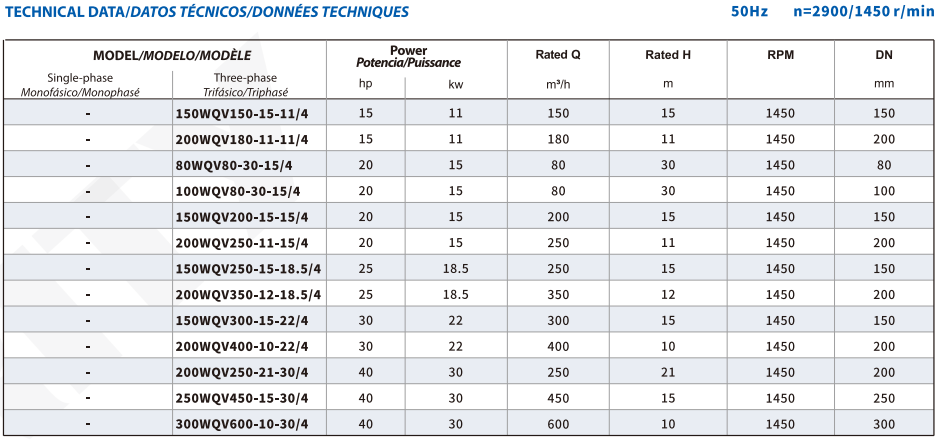

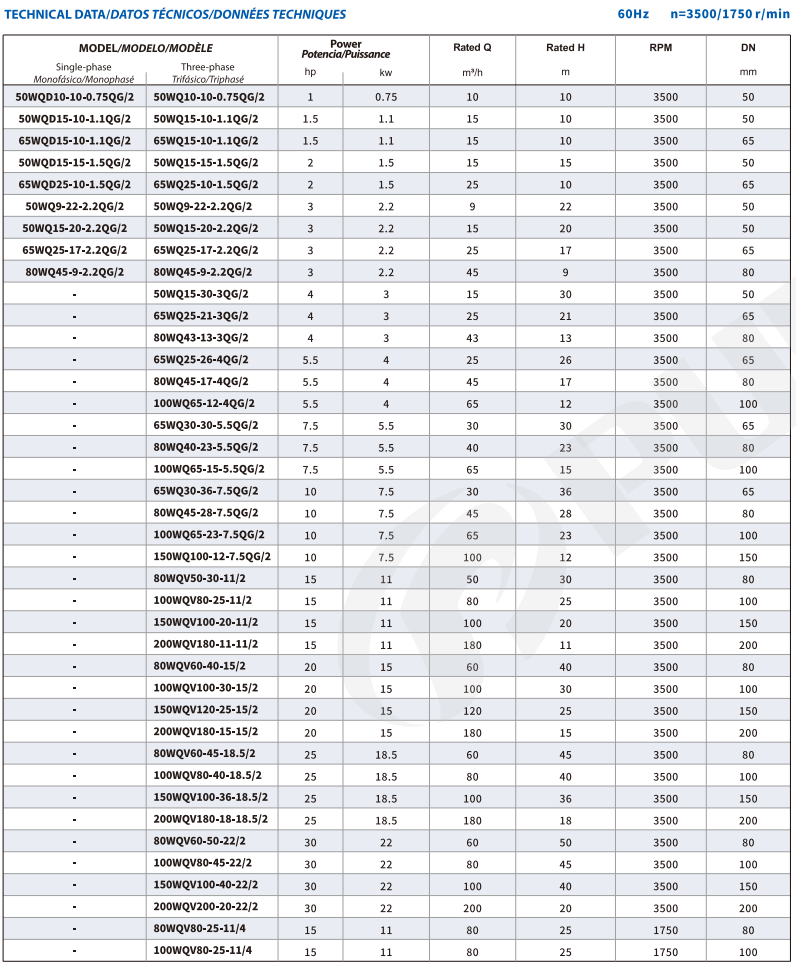

Product Specification (50HZ) 60HZ

TECHNICAL DESCRIPTION
New cutting submersible sewage pumps
Equipped with vortex alloy impeller with 48HR(hardness)
Better hydraulic characteristics
Pump case in heavy gauge robust cast iron HT250
Casing resistant to abrasion and long-lasting
YE3 high efficient motor, with protection IP68 class F
Shaft in stainless steel AISI 304 or galvanized iron
Discharge port with bolts,nuts and gastkets
Quality NSK bearing, wear resistance mechanical seal

APPLICATIONS
The WQV series pumps, manufactured from heavy gauge robust cast iron,resistant to

abrasion and long-lasting, are equipped with a VORTEX impeller and are therefore

suitable for draining dirty, filthy and refluent water,and water mixed with putrid mud.

They are suitable for installation in sewers,tunnels,canal,excavations,underground car parks,etc.

USING LIMITS
Temperature of the liquid to +40 °C
10 m maximum immersion depth
(with a sufficiently long power cable)
Solids passage:
from 25mm to 65mm
