PEDJ

Unidad de bomba contraincendios bomba eléctrica diesel regulada (pedj 60Hz)

• conmutación automática entre tres bombas
• funciona cuando la energía está apagada
• rodamientos NSK de alta calidad, sellos mecánicos resistentes al desgaste
• circuito disponible bajo petición
• cargador electrónico de baterías
3D PRODUCT CHAT NOW

Product Description



PEDJ series Skid Mounted Fire Pump System from Purity




PEDJ Fire Pump Set consists of End Suction Centrifugal Pump driven by

Electric Motor, End Suction Diesel Pump, and Vertical Jockey Pump.

Pumps are assembled with discharge line accessories as well as Control Panel.


Available Flow Capacities 50-1500GPM.
Availabel Head/Pressure 1-14bar.
Accessories include Suction pipe, Discharge pipe with Flanges, Battery,

Gate Valves, Check Valves, Flexible Expansion Joints, Pressure Switches,

Pressure Gauge, Base Frame, etc.


Advantages

Switch Automatically among the three pumps
Both Manual and Automatic operation is available
Can work when the power is off
Easy Installation
Customized size and pump group
YE3 high efficient motor with protection IP55 class F
High performance and low power consumption
Pump case with Anti-corrosive coating
With quality NSK bearings, wear resistance mechanical seal
Circuit available up on request
Different Mounting Styles
Low Maintenance Cost and available spare parts
Electronic battery charger


Detail Structure

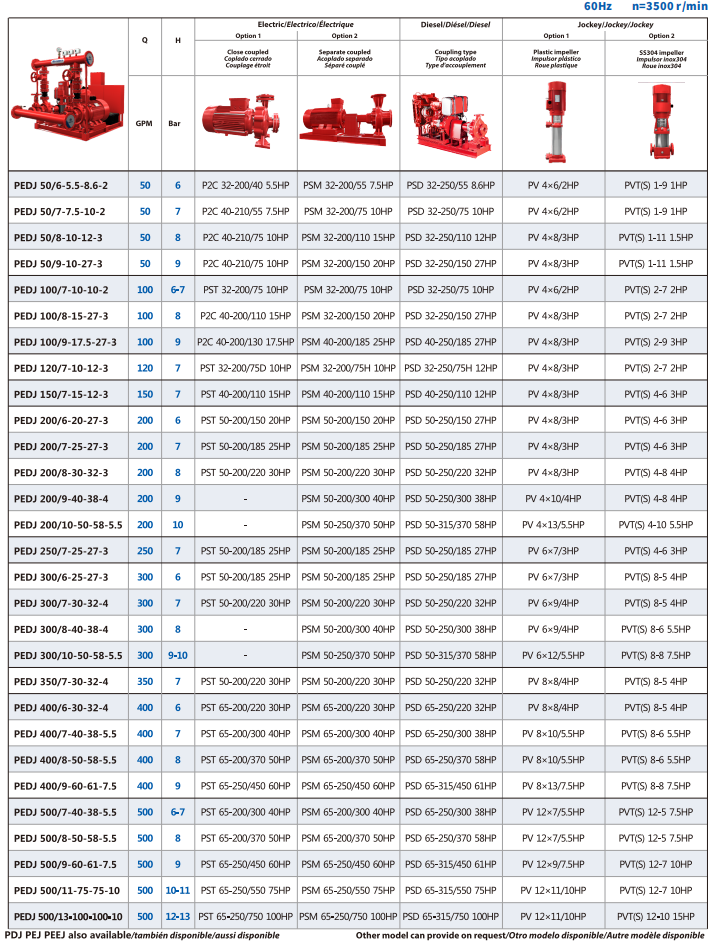

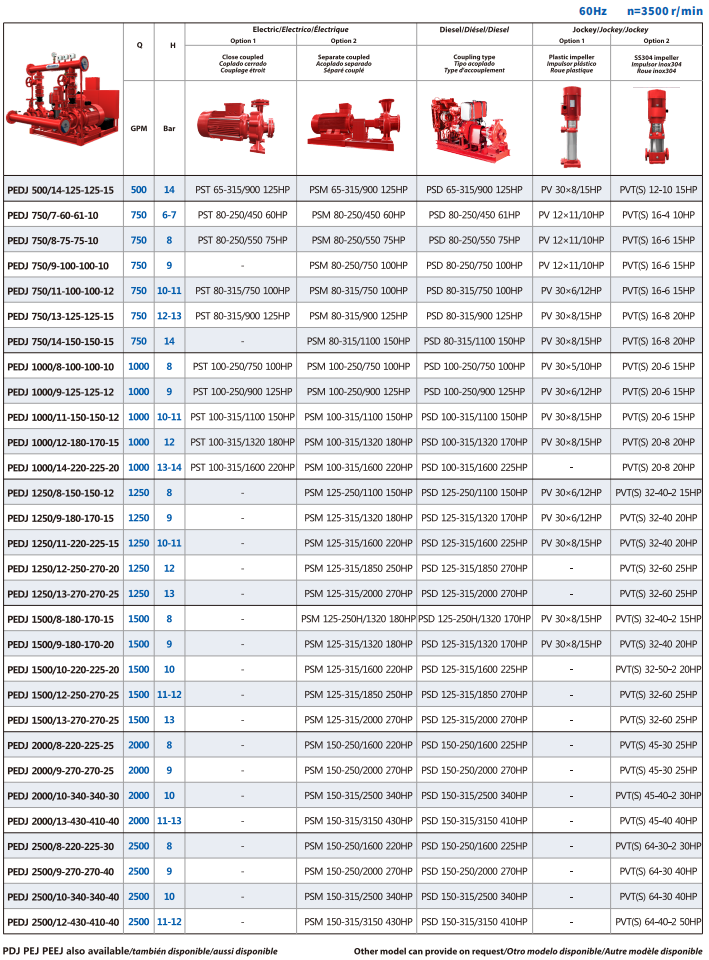

Fire Pump System Models




Fire Pump System Technical Data

Different Sets Fire Pump System Models




Fire Pump System Accessories
