PEJ

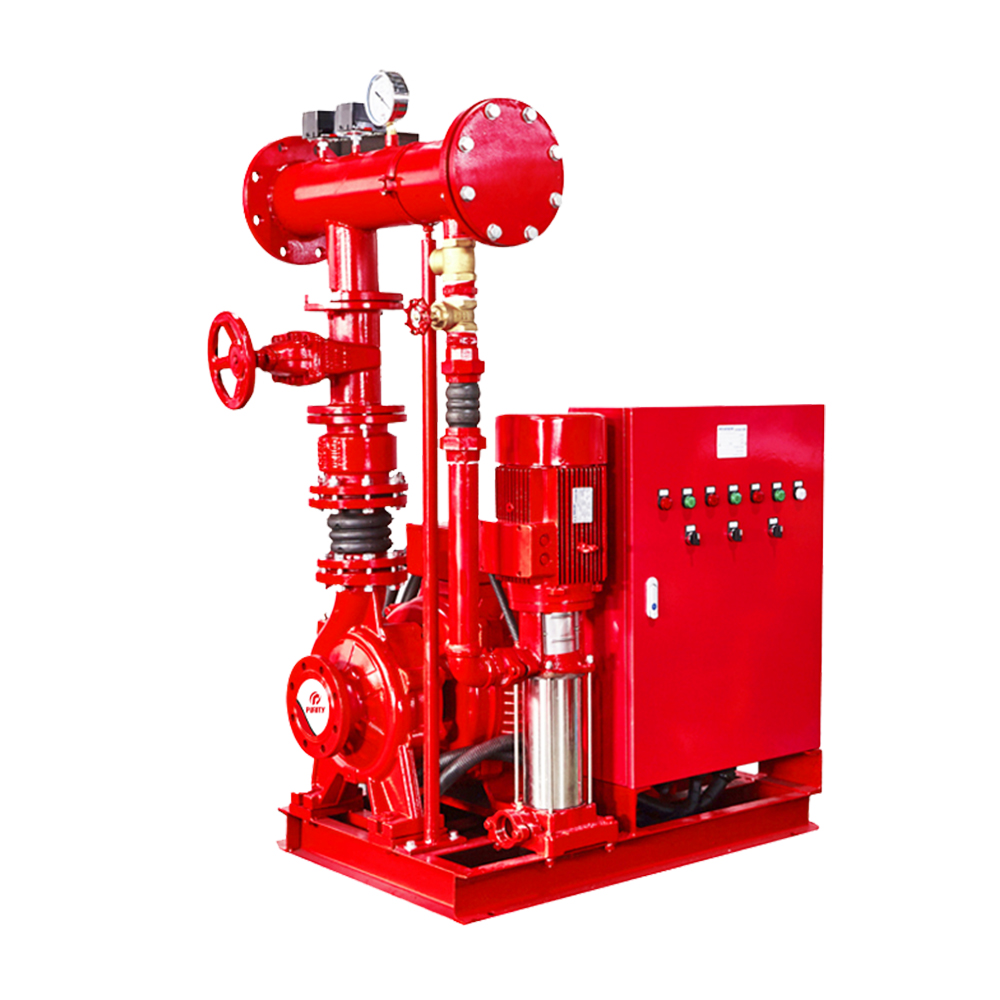

Sistema de bombeo de lucha contra incendios PEJ

Descripción técnica
Diseño original puro
• motores cuadrados y circulares disponibles
Motor de alta eficiencia ye3, clase de protección ip55 F
Carcasa de la bomba con recubrimiento anticorrosivo
Impulsor en tecno - polimer
El eje está hecho de acero inoxidable Aisi 304 o hierro galvanizado
Succión y descarga de hilo de hierro fundido G20
Rodamientos NSK de alta calidad, sellos mecánicos resistentes al desgaste
3D PRODUCT CHAT NOW

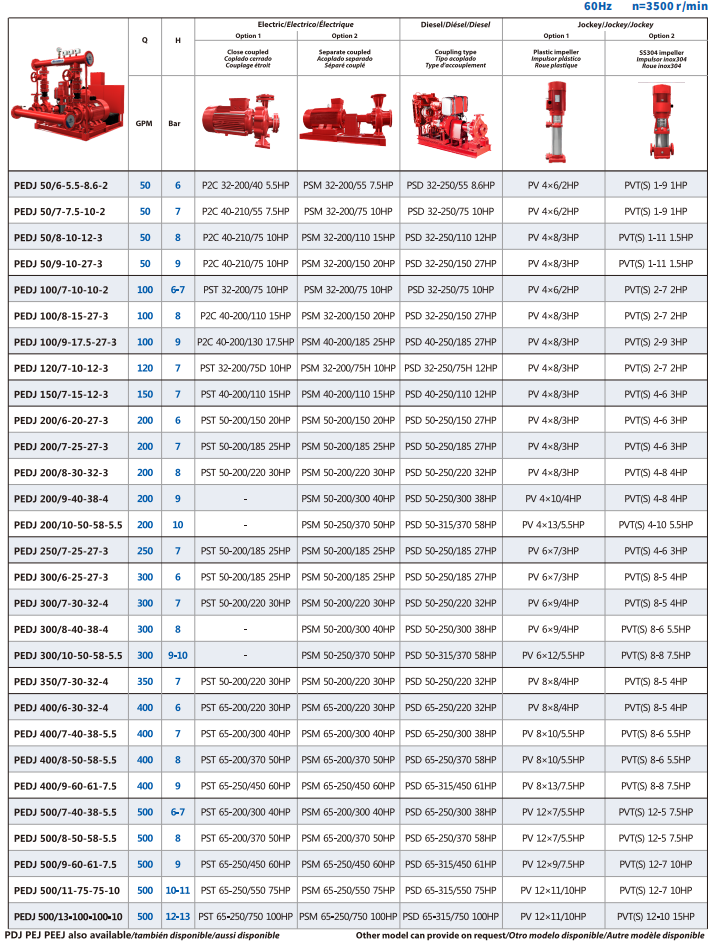

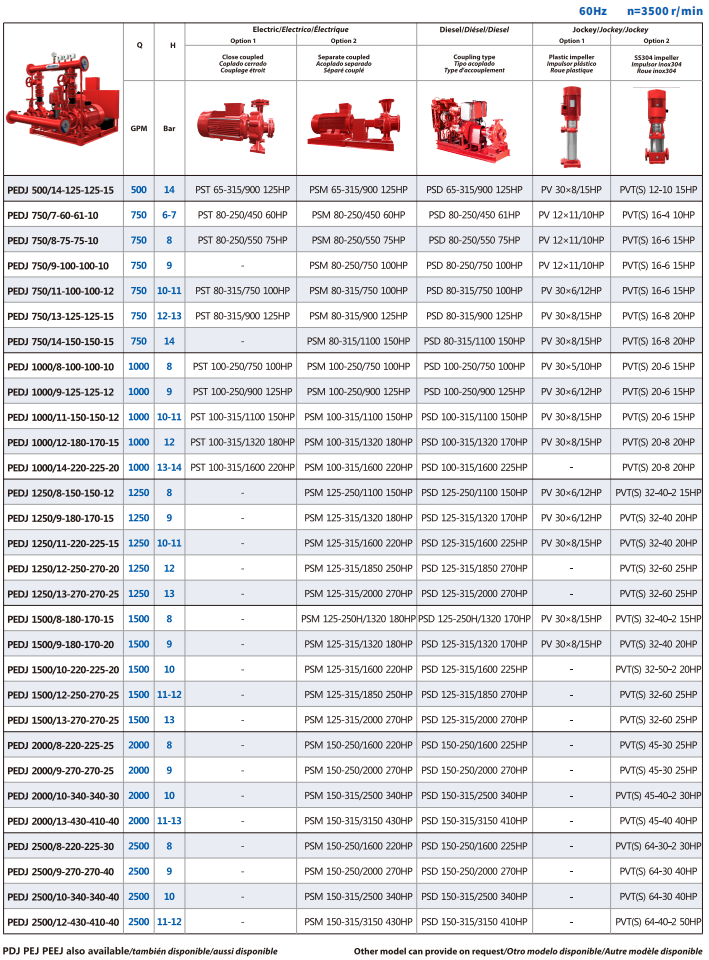

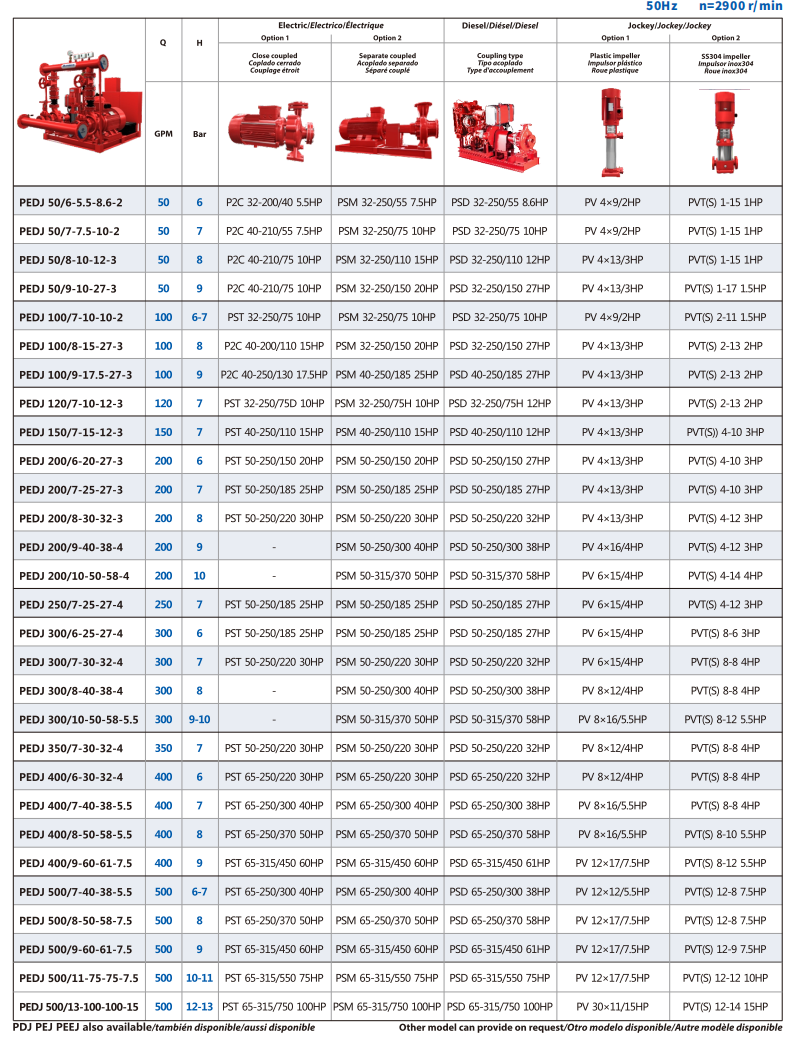

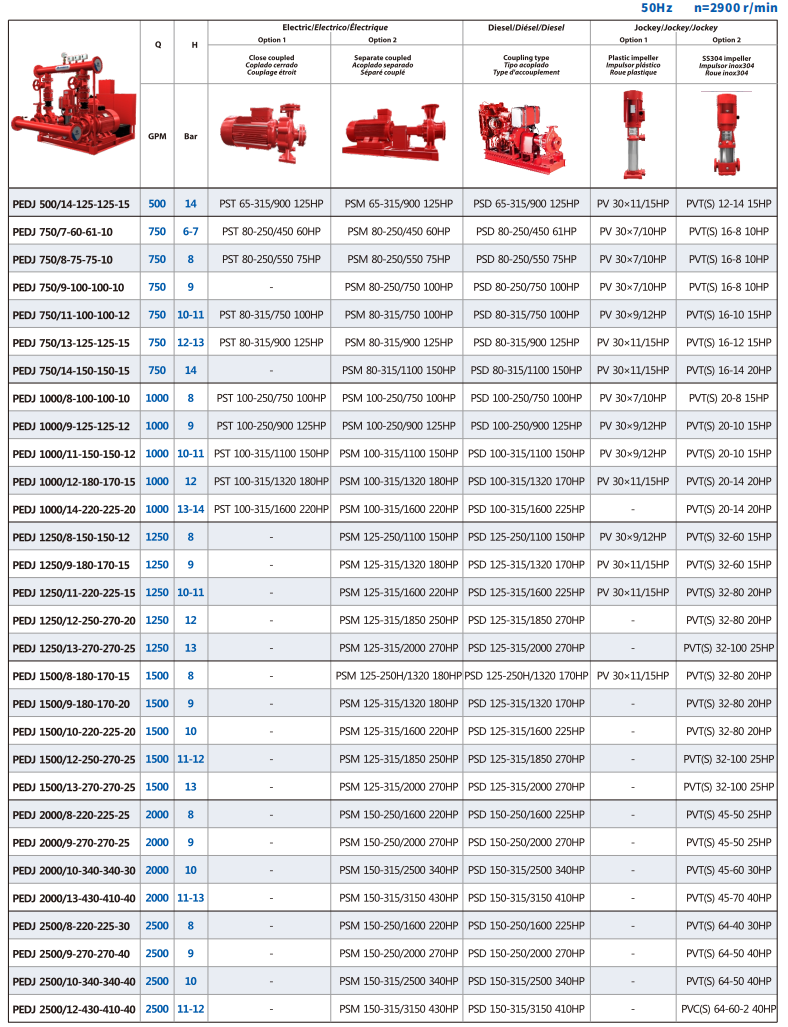

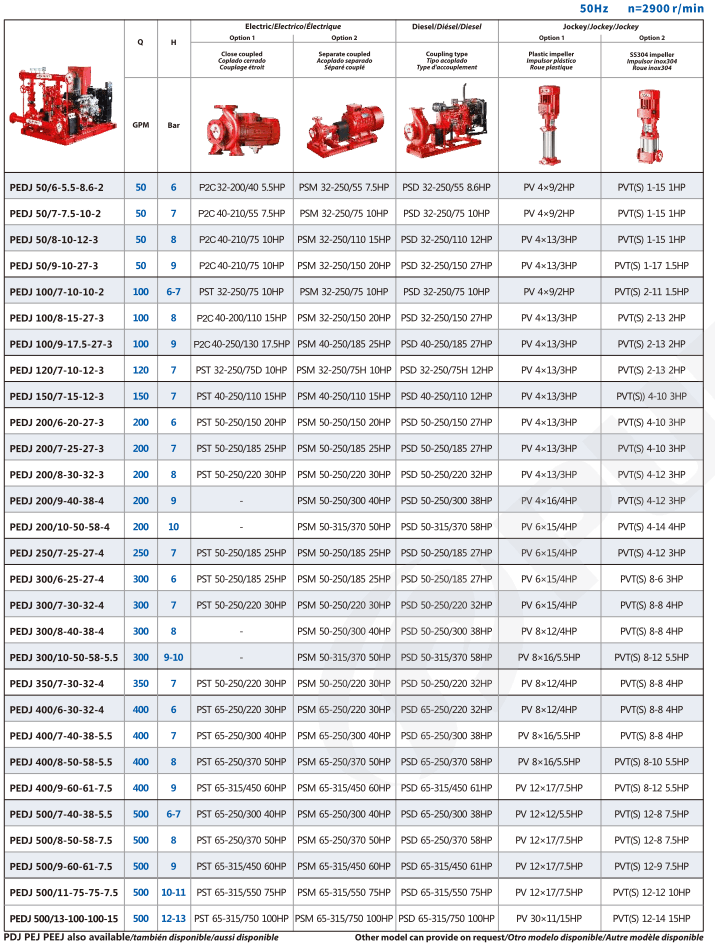

PEJ Fire Pump System

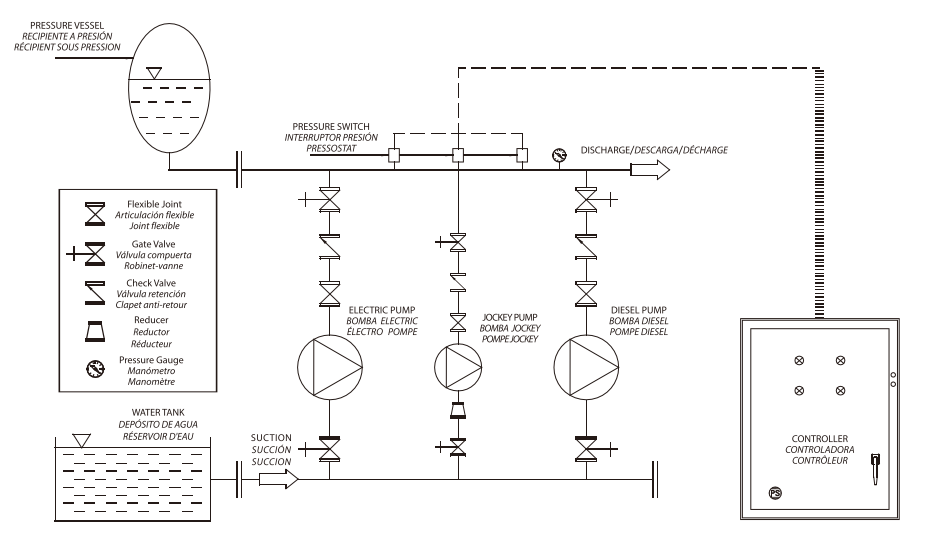

Multistage Jockey Pump + End Suction Centrifugal Pump+Control Panel Board

End Suction Horizontal Centrifugal Fire Pump


Vertical Multistage Jockey Fire Pump




Control Panel Board


NEW/NUEVO


TECHNICAL DESCRIPTION
· New vertical multistage centrifugal pump
· Original design by PURITY
· Both square motor & round motor available
· YE3 high efficient motor, with protection IP55 class F
· Pump case with anti-corrosive coating
· Impeller in techno-polimer
· Shaft in stainless steel AISI 304 or galvanized iron
· Suction and discharge port in cast iron G20 thread
· Quality NSK bearing, wear resistance mechanical seal


USING LIMITS
· Liquid temperature between -10℃ and +120℃
· Ambient temperature up to +50℃
· Max. working pressure 25 bar
· Continuous service S1


APPLICATIONS
· Suitable for use with clean water and liquids that are not chemically aggressive towards the materials from which the pump is made. The high efficiency and adaptability of these pumps to even the most unusual of applications, makes them ideal for use in the domestic, civil and industrial sectors; in particular for the distribution of water in combination with pressure sets and for pressure boosting.


PEJ Fire Pump System

Multistage Jockey Pump + End Suction Centrifugal Pump+Control Panel Board

End Suction Horizontal Centrifugal Fire Pump


Vertical Multistage Jockey Fire Pump




Control Panel Board


NEW/NUEVO


TECHNICAL DESCRIPTION
· New vertical multistage centrifugal pump
· Original design by PURITY
· Both square motor & round motor available
· YE3 high efficient motor, with protection IP55 class F
· Pump case with anti-corrosive coating
· Impeller in techno-polimer
· Shaft in stainless steel AISI 304 or galvanized iron
· Suction and discharge port in cast iron G20 thread
· Quality NSK bearing, wear resistance mechanical seal


USING LIMITS
· Liquid temperature between -10℃ and +120℃
· Ambient temperature up to +50℃
· Max. working pressure 25 bar
· Continuous service S1


APPLICATIONS
· Suitable for use with clean water and liquids that are not chemically aggressive towards the materials from which the pump is made. The high efficiency and adaptability of these pumps to even the most unusual of applications, makes them ideal for use in the domestic, civil and industrial sectors; in particular for the distribution of water in combination with pressure sets and for pressure boosting.
