PSCMF Double Suction Split Case Centrifugal Water Pump With Electric Motor
TECHNICAL DESCRIPTION
New split case pump
Original design by PURITY (patented)
Available complete with electric motor or diesel engine
Easily back pull-out from driver
Pump case with anti-corrosive coating HT250
Impeller in stainless steel AISI 304 or HT250
Shaft in stainless steel AISI 304 or galvanized iron
Quality bearing,mechanical seal/gland packing
APPLICATIONS
Suitable for use with clean water and liquids that are not chemically
aggressive towards the materials from which the pump is made.
The split case pumps are recommended for use in water supply,
cleaning sets, pressure boosting, firefighting sets, irrigation, industrial
applications, water circulation in climatisation sets, agricultural.
USING LIMITS
Liquid temperature between -10℃ and +120℃
Ambient temperature up to +50℃
Max. working pressure 25 bar
Continuous service S1
MATERIAL DESCRIPTION
|
No. |
Description |
Material |
No. |
Description |
Material |
No. |
Description |
Material |
|
1 |
Block ring |
Rubber |
8 |
Seal house |
Cast iron |
15 |
Gland seal(Mechanical Seal) |
Synthepak(SiC-Carbon) |
|
2 |
O-ring |
Rubber |
9 |
Bearing |
Ball Bearing |
16 |
Release Valve |
Brass |
|
3 |
Flushing pipe |
SS304 |
10 |
Lock washer |
Steel |
17 |
Pump Case |
Cast iron |
|
4 |
Packing ring |
Carbon |
11 |
Shaft |
SS304/45# Steel |
18 |
Impeller |
SS304/Cast iron |
|
5 |
Valve |
Brass |
12 |
Shaft Key |
Iron |
19 |
Output flange |
Cast iron |
|
6 |
Pump cover |
Cast iron |
13 |
Input flange |
Cast iron |
20 |
Shaft sleeve |
SS304 |
|
7 |
Vent plug |
Brass |
14 |
Bolt |
Steel |
21 |
Bearing house |
Cast iron |

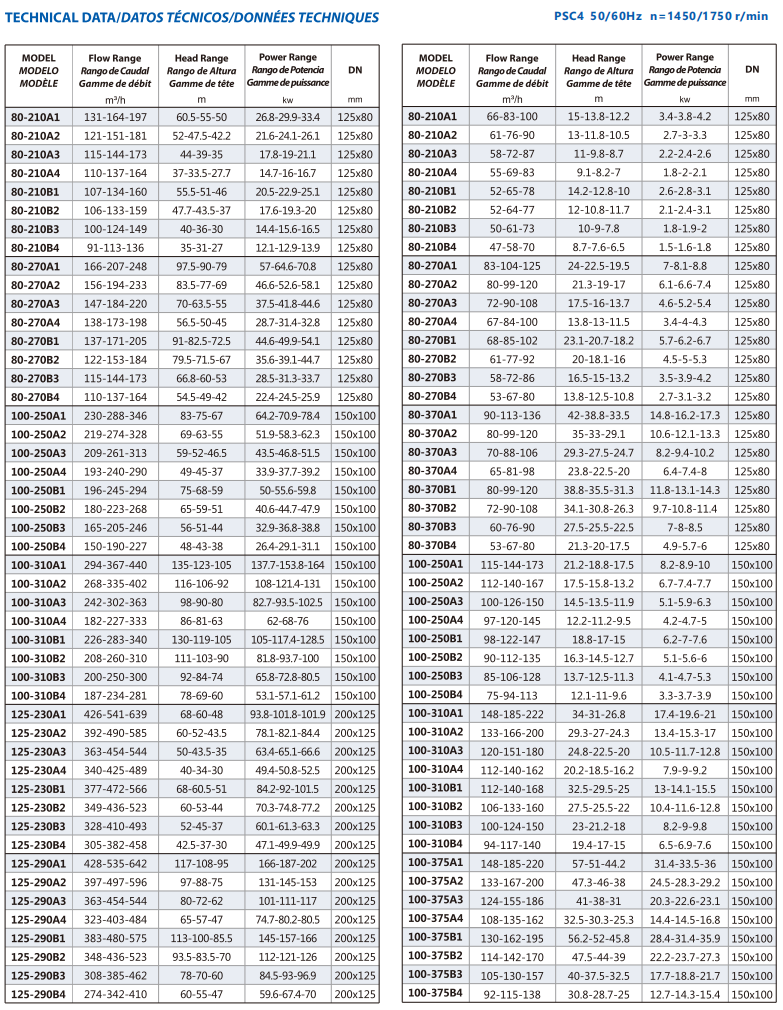

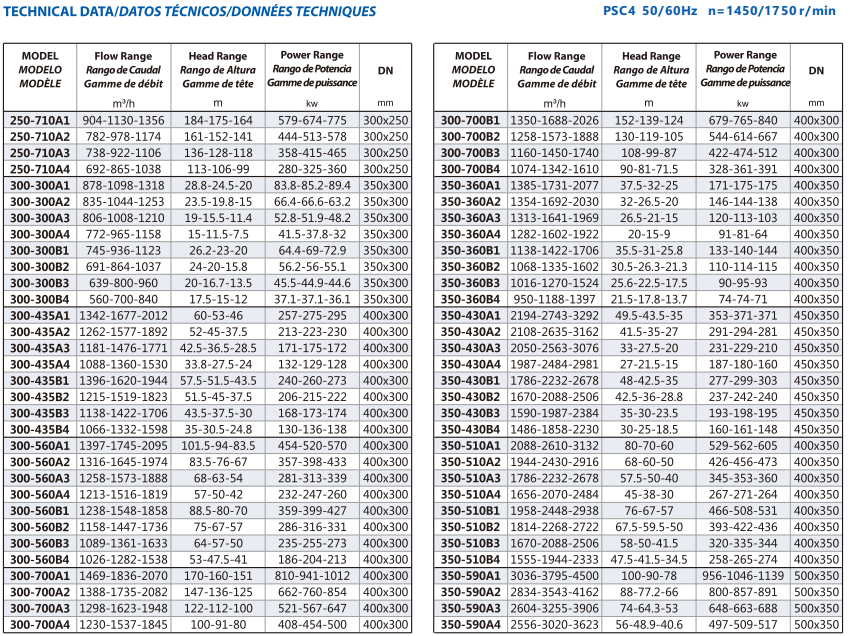

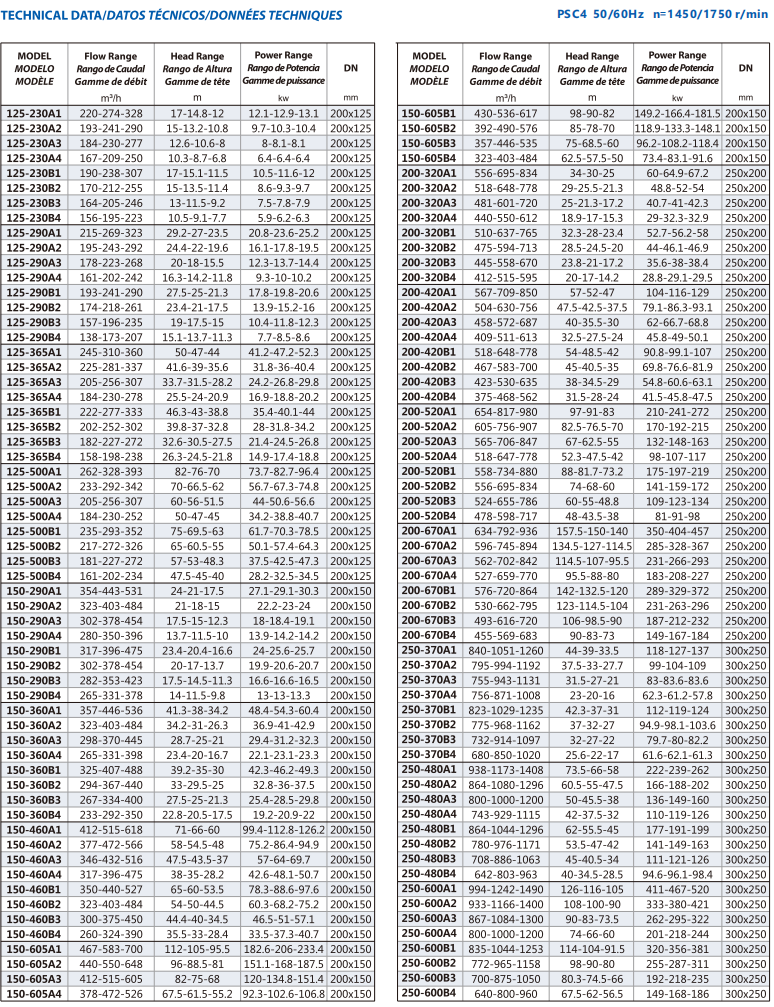

TECHNICAL DATA 50Hz n=2900 1/min

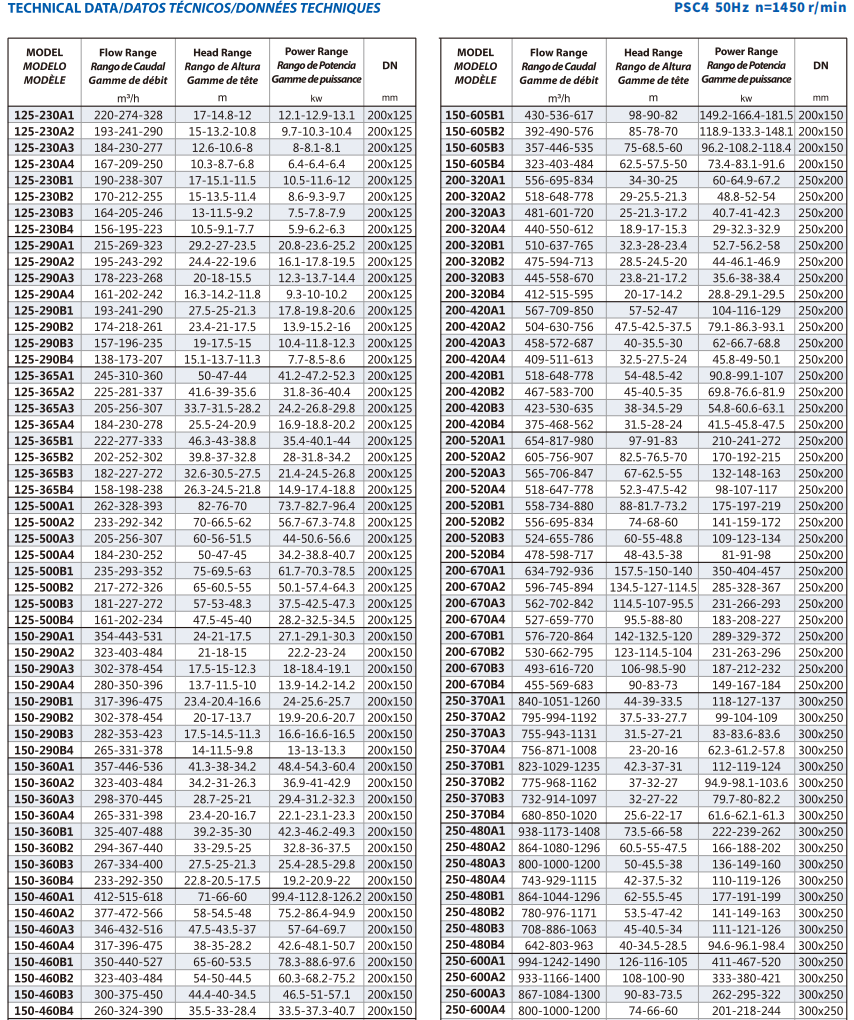

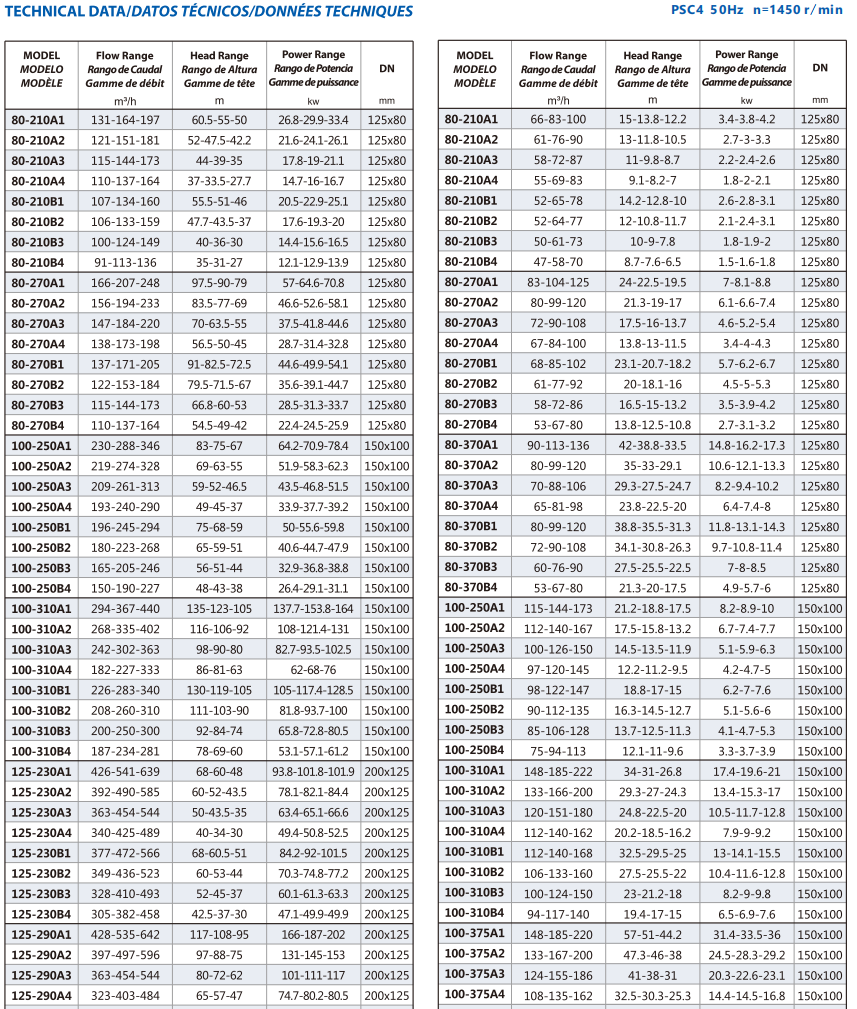

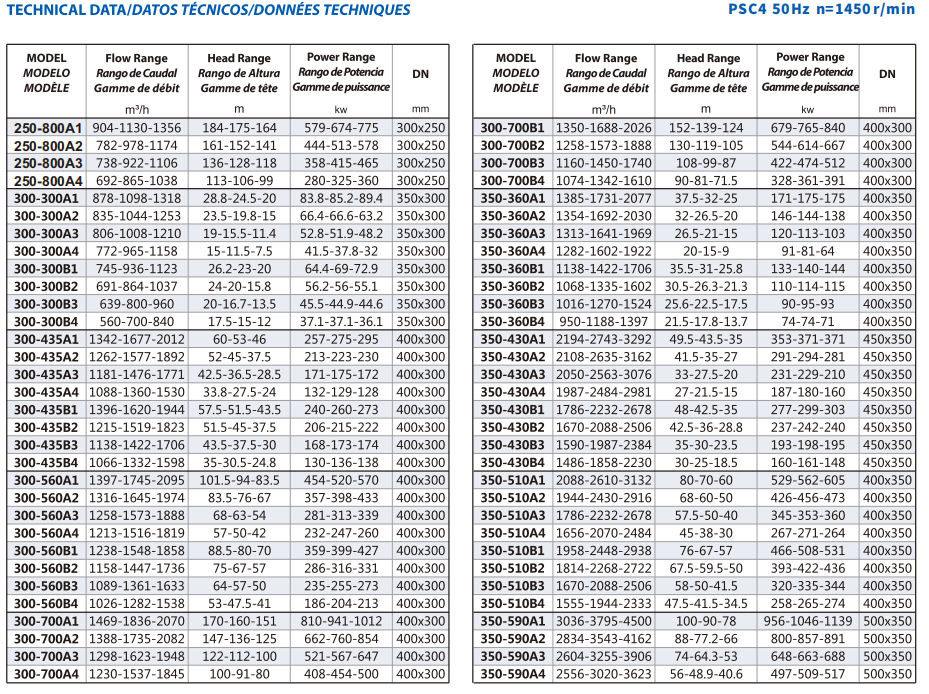

TECHNICAL DATA 50Hz n=1450 1/min
YE3 Electric Motor for Pump
YE3 Electric Motor for Pump
Production Line
Packaging & Shipping
Our Exhibition
Certifications
