WQV

[WQV]Vortex cutting sewage water pump from purity pump for dirty water

TECHNICAL DESCRIPTION
· New pump design for fire fighting
· Original design by PURITY (patented)
· Both square motor & round motor available
· YE3 high efficient motor, with protection IP55 class F
· Pump case with anti-corrosive coating
· Impeller in stainless steel AISI 304 or brass
· Shaft in stainless steel AISI 304
· Galvanized counter flange with bolts, nuts and gaskets
· Quality NSK bearing, wear resistance mechanical seal
· Models for capacities from 80-5000 US GPM

3D PRODUCT CHAT NOW

Product Specification (50HZ) 60HZ

TECHNICAL DESCRIPTION

New cutting submersible sewage pumps
Equipped with vortex alloy impeller with 48HR(hardness)
Better hydraulic characteristics
Pump case in heavy gauge robust cast iron HT250
Casing resistant to abrasion and long-lasting
YE3 high efficient motor, with protection IP68 class F
Shaft in stainless steel AISI 304 or galvanized iron
Discharge port with bolts,nuts and gastkets
Quality NSK bearing, wear resistance mechanical seal

APPLICATIONS
The WQV series pumps, manufactured from heavy gauge robust cast iron,resistant to

abrasion and long-lasting, are equipped with a VORTEX impeller and are therefore

suitable for draining dirty, filthy and refluent water,and water mixed with putrid mud.

They are suitable for installation in sewers,tunnels,canal,excavations,underground car parks,etc.

USING LIMITS
Temperature of the liquid to +40 °C
10 m maximum immersion depth
(with a sufficiently long power cable)
Solids passage:
from 25mm to 65mm

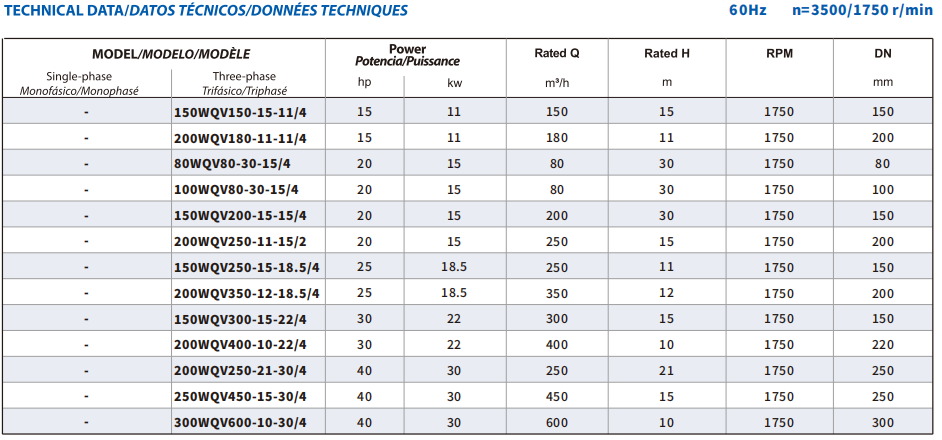

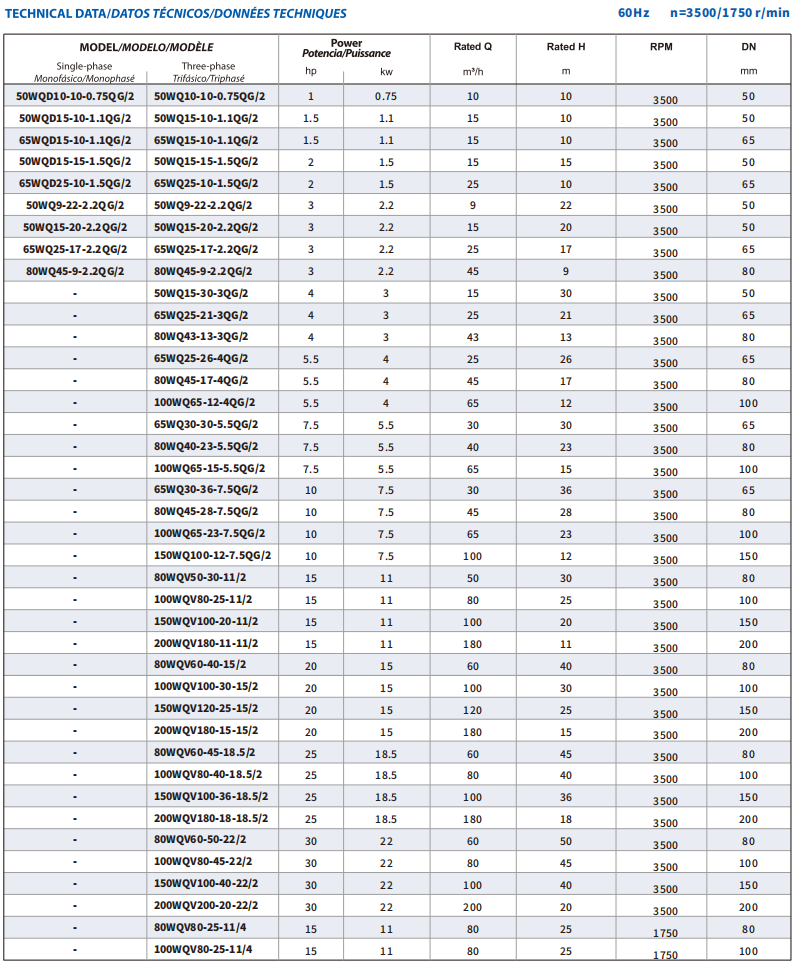

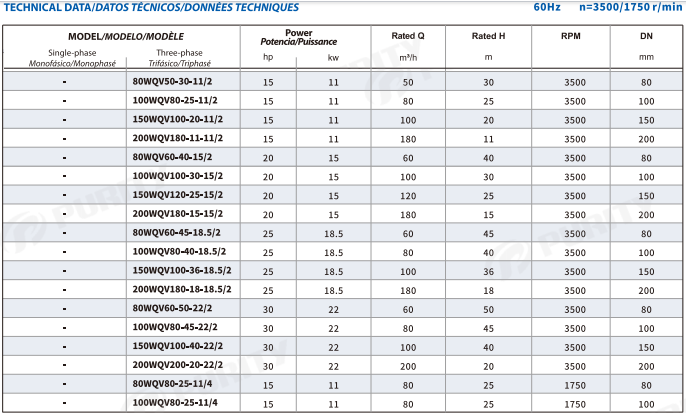

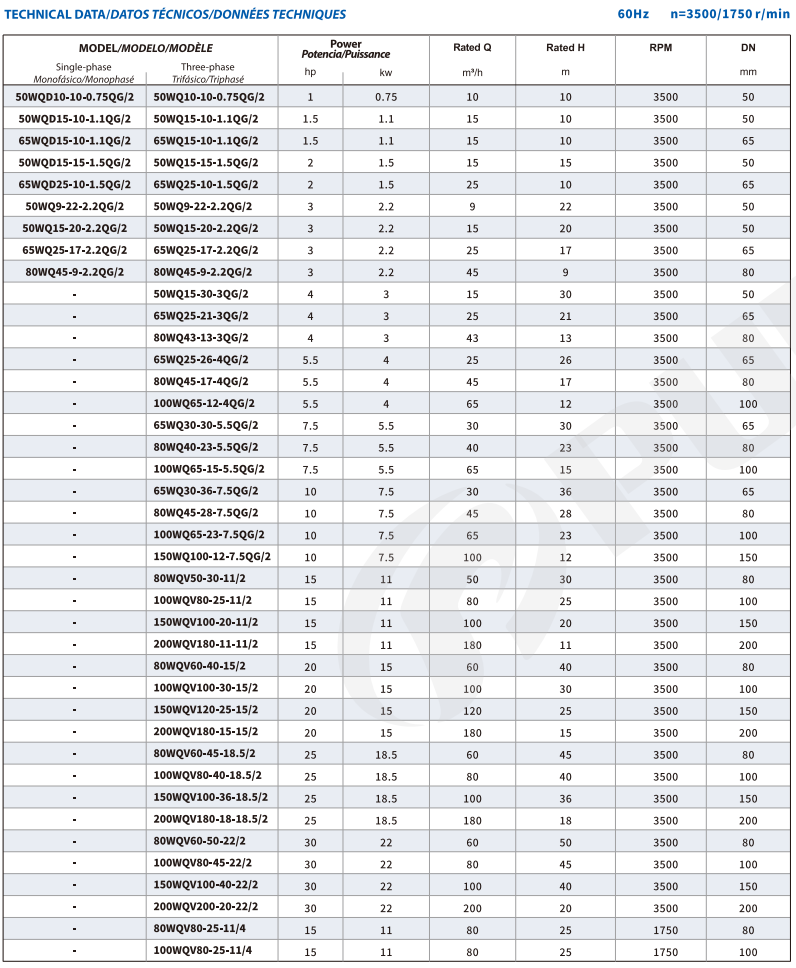

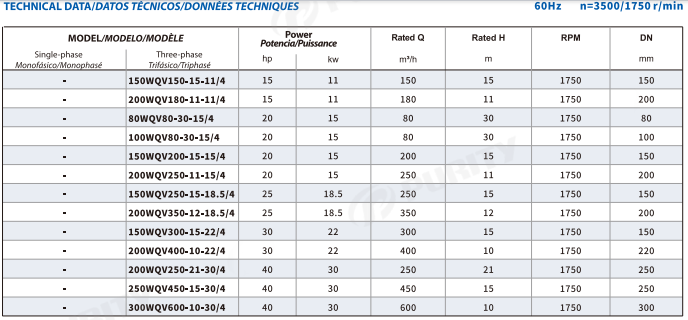

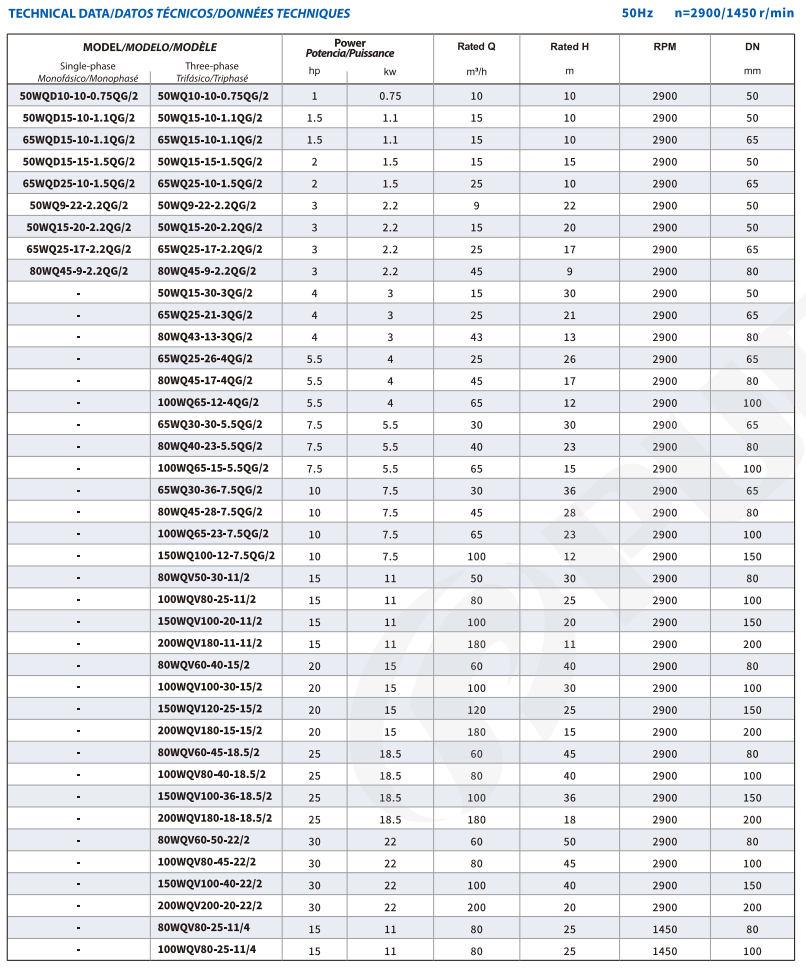

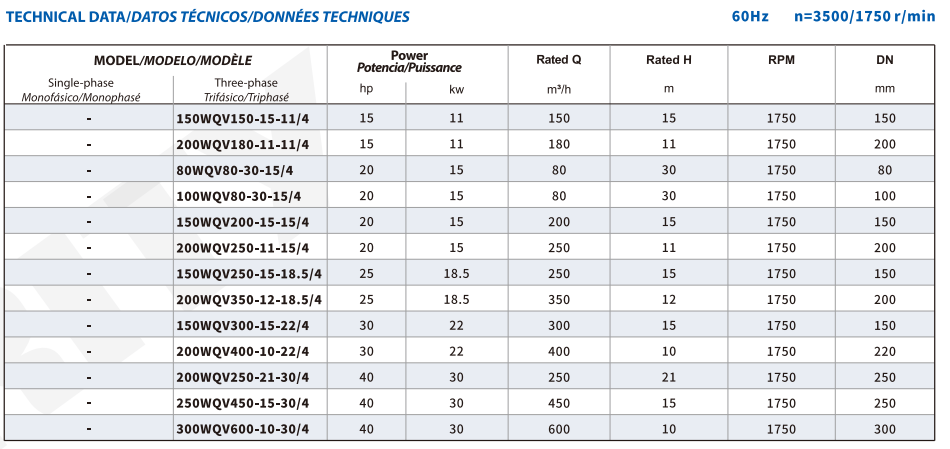

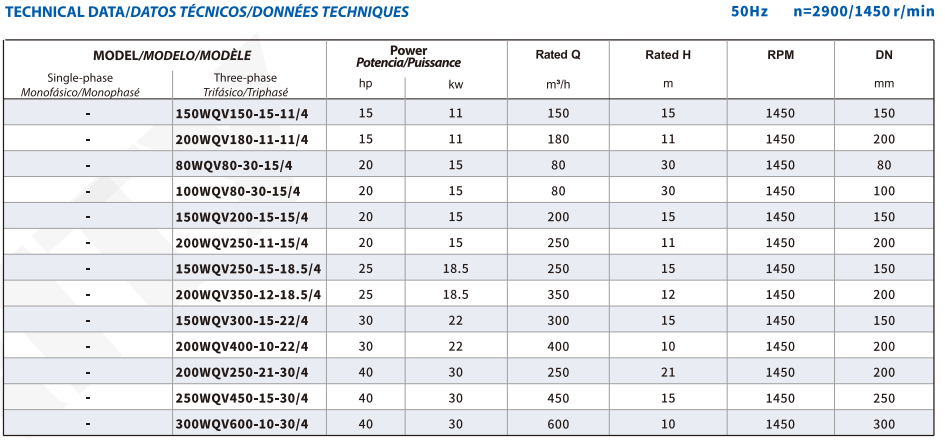

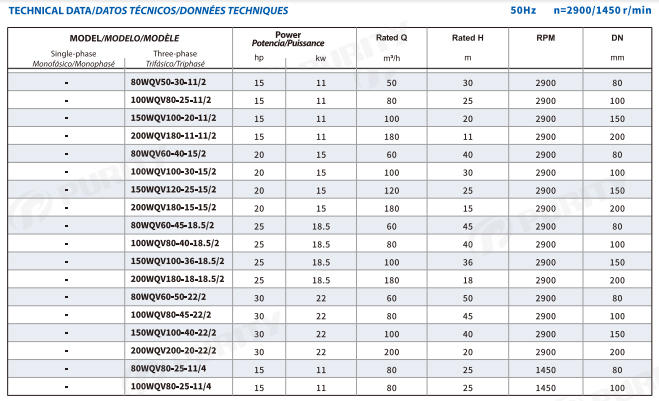

TECHNICAL DATA

Other Sizes Can Provide On Request.

Please send inquiry to puritypump@cnpurity.com for prompt reply !

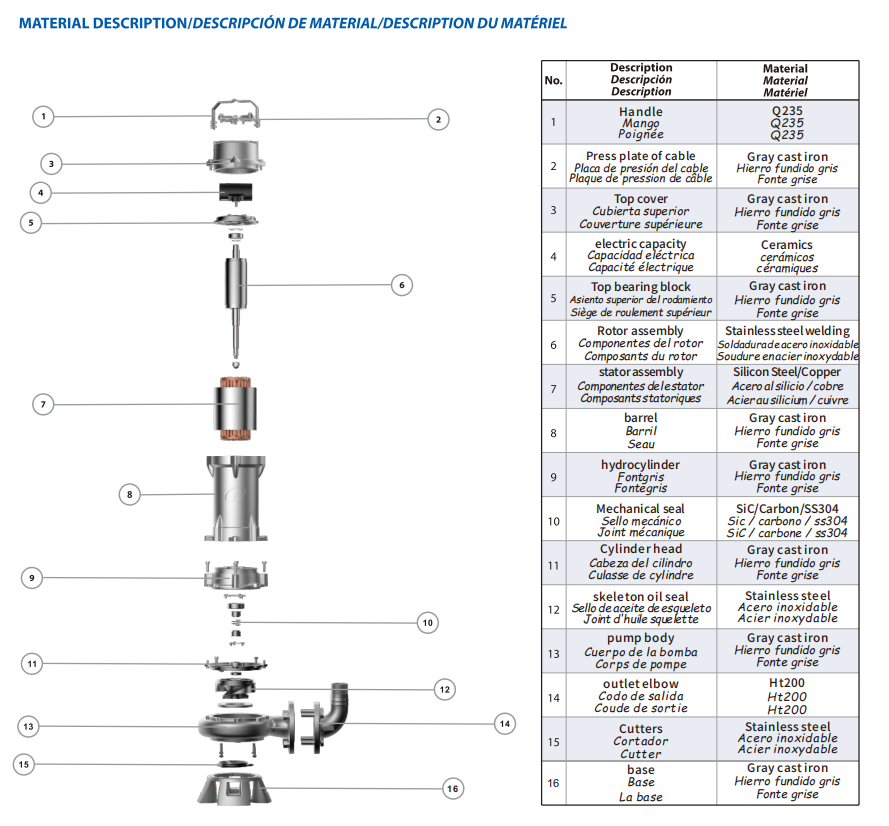

MATERIAL DESCRIPTION
