TECHNICAL DESCRIPTION

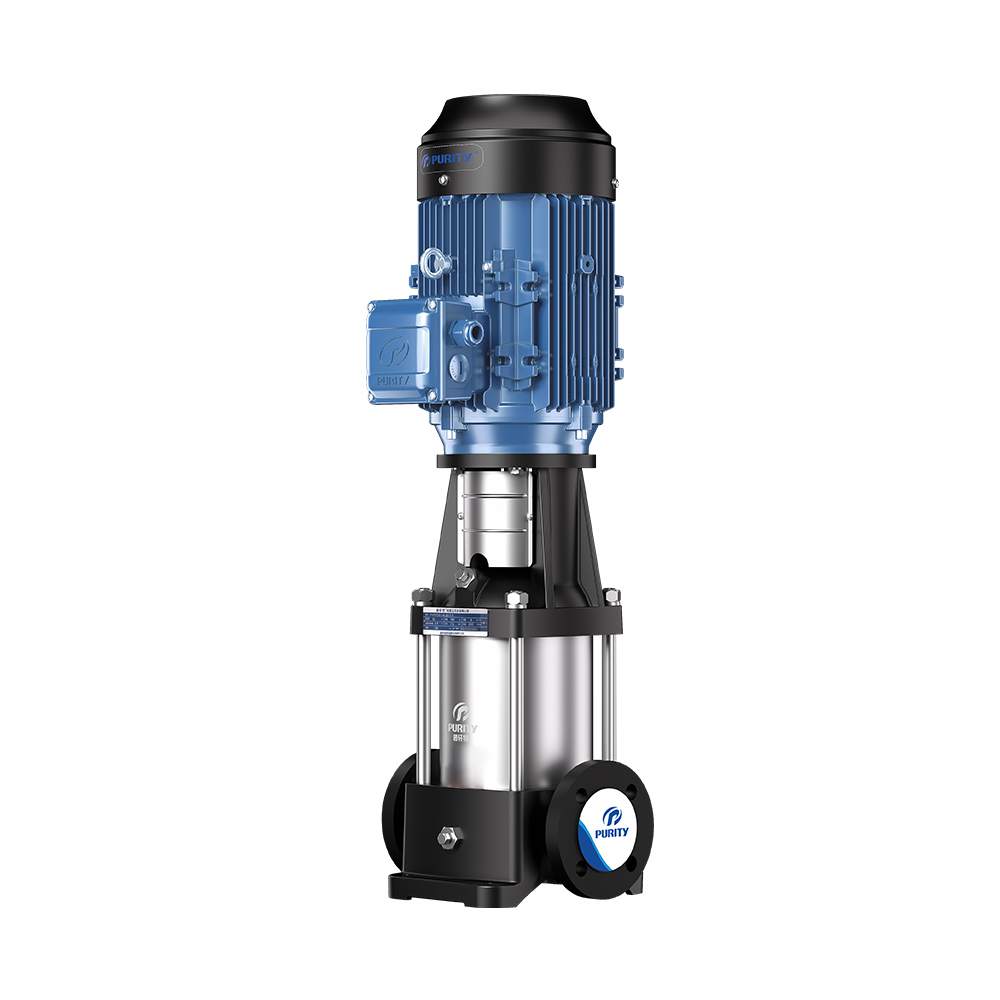

· SS304 vertical, multistage centrifugal pump
· The suction and discharge ports on the same level
· PVT pump head and base are in cast iron
· PVT pump impeller and shaft are in stainless steel
· PVS pump all wetted parts are in stainless steel
· YE3 high efficient motor, with protection IP55 class F
· Quality bearing, wear resistance mechanical seal
· Liquid temperature between -10°C and +120°C
APPLICATIONS
· The stainless steel multistage pumps are suitable for industrial processing
systems,washing and cleaning systems,pumping of acids and alkalis,
filtration systems,water pressure boosting,water Treatment,HVAC,irrigation,
fire protection systems etc.
USING LIMITS
TECHNICAL DESCRIPTION
· SS304 vertical, multistage centrifugal pump
· The suction and discharge ports on the same level
· PVT pump head and base are in cast iron
· PVT pump impeller and shaft are in stainless steel
· PVS pump all wetted parts are in stainless steel
· YE3 high efficient motor, with protection IP55 class F
· Quality bearing, wear resistance mechanical seal
· Liquid temperature between -10°C and +120°C
APPLICATIONS
· The stainless steel multistage pumps are suitable for industrial processing systems,washing and cleaning systems,pumping of acids and alkalis, filtration systems,water pressure boosting,water Treatment,HVAC,irrigation, fire protection systems etc.
USING LIMITS
