HomeProductVertical Multistage Jockey Pumps

GDL

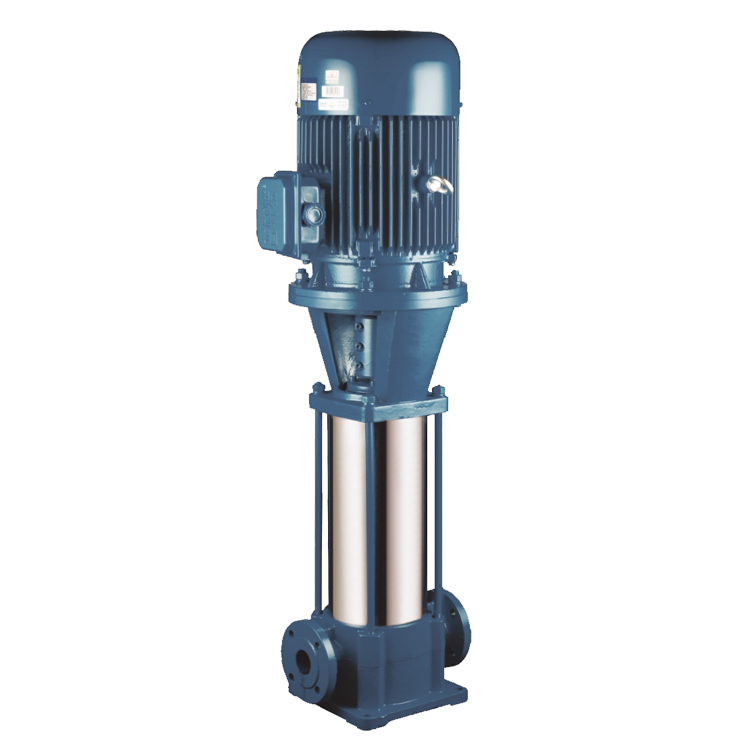

[GDL]Pipeline Water Pump Vertical Inline Booster Pump

TECHNICAL DESCRIPTION
· New vertical multistage centrifugal pump
· Original design by PURITY
· Both square motor & round motor available
· YE3 high efficient motor, with protection IP55 class F
· Pump case with anti-corrosive coating
· Shaft in stainless steel AISI 304 or galvanized iron
· Suction and discharge port in cast iron G20 thread
· Quality NSK bearing, wear resistance mechanical seal
3D PRODUCT CHAT NOW

Product Description






TECHNICAL DESCRIPTION
New vertical multistage centrifugal pump
Original design by PURITY
Both square motor & round motor available
YE3 high efficient motor, with protection IP55 class F
Pump case with anti-corrosive coating
Shaft in stainless steel AISI 304 or galvanized iron
Suction and discharge port in cast iron G20 thread
Quality NSK bearing, wear resistance mechanical seal

APPLICATIONS
Suitable for use with clean water and liquids that are not chemically
aggressive towards the materials from which the pump is made.
The high efficiency and adaptability of these pumps to even the most
unusual of applications, makes them ideal for use in the domestic,
civil and industrial sectors; in particular for the distribution of water
in combination with pressure sets and for pressure boosting.

USING LIMITS
Medium temperature: -15℃~+120℃
Maximum working pressure: 2.5MPa
Ambient temperature: ≤+40℃



Other Sizes  Can Provide On Request.
