[PGW]High Quality Centrifugal Pipeline Pump Inline Centrifugal Pump Price

TECHNICAL DESCRIPTION
· New centrifugal pump
· Original design by PURITY (patented)
· YE3 high efficient motor, with protection IP55 class F
· Pump case with anti-corrosive coating
· Impeller in stainless steel AISI 304 or cast iron
· Shaft in stainless steel AISI 304 or galvanized iron
· Quality bearing, wear resistance mechanical seal
3D PRODUCT CHAT NOW

Related Products



Product Description



TECHNICAL DESCRIPTION

New centrifugal pump

Original design by PURITY (patented)

YE3 high efficient motor, with protection IP55 class F

Pump case with anti-corrosive coating

Impeller in stainless steel AISI 304 or cast iron

Shaft in stainless steel AISI 304 or galvanized iron

Quality bearing, wear resistance mechanical seal


APPLICATIONS

Suitable for use with clean water and liquids that are not chemically

aggressive towards the materials from which the pump is made.

The centrifugal pumps are recommended for use in water supply,

cleaning sets, pressure boosting, firefighting sets, irrigation, industrial

applications, water circulation in climatisation sets, agricultural.


USING LIMITS

Liquid temperature between -10 and +120

Ambient temperature up to +50℃

Max. working pressure 16 bar

Continuous service S1

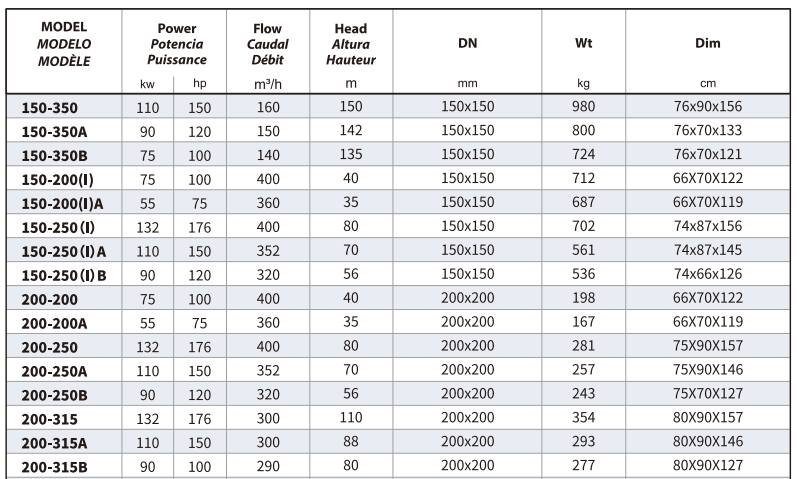

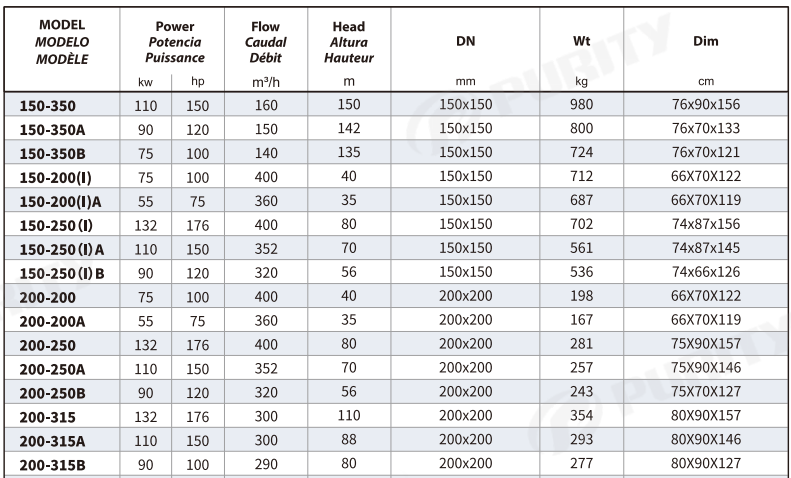

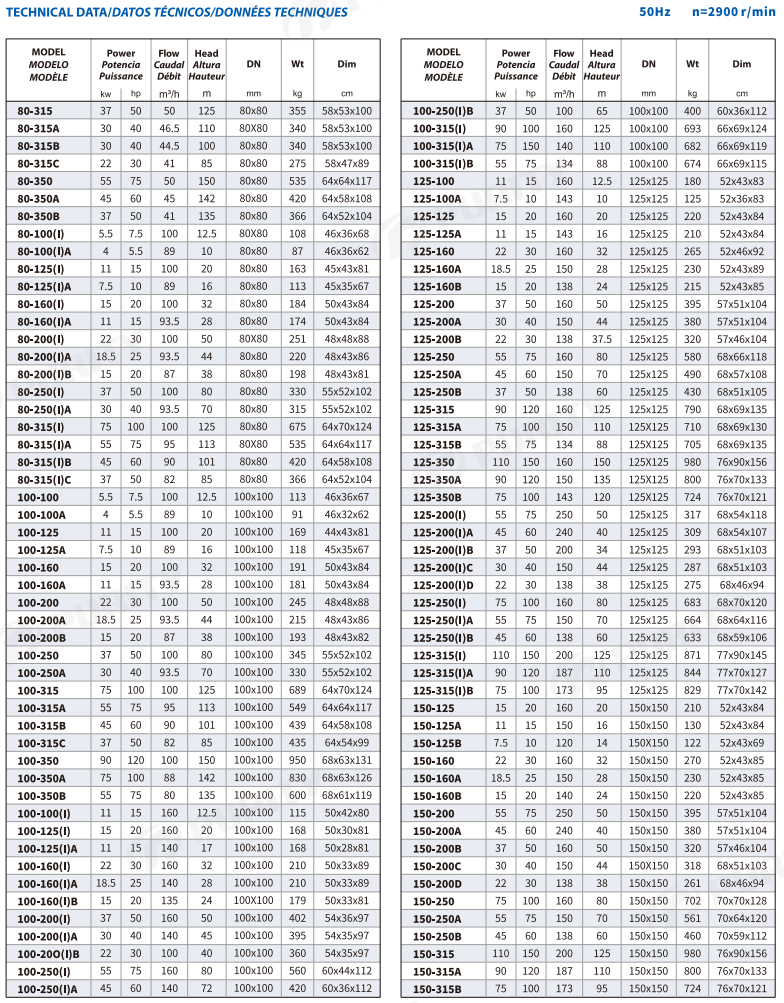

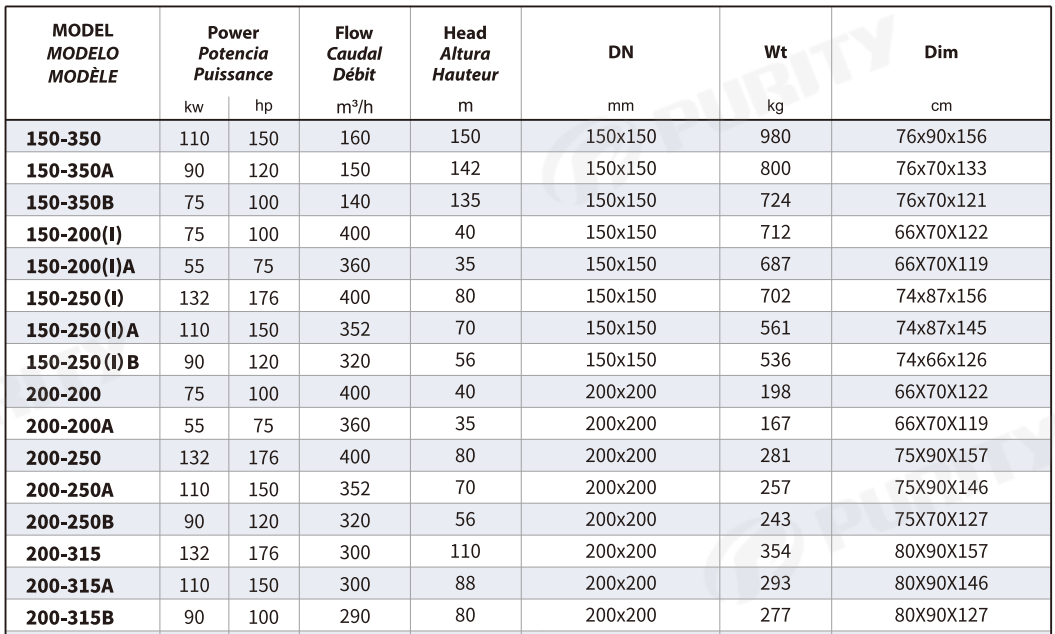

TECHNICAL DATA / DATOS TéCNICOS                                                     50Hz   n=2900  1/min


TECHNICAL DATA / DATOS TéCNICOS                                                     50Hz   n=2900  1/min


TECHNICAL DATA / DATOS TéCNICOS                                                     50Hz   n=1450  1/min



No.

Description

Material

No.

Description

Material

No.

Description

Material

1

Bearing

Ball Bearing

4

Impeller

SS304/Cast iron

7

Mechanical Seal

SiC/Carbon/SS304

2

Water Deflector

Rubber

5

Impeller Nut

Galvanizated Steel

8

Connection

Cast iron

3

Pump Case

Cast iron

6

Shaft

SS304/45# Steel

9

Motor

IP55 Class F



Production Line



Packaging & Shipping



Our Exhibition



Certifications



Related Products



Product Description



TECHNICAL DESCRIPTION

New centrifugal pump

Original design by PURITY (patented)

YE3 high efficient motor, with protection IP55 class F

Pump case with anti-corrosive coating

Impeller in stainless steel AISI 304 or cast iron

Shaft in stainless steel AISI 304 or galvanized iron

Quality bearing, wear resistance mechanical seal


APPLICATIONS

Suitable for use with clean water and liquids that are not chemically

aggressive towards the materials from which the pump is made.

The centrifugal pumps are recommended for use in water supply,

cleaning sets, pressure boosting, firefighting sets, irrigation, industrial

applications, water circulation in climatisation sets, agricultural.


USING LIMITS

Liquid temperature between -10 and +120

Ambient temperature up to +50℃

Max. working pressure 16 bar

Continuous service S1

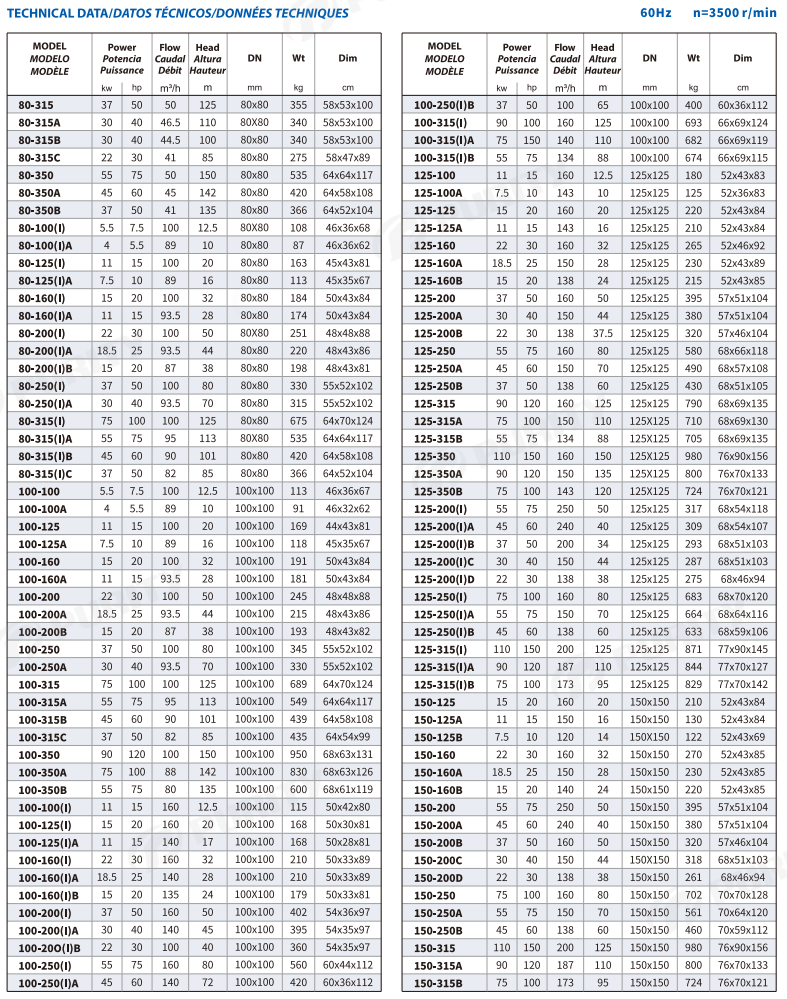

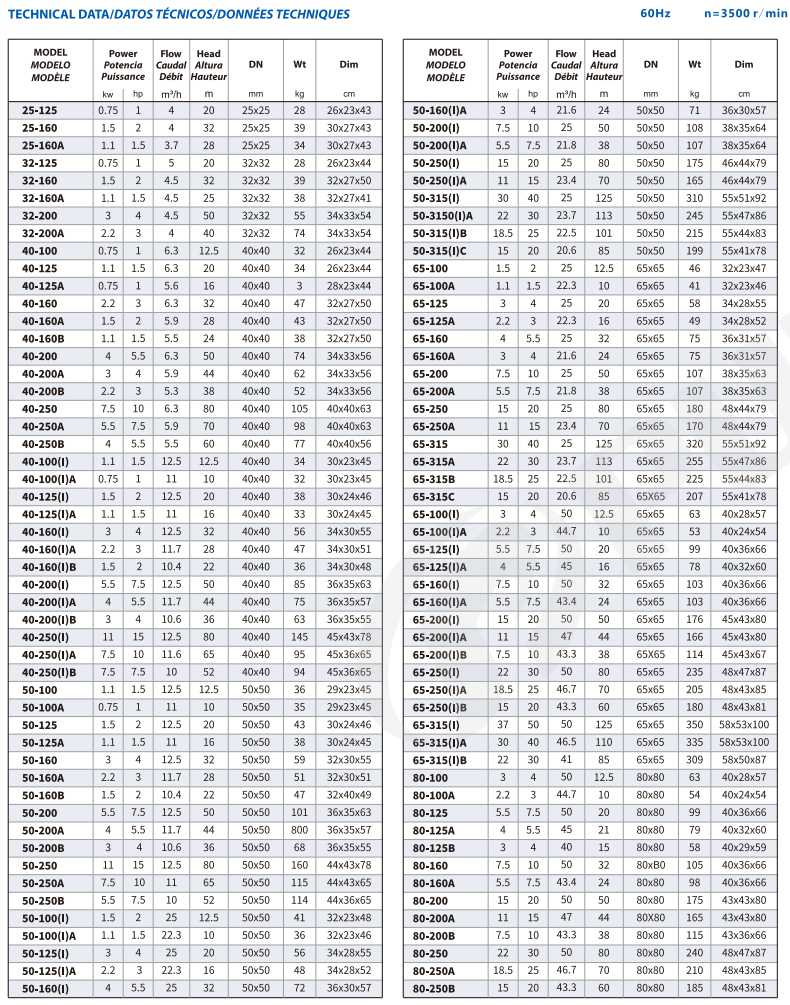

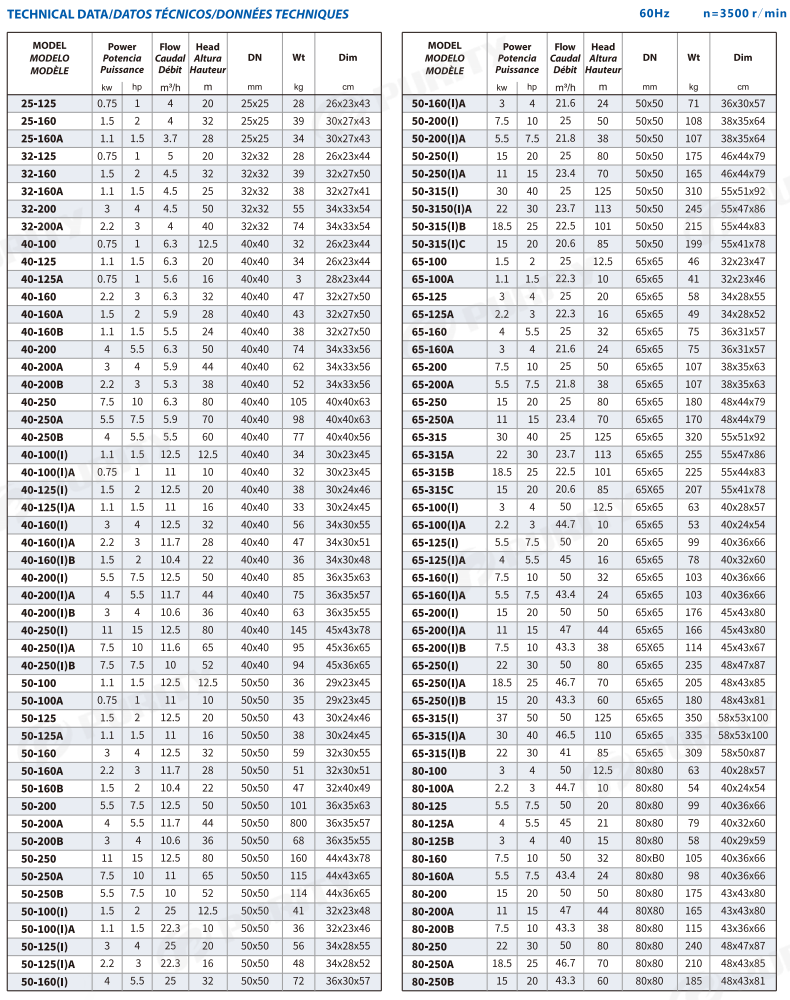

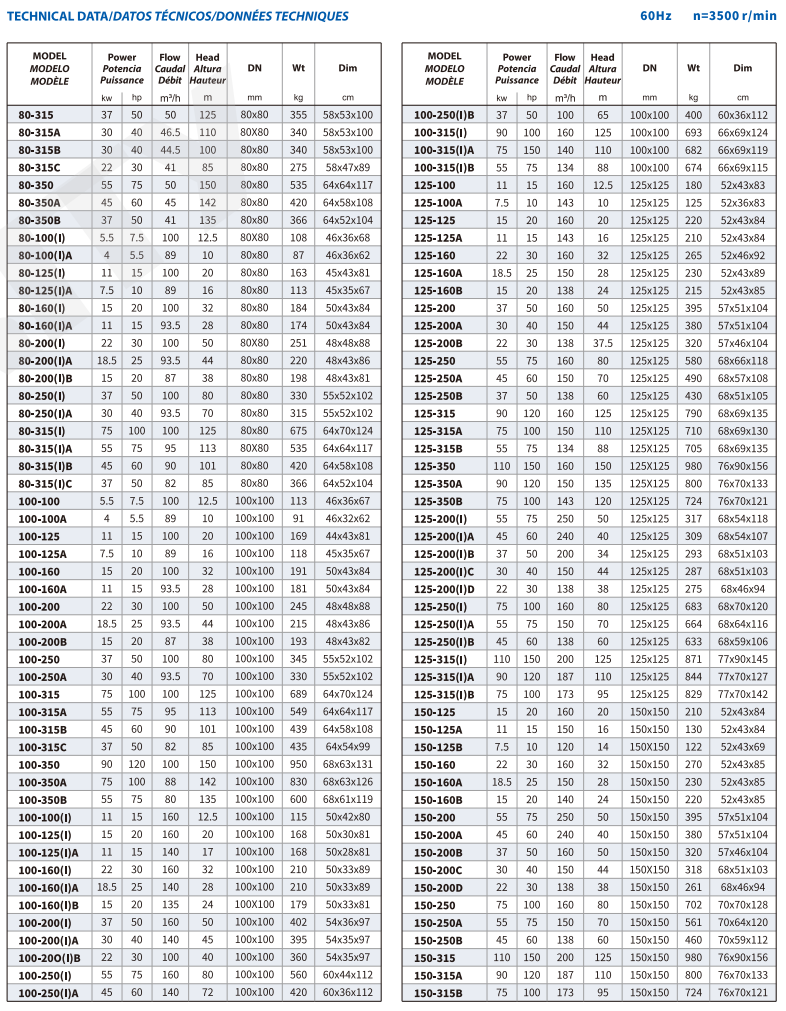

TECHNICAL DATA / DATOS TéCNICOS                                                     60Hz   n=3500  1/min


TECHNICAL DATA / DATOS TéCNICOS 60Hz   n=3500  1/min


TECHNICAL DATA / DATOS TéCNICOS 60Hz   n=1750  1/min



No.

Description

Material

No.

Description

Material

No.

Description

Material

1

Bearing

Ball Bearing

4

Impeller

SS304/Cast iron

7

Mechanical Seal

SiC/Carbon/SS304

2

Water Deflector

Rubber

5

Impeller Nut

Galvanizated Steel

8

Connection

Cast iron

3

Pump Case

Cast iron

6

Shaft

SS304/45# Steel

9

Motor

IP55 Class F
