Product Description
Vertical Explosion Proof Centrifugal Pump Monoblock Pipeline Centrifugal Motor Pump
TECHNICAL DESCRIPTION
New centrifugal pump
Original design by PURITY (patented)
YE3 high efficient motor, with protection IP55 class F
Pump case with anti-corrosive coating
Impeller in stainless steel AISI 304 or cast iron
Shaft in stainless steel AISI 304 or galvanized iron
Quality bearing, wear resistance mechanical seal
Suitable for use with clean water and liquids that are not chemically
aggressive towards the materials from which the pump is made.
The centrifugal pumps are recommended for use in water supply,
cleaning sets, pressure boosting, firefighting sets, irrigation, industrial
applications, water circulation in climatisation sets, agricultural.
Liquid temperature between -10℃ and +120℃
Ambient temperature up to +50℃
Max. working pressure 16 bar
Continuous service S1

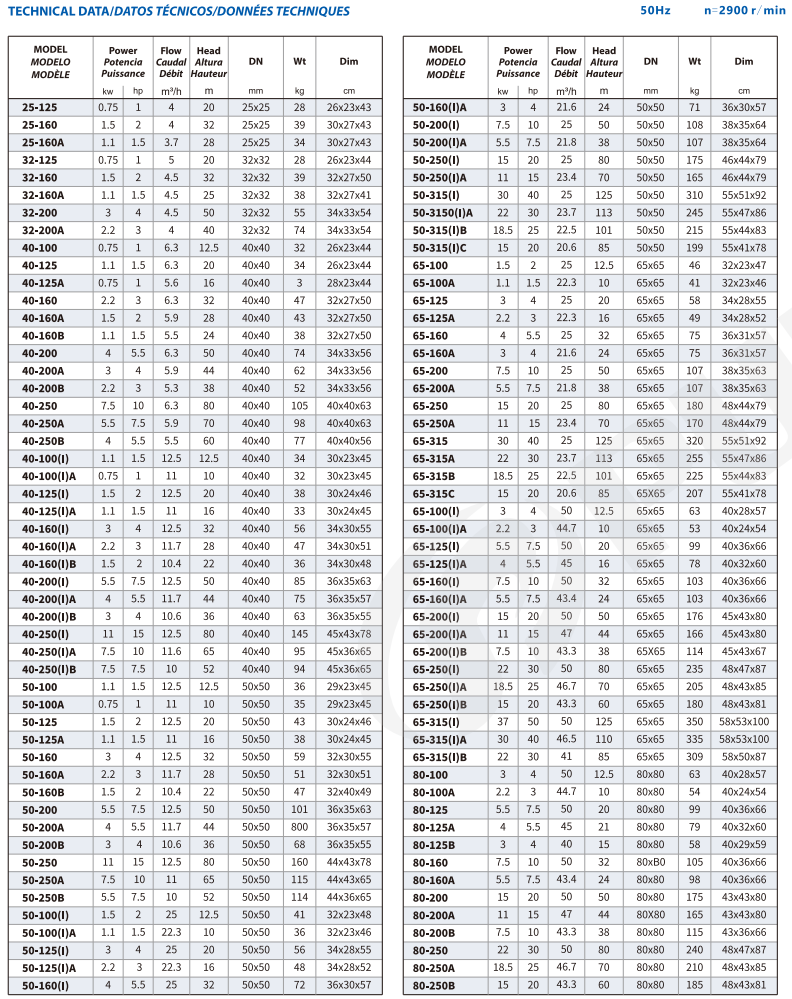

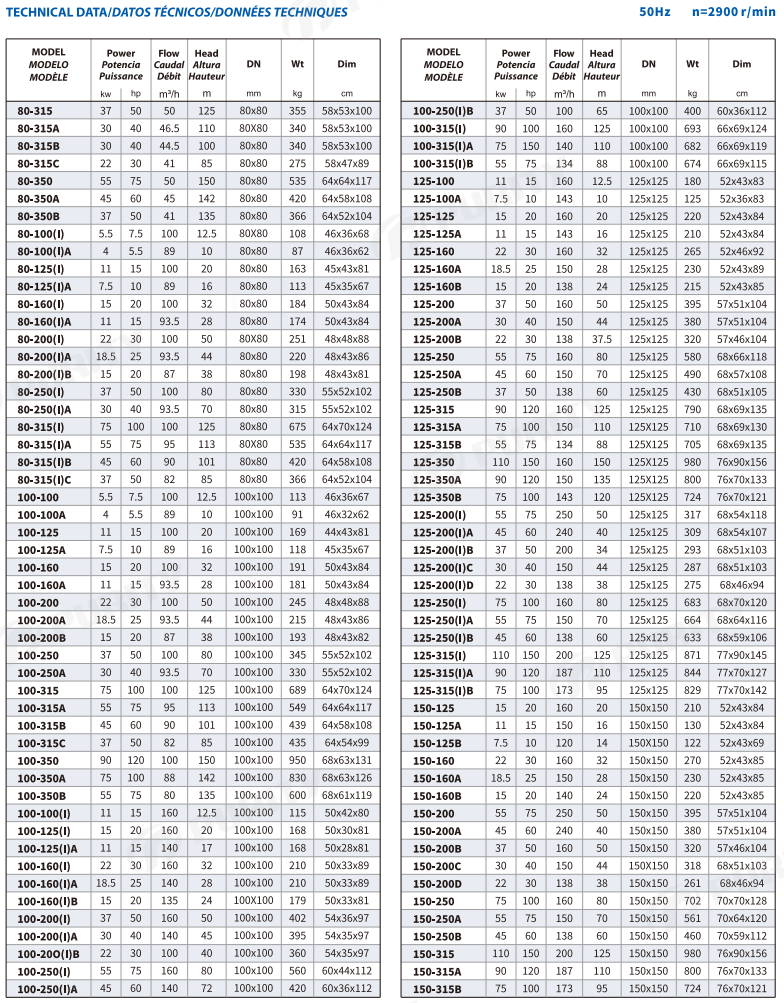

TECHNICAL DATA / DATOS TéCNICOS 50Hz n=2900 1/min

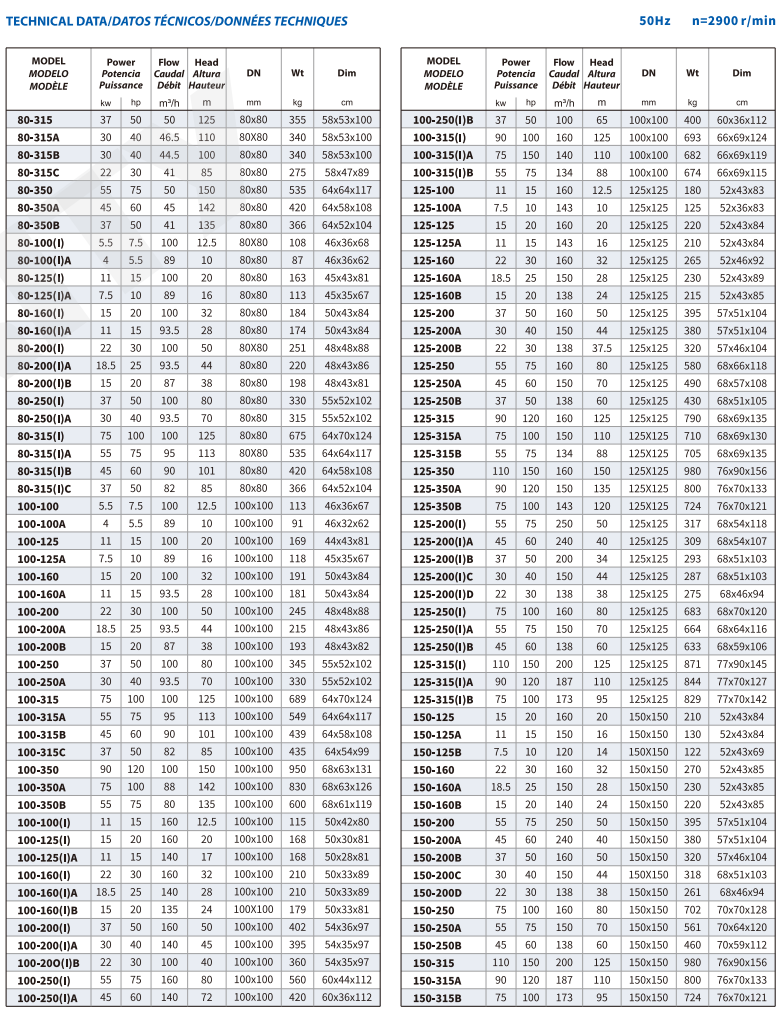

TECHNICAL DATA / DATOS TéCNICOS 50Hz n=2900 1/min

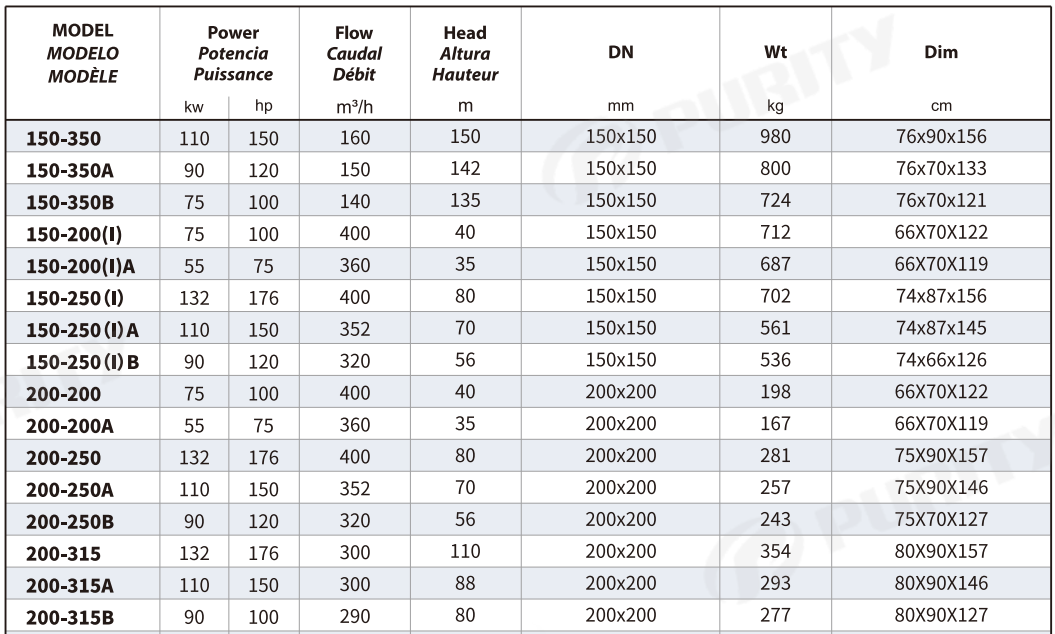

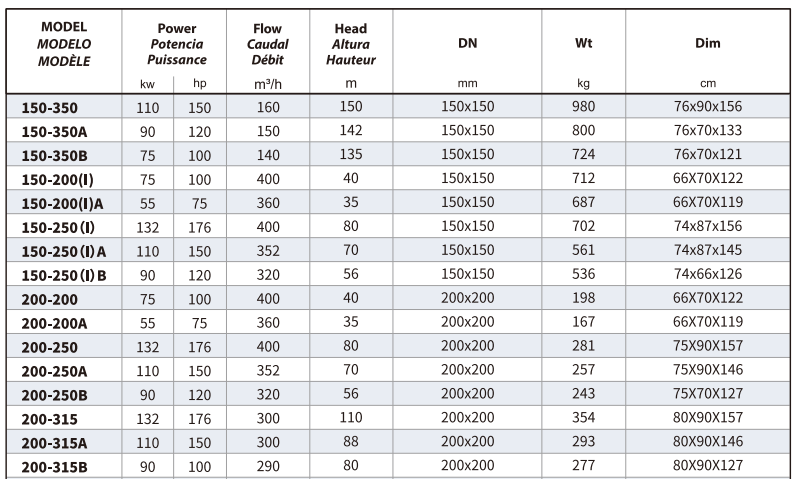

TECHNICAL DATA / DATOS TéCNICOS 50Hz n=1450 1/min
|

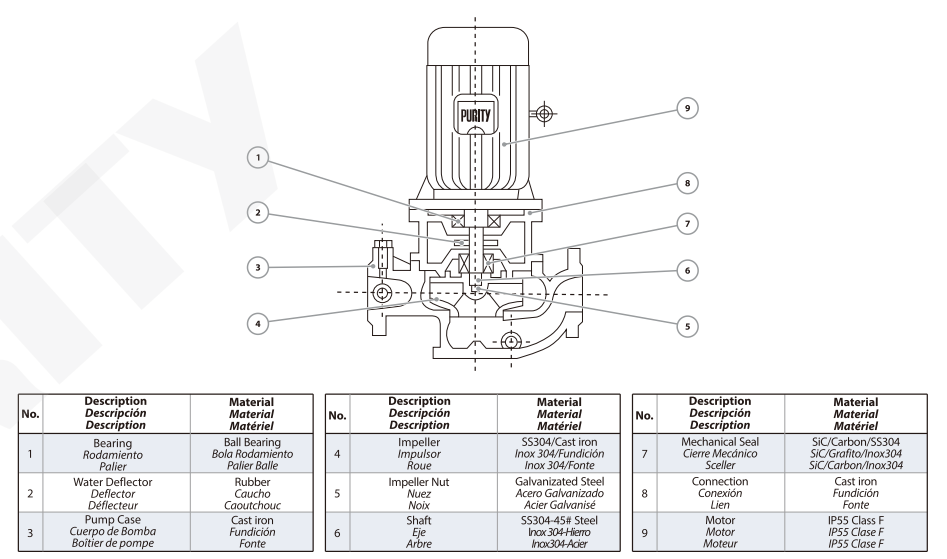

No. |
Description |
Material |
No. |
Description |
Material |
No. |
Description |
Material |
|
1 |
Bearing |
Ball Bearing |
4 |
Impeller |
SS304/Cast iron |
7 |
Mechanical Seal |
SiC/Carbon/SS304 |
|
2 |
Water Deflector |
Rubber |
5 |
Impeller Nut |
Galvanizated Steel |
8 |
Connection |
Cast iron |
|
3 |
Pump Case |
Cast iron |
6 |
Shaft |
SS304/45# Steel |
9 |
Motor |
IP55 Class F |
Production Line
Packaging & Shipping
Our Exhibition
Certifications
Related Products
Product Description
Vertical Explosion Proof Centrifugal Pump Monoblock Pipeline Centrifugal Motor Pump
TECHNICAL DESCRIPTION
New centrifugal pump
Original design by PURITY (patented)
YE3 high efficient motor, with protection IP55 class F
Pump case with anti-corrosive coating
Impeller in stainless steel AISI 304 or cast iron
Shaft in stainless steel AISI 304 or galvanized iron
Quality bearing, wear resistance mechanical seal
Suitable for use with clean water and liquids that are not chemically
aggressive towards the materials from which the pump is made.
The centrifugal pumps are recommended for use in water supply,
cleaning sets, pressure boosting, firefighting sets, irrigation, industrial
applications, water circulation in climatisation sets, agricultural.
Liquid temperature between -10℃ and +120℃
Ambient temperature up to +50℃
Max. working pressure 16 bar
Continuous service S1

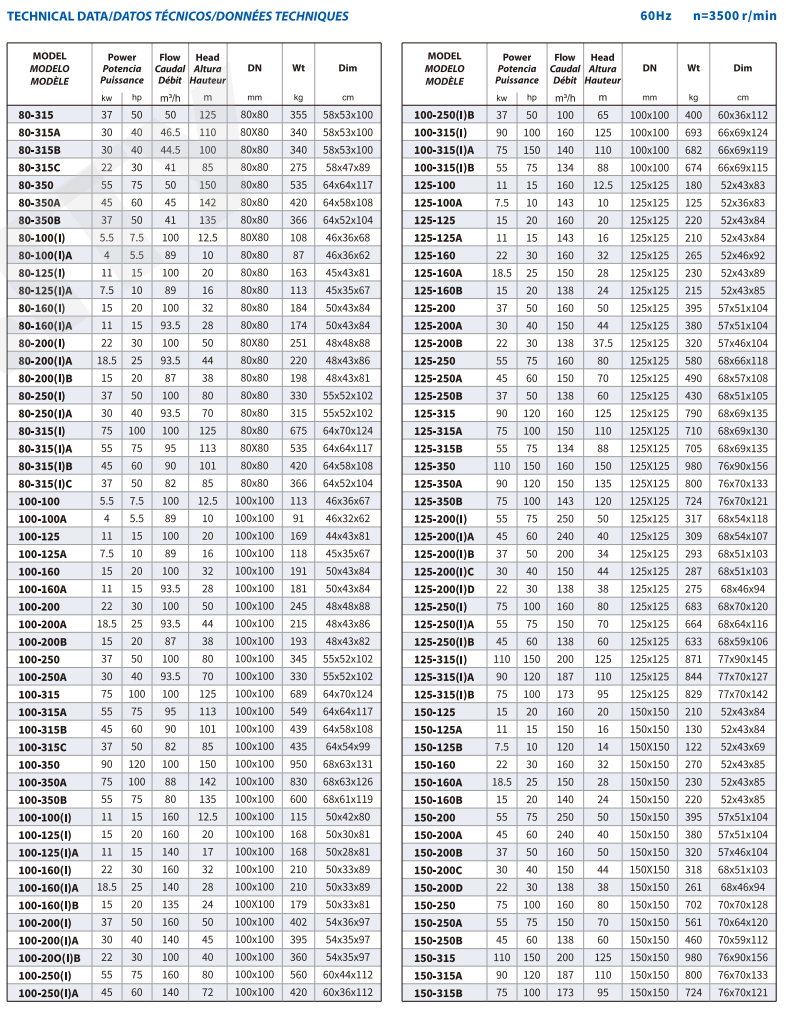

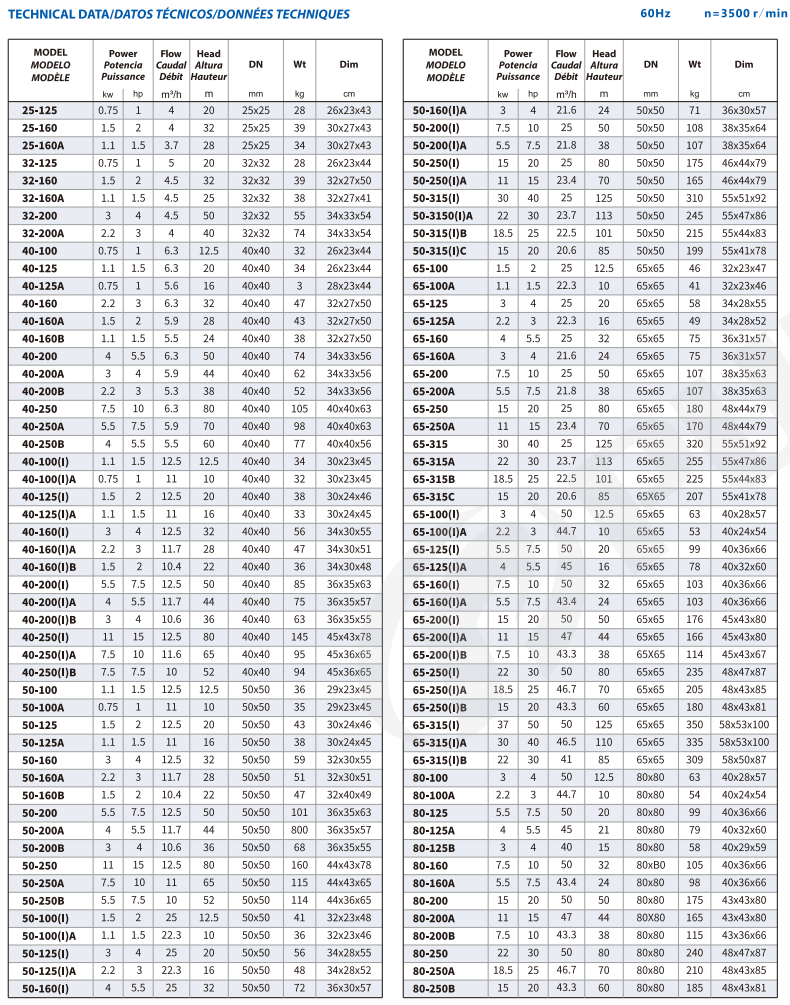

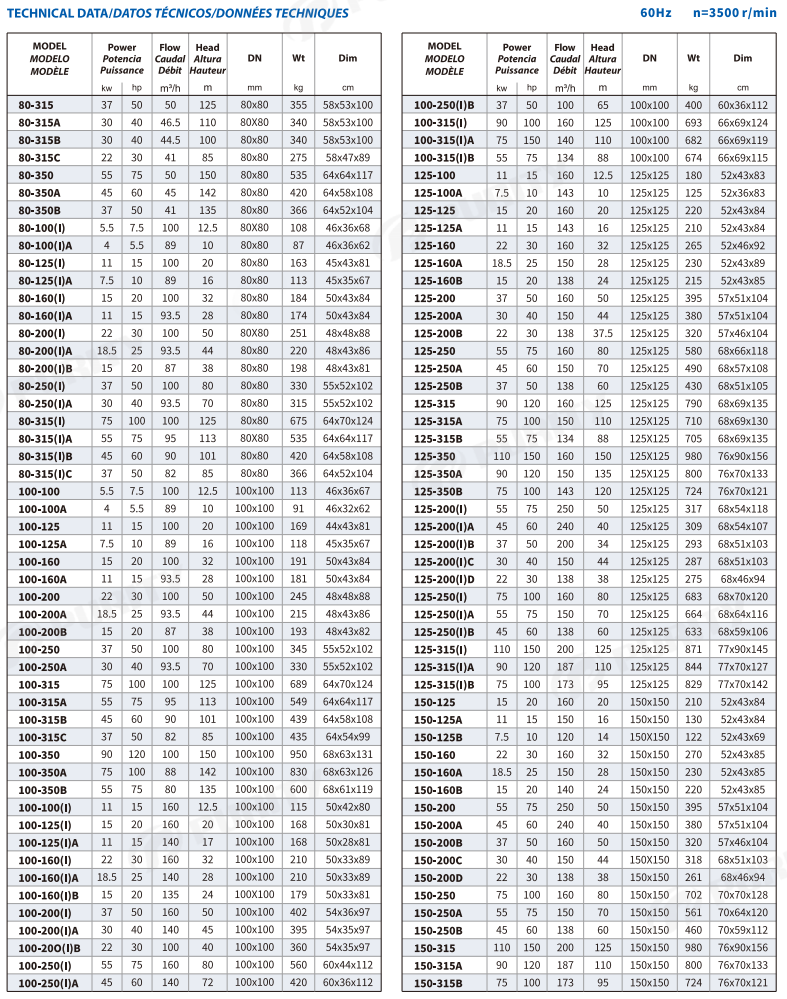

TECHNICAL DATA / DATOS TéCNICOS 60Hz n=3500 1/min

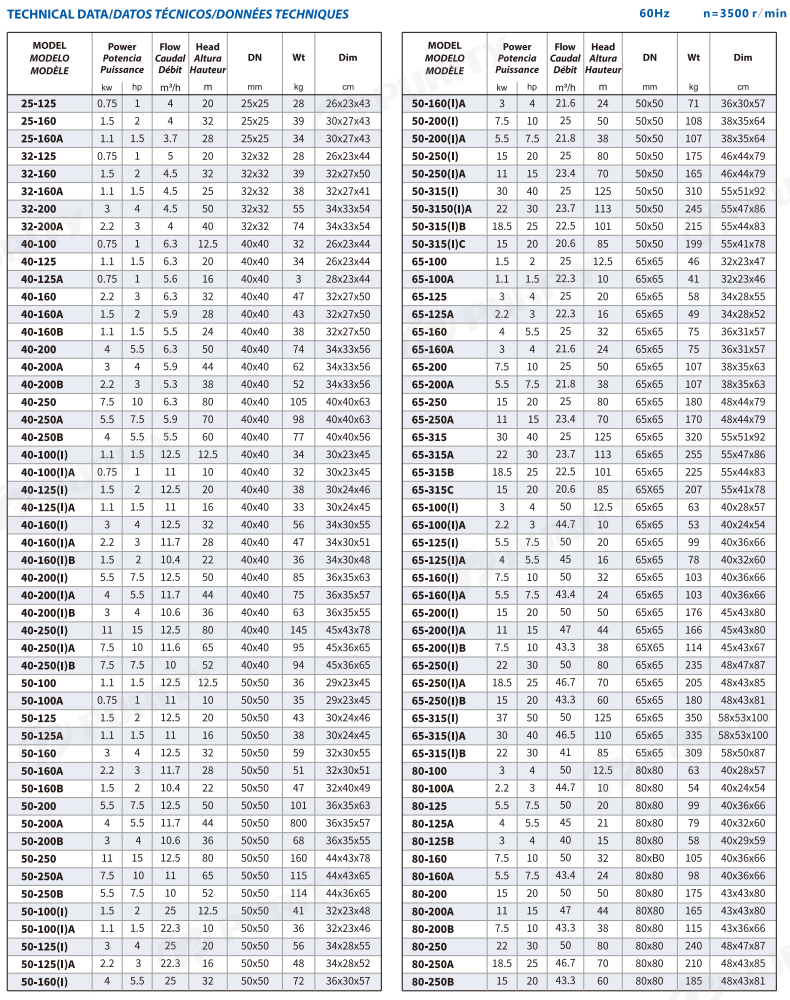

TECHNICAL DATA / DATOS TéCNICOS 60Hz n=3500 1/min

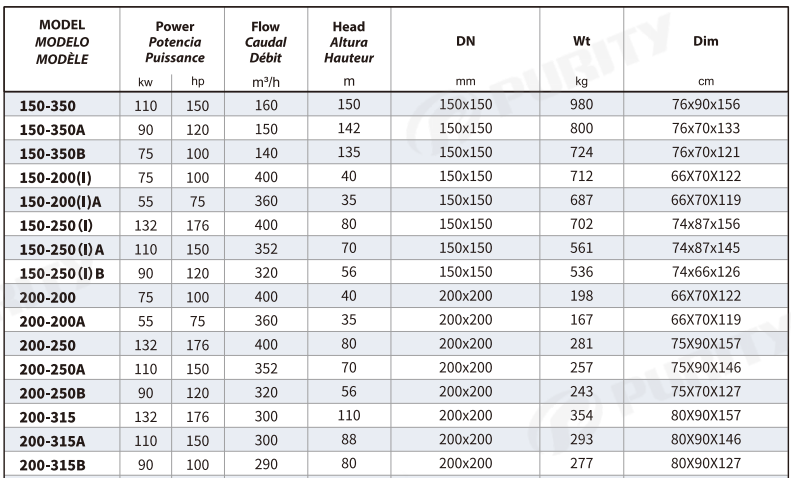

TECHNICAL DATA / DATOS TéCNICOS 60Hz n=1750 1/min
|
No. |
Description |
Material |
No. |
Description |
Material |
No. |
Description |
Material |
|
1 |
Bearing |
Ball Bearing |
4 |
Impeller |
SS304/Cast iron |
7 |
Mechanical Seal |
SiC/Carbon/SS304 |
|
2 |
Water Deflector |
Rubber |
5 |
Impeller Nut |
Galvanizated Steel |
8 |
Connection |
Cast iron |
|
3 |
Pump Case |
Cast iron |
6 |
Shaft |
SS304/45# Steel |
9 |
Motor |
IP55 Class F |
