Purity PSCM horizontal split case fire pump features high flow, durable HT250 casing, AISI 304 or HT250 impeller, easy maintenance, and reliable performance.
Purity PSCM horizontal split case fire pump is a high-performance firefighting solution designed to deliver large flow rates, stable pressure, and long-term operational reliability in demanding fire protection systems. Featuring an axially split volute casing design, this fire pump horizontal split case allows the upper casing to be removed without disturbing the motor or pipeline connections, making inspection, maintenance, and overhaul significantly easier and faster. This user-friendly structure greatly reduces downtime and ensures the fire pump remains ready for emergency operation at all times.
The impeller of Purity PSCM centrifugal fire pump split case can be manufactured from AISI 304 stainless steel or HT250 cast iron, allowing flexible material selection according to different water qualities, corrosion conditions, and project requirements. Precision hydraulic design ensures smooth flow passages, high efficiency, and stable performance across a wide operating range. As a result, the centrifugal fire pump split case can reliably supply the high flow and pressure required for fire hydrant systems, sprinkler systems, and large-scale firefighting networks.
To enhance durability and sealing reliability, the seal chamber is equipped with a shaft protection sleeve, effectively preventing shaft wear and extending service life. Users may choose between mechanical seals or packing seals based on operating conditions and maintenance preferences. The horizontal split case fire pump casing is made of HT250 cast iron with a high-quality anti-corrosion coating, providing excellent resistance to moisture, corrosion, and harsh environmental conditions. This robust construction ensures long-lasting performance even in complex or outdoor installations.
Purity PSCM horizontal split case fire pump adopts grease-lubricated rolling bearings with long-term sealing performance. This bearing configuration effectively prevents external liquids or contaminants from entering critical components, maintaining smooth rotation and reducing friction-related losses. By protecting the internal structure, the bearing system minimizes wear, improves reliability, and significantly lowers maintenance frequency and disassembly costs.

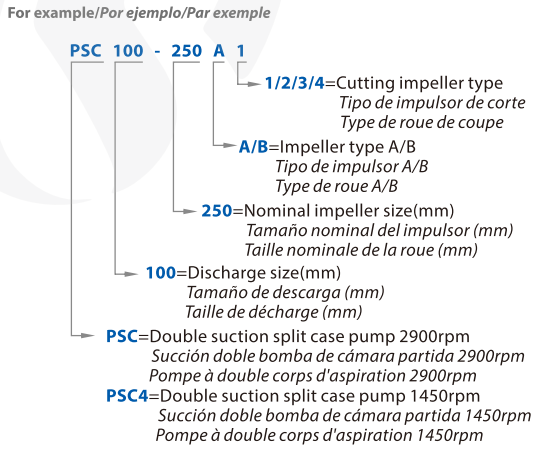

Model Description

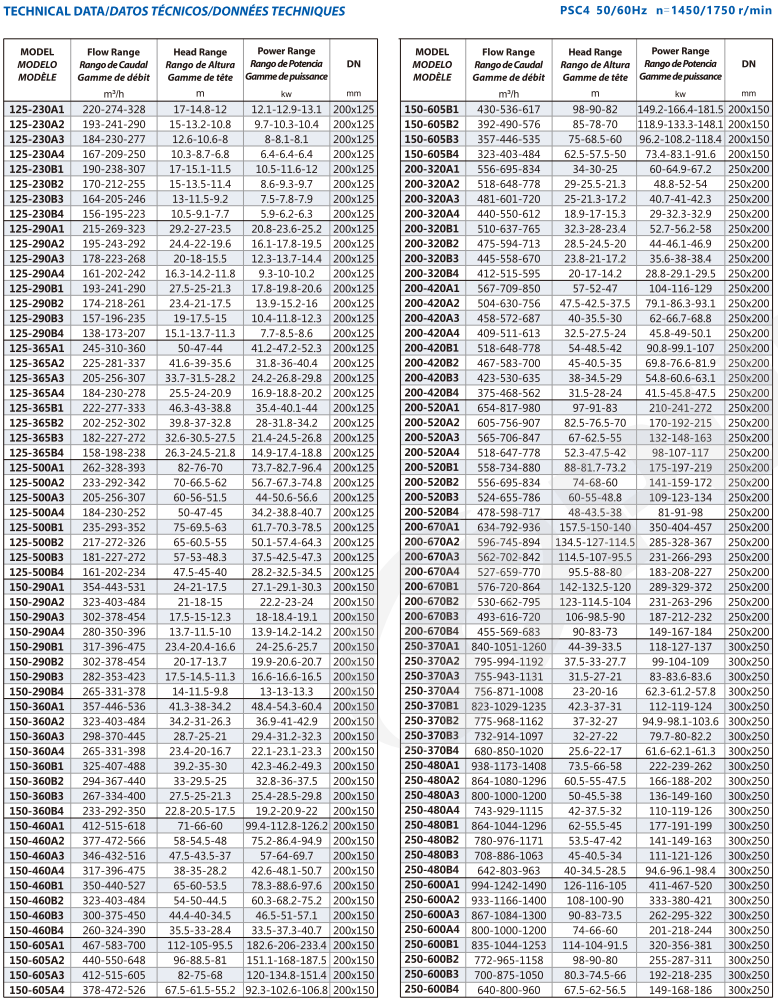

Product Parameters
Product Introduction
Purity PSCM horizontal split case fire pump is a high-performance firefighting solution designed to deliver large flow rates, stable pressure, and long-term operational reliability in demanding fire protection systems. Featuring an axially split volute casing design, this fire pump horizontal split case allows the upper casing to be removed without disturbing the motor or pipeline connections, making inspection, maintenance, and overhaul significantly easier and faster. This user-friendly structure greatly reduces downtime and ensures the fire pump remains ready for emergency operation at all times.
The impeller of Purity PSCM centrifugal fire pump split case can be manufactured from AISI 304 stainless steel or HT250 cast iron, allowing flexible material selection according to different water qualities, corrosion conditions, and project requirements. Precision hydraulic design ensures smooth flow passages, high efficiency, and stable performance across a wide operating range. As a result, the centrifugal fire pump split case can reliably supply the high flow and pressure required for fire hydrant systems, sprinkler systems, and large-scale firefighting networks.
To enhance durability and sealing reliability, the seal chamber is equipped with a shaft protection sleeve, effectively preventing shaft wear and extending service life. Users may choose between mechanical seals or packing seals based on operating conditions and maintenance preferences. The horizontal split case fire pump casing is made of HT250 cast iron with a high-quality anti-corrosion coating, providing excellent resistance to moisture, corrosion, and harsh environmental conditions. This robust construction ensures long-lasting performance even in complex or outdoor installations.
Purity PSCM horizontal split case fire pump adopts grease-lubricated rolling bearings with long-term sealing performance. This bearing configuration effectively prevents external liquids or contaminants from entering critical components, maintaining smooth rotation and reducing friction-related losses. By protecting the internal structure, the bearing system minimizes wear, improves reliability, and significantly lowers maintenance frequency and disassembly costs.
