[PSF]End Suction Bare Shaft Fire Fighting Water Pump for Fire Pump Set

TECHNICAL DESCRIPTION
· New EN733 standard centrifugal pump
· Original design by PURITY (patented)
· Pump case with anti-corrosive coating
· Impeller in stainless steel AISI 304 or cast iron
· Shaft in stainless steel AISI 304 or galvanized iron
· Galvanized counter flange with bolts, nuts and gaskets
· Quality NSK bearing, wear resistance mechanical seal
3D PRODUCT CHAT NOW
Product Specification (50HZ) 60HZ

Related Products


Product Description


TECHNICAL DESCRIPTION

New EN733 standard centrifugal pump
Original design by PURITY (patented)
Pump case with anti-corrosive coating
Impeller in stainless steel AISI 304 or cast iron
Shaft in stainless steel AISI 304 or galvanized iron
Galvanized counter flange with bolts, nuts and gaskets
Quality NSK bearing, wear resistance mechanical seal


APPLICATIONS
Suitable for use with clean water and liquids that are not chemically
aggressive towards the materials from which the pump is made.
The EN733 centrifugal pumps are recommended for use in water supply,
cleaning sets, pressure boosting, firefighting sets, irrigation, industrial
applications, water circulation in climatisation sets, agricultural.

USING LIMITS
Liquid temperature between -10℃ and +120℃
Ambient temperature up to +50℃
Max. working pressure 16 bar
Continuous service S1


TECHNICAL DATA / DATOS TéCNICOS                                                         50Hz   n=2900  1/min

Other Sizes  Can Provide On Request.

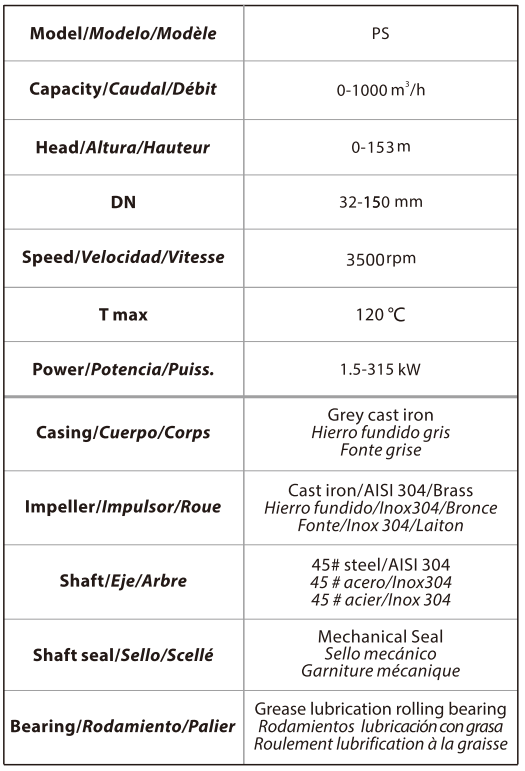

Material Description


Production Line


Packaging & Shipping


Our Exhibition


Certifications



Related Products


Product Description


TECHNICAL DESCRIPTION

New EN733 standard centrifugal pump
Original design by PURITY (patented)
Pump case with anti-corrosive coating
Impeller in stainless steel AISI 304 or cast iron
Shaft in stainless steel AISI 304 or galvanized iron
Galvanized counter flange with bolts, nuts and gaskets
Quality NSK bearing, wear resistance mechanical seal


APPLICATIONS
Suitable for use with clean water and liquids that are not chemically
aggressive towards the materials from which the pump is made.
The EN733 centrifugal pumps are recommended for use in water supply,
cleaning sets, pressure boosting, firefighting sets, irrigation, industrial
applications, water circulation in climatisation sets, agricultural.

USING LIMITS
Liquid temperature between -10℃ and +120℃
Ambient temperature up to +50℃
Max. working pressure 16 bar
Continuous service S1

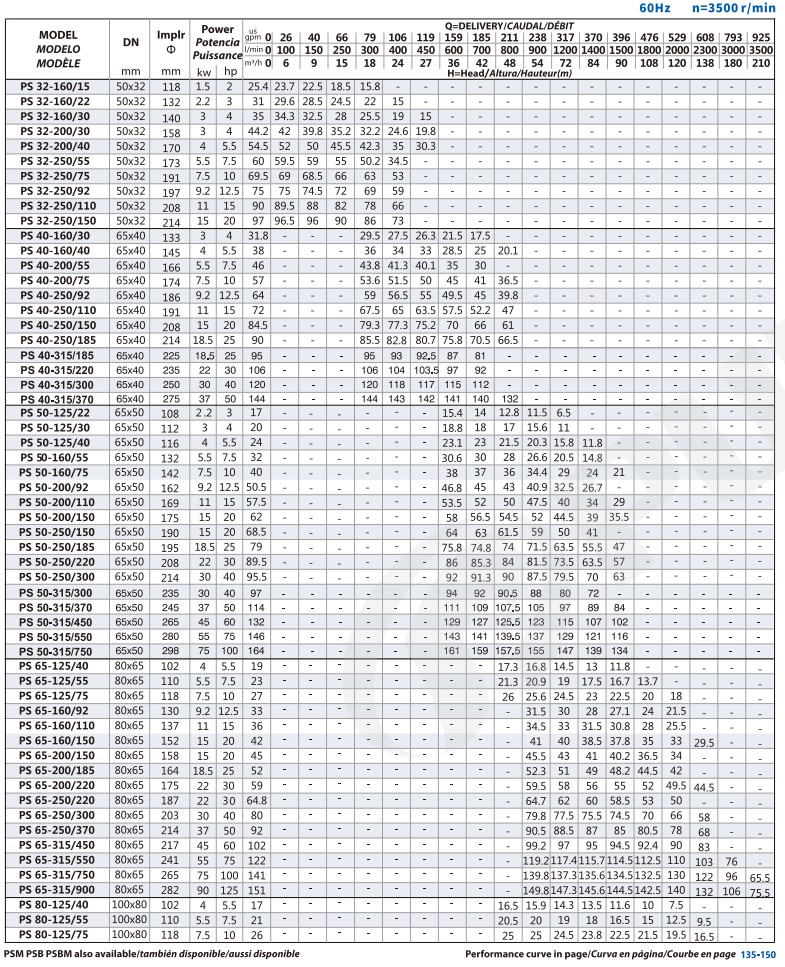

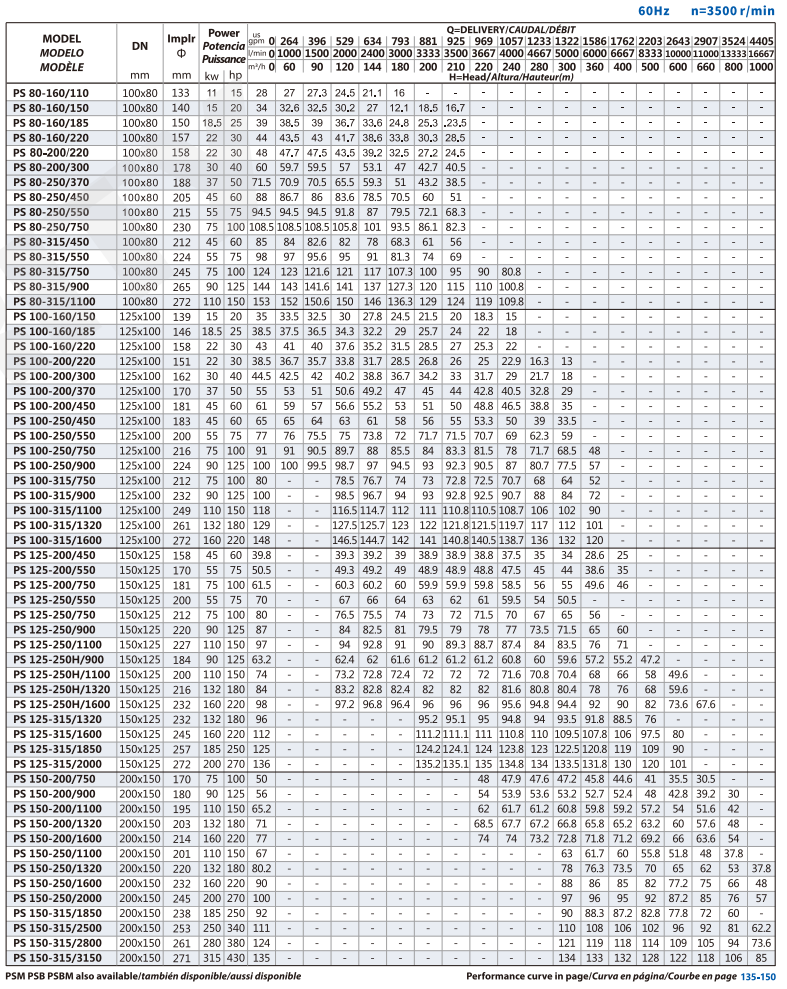

TECHNICAL DATA / DATOS TéCNICOS                                                         60Hz   n=3500  1/min

Other Sizes  Can Provide On Request.




Material Description


Production Line


Packaging & Shipping


Our Exhibition


Certifications
