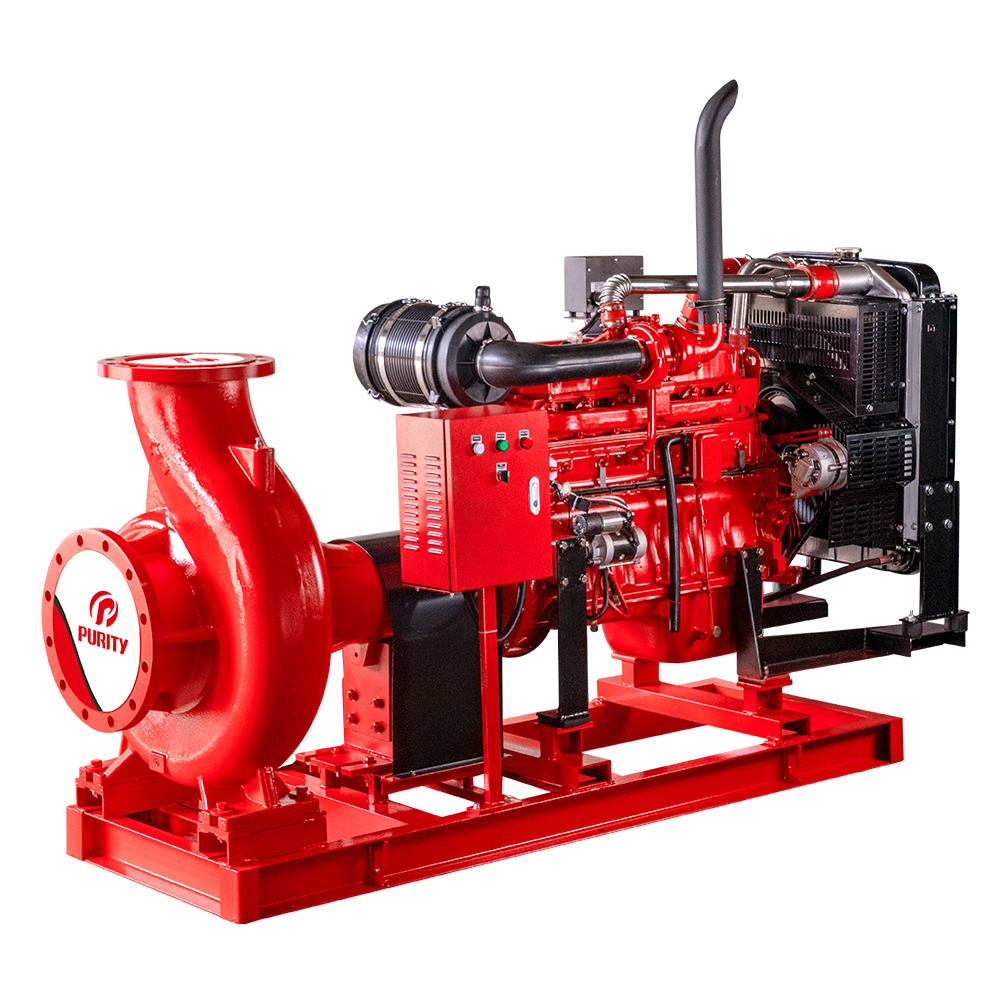

[PSD] Fire Fighting Water Pump With Diesel Engine from PURITY

TECHNICAL DESCRIPTION
· More Environmentally Friendly
· Meeting China III Emission Standard
· Low Fuel Consumption
· Strong Power
· Easy To Assemble
3D PRODUCT CHAT NOW

Product Description



PSD(PS+PD)

PS

TECHNICAL DESCRIPTION

New EN733 standard centrifugal pump

Original design by PURITY (patented)

Both square motor & round motor available

YE3 high efficient motor, with protection IP55 class F

Pump case with anti-corrosive coating

Impeller in stainless steel AISI 304 or cast iron

Shaft in stainless steel AISI 304 or galvanized iron

Galvanized counter flange with bolts, nuts and gaskets

Quality NSK bearing, wear resistance mechanical seal


APPLICATIONS

Suitable for use with clean water and liquids that are not chemically

aggressive towards the materials from which the pump is made.

The EN733 centrifugal pumps are recommended for use in water supply,

cleaning sets, pressure boosting, firefighting sets, irrigation, industrial

applications, water circulation in climatisation sets, agricultural.


USING LIMITS

Liquid temperature between -10℃ and +120℃

Ambient temperature up to +50℃

Max. working pressure 16 bar

Continuous service S1


STANDARD IMPELLER MATERIAL

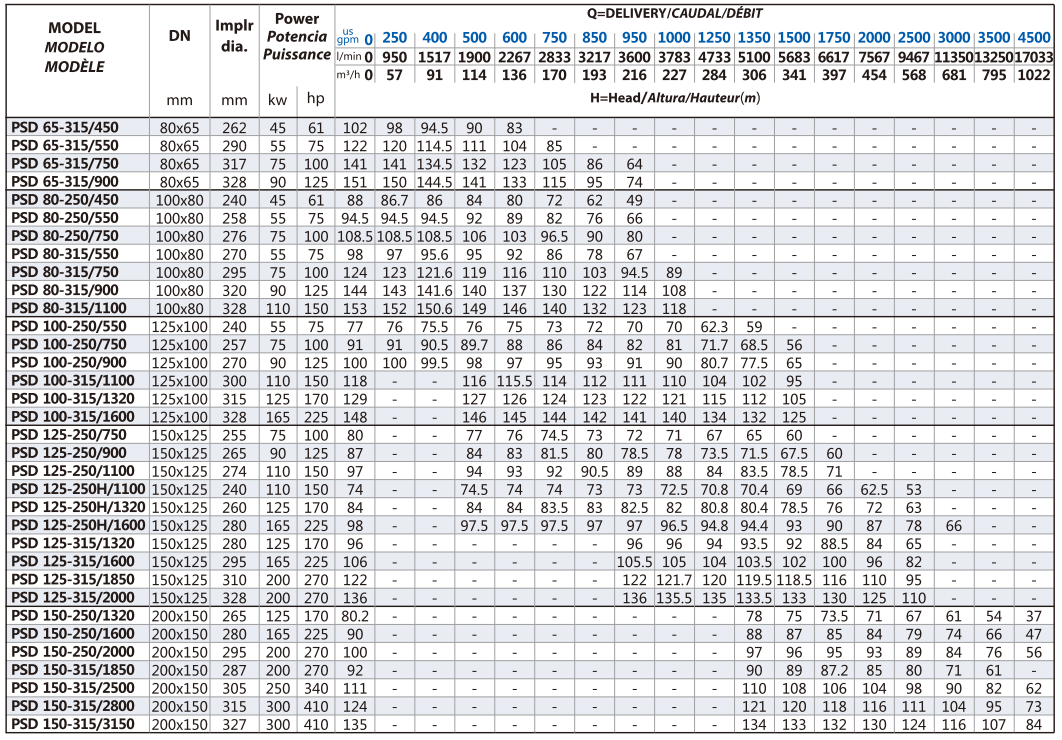

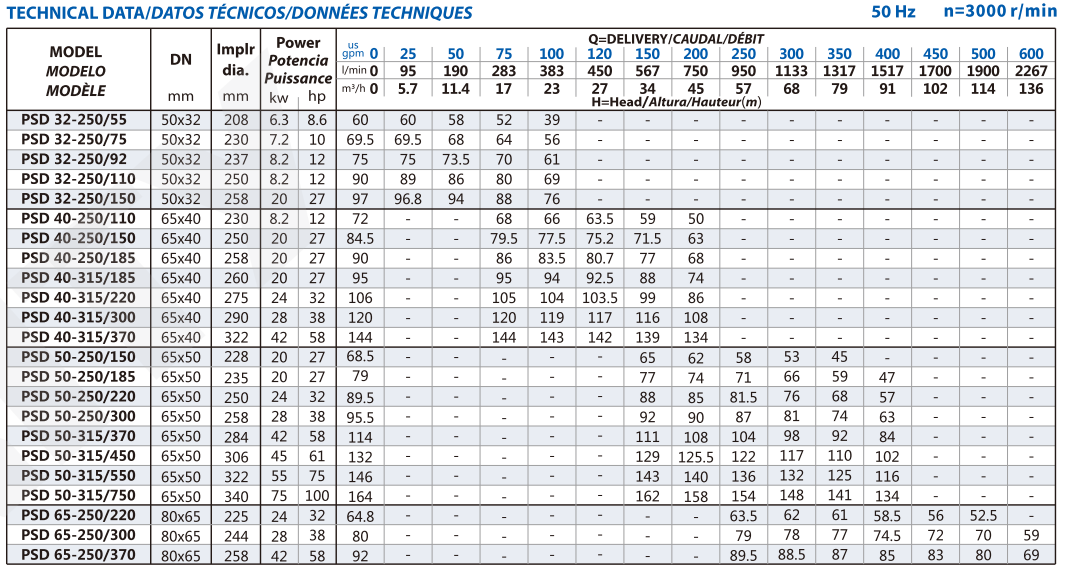

TECHICAL DATA 50 HZ    n=2900 1/min


Other Sizes  Can Provide On Request.

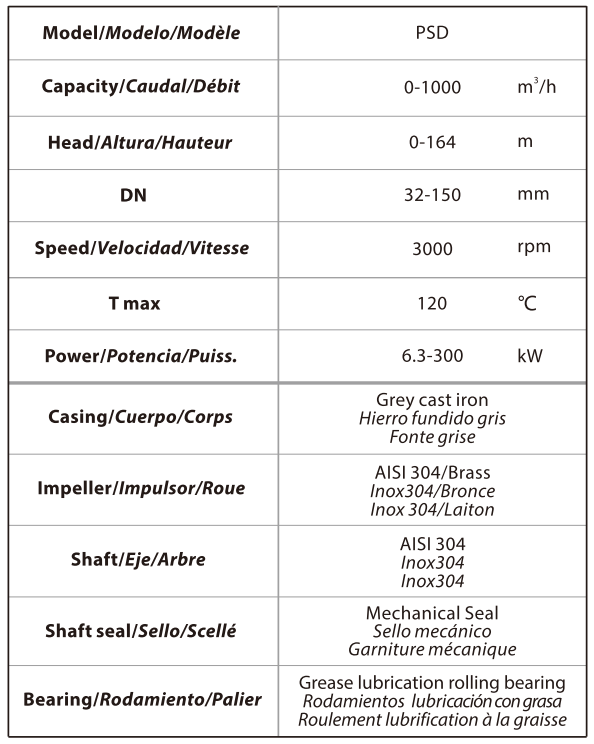

MATERIAL DESCRIPTION




PD

Product Description

TECHNICAL DESCRIPTION

More Environmentally Friendly

Meeting China III Emission Standard

Low Fuel Consumption

Strong Power

Easy To Assemble


APPLICATIONS

Suitable for use with clean water and liquids that are not chemically

aggressive towards the materials from which the pump is made.

The diesel engine pumps are recommended for use in water supply,

cleaning sets, pressure boosting, firefighting sets, irrigation,

industrial applications, water circulation in climatisation sets, agricultural.


Production Line




Packaging & Shipping



Our Exhibition



Certifications



Product Description



PSD(PS+PD)

PS

TECHNICAL DESCRIPTION

New EN733 standard centrifugal pump

Original design by PURITY (patented)

Both square motor & round motor available

YE3 high efficient motor, with protection IP55 class F

Pump case with anti-corrosive coating

Impeller in stainless steel AISI 304 or cast iron

Shaft in stainless steel AISI 304 or galvanized iron

Galvanized counter flange with bolts, nuts and gaskets

Quality NSK bearing, wear resistance mechanical seal


APPLICATIONS

Suitable for use with clean water and liquids that are not chemically

aggressive towards the materials from which the pump is made.

The EN733 centrifugal pumps are recommended for use in water supply,

cleaning sets, pressure boosting, firefighting sets, irrigation, industrial

applications, water circulation in climatisation sets, agricultural.


USING LIMITS

Liquid temperature between -10℃ and +120℃

Ambient temperature up to +50℃

Max. working pressure 16 bar

Continuous service S1


STANDARD IMPELLER MATERIAL

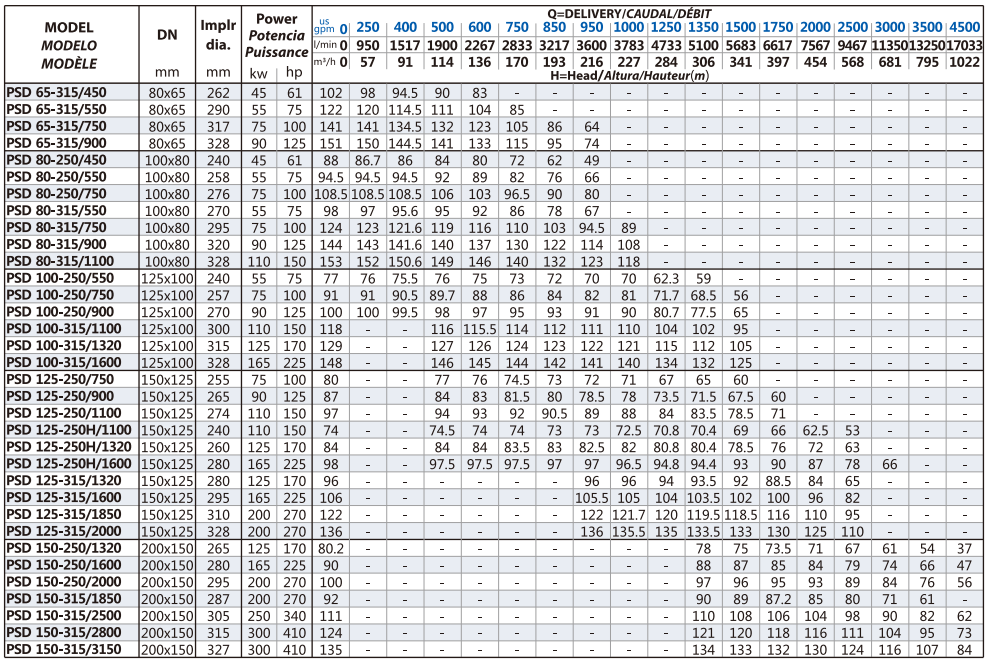

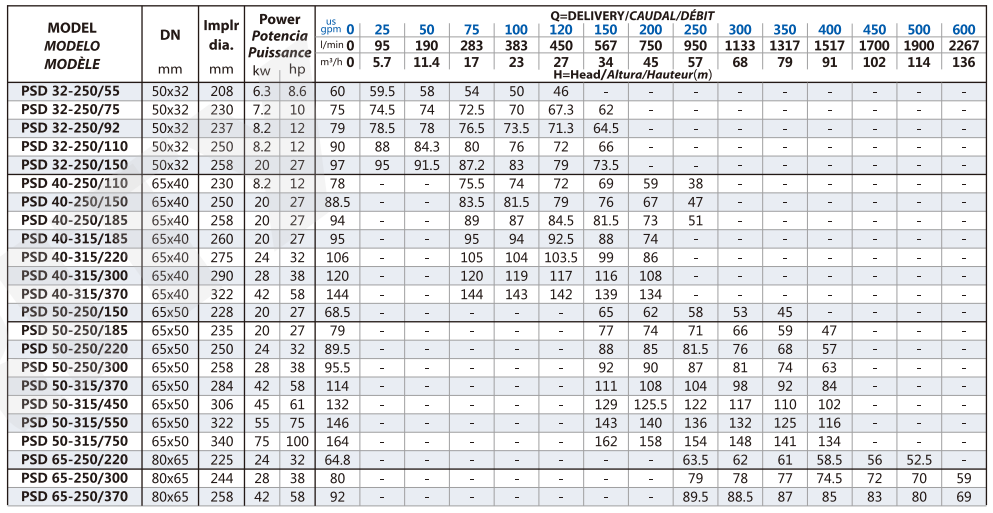

TECHICAL DATA 60 HZ    n=3500 1/min


Other Sizes  Can Provide On Request.


MATERIAL DESCRIPTION




PD

Product Description

TECHNICAL DESCRIPTION

More Environmentally Friendly

Meeting China III Emission Standard

Low Fuel Consumption

Strong Power

Easy To Assemble


APPLICATIONS

Suitable for use with clean water and liquids that are not chemically

aggressive towards the materials from which the pump is made.

The diesel engine pumps are recommended for use in water supply,

cleaning sets, pressure boosting, firefighting sets, irrigation,

industrial applications, water circulation in climatisation sets, agricultural.


Production Line




Packaging & Shipping



Our Exhibition



Certifications
