PST-Technical Parameter

Technical Parameter- Flow(Capacity)and Head(Pressure)

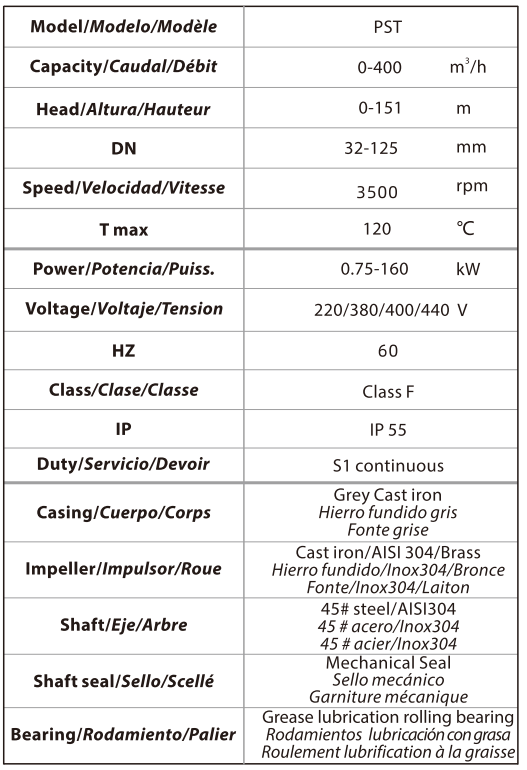

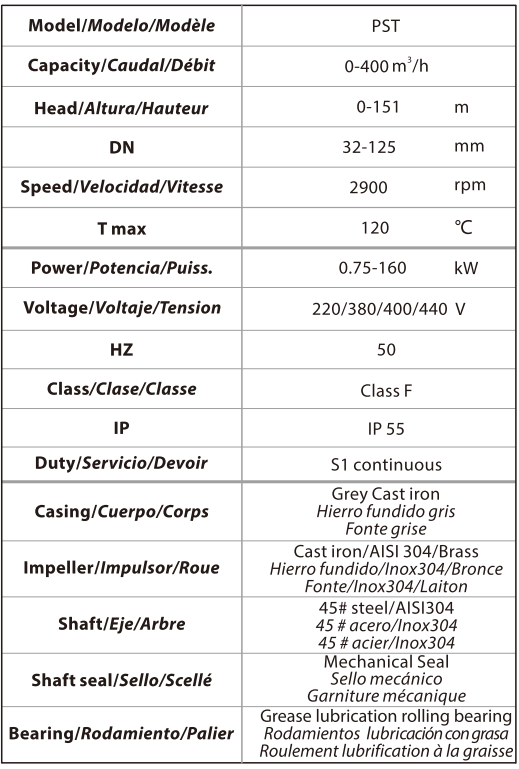

PST Series---TECHNICAL DATA

New EN733 standard centrifugal pump
Original design by PURITY (patented)
Both square motor & round motor available
YE3 high efficient motor, with protection IP55 class F
Pump case with anti-corrosive coating
Impeller in stainless steel AISI 304 or cast iron
Shaft in stainless steel AISI 304 or galvanized iron
Galvanized counter flange with bolts, nuts and gaskets
Quality NSK bearing, wear resistance mechanical seal


3D PRODUCT CHAT NOW

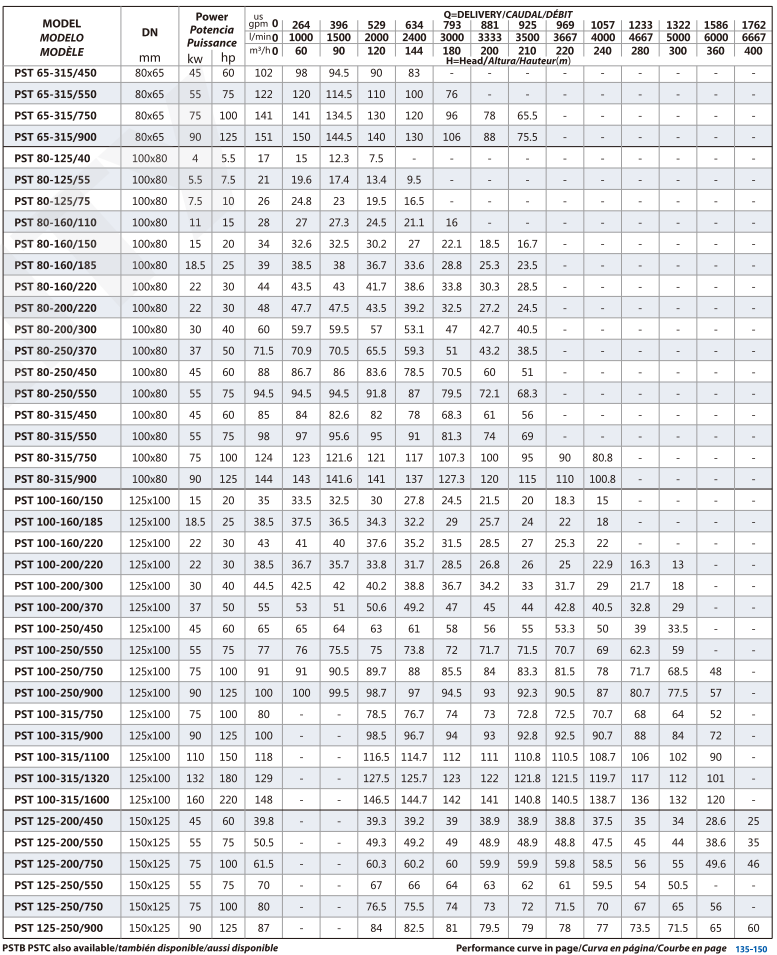

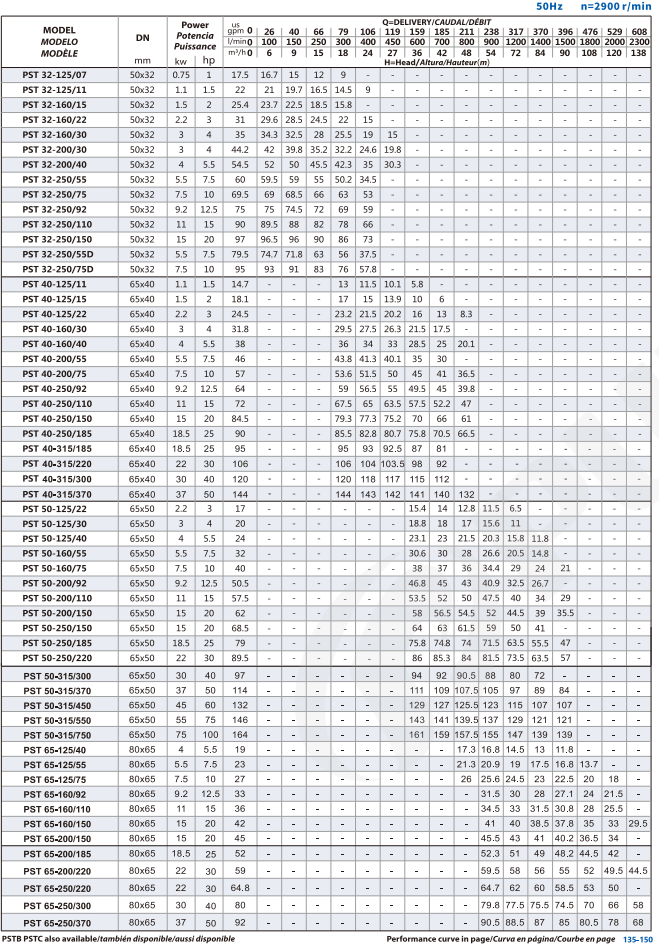

Technical Parameter                                                                        50hz n=2900 1/min




Technical Parameter                                                                        50hz n=1450 1/min

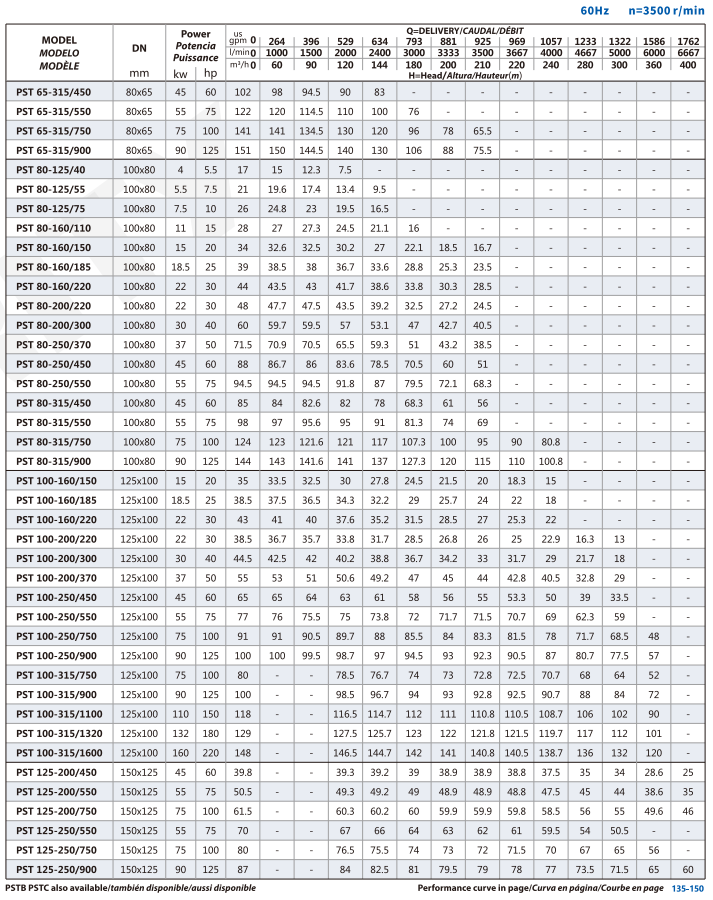

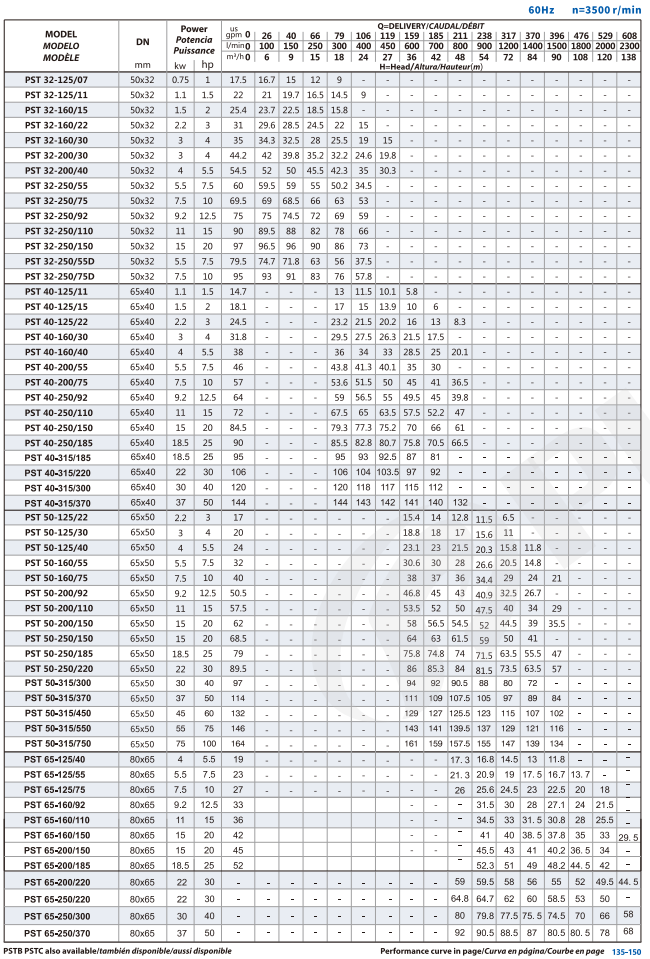

Technical Parameter                                                                      60hz n=3600 1/min




Technical Parameter                                                                      60hz n=1750 1/min
