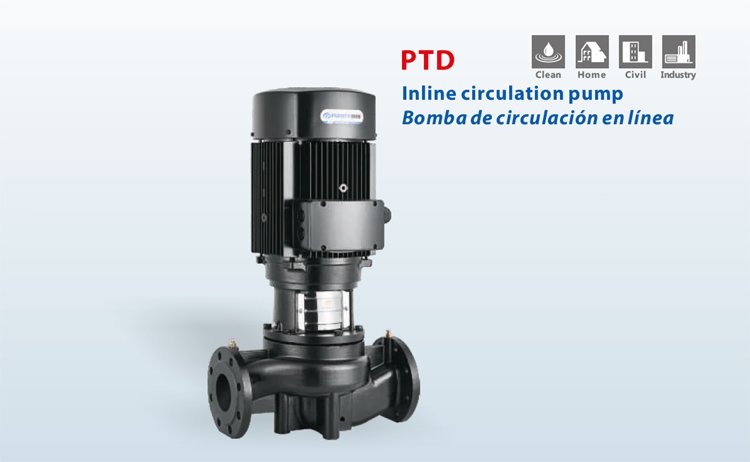

PTD Centrifugal Inline Pump from Purity Vertical Single Stage Water Pump Manufacturers

TECHNICAL DESCRIPTION
· New Inline circulation pump
· YE3 high efficient motor, with protection IP55 class F
· Pump case with anti-corrosive coating
· Easily back pull-out from driver
· Impeller in stainless steel AISI 304 or cast iron
· Shaft in stainless steel AISI 304 or galvanized iron
· Galvanized counter flange with bolts, nuts and gaskets
· Quality NSK bearing, wear resistance mechanical seal
3D PRODUCT CHAT NOW

Product Description







TECHNICAL DESCRIPTION
New Inline circulation pump
YE3 high efficient motor, with protection IP55 class F
Pump case with anti-corrosive coating
Easily back pull-out from driver
Impeller in stainless steel AISI 304 or cast iron
Shaft in stainless steel AISI 304 or galvanized iron
Galvanized counter flange with bolts, nuts and gaskets
Quality NSK bearing, wear resistance mechanical seal


APPLICATIONS
Suitable for use with clean water and liquids that are not chemically

aggressive towards the materials from which the pump is made.

The Inline circulation pumps are recommended for use in water supply,

cleaning sets, pressure boosting, firefighting sets, irrigation, industrial

applications, water circulation in climatisation sets, agricultural.


USING LIMITS
Liquid temperature between -10℃ and +120℃
Ambient temperature up to +50℃
Max. working pressure 16 bar
Continuous service S1



No.

Description

Material

No.

Description

Material

No.

Description

Material

1

Fan Cover

Aluminum

10

Motor Cover

Cast iron

19

Release Valve

Brass

2

Fan

Plastic

11

Terminal Board

Plastic

20

Mechanical Seal

SiC/Carbon/SS304

3

Back cover

Cast iron

12

Capacitor

Plastic

21

Impeller

SS304/Cast iron

4

Through Bolt

Steel

13

Pad

Rubber

22

Washer

Steel

5

Motor Case

Aluminum

14

Terminal Box

Aluminum

23

Impeller Nut

Galvanizated Steel

6

Wound Stator

Silicon Steel/copper

15

Coupling

Steel

24

O-ring

Rubber

7

Impeller Key

Iron

16

Shaft

SS304/45# Steel

25

Pump Case

Cast iron

8

Rotor

Silicon Steel

17

Connection

Cast iron

9

Bearing

Ball Bearing

18

Case Cover

SS304









Spare Parts




Packaging & Shipping





Our Exhibition





Certifications
