PGL-G

PGL-G

1. drainage, etc. It allows pressure supply without fear of space and time constraints.
2. Its IP65 degree of protection is not afraid of wind and rain.
3. Its five fold sealing technology can effectively isolate dust generated in production. You can put it into use with
confidence.
4. Its three patented technologies are embodied in the innovative appearance, pump core and powerful energy.
5. Its connection and end cover are designed to be integrally cast to avoid water ingress at them, which improve the connection
strength and concentricity, enhance mechanical efficiency and prolong the service life of the whole machine.
6. Its guard board is designed to avoid entangled objects entering the connection, avoid rotating shaft contact and eliminate
potential safety hazards.
7. It uses NSK Bearings to achieve better sealing performance.
8. Its aluminum junction box has beautiful appearance, which is water-proof and dust-proof, anti-collision and anti deformation.
3D PRODUCT CHAT NOW
PRODUCT USE
PGL-G, the water-proof circulation pipeline
pump, can transport clean water and other liquids with physical and chemical properties similar to clean water. It is suitable for
cooling tower, energy, metallurgy, chemical industry, textile, papermaking, hotels, restaurants, other boiler hot water
pressurized transmission and urban heating systems. The operating medium temperature shall be less than or equal to 100℃.

SERVICE RESTRICTIONS
①working pressure is ≤ 1.6 MPa, which can be determined according to the order requirements under special circumstances.
②The ambient temperature shall not exceed 40 °C and the relative humidity shall not exceed 95%.
③the medium pH 5 ~ 9, medium temperature 0℃ to 100 ℃;The pH value of the transmission medium is from 5 to 9 and the medium
temperature is from 0°C to 100°C.
④Solid volume ratio of conveying medium is ≤ 02% and solid particles is ≤ 0.2%.
⑤No diving.
⑥It can work in the environment with dust particles less than 10 microns, completely preventing dust from entering.

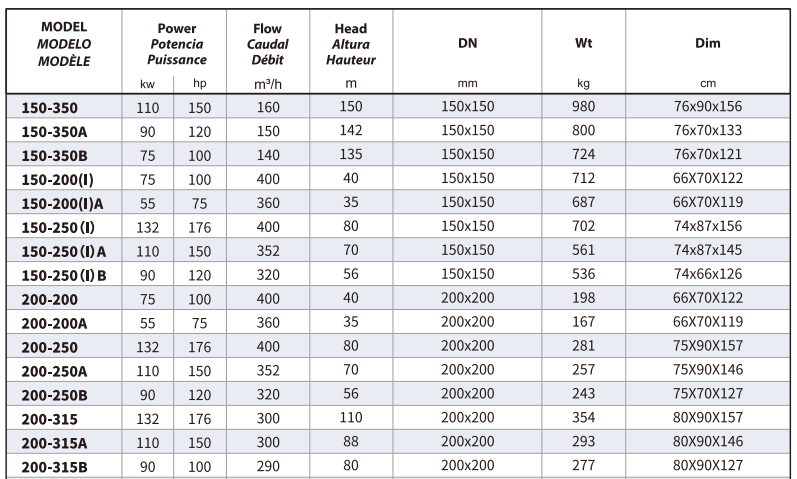

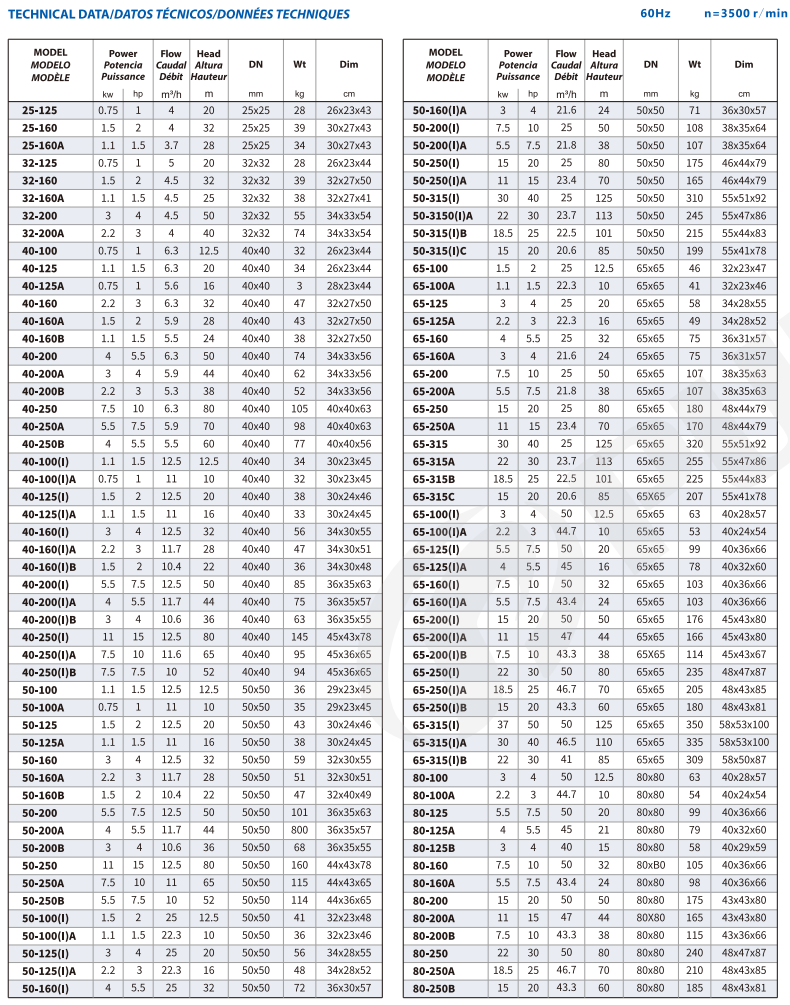

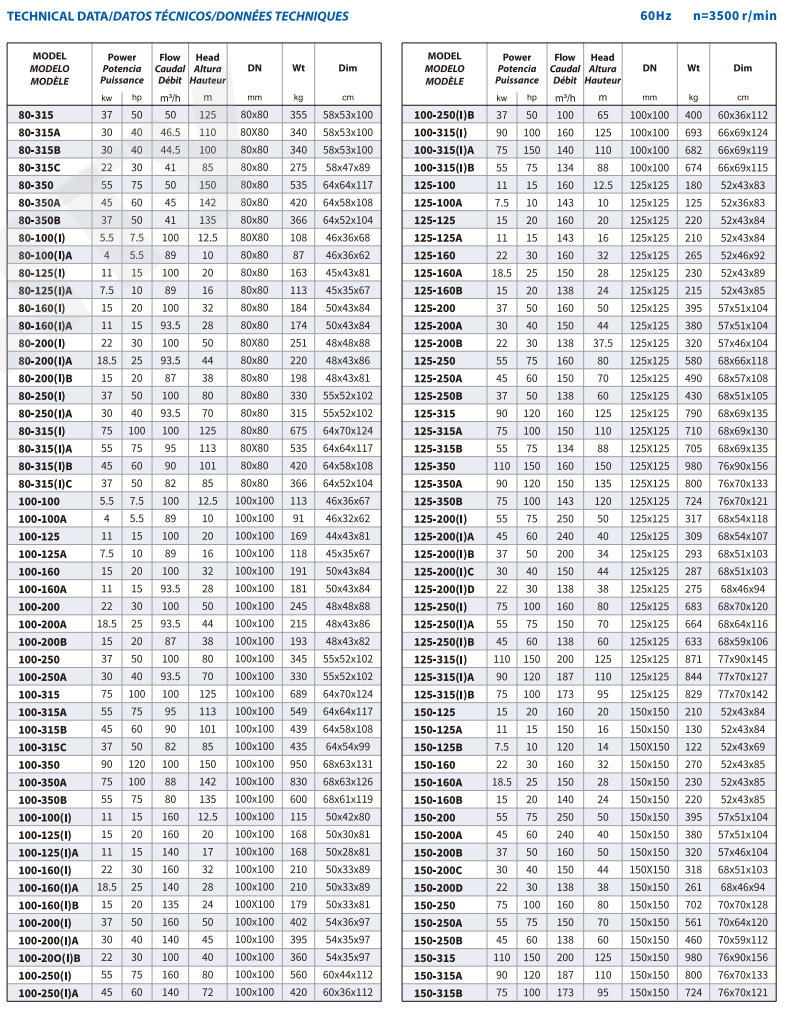

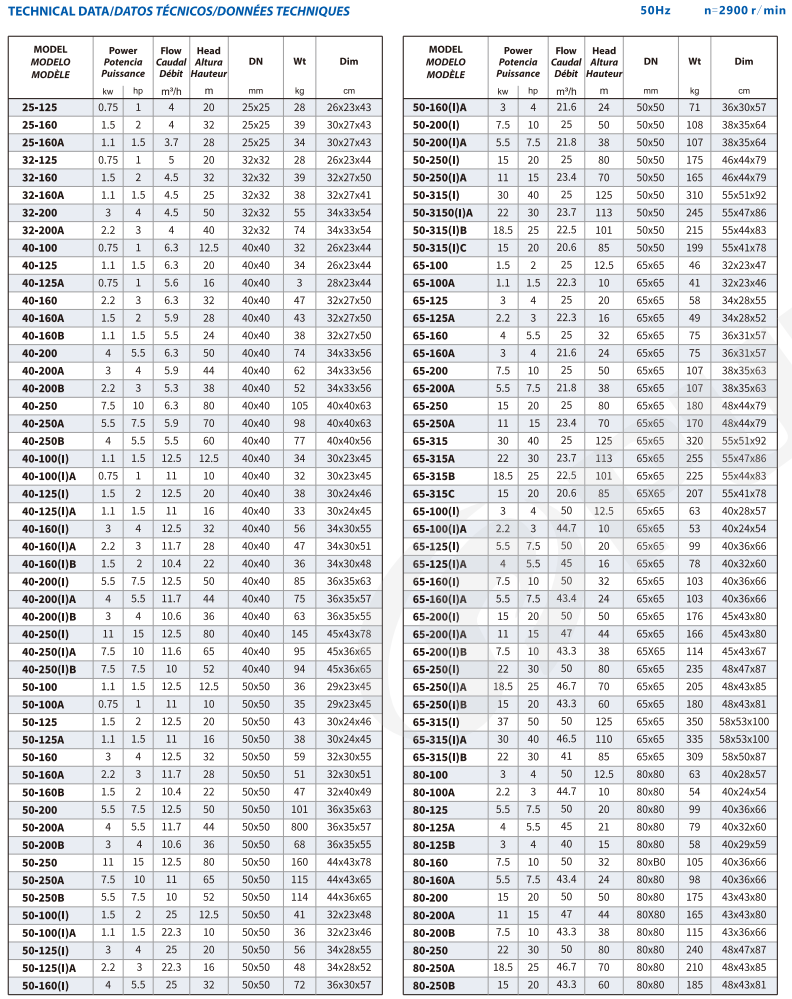

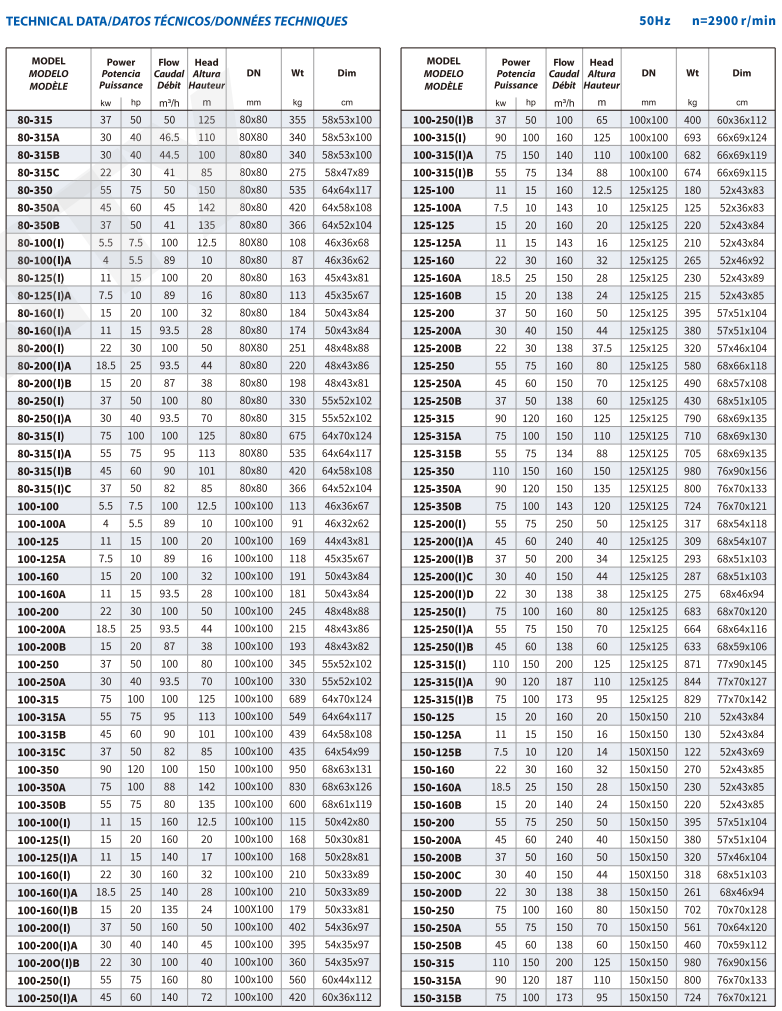

Technical parameters
