PSD(PS+PD)
PS
Technical Description
New EN733 standard centrifugal pump
Original design by PURITY (patented)
Both square motor & round motor available
YE3 high efficient motor, with protection IP55 class F
Pump case with anti-corrosive coating
Impeller in stainless steel AISI 304 or cast iron
Shaft in stainless steel AISI 304 or galvanized iron
Galvanized counter flange with bolts, nuts and gaskets
Quality NSK bearing, wear resistance mechanical seal
Applications
Suitable for use with clean water and liquids that are not chemically
aggressive towards the materials from which the pump is made.
The EN733 centrifugal pumps are recommended for use in water supply,
cleaning sets, pressure boosting, firefighting sets, irrigation, industrial
applications, water circulation in climatisation sets, agricultural.
Using Limits
Liquid temperature between -10℃ and +120℃
Ambient temperature up to +50℃
Max. working pressure 16 bar
Continuous service S1
Patents
Registered model PST
Registered Patent Design n° 201530478502.0
PD
Technical Description
More Environmentally Friendly
Meeting China III Emission Standard
Low Fuel Consumption
Strong Power
Easy To Assemble
Applications
Suitable for use with clean water and liquids that are not chemically
aggressive towards the materials from which the pump is made.
The diesel engine pumps are recommended for use in water supply,
cleaning sets, pressure boosting, firefighting sets, irrigation,
industrial applications, water circulation in climatisation sets, agricultural.

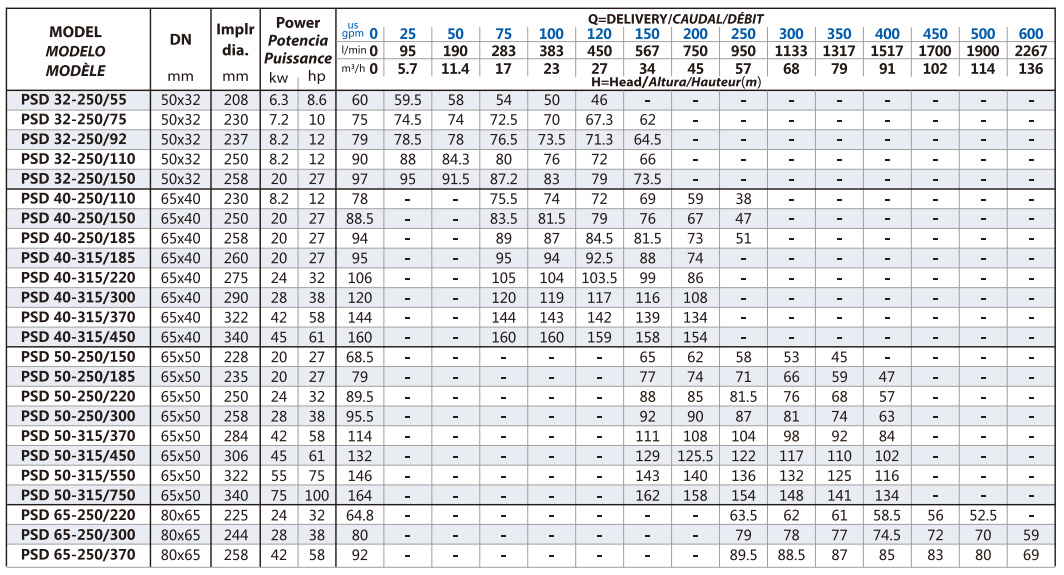

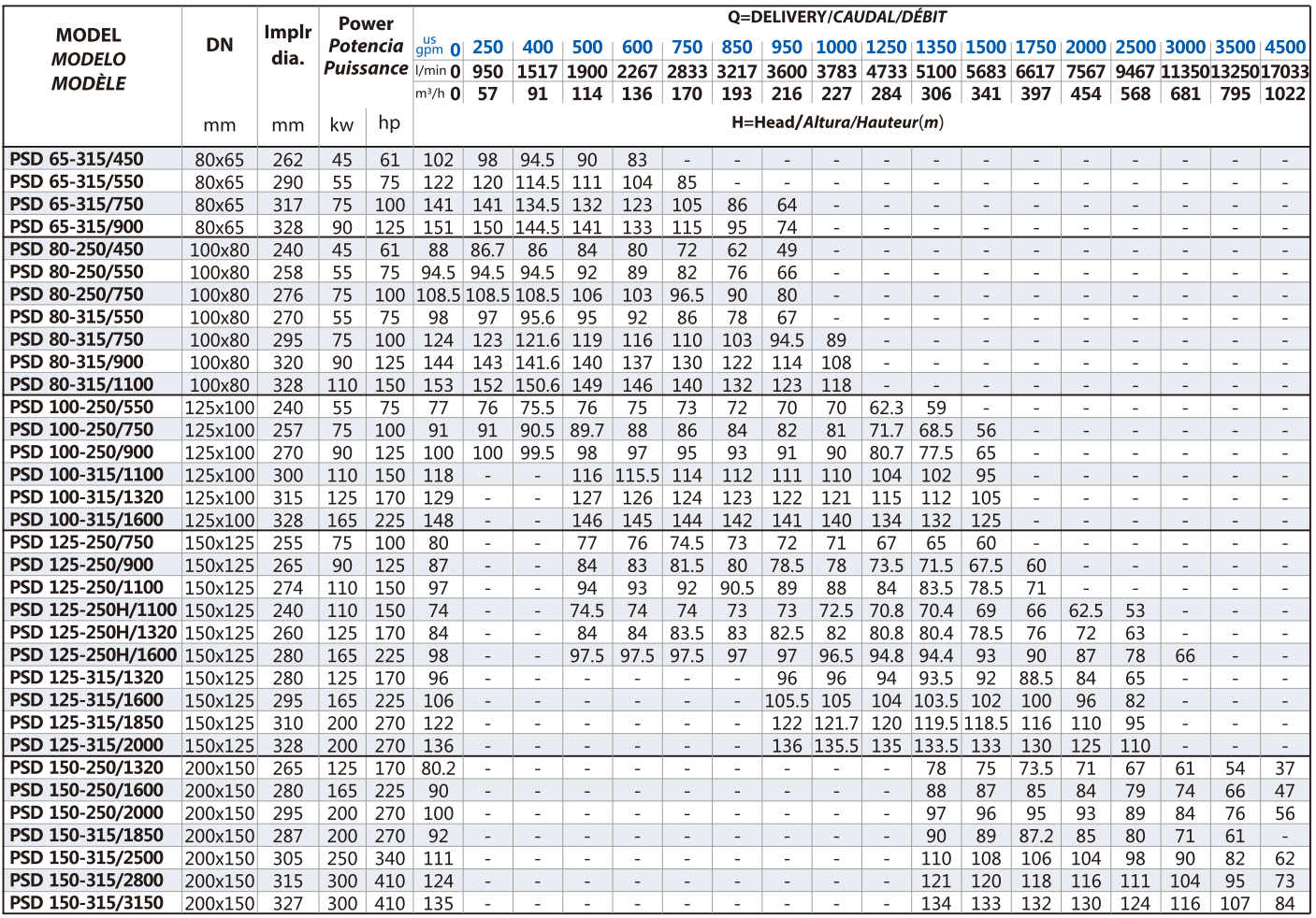

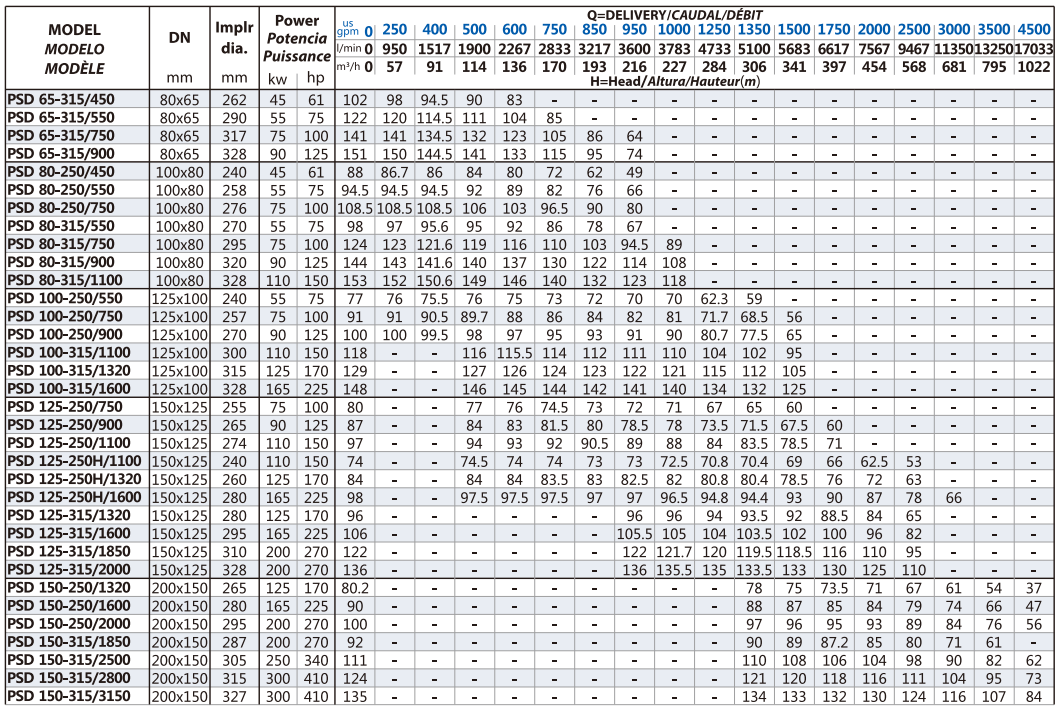

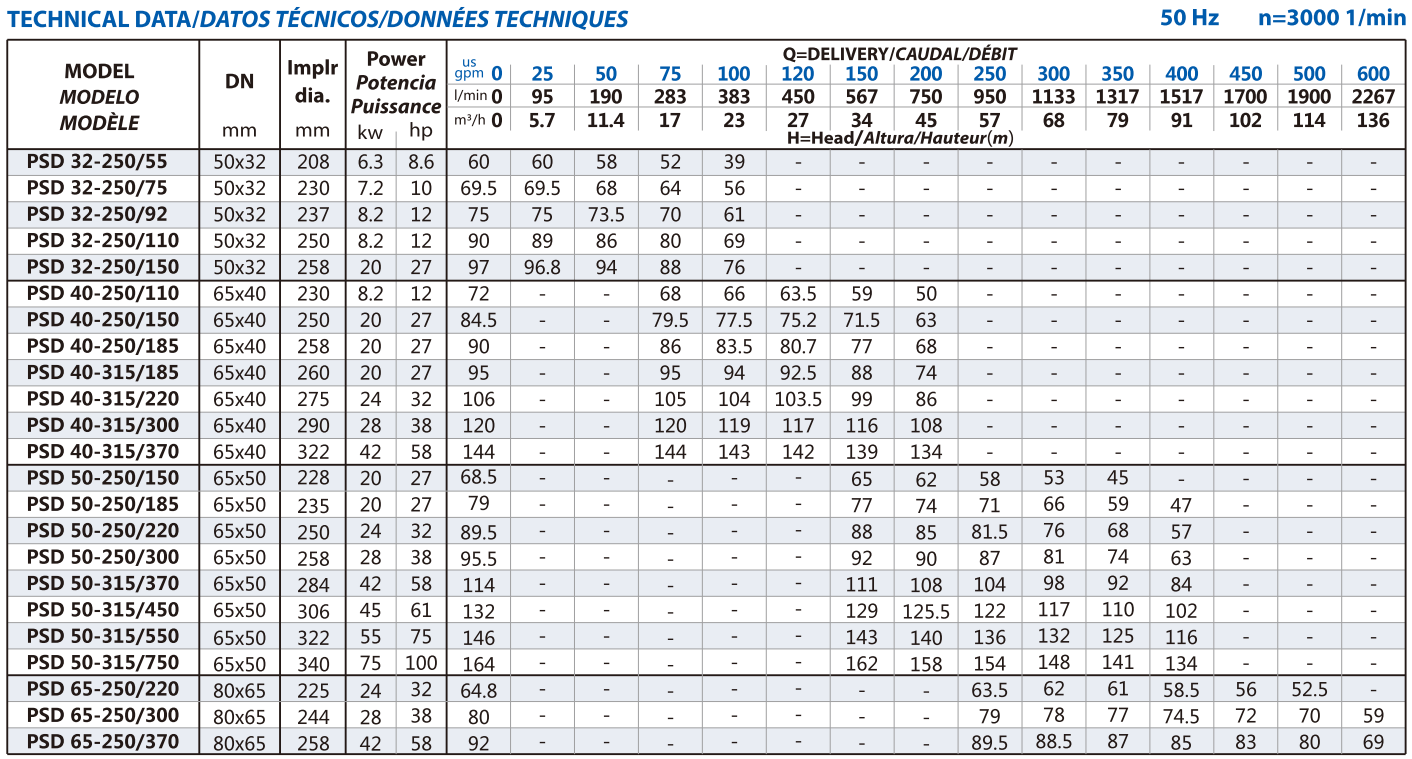

Technical Data
|
MODELMODELO |
Power/Potencia |
us
gpm |
Q=DELIVERY / CAUDAL |
DN |
||||||||||||||
|
0 |
604 |
991 |
1374 |
1762 |
2145 |
2533 |
2916 |
3304 |
3687 |
4075 |
4564 |
5075 |
5586 |
|||||
|
l/min |
0 |
2283 |
3750 |
5200 |
6667 |
8117 |
9583 |
11033 |
12500 |
13950 |
15417 |
17267 |
19200 |
21133 |
||||
|
kw |
hp |
m3/h |
0 |
137 |
225 |
312 |
400 |
487 |
575 |
662 |
750 |
837 |
925 |
1036 |
1152 |
1268 |
mm |
|
|
200-250/185 |
18.5 |
25 |
Head H(m) |
15.7 |
15.3 |
14.8 |
13.7 |
12.2 |
10.6 |
8.9 |
6.8 |
|
|
|
|
|
|
250x200 |
|
200-250/220 |
22 |
30 |
18.5 |
|
17.2 |
16.2 |
14.8 |
13.1 |
11.1 |
8.7 |
|
|
|
|
|
|
250x200 |
|
|
200-250/300 |
30 |
40 |
23.1 |
|
21.5 |
20.5 |
19.4 |
17.9 |
16 |
13.6 |
10.8 |
|
|
|
|
|
250x200 |
|
|
200-315/550 |
55 |
75 |
31.1 |
|
30.2 |
29.8 |
29.1 |
27.9 |
25.8 |
23 |
19.2 |
14.8 |
|
|
|
|
250x200 |
|
|
200-315/750 |
75 |
100 |
||||||||||||||||
Related Products
Product Description
PSD(PS+PD)
PS
TECHNICAL DESCRIPTION
New EN733 standard centrifugal pump
Original design by PURITY (patented)
Both square motor & round motor available
YE3 high efficient motor, with protection IP55 class F
Pump case with anti-corrosive coating
Impeller in stainless steel AISI 304 or cast iron
Shaft in stainless steel AISI 304 or galvanized iron
Galvanized counter flange with bolts, nuts and gaskets
Quality NSK bearing, wear resistance mechanical seal
APPLICATIONS
Suitable for use with clean water and liquids that are not chemically
aggressive towards the materials from which the pump is made.
The EN733 centrifugal pumps are recommended for use in water supply,
cleaning sets, pressure boosting, firefighting sets, irrigation, industrial
applications, water circulation in climatisation sets, agricultural.
USING LIMITS
Liquid temperature between -10℃ and +120℃
Ambient temperature up to +50℃
Max. working pressure 16 bar
Continuous service S1
PATENTS
Registered model PST
Registered Patent Design n° 201530478502.0
PD
TECHNICAL DESCRIPTION
More Environmentally Friendly
Meeting China III Emission Standard
Low Fuel Consumption
Strong Power
Easy To Assemble
APPLICATIONS
Suitable for use with clean water and liquids that are not chemically
aggressive towards the materials from which the pump is made.
The diesel engine pumps are recommended for use in water supply,
cleaning sets, pressure boosting, firefighting sets, irrigation,
industrial applications, water circulation in climatisation sets, agricultural.
PS

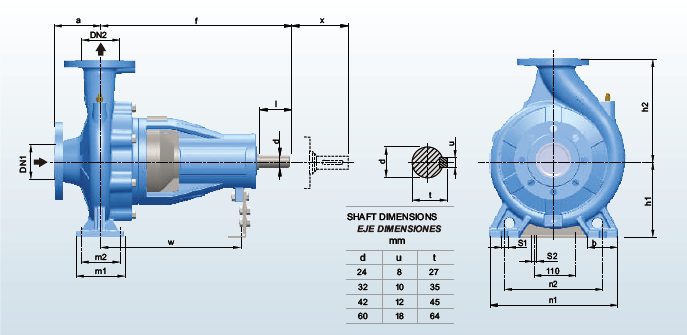

Dimensions And Weight
