TECHNICAL DESCRIPTION
· Impeller shaft and the motor shaft are all supported by copper bearings
· Radial run out of the shaft is controlled within 0.13 mm of the US standard
· Runs smoothly and the noise is low
· Various stainless steel materials such as ductile iron, ASTM 304, 316, 416
are selected to meet various special working conditions and technical requirements of users
Related Production
Product Description
Vertical Turbine Deep Well Fire pump
TECHNICAL DESCRIPTION
--All copper movement, uniform and stable overheating, lower power consumption,
long service life
--Internal thermal protection device to prevent motor overheating caused
by abnormal use.
--Cast iron pump body: high quality cast iron pump head for better corrosion
resistance and longer service life.
--Assembling the pump body: The pump body is assembled by a new assembly
process, which has higher sealing performance and effectively reduces
the noise during operation.
--High-quality accessories: high-standard, high-quality parts, more wear-resistant,
longer service life, and significantly reduced failure rate.
APPLICATIONS
Suitable for use with clean water. For Fire hydrant water supply, sprinkler system,
fire system voltage regulator
Features
--Impeller shaft and the motor shaft are all supported by copper bearings.
--Radial runout of the shaft is controlled within 0.13mm of the US standard.
--Runs smoothly and the noise is low.
--Various stainless steel materials such as ductile iron, ASTM304, 316, 416 are
selected to meet various special working conditions and technical requirements of users.

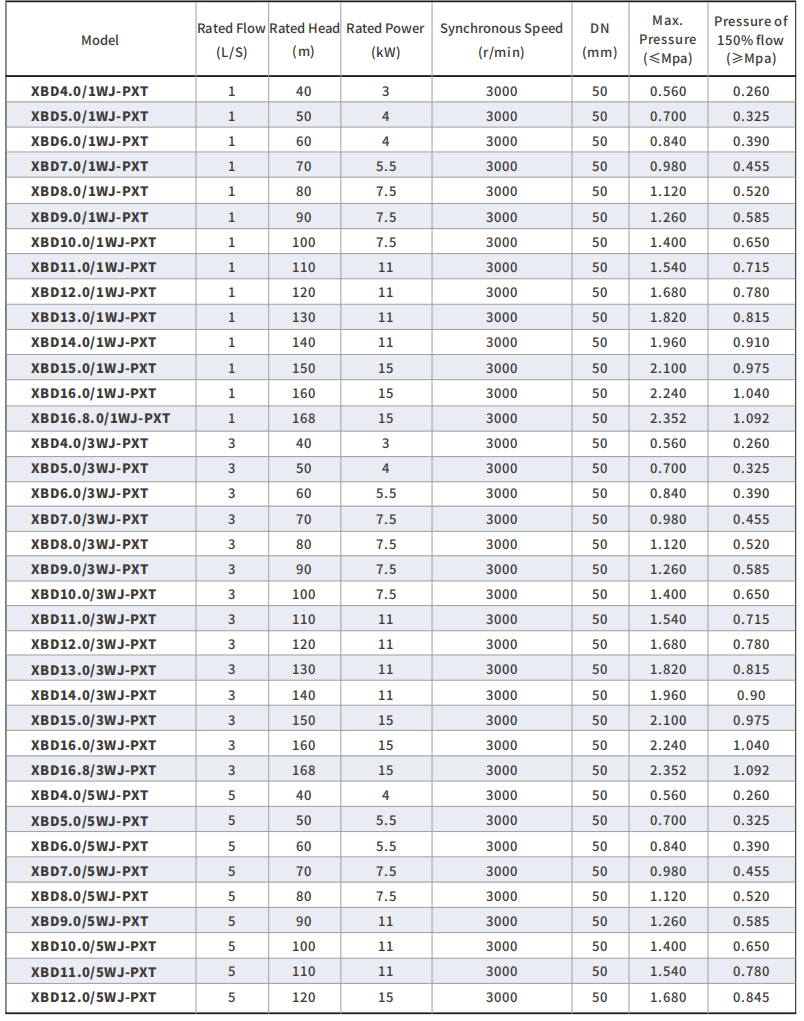

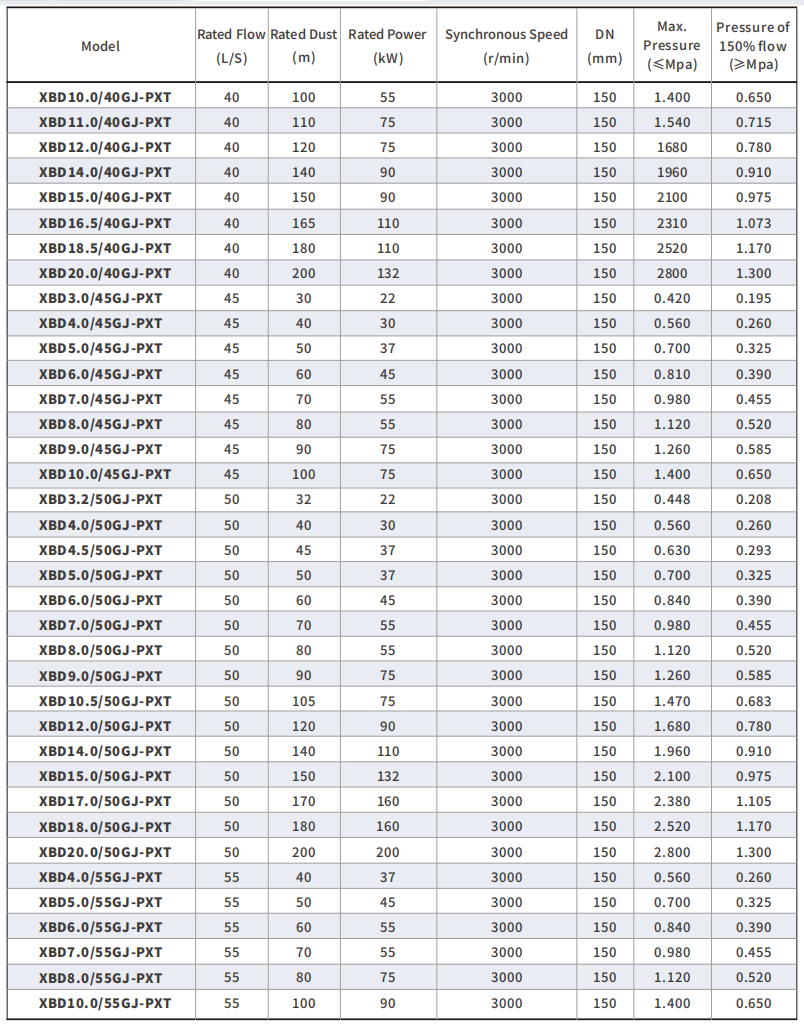

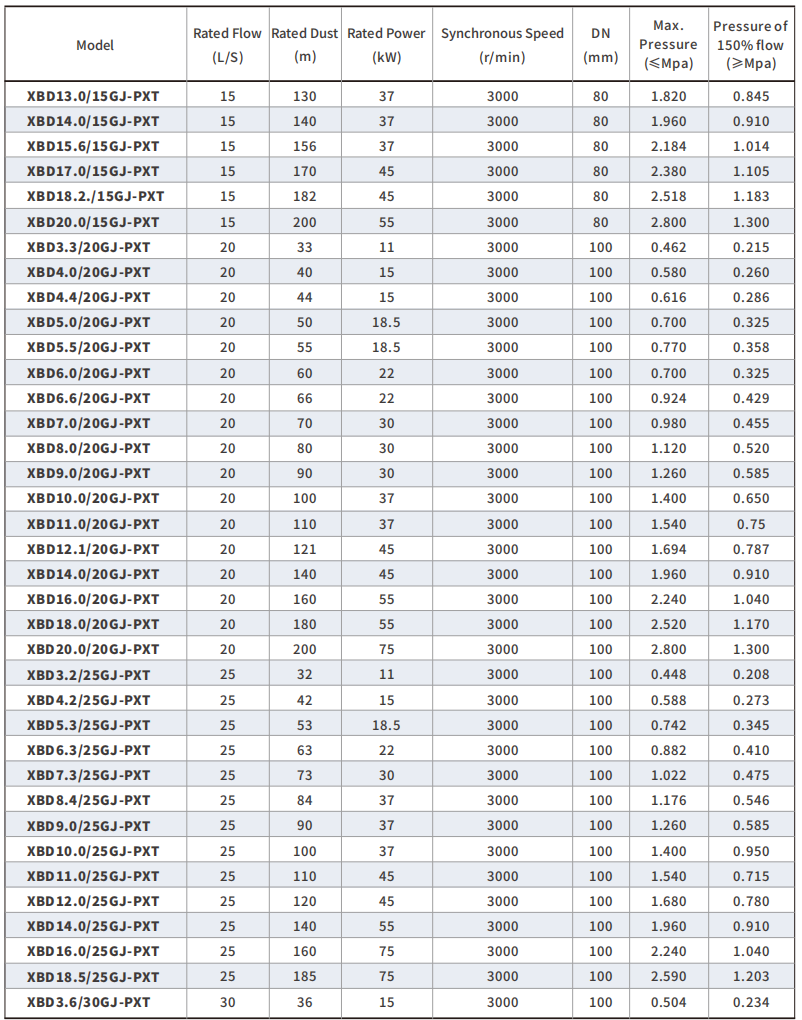

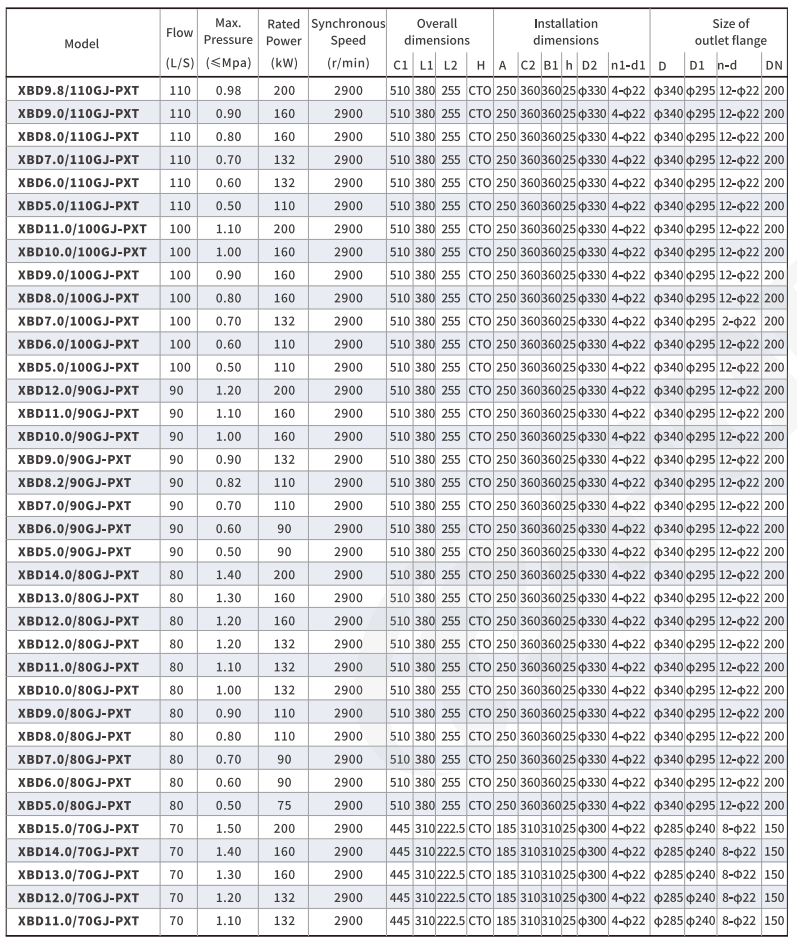

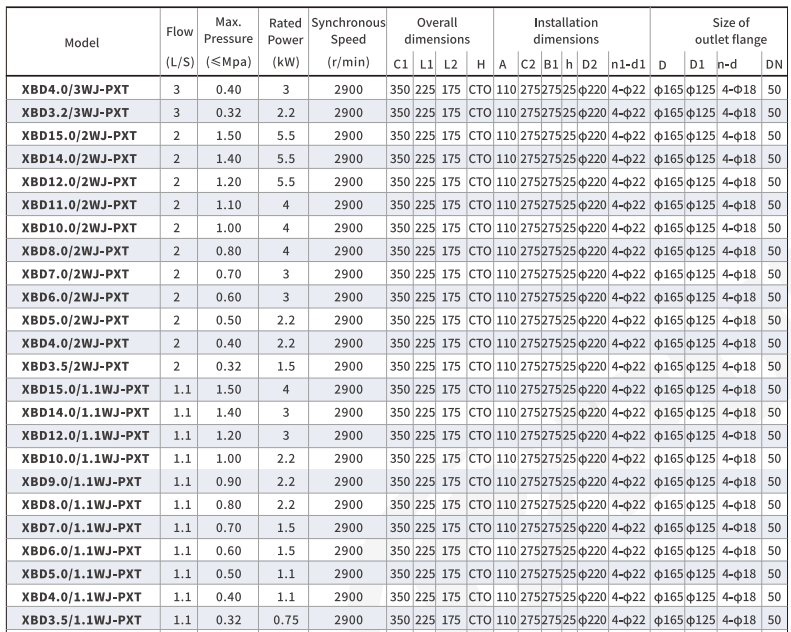

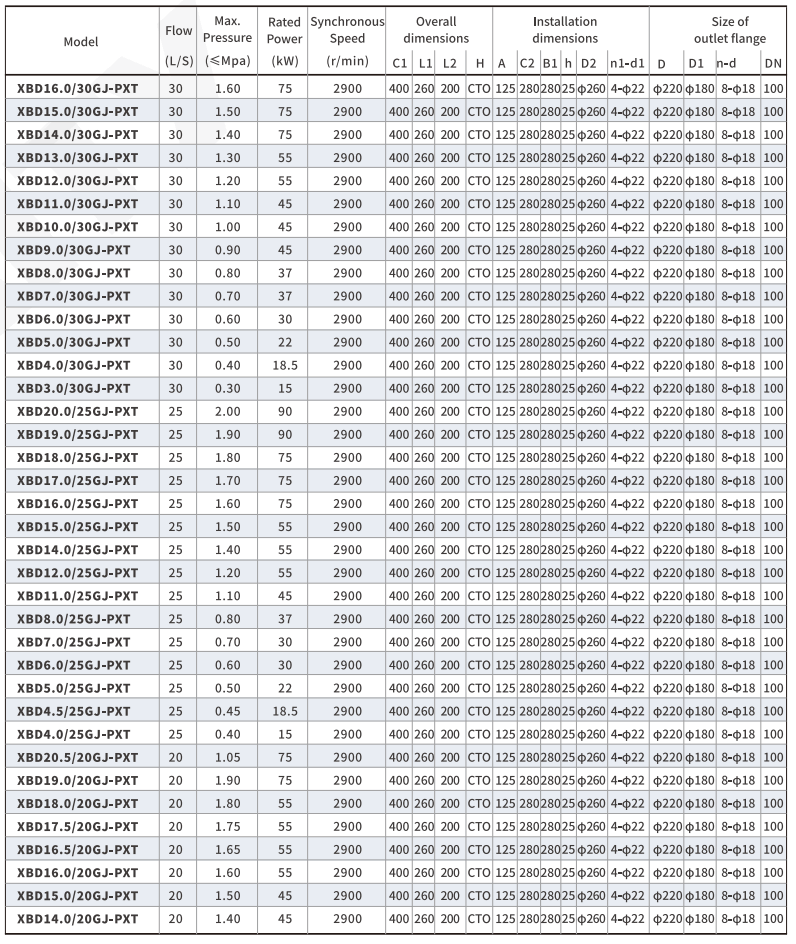

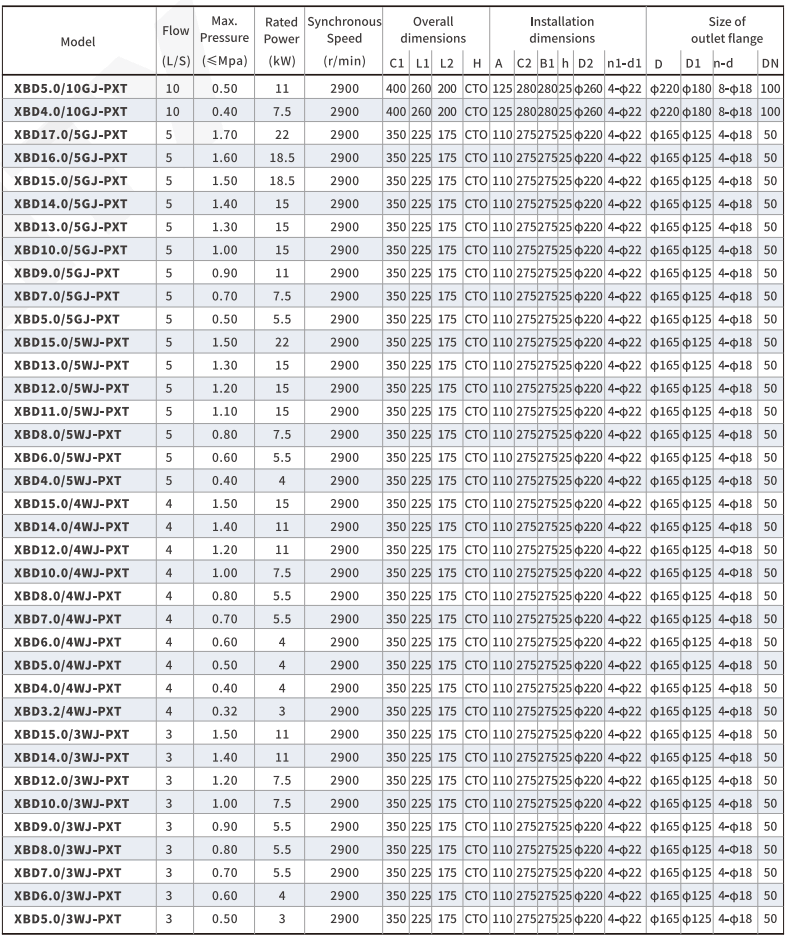

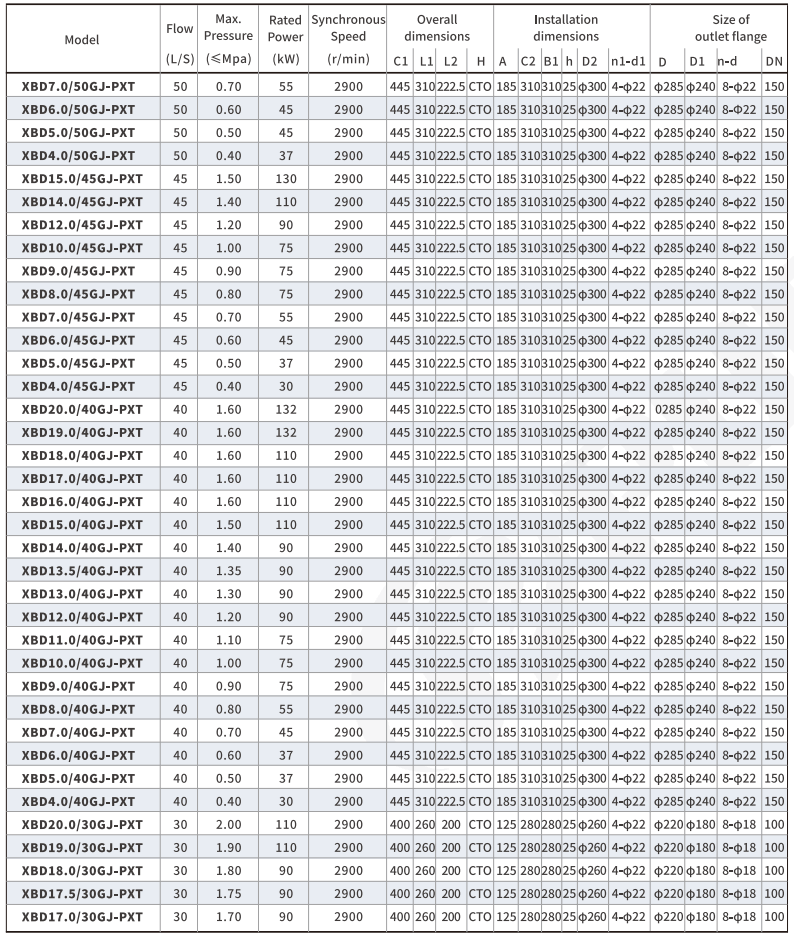

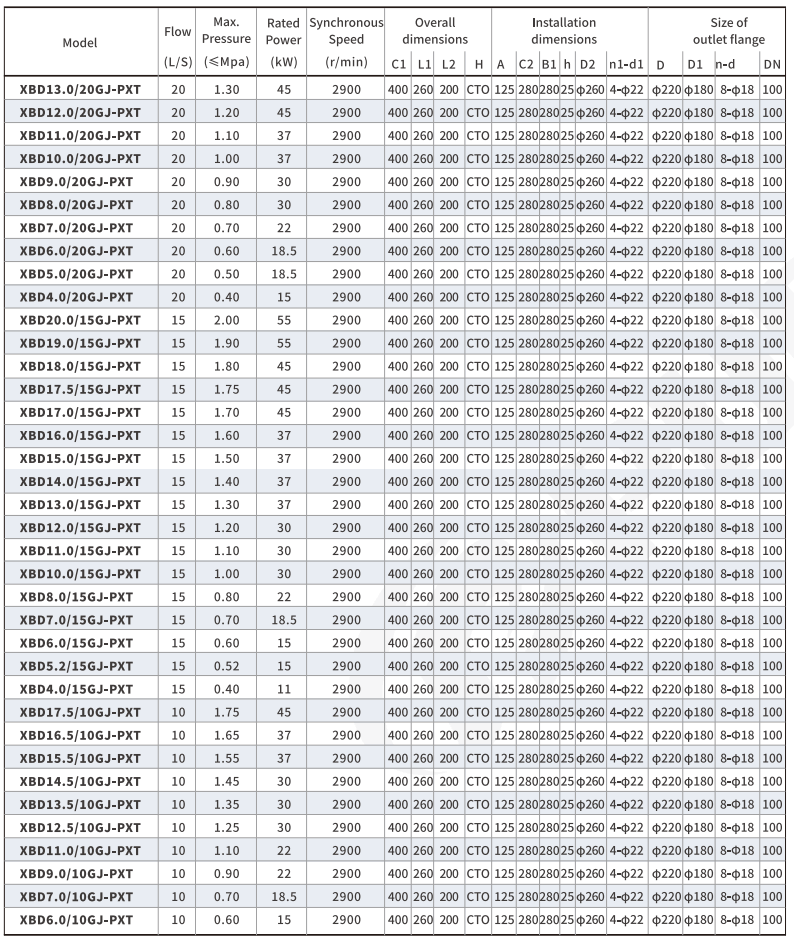

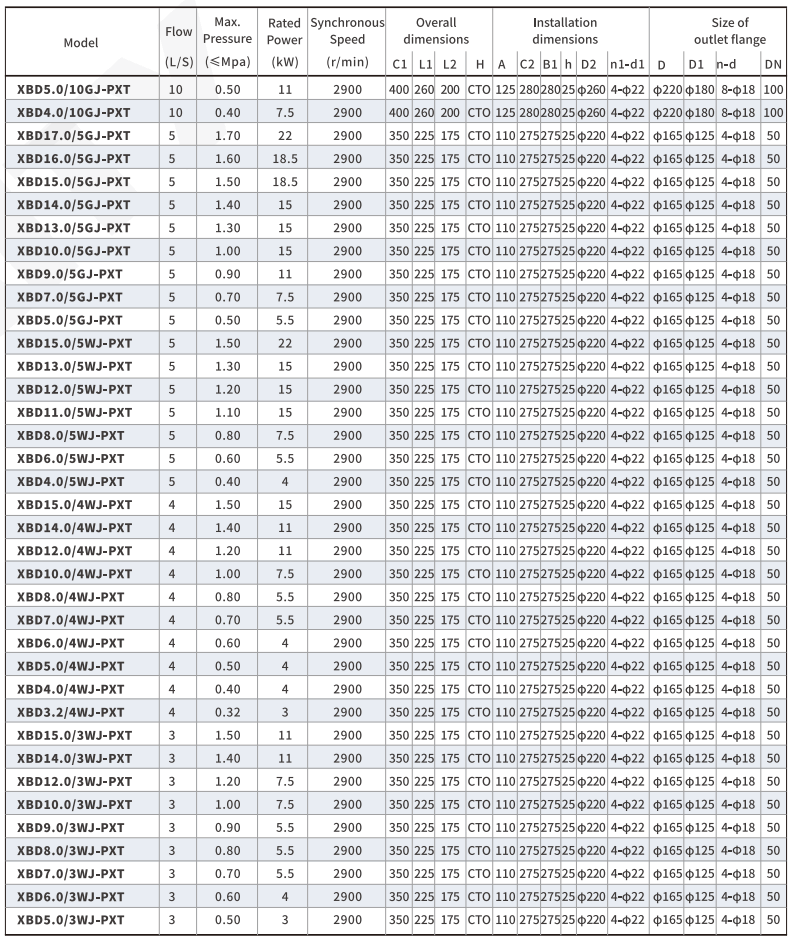

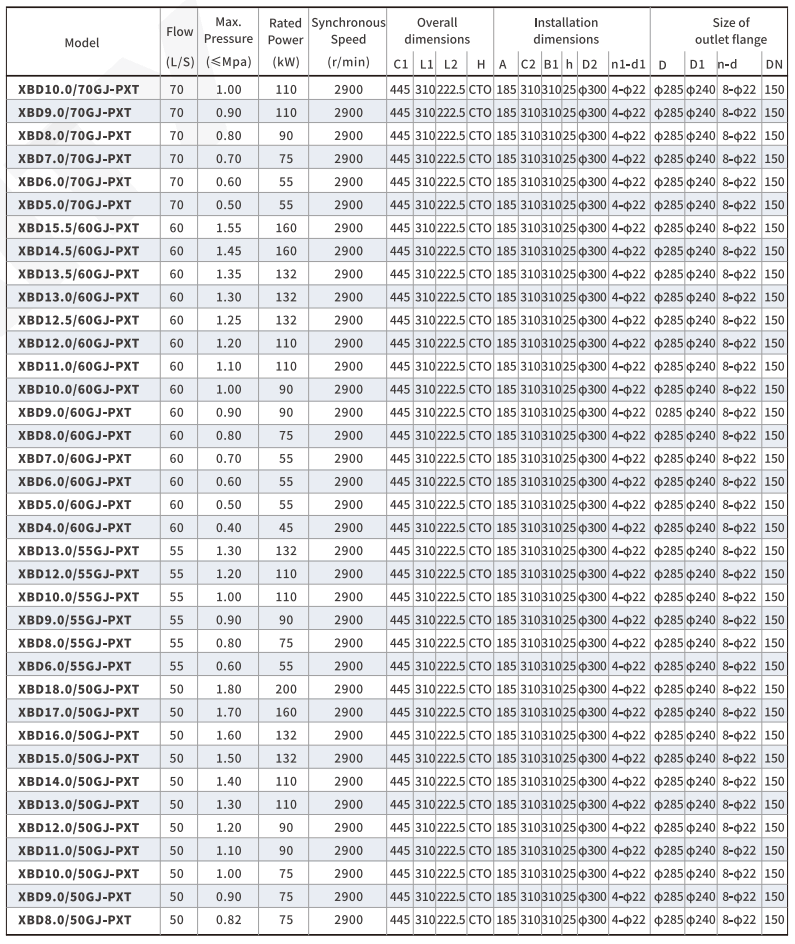

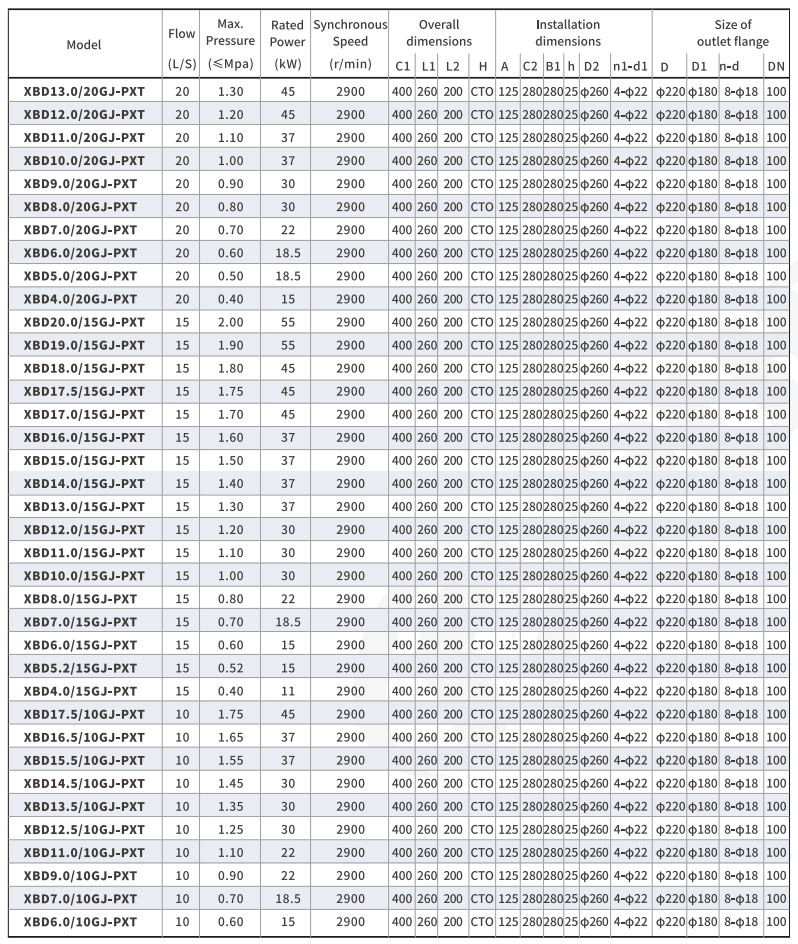

Technical Data
Other Sizes Can Provide On Request.
Related Production
Product Description
Vertical Turbine Deep Well Fire pump
TECHNICAL DESCRIPTION
--All copper movement, uniform and stable overheating, lower power consumption,
long service life
--Internal thermal protection device to prevent motor overheating caused
by abnormal use.
--Cast iron pump body: high quality cast iron pump head for better corrosion
resistance and longer service life.
--Assembling the pump body: The pump body is assembled by a new assembly
process, which has higher sealing performance and effectively reduces
the noise during operation.
--High-quality accessories: high-standard, high-quality parts, more wear-resistant,
longer service life, and significantly reduced failure rate.
APPLICATIONS
Suitable for use with clean water. For Fire hydrant water supply, sprinkler system,
fire system voltage regulator
Features
--Impeller shaft and the motor shaft are all supported by copper bearings.
--Radial runout of the shaft is controlled within 0.13mm of the US standard.
--Runs smoothly and the noise is low.
--Various stainless steel materials such as ductile iron, ASTM304, 316, 416 are
selected to meet various special working conditions and technical requirements of users.

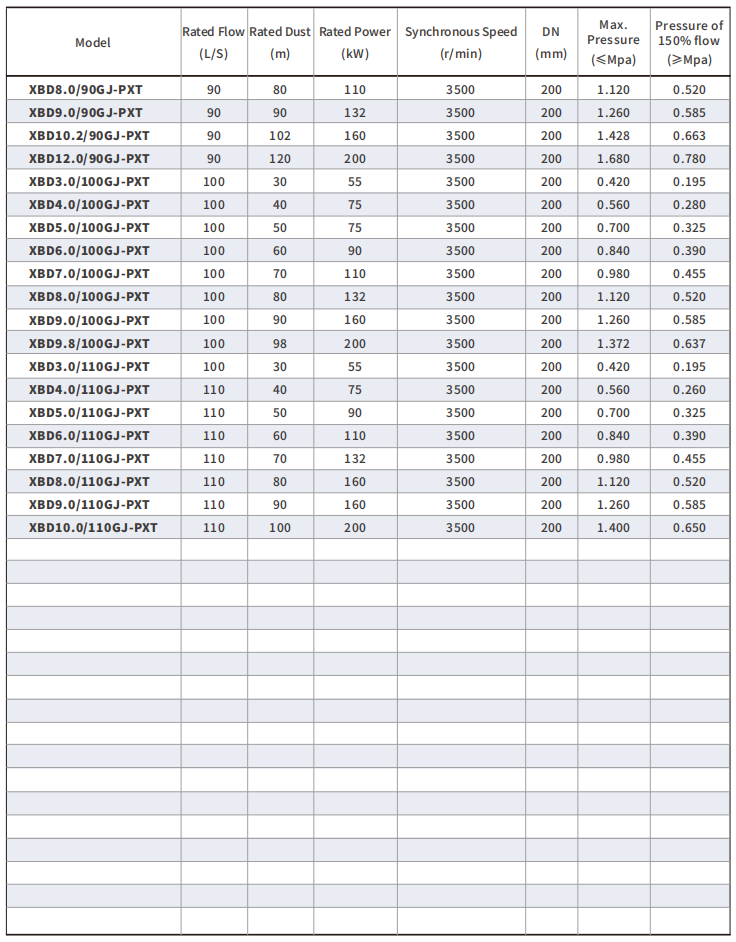

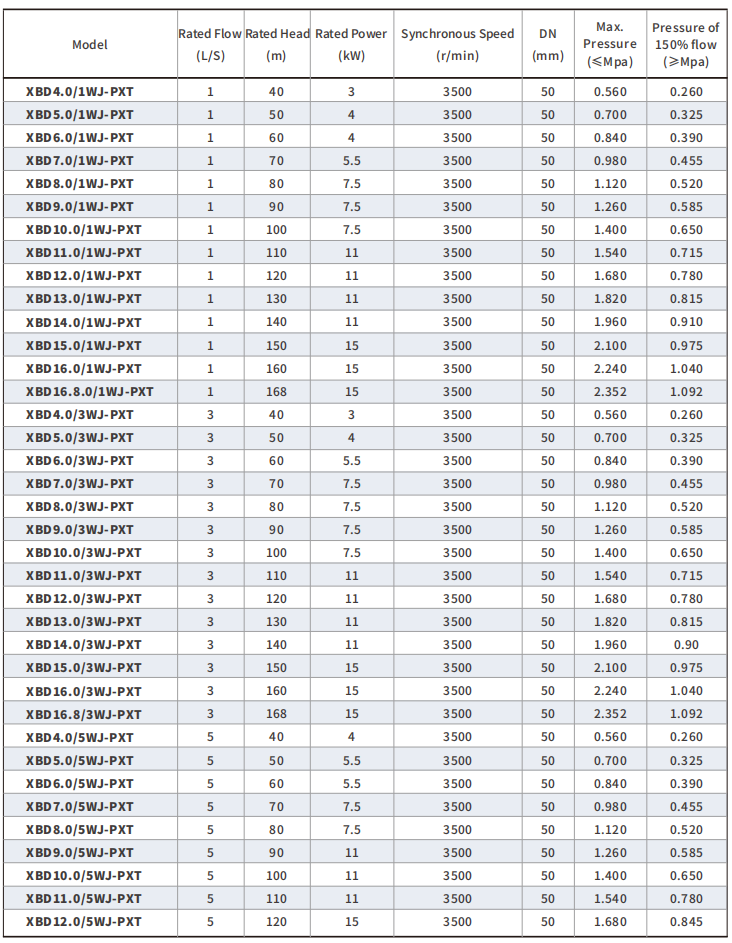

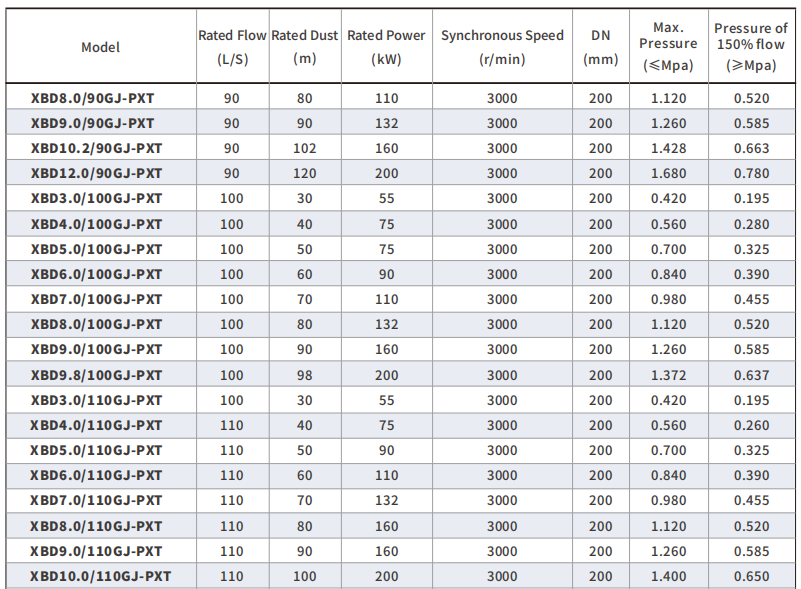

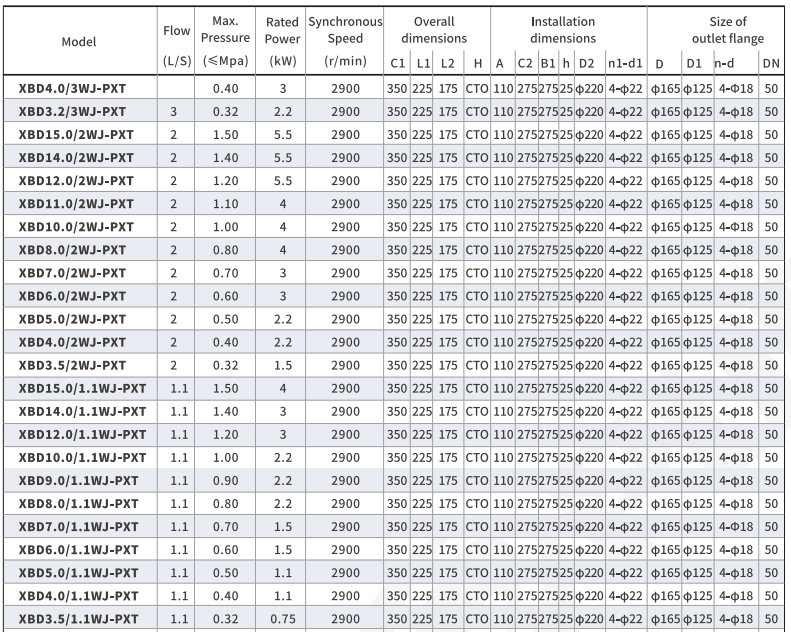

Technical Data
Other Sizes Can Provide On Request.
