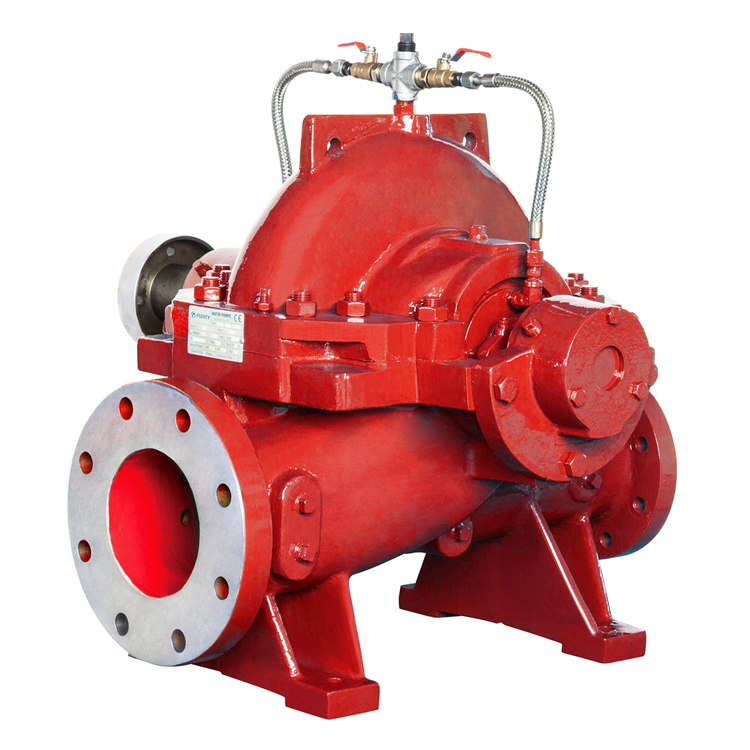

PSCD Split Case Pump with Diesel for Fire Fighting

TECHNICAL DESCRIPTION
· New split case pump
· Original design by PURITY (patented)
· Available complete with electric motor or diesel engine
· Easily back pull-out from driver
· Pump case with anti-corrosive coating HT250
· Impeller in stainless steel AISI 304 or HT250
· Shaft in stainless steel AISI 304 or galvanized iron
· Quality bearing,mechanical seal/gland packing
3D PRODUCT CHAT NOW

Product Description




PSCD(PSC+PD)

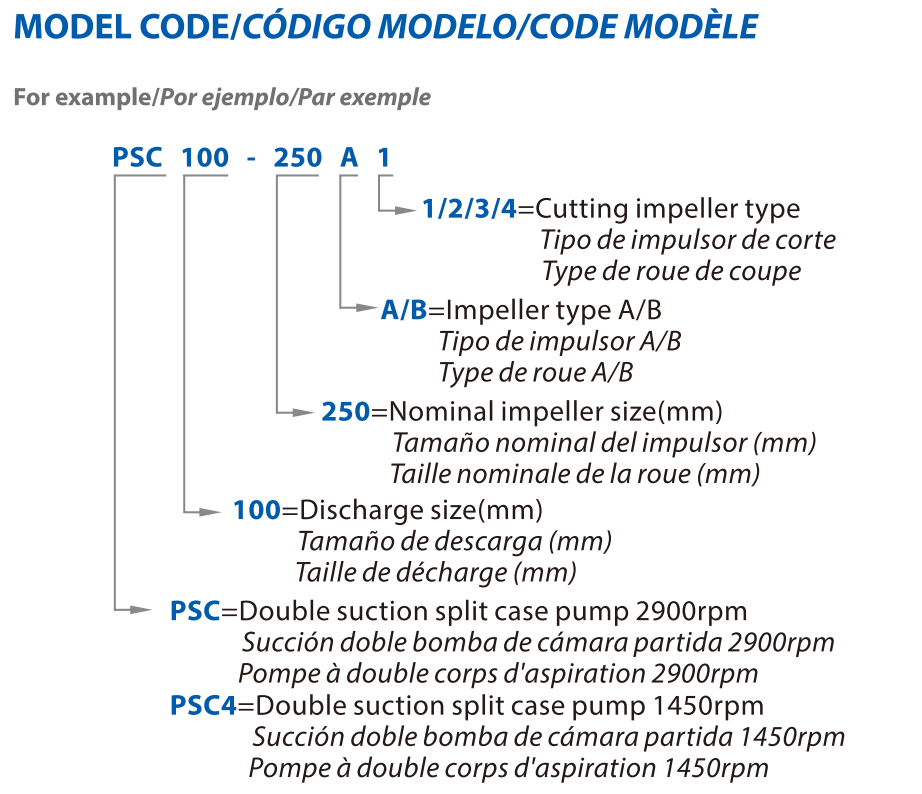

PSC

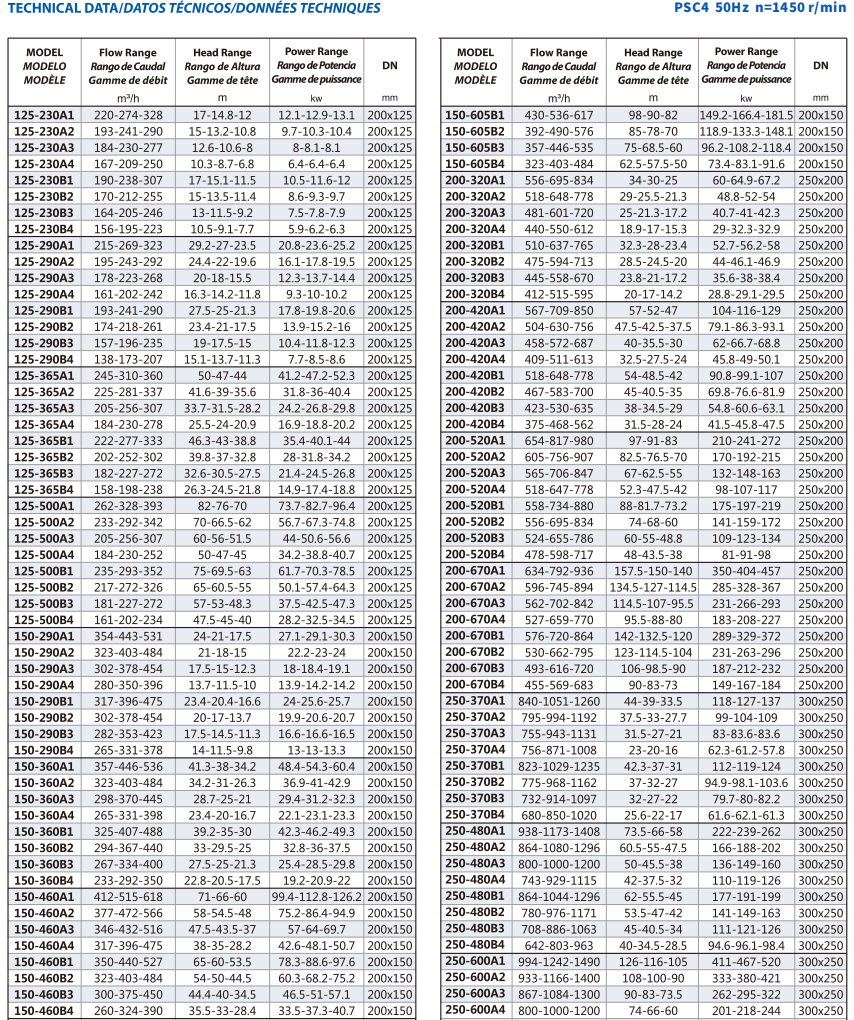

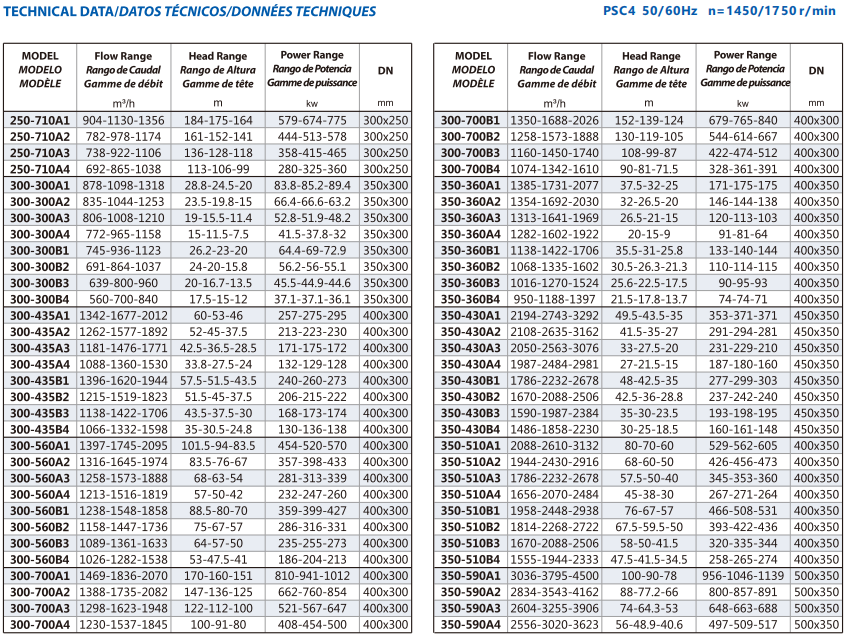

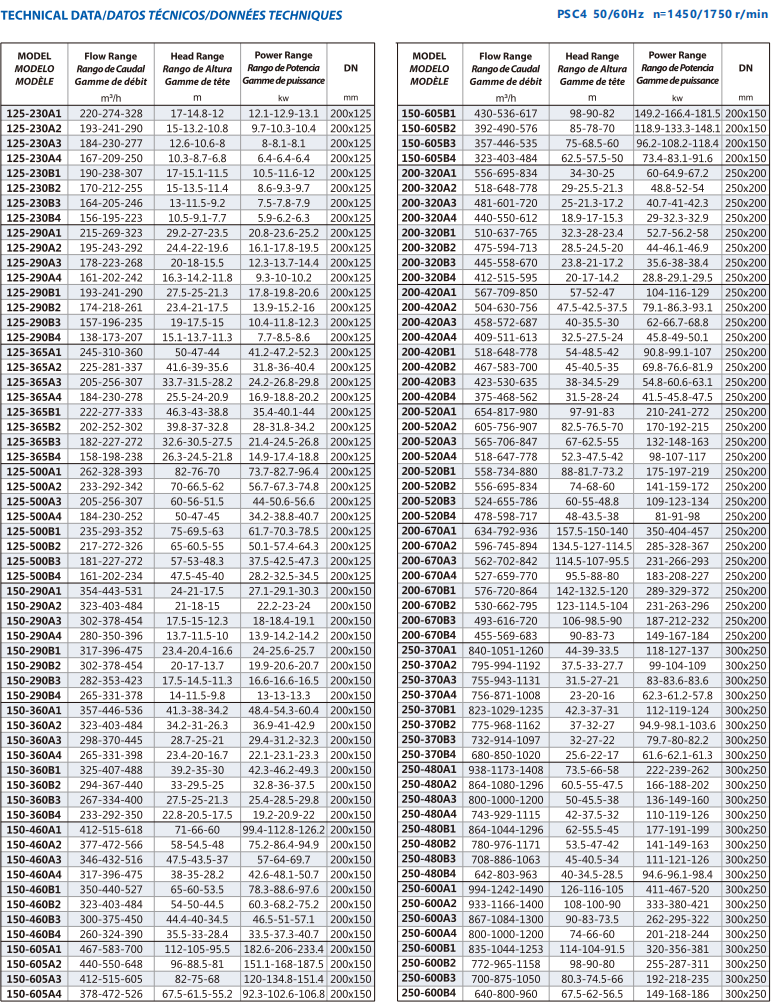

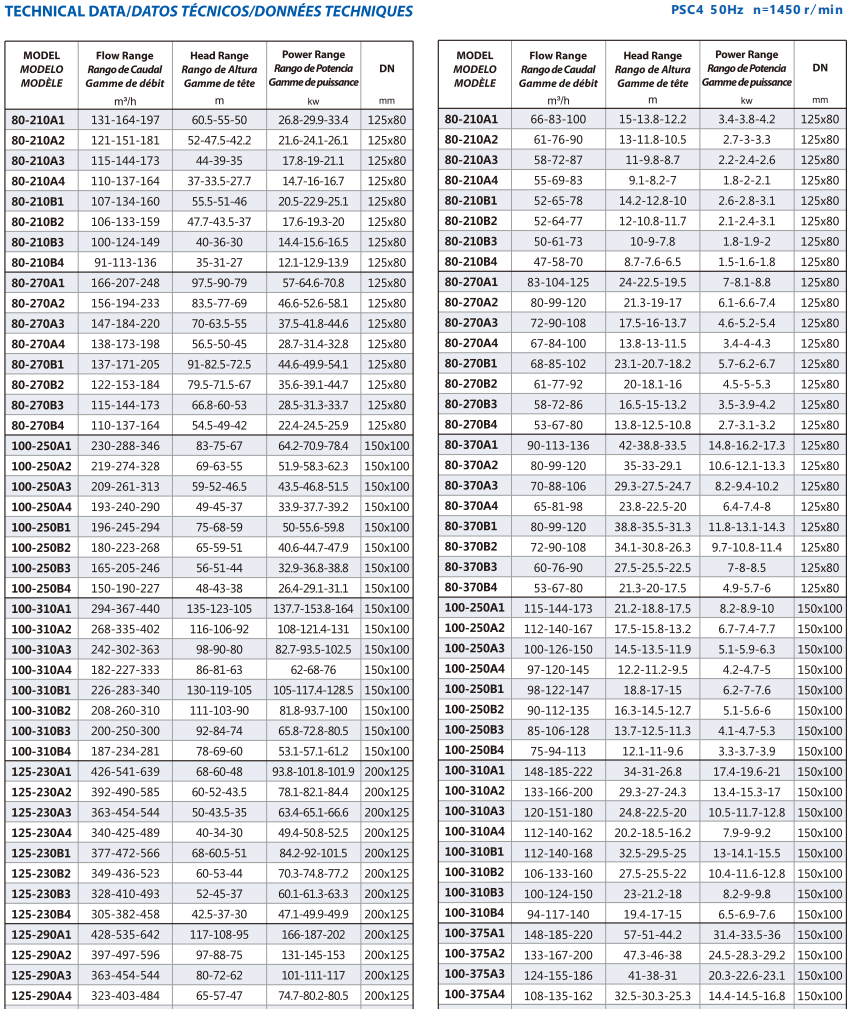

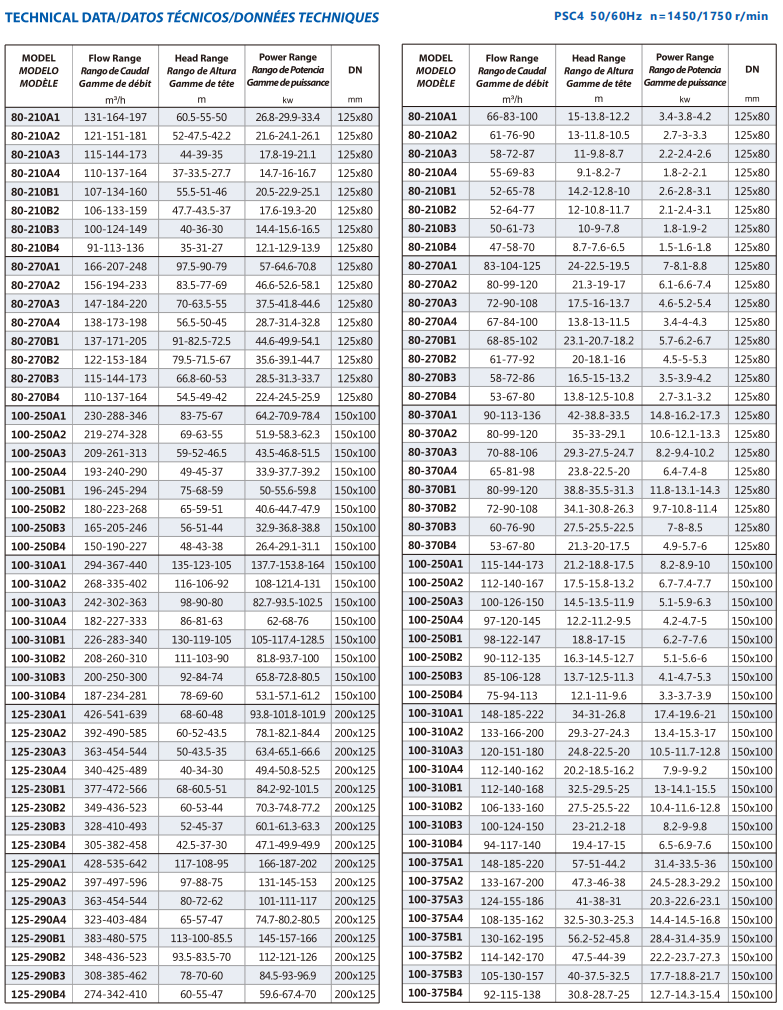

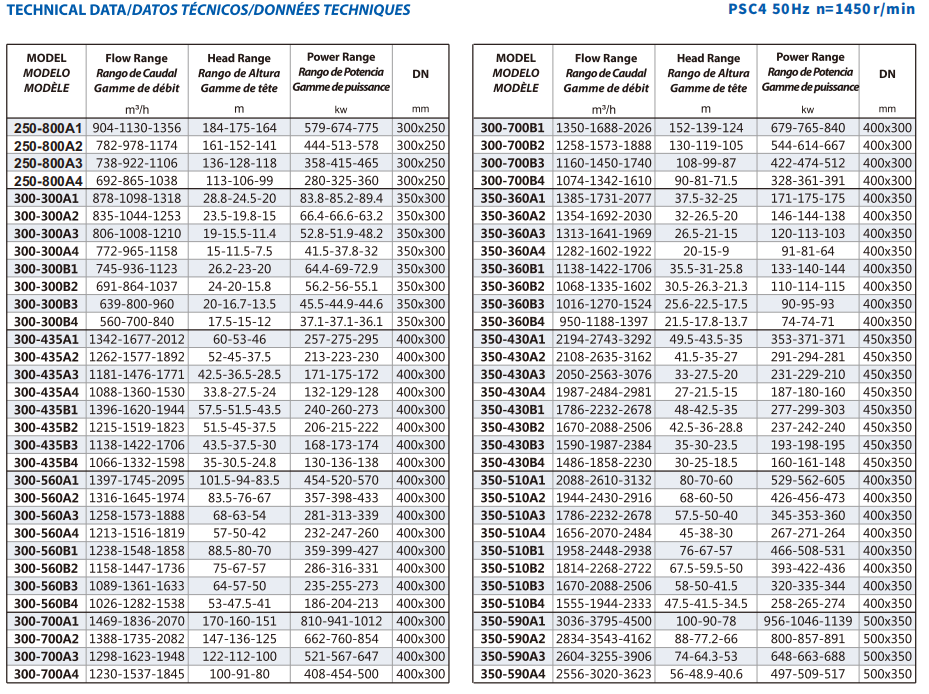

TECHNICAL DESCRIPTION
New split case pump
Original design by PURITY (patented)
Available complete with electric motor or diesel engine
Easily back pull-out from driver
Pump case with anti-corrosive coating HT250
Impeller in stainless steel AISI 304 or HT250
Shaft in stainless steel AISI 304 or galvanized iron
Quality bearing,mechanical seal/gland packing


APPLICATIONS
Suitable for use with clean water and liquids that are not chemically

aggressive towards the materials from which the pump is made.

The split case pumps are recommended for use in water supply,

cleaning sets, pressure boosting, firefighting sets, irrigation, industrial

applications, water circulation in climatisation sets, agricultural.


USING LIMITS
Liquid temperature between -10℃ and +120℃
Ambient temperature up to +50℃
Max. working pressure 25 bar
Continuous service S1


PD



TECHNICAL DESCRIPTION

More Environmentally Friendly

Meeting China III Emission Standard

Low Fuel Consumption

Strong Power

Easy To Assemble

APPLICATIONS

Suitable for use with clean water and liquids that are not chemically

aggressive towards the materials from which the pump is made.

The diesel engine pumps are recommended for use in water supply,

cleaning sets, pressure boosting, firefighting sets, irrigation, industrial

applications, water circulation in climatisation sets, agricultural.

USING LIMITS

Liquid temperature between -10℃ and +120℃

Ambient temperature up to +50℃

Max. working pressure 16 bar

Continuous service S1









PD


TECHNICAL DATA

Model

178

186

188

192

380

385

480

485

490N

490

495

Type

Single-cylinder,4-stroke,air-cooled

Direct Injection, Water-cooling, Four Stroke

Intake Type

Naturally Aspirated

Bore*Stroke(mm*mm)

78*62

86*72

88*75

92*75

80*90

85*90

80*90

85*100

90*100

90*105

95*105

Cylinder No.

1

1

1

1

3

3

4

4

4

4

4

Displacement (L)

0.296

0.418

0.456

0.499

1.357

1.532

1.8

2.27

2.54

2.67

2.977

Rated Power/

Speed(kW/r/min)

3.7/3000

4.0/3600

5.7/3000

6.3/3600

6.6/3000

7.2/3600

7.5/3000

8.2/3600

20/3000

24/3000

28/3000

26/3000

42/3000

45/3000

50/3000

Horse Power

5.0/3000

5.5/3600

7.8/3000

8.6/3600

9.0/3000

10.0/3600

10.2/3000

12.0/3600

27

32

38

49

58

61

68

Power Coverage(kW)

≤11

≤11

≤11

≤11

≤37

≤37

≤37

≤55

≤55

≤55

≤75

Model

498

4102

4105

4108

485Z

490NZ

490Z

498Z

4102Z

4105Z

4108Z

Type

Direct Injection, Water-cooling, Four Stroke

Intake Type

Naturally Aspirated

Turbo-charging

Bore*Stroke(mm*mm)

98*105

102*118

105*118

108*118

85*100

90*100

90*105

98*105

102*118

105*118

108*118

Cylinder No.

4

4

4

4

4

4

4

4

4

4

4

Displacement (L)

3.168

3.857

4.087

4.324

2.27

2.54

2.67

3.168

3.857

4.087

4.324

Rated Power/

Speed(kW/r/min)

54/3000

62/3000

67/3000

73/3000

44/3000

50/3000

55/3000

60/3000

73/3000

75/3000

83/3000

Horse Power

73

85

91

99

60

68

75

81

99

102

113

Power Coverage(kW)

≤75

≤100

≤100

≤100

≤55

≤55

≤55

≤75

≤100

≤100

≤100
