YE3

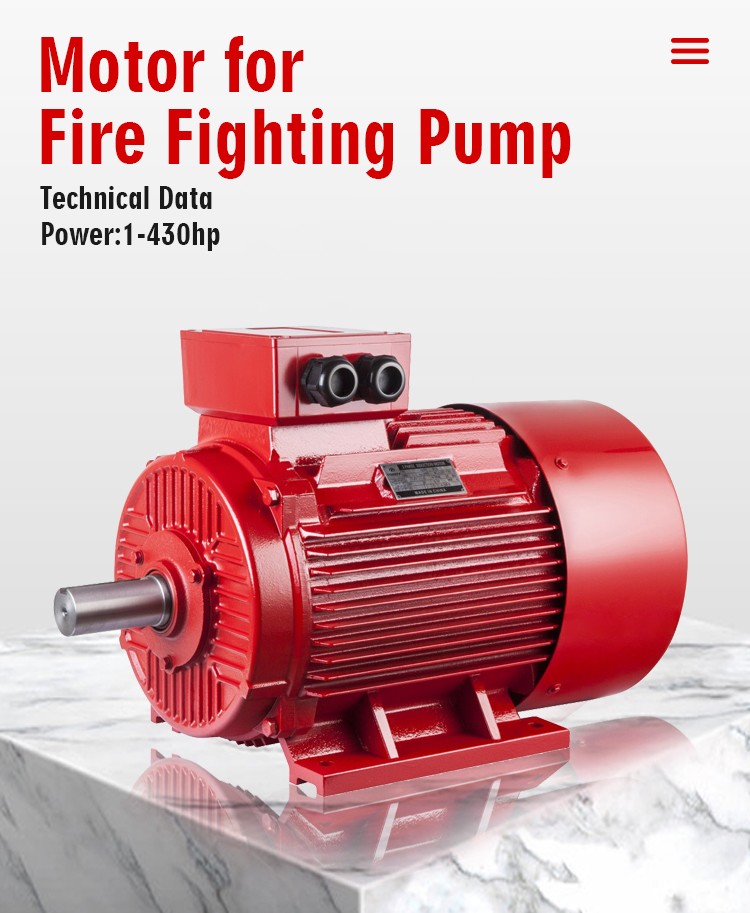

Electric Motor YE3 for Horizontal Centrifugal Fire Pump

YE-3 Electric Motor for Pumps
Technical Specifications
※Can be offered separately
※YE3 high efficient motor with protection IP55 class F
※Pump case with Anti-corrosive coating
※With quality NSK bearings, wear resistance mechanical seal
※Easy Installation
USING LIMITS
※Liquid temperature between -10℃ and +120℃
※Ambient temperature up to +50℃
※Max. working pressure 16 bar
※Continuous service S1

3D PRODUCT CHAT NOW

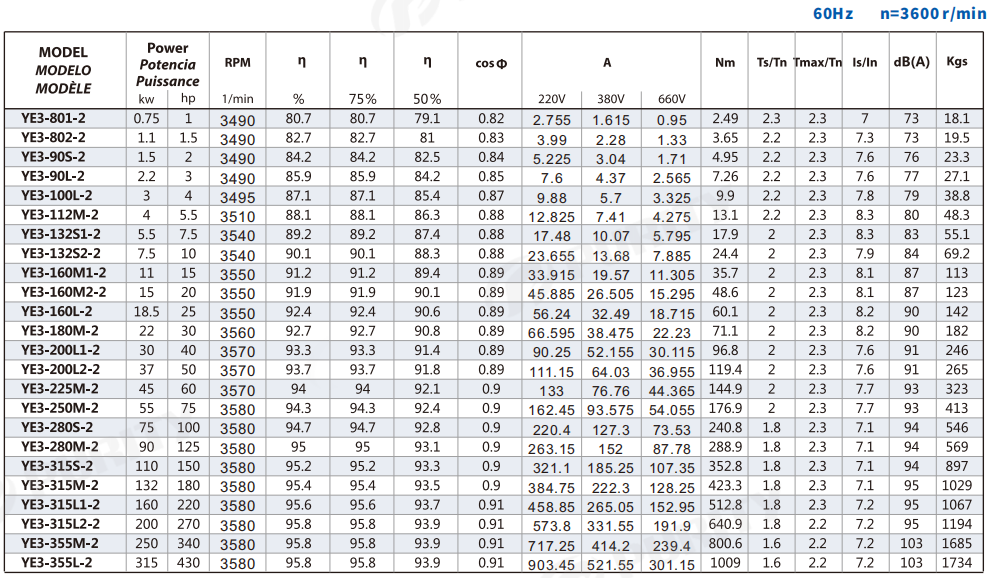

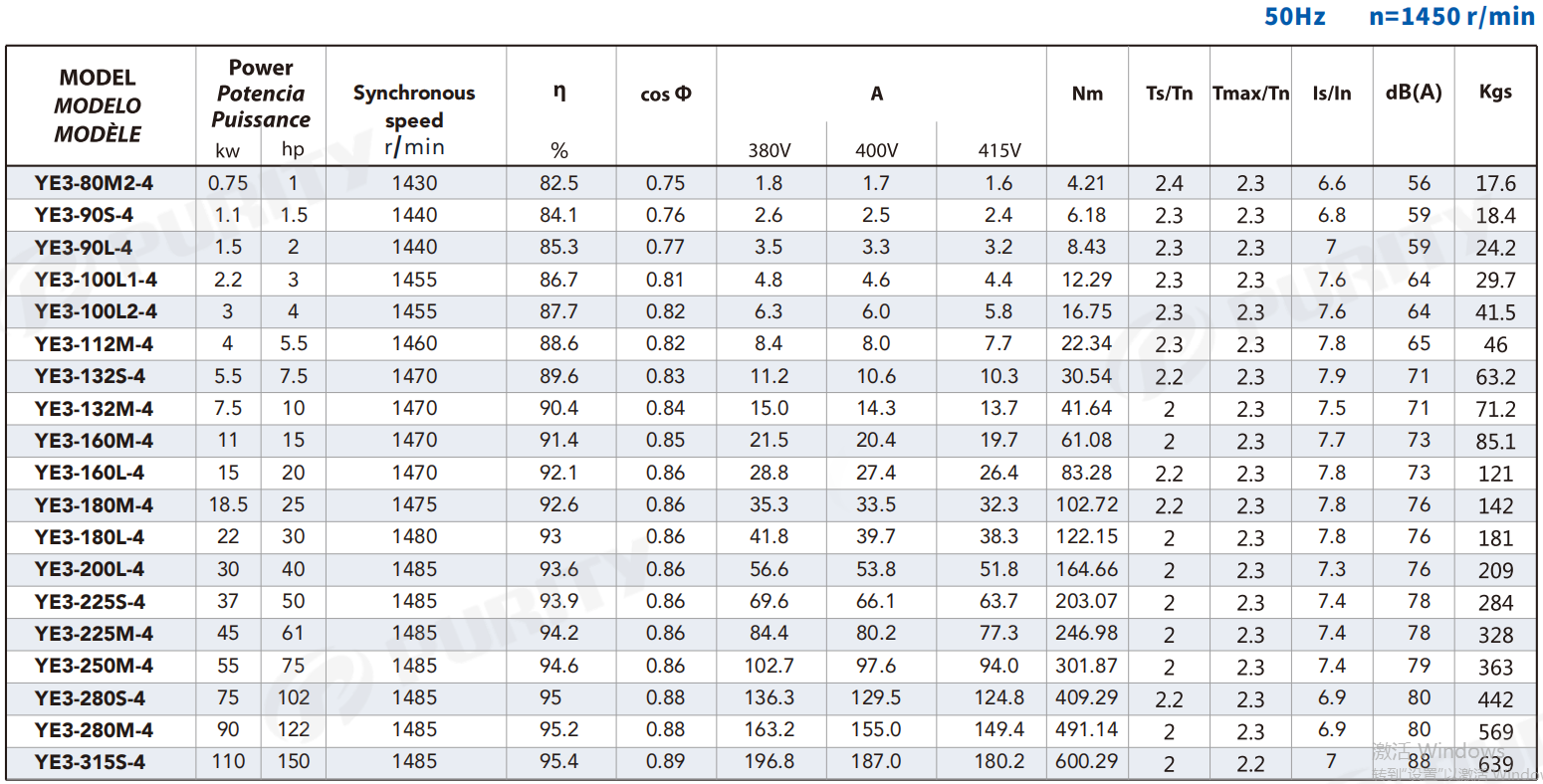

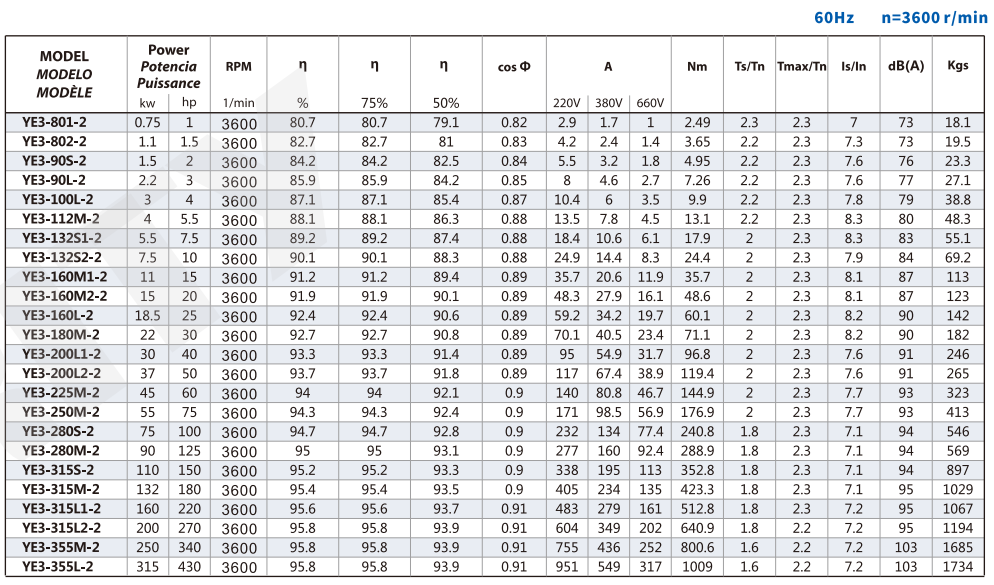

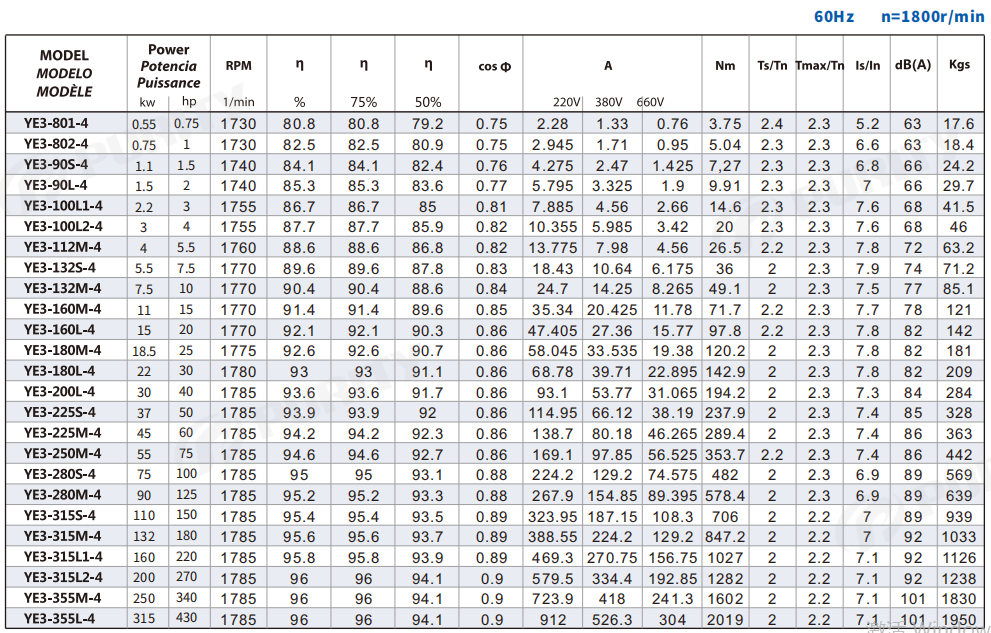

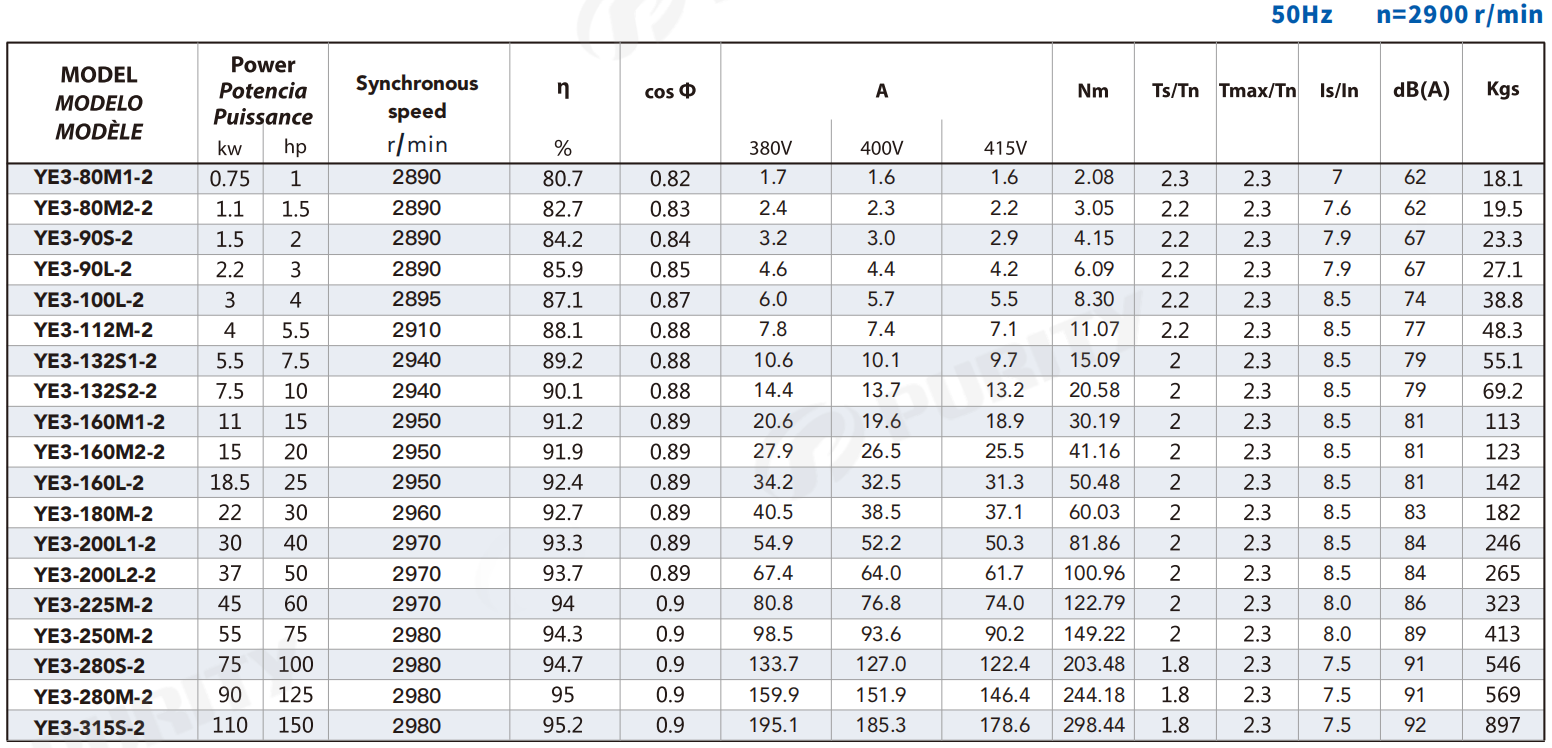

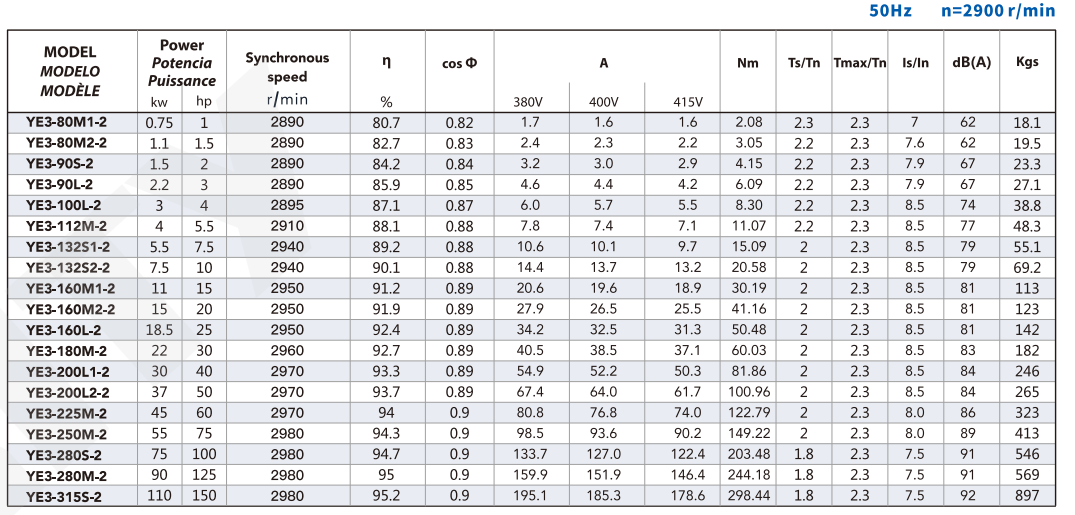

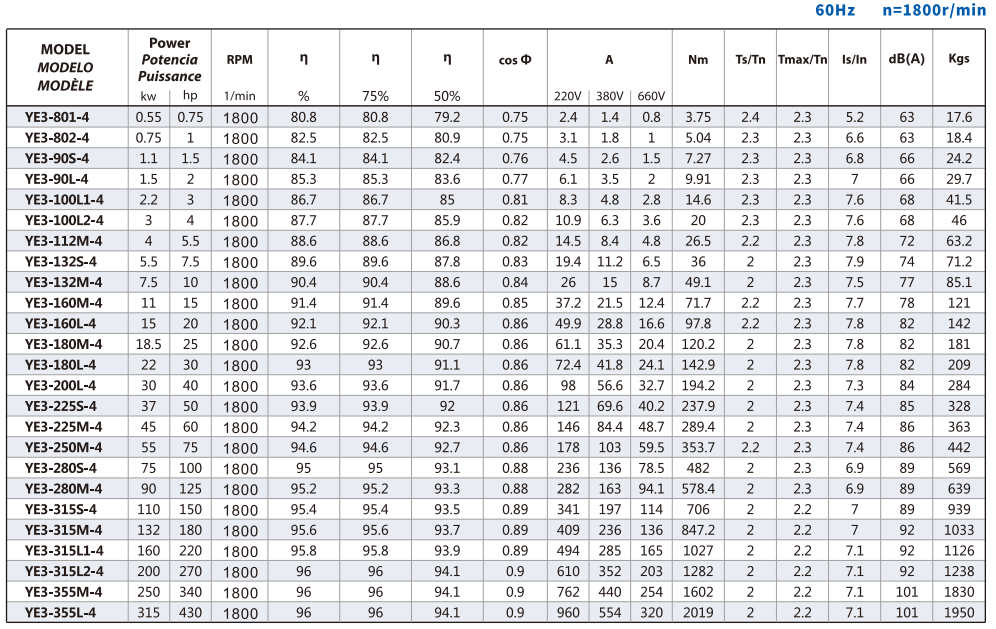

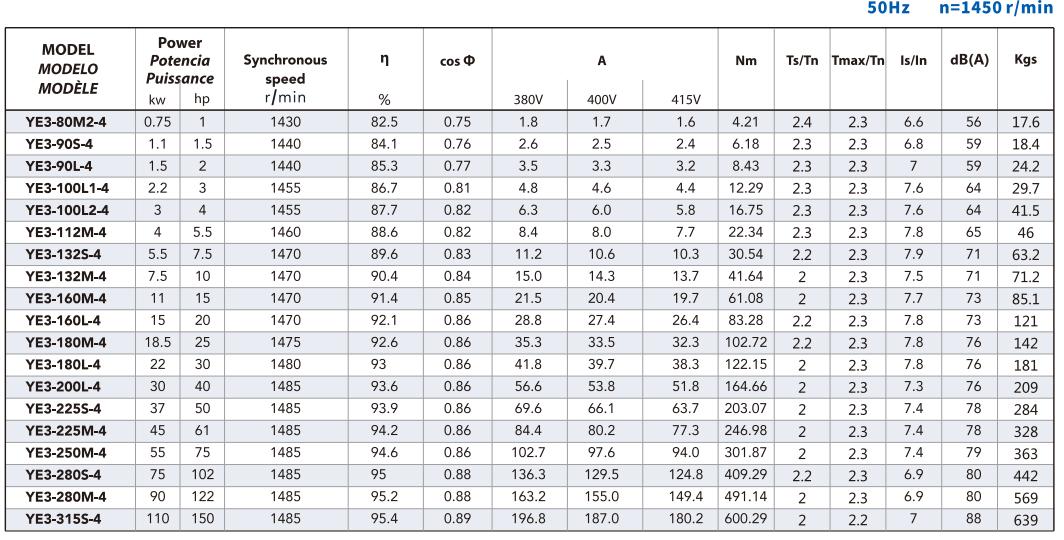

Product Specification (50HZ) 60HZ

Motor eléctrico YE-3 para bombas
Especificaciones técnicas
※ Se puede ofrecer por separado
※ Motor de alta eficiencia YE3 con protección IP55 clase F
※ Caja de bomba con recubrimiento anticorrosivo
※ Con rodamientos NSK de calidad, sello mecánico de resistencia al desgaste
※Fácil instalación
USO DE LÍMITES
※ Temperatura del líquido entre -10 ℃ y + 120 ℃
※ Temperatura ambiente hasta + 50 ℃
※ Máx. presión de trabajo 16 bar
※ Servicio continuo S1

Purity Pump Co., Ltd. is a specialized manufacturer and supplier of high-quality

industrial pumps, exporting to global market in competitive prices. We provide various

reliable pumps for projects.Our main products are centrifugal pumps, fire pumps and

system, industrial pumps and agricultural pumps.

Our products and services have been deployed in more than 55 countries. And we

supply water pumps for many large projects like National Olympic Stadium. We also

supply centrifugal and fire pumps to some well-known pump companies all over the

world.
