Product Introduction
Purity YE3 ac induction electric motor is engineered with oversized stator and rotor cores to deliver ample energy efficiency margins and superior performance under continuous operation. By increasing the core dimensions, Purity YE3 industrial electric motors achieve lower magnetic flux density, reduced core losses, and enhanced thermal stability, ensuring reliable output even during prolonged duty cycles.
Purity YE3 ac induction electric motor stator and rotor laminations are manufactured from premium 470-grade silicon steel, a high-quality electrical steel known for its excellent magnetic permeability and low iron loss characteristics. This material selection significantly reduces hysteresis and eddy current losses within the core, contributing to higher overall efficiency and lower operating temperatures. The use of 470-grade silicon steel also improves the motor's power factor and reduces no-load current, further enhancing energy savings throughout its service life.
To minimize copper losses and control temperature rise, Purity YE3 industrial electric motors windings incorporate an increased amount of high-quality enameled copper wire. The additional copper cross-section reduces electrical resistance in the windings, thereby lowering losses and improving conductivity. This design not only enhances efficiency but also effectively suppresses motor temperature rise, extending insulation life and ensuring long-term operational reliability.
Purity is a Chinese water pump and electric motor manufacturer with over 350 employees, covering multiple departments including production, R&D, and sales. Purity's motors have been sold to electric motor suppliers in more than 140 countries around the world. In addition, Purity conducts temperature rise and performance tests on all industrial electric motors before delivery to ensure perfect compatibility with water pumps. We are currently seeking overseas agents. Please feel free to contact us if you are interested.

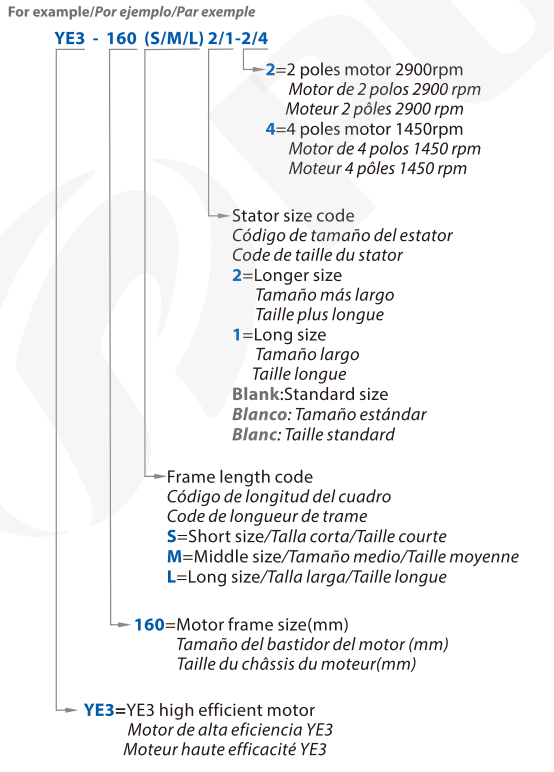

Model Description

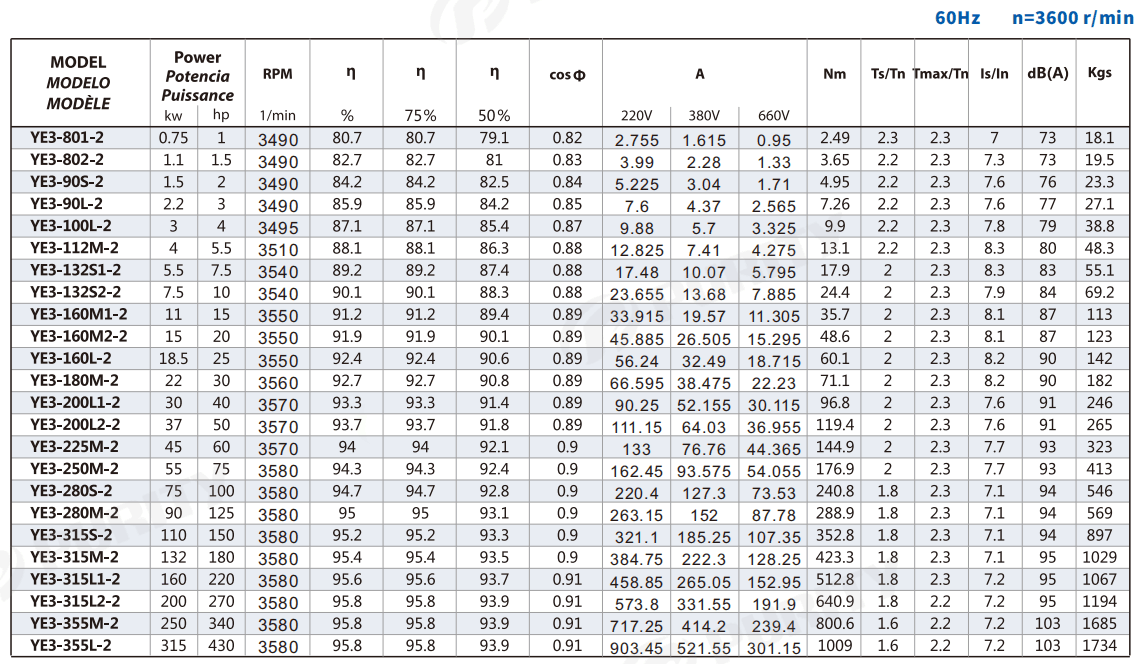

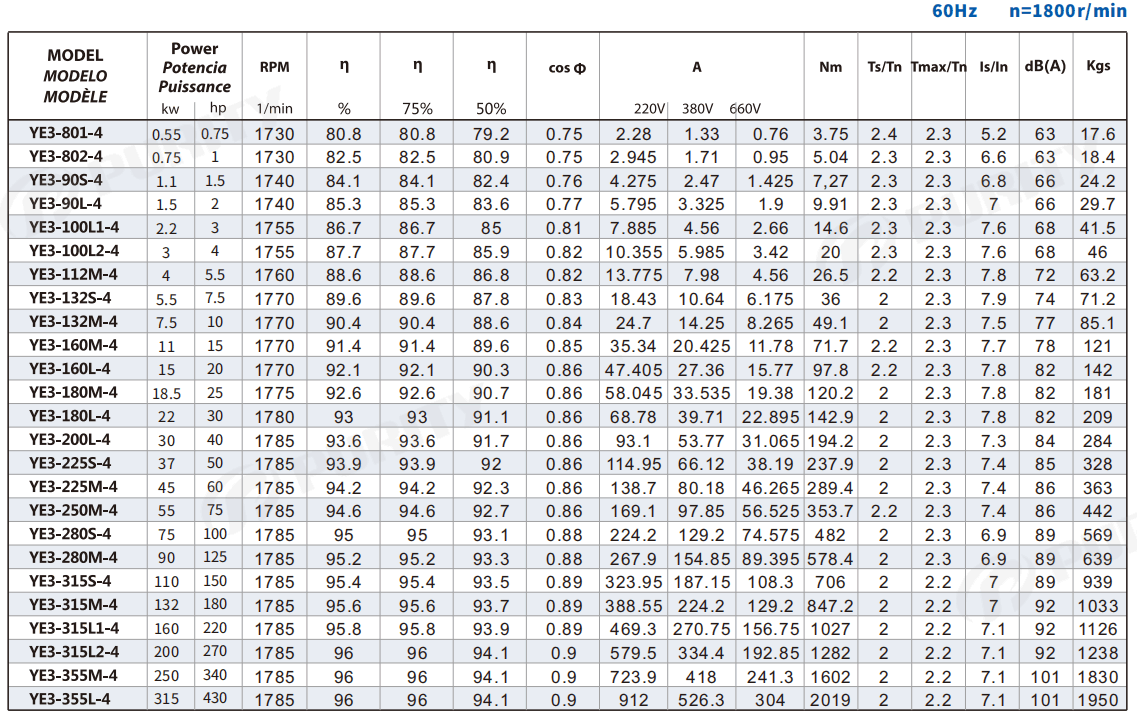

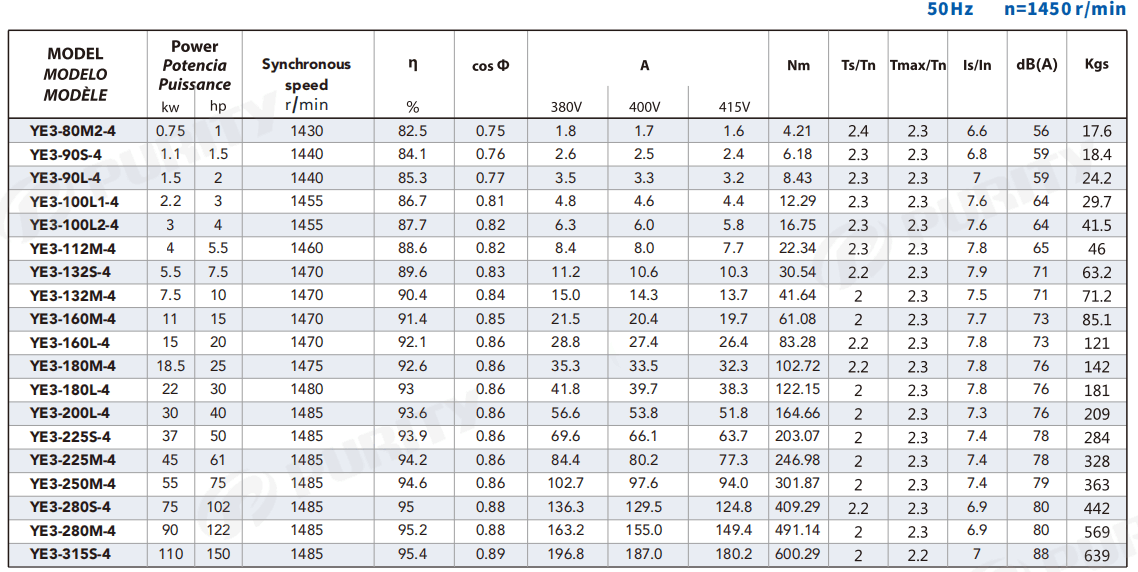

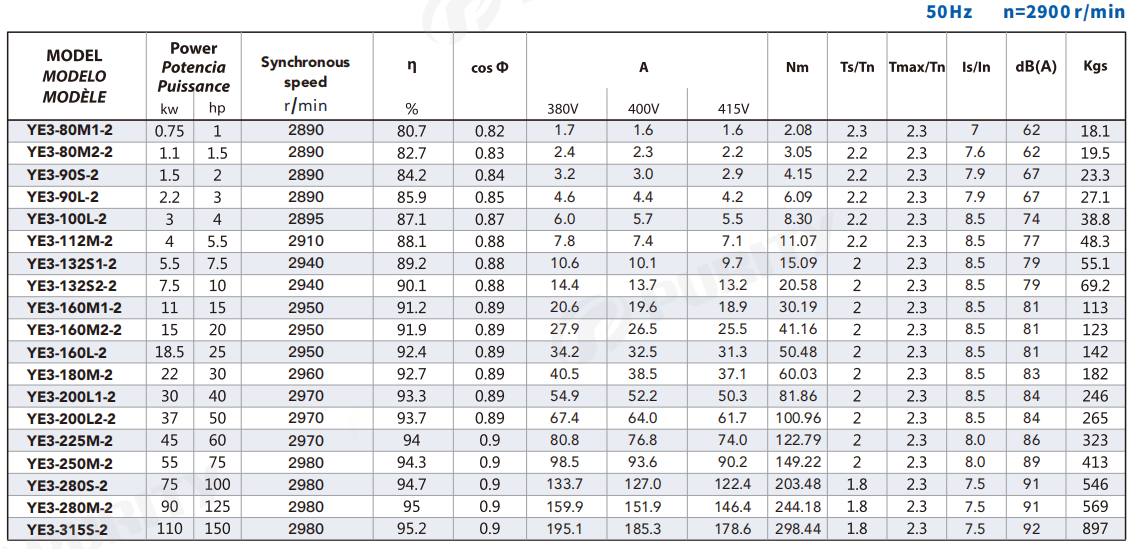

Product Parameters
Product Introduction
Purity YE3 ac induction electric motor is engineered with oversized stator and rotor cores to deliver ample energy efficiency margins and superior performance under continuous operation. By increasing the core dimensions, Purity YE3 industrial electric motors achieve lower magnetic flux density, reduced core losses, and enhanced thermal stability, ensuring reliable output even during prolonged duty cycles.
Purity YE3 ac induction electric motor stator and rotor laminations are manufactured from premium 470-grade silicon steel, a high-quality electrical steel known for its excellent magnetic permeability and low iron loss characteristics. This material selection significantly reduces hysteresis and eddy current losses within the core, contributing to higher overall efficiency and lower operating temperatures. The use of 470-grade silicon steel also improves the motor's power factor and reduces no-load current, further enhancing energy savings throughout its service life.
To minimize copper losses and control temperature rise, Purity YE3 industrial electric motors windings incorporate an increased amount of high-quality enameled copper wire. The additional copper cross-section reduces electrical resistance in the windings, thereby lowering losses and improving conductivity. This design not only enhances efficiency but also effectively suppresses motor temperature rise, extending insulation life and ensuring long-term operational reliability.
Purity is a Chinese water pump and electric motor manufacturer with over 350 employees, covering multiple departments including production, R&D, and sales. Purity's motors have been sold to electric motor suppliers in more than 140 countries around the world. In addition, Purity conducts temperature rise and performance tests on all industrial electric motors before delivery to ensure perfect compatibility with water pumps. We are currently seeking overseas agents. Please feel free to contact us if you are interested.
Model Description
Product Parameters
