PSM

[PSM]Horizontal Centrifugal Water Pump Bare Shaft Pump

TECHNICAL DESCRIPTION

·New EN733 standard centrifugal pump
·Original design by PURITY (patented)
·Pump case with anti-corrosive coat
·Impeller in stainless steel AISI 304 or cast iron
·YE3 high efficient motor, with protection IP55 class F
·Pump case with anti-corrosive coating
·Wear resistance mechanical seal
·CE approved water pumps
·Shaft in stainless steel AISI 304 or galvanized iron

3D PRODUCT CHAT NOW

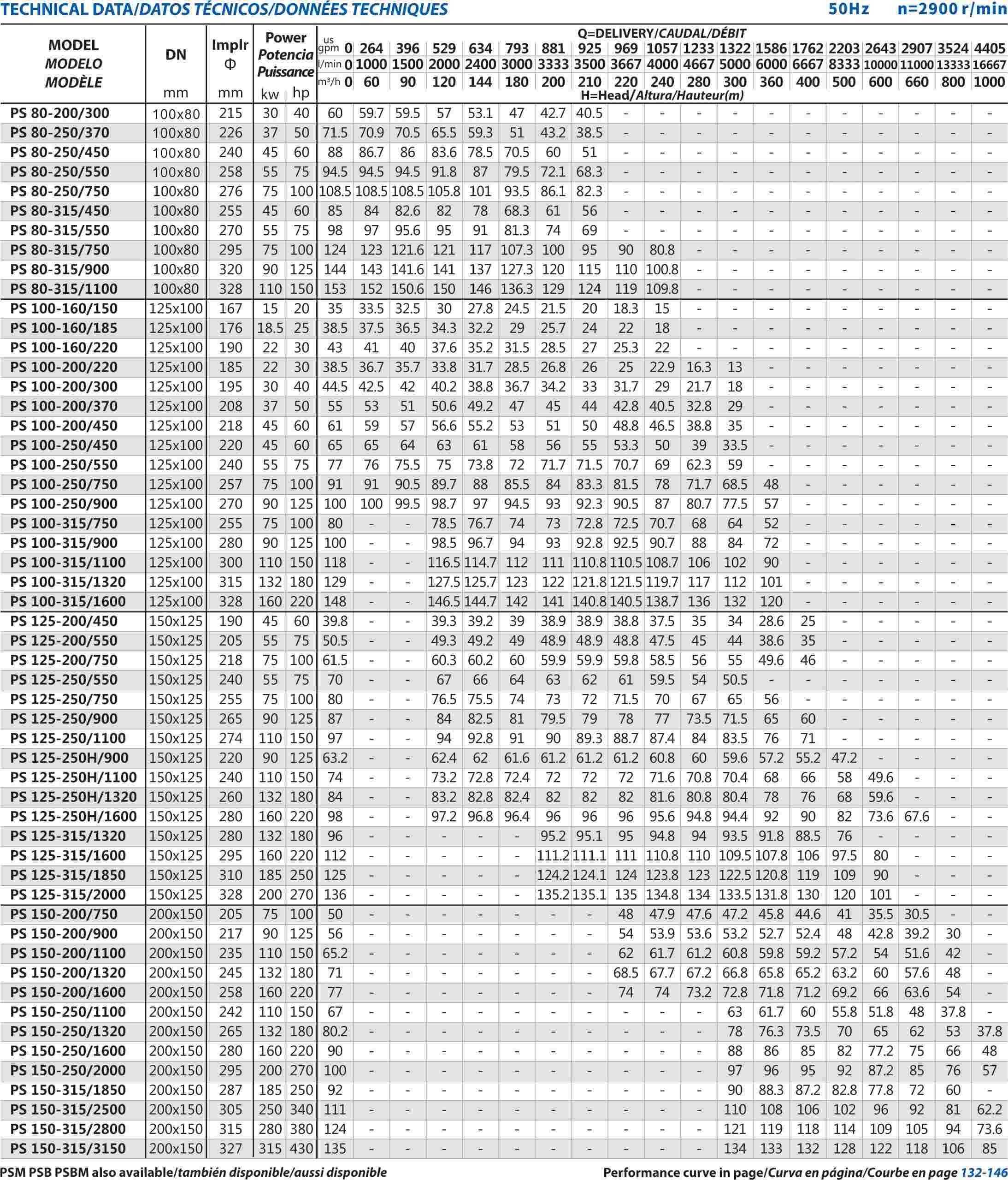

Product Specification (50HZ) 60HZ

APPLICATIONS

Suitable for use with clean water and liquids that are not chemically

aggressive towards the materials from which the pump is made.

The EN733 centrifugal pumps are recommended for use in water supply,

cleaning sets, pressure boosting, firefighting sets, irrigation, industrial

applications, water circulation in climatisation sets, agricultural.

USING LIMITS

Liquid temperature between -10℃ and +120℃
Ambient temperature up to +50℃
Max. working pressure 16 bar

Continuous service S1

Support customized	OEM ODM
Brand	PURITY

APPLICATIONS

Suitable for use with clean water and liquids that are not chemically
aggressive towards the materials from which the pump is made.
The EN733 centrifugal pumps are recommended for use in water supply,
cleaning sets, pressure boosting, firefighting sets, irrigation, industrial
applications, water circulation in climatisation sets, agricultural.

USING LIMITS

Liquid temperature between -10℃ and +120℃

Ambient temperature up to +50℃

Max. working pressure 16 bar

Continuous service S1
