PGL

PGLseries Large flow

TECHNICAL DESCRIPTION
· New centrifugal pump
· Original design by PURITY (patented)
· YE3 high efficient motor, with protection IP55 class F
· Pump case with anti-corrosive coating
· Impeller in stainless steel AISI 304 or cast iron
· Shaft in stainless steel AISI 304 or galvanized iron
· Quality bearing, wear resistance mechanical seal

3D PRODUCT CHAT NOW

Product Specification (50HZ) 60HZ

Related Products

Product Description

PGL Vertical Inline Pump

TECHNICAL DESCRIPTION

New centrifugal pump

Original design by PURITY (patented)

YE3 high efficient motor, with protection IP55 class F

Pump case with anti-corrosive coating

Impeller in stainless steel AISI 304 or cast iron

Shaft in stainless steel AISI 304 or galvanized iron

Quality bearing, wear resistance mechanical seal

APPLICATIONS

Suitable for use with clean water and liquids that are not chemically

aggressive towards the materials from which the pump is made.

The centrifugal pumps are recommended for use in water supply,

cleaning sets, pressure boosting, firefighting sets, irrigation, industrial

applications, water circulation in climatisation sets, agricultural.

USING LIMITS

Liquid temperature between -10℃ and +120℃

Ambient temperature up to +50℃

Max. working pressure 16 bar

Continuous service S1

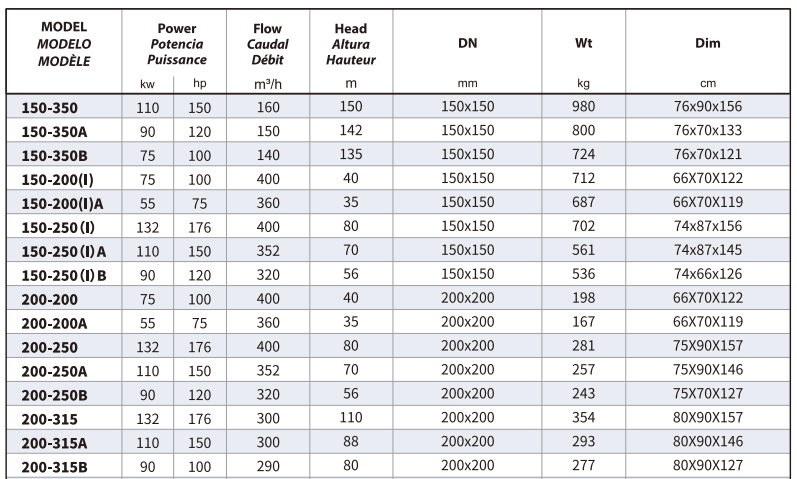

TECHNICAL DATA / DATOS TéCNICOS 50Hz n=2900 1/min

TECHNICAL DATA / DATOS TéCNICOS 50Hz n=1450 1/min

No.	Description	Material	No.	Description	Material	No.	Description	Material
1	Bearing	Ball Bearing	4	Impeller	SS304/Cast iron	7	Mechanical Seal	SiC/Carbon/SS304
2	Water Deflector	Rubber	5	Impeller Nut	Galvanizated Steel	8	Connection	Cast iron
3	Pump Case	Cast iron	6	Shaft	SS304/45# Steel	9	Motor	IP55 Class F
