Product Description
PV Vertical Multistage Centrifugal Pump
TECHNICAL DESCRIPTION
New vertical multistage centrifugal pump
Original design by PURITY
Both square motor & round motor available
YE3 high efficient motor, with protection IP55 class F
Pump case with anti-corrosive coating
Impeller in techno-polimer
Shaft in stainless steel AISI 304 or galvanized iron
Suction and discharge port in cast iron G20 thread
Quality NSK bearing, wear resistance mechanical seal
APPLICATIONS
Suitable for use with clean water and liquids that are not chemically
aggressive towards the materials from which the pump is made.
The high efficiency and adaptability of these pumps to even the most
unusual of applications, makes them ideal for use in the domestic,
civil and industrial sectors; in particular for the distribution of water
in combination with pressure sets and for pressure boosting.
USING LIMITS
Liquid temperature between -10℃ and +120℃
Ambient temperature up to +50℃
Max. working pressure 25 bar
Continuous service S1

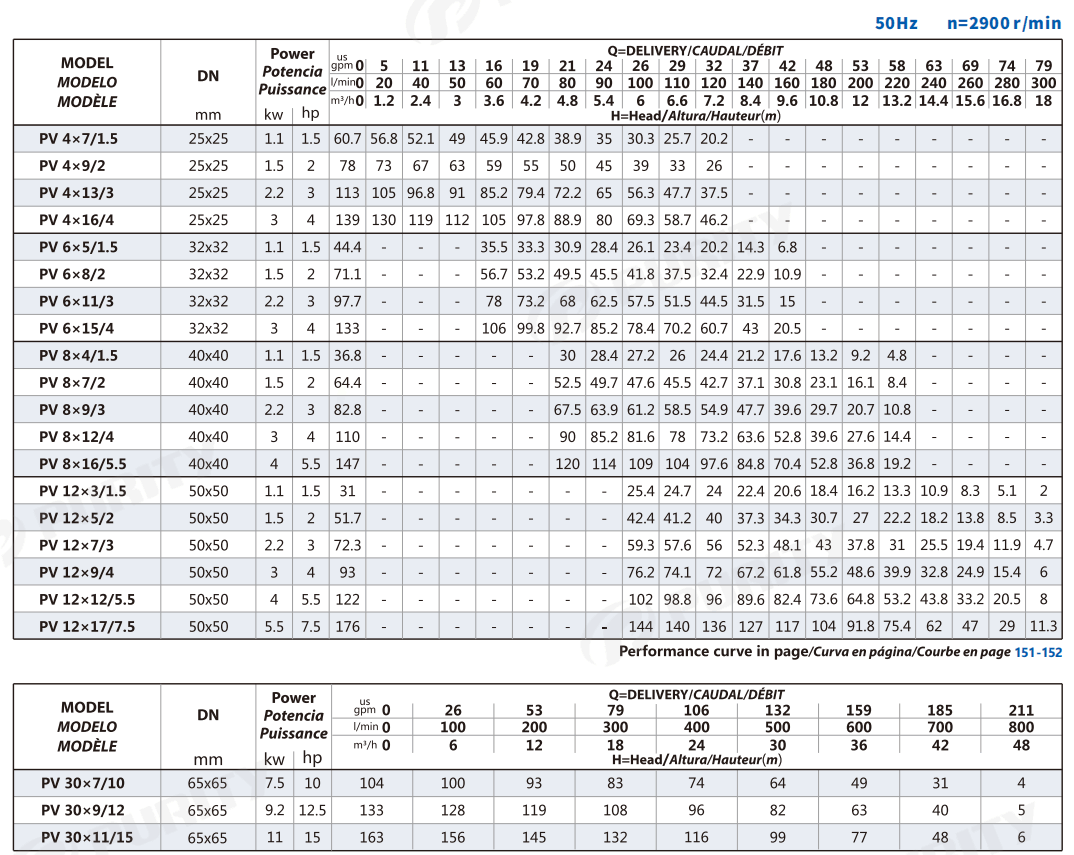

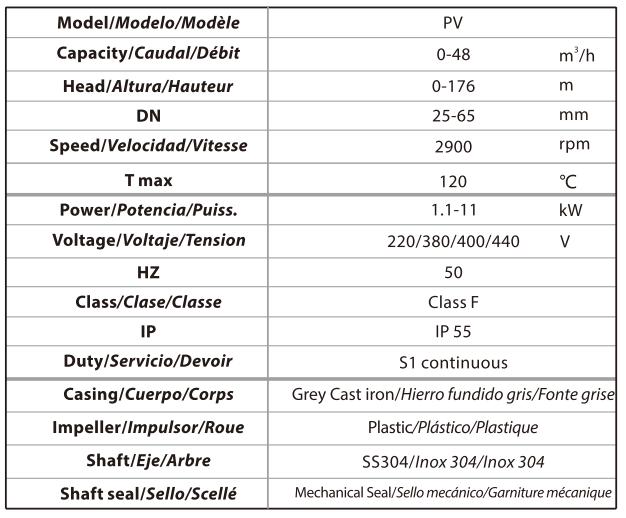

TECHNICAL DATA 50Hz n=2900 1/min
Send an email to exp@cnpurity.com for more information !
