TECHNICAL DESCRIPTION
New EN733 standard centrifugal pump
Original design by PURITY (patented)
Both square motor & round motor available
YE3 high efficient motor, with protection IP55 class F
Pump case with anti-corrosive coating
Impeller in stainless steel AISI 304 or cast iron
Shaft in stainless steel AISI 304 or galvanized iron
Galvanized counter flange with bolts, nuts and gaskets
Quality NSK bearing, wear resistance mechanical seal
APPLICATIONS
Suitable for use with clean water and liquids that are not chemically
aggressive towards the materials from which the pump is made.
The EN733 centrifugal pumps are recommended for use in water supply,
cleaning sets, pressure boosting, firefighting sets, irrigation, industrial
applications, water circulation in climatisation sets, agricultural.
USING LIMITS
Liquid temperature between -10℃ and +120℃
Ambient temperature up to +50℃
Max. working pressure 16 bar
Continuous service S1

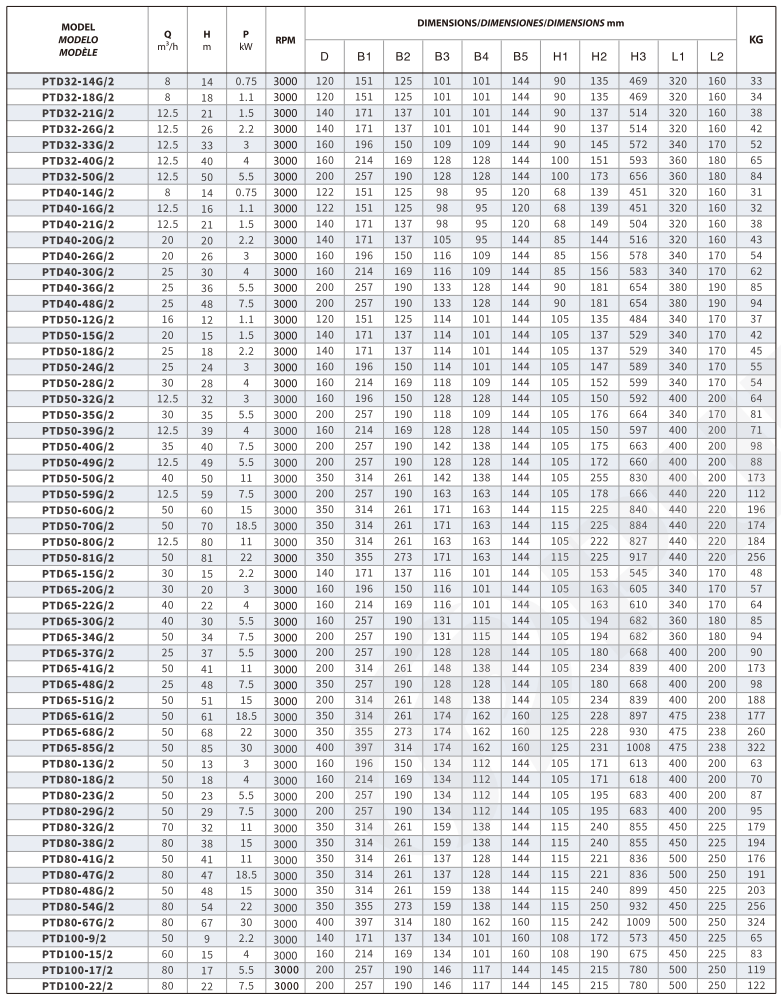

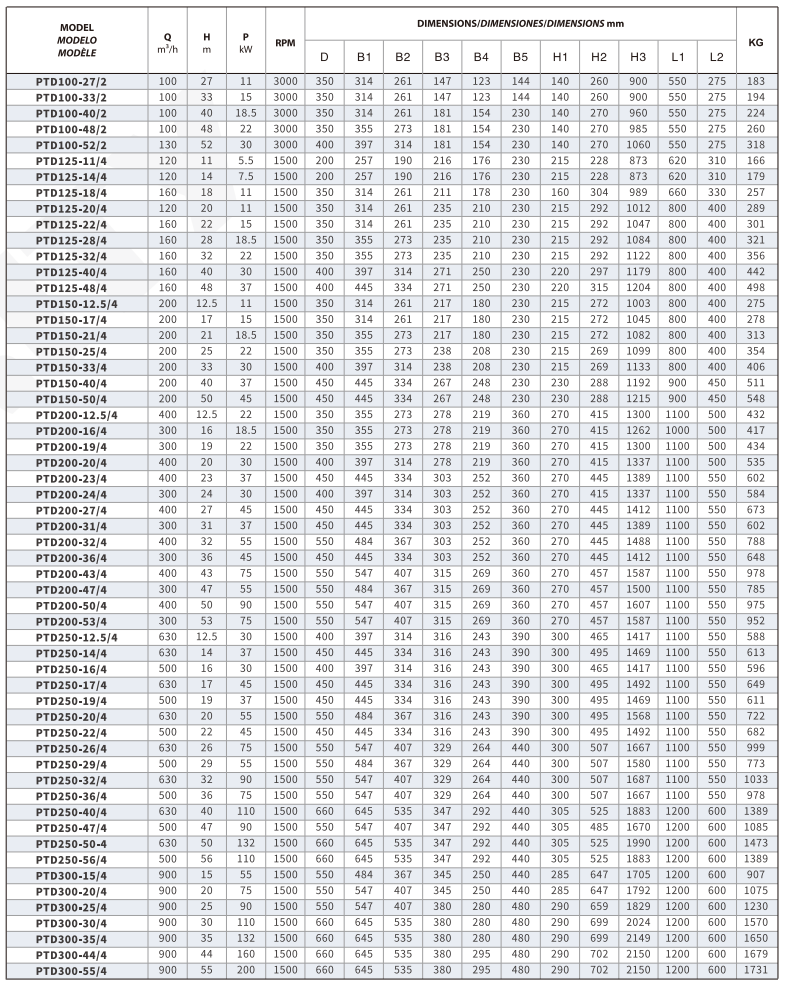

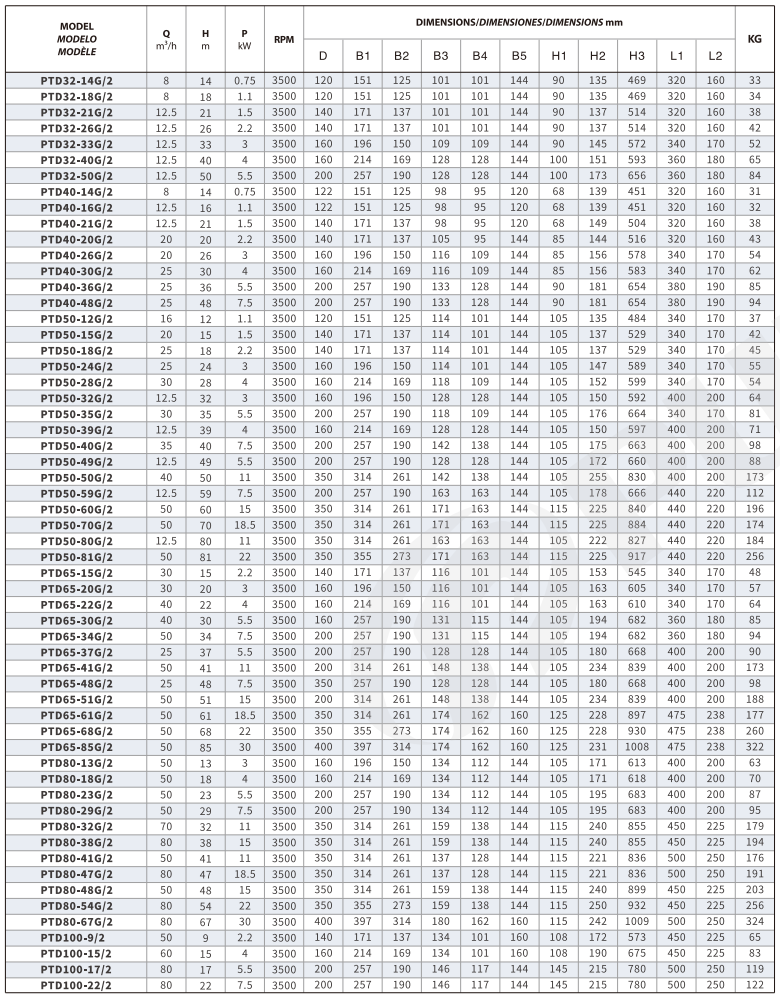

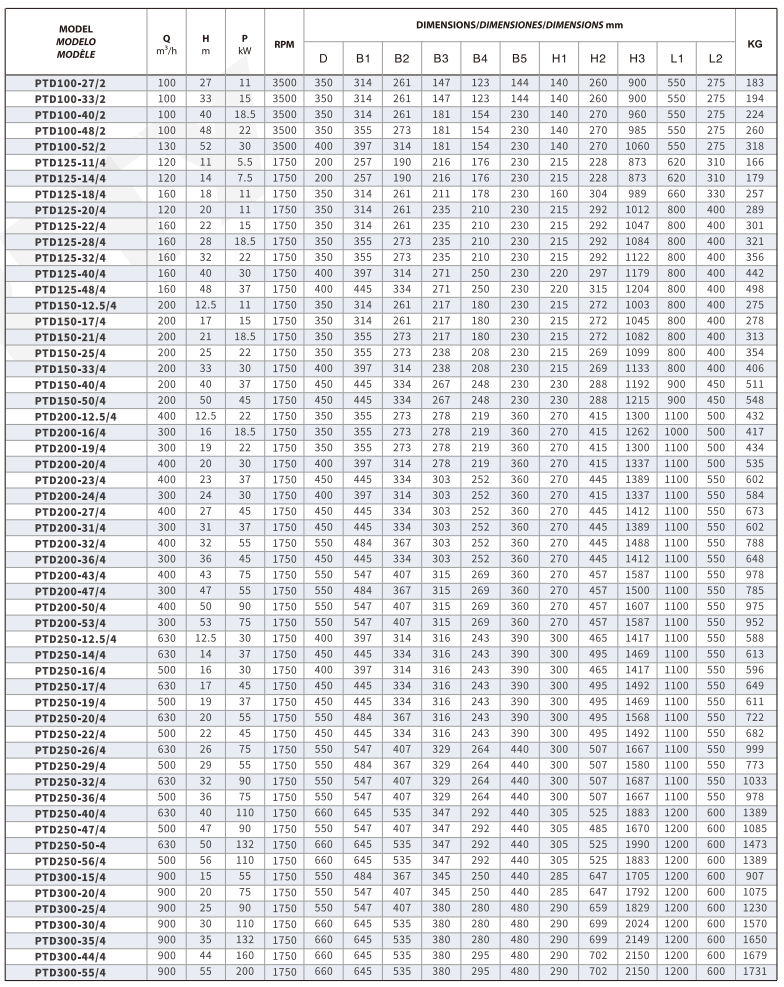

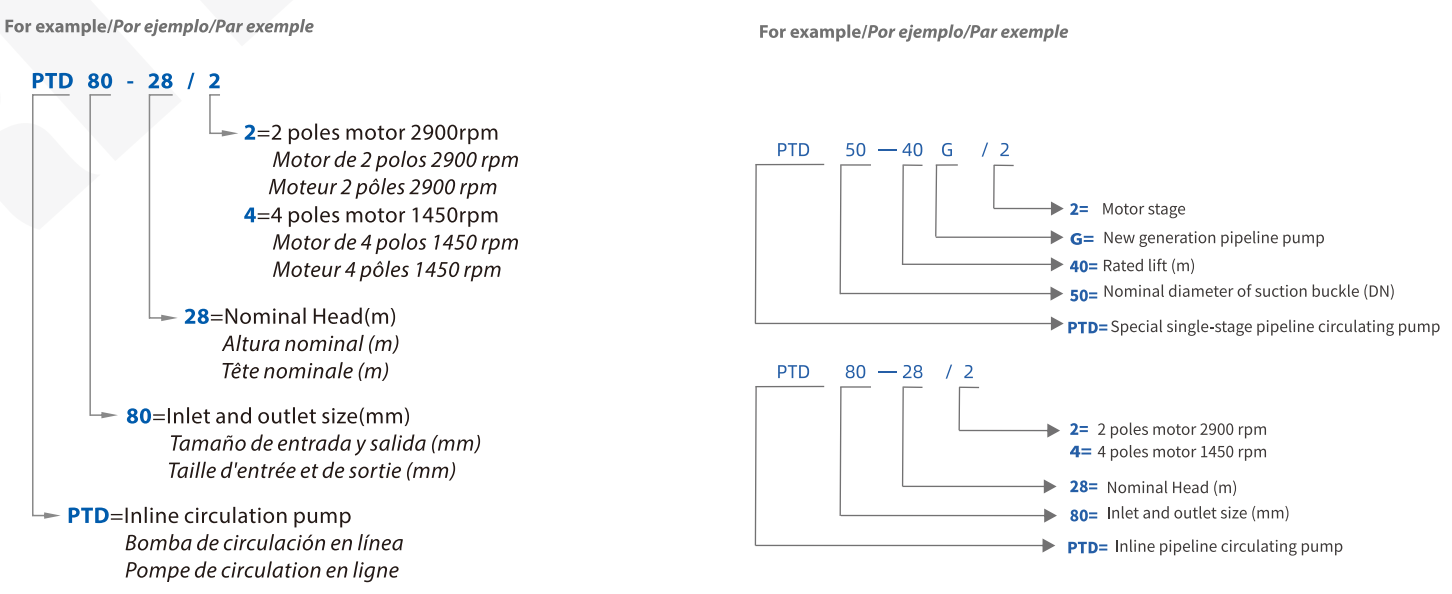

PTD series inline centrifugal pump
Performance Data: Max. Flow: 630m3/h
Max. Head: 85m Power range: 1.1-132kw(1.5-180hp)
DN: 32-250MM
YE3 electric motor
Application: agticulture irrigation, industrial water supply, fire fighting
Purity Pump Co., Ltd. is a specialized manufacturer and supplier of high-quality
industrial pumps, exporting to global market in competitive prices. We provide
variousreliable pumps for projects.Our main products are centrifugal pumps, fire
pumps and system, industrial pumps and agricultural pumps.
Our products and services have been deployed in more than 55 countries.
And we supply water pumps for many large projects like National Olympic Stadium.
We also supply centrifugal and fire pumps to some well-known pump companies all
over the world.
TECHNICAL DESCRIPTION
New EN733 standard centrifugal pump
Original design by PURITY (patented)
Both square motor & round motor available
YE3 high efficient motor, with protection IP55 class F
Pump case with anti-corrosive coating
Impeller in stainless steel AISI 304 or cast iron
Shaft in stainless steel AISI 304 or galvanized iron
Galvanized counter flange with bolts, nuts and gaskets
Quality NSK bearing, wear resistance mechanical seal
APPLICATIONS
Suitable for use with clean water and liquids that are not chemically
aggressive towards the materials from which the pump is made.
The EN733 centrifugal pumps are recommended for use in water supply,
cleaning sets, pressure boosting, firefighting sets, irrigation, industrial
applications, water circulation in climatisation sets, agricultural.
USING LIMITS
Liquid temperature between -10℃ and +120℃
Ambient temperature up to +50℃
Max. working pressure 16 bar
Continuous service S1
PTD series inline centrifugal pump
Performance Data: Max. Flow: 630m3/h
Max. Head: 85m Power range: 1.1-132kw(1.5-180hp)
DN: 32-250MM
YE3 electric motor
Application: agticulture irrigation, industrial water supply, fire fighting
Purity Pump Co., Ltd. is a specialized manufacturer and supplier of high-quality
industrial pumps, exporting to global market in competitive prices. We provide
variousreliable pumps for projects.Our main products are centrifugal pumps, fire
pumps and system, industrial pumps and agricultural pumps.
Our products and services have been deployed in more than 55 countries.
And we supply water pumps for many large projects like National Olympic Stadium.
We also supply centrifugal and fire pumps to some well-known pump companies all
over the world.
