Product Description
TECHNICAL DESCRIPTION
New centrifugal pump
Original design by PURITY (patented)
YE3 high efficient motor, with protection IP55 class F
Pump case with anti-corrosive coating
Impeller in stainless steel AISI 304 or cast iron
Shaft in stainless steel AISI 304 or galvanized iron
Quality bearing, wear resistance mechanical seal
APPLICATIONS
Suitable for use with clean water and liquids that are not chemically
aggressive towards the materials from which the pump is made.
The centrifugal pumps are recommended for use in water supply,
cleaning sets, pressure boosting, firefighting sets, irrigation, industrial
applications, water circulation in climatisation sets, agricultural.
USING LIMITS
Liquid temperature between -10℃ and +120℃
Ambient temperature up to +50℃
Max. working pressure 16 bar
Continuous service S1

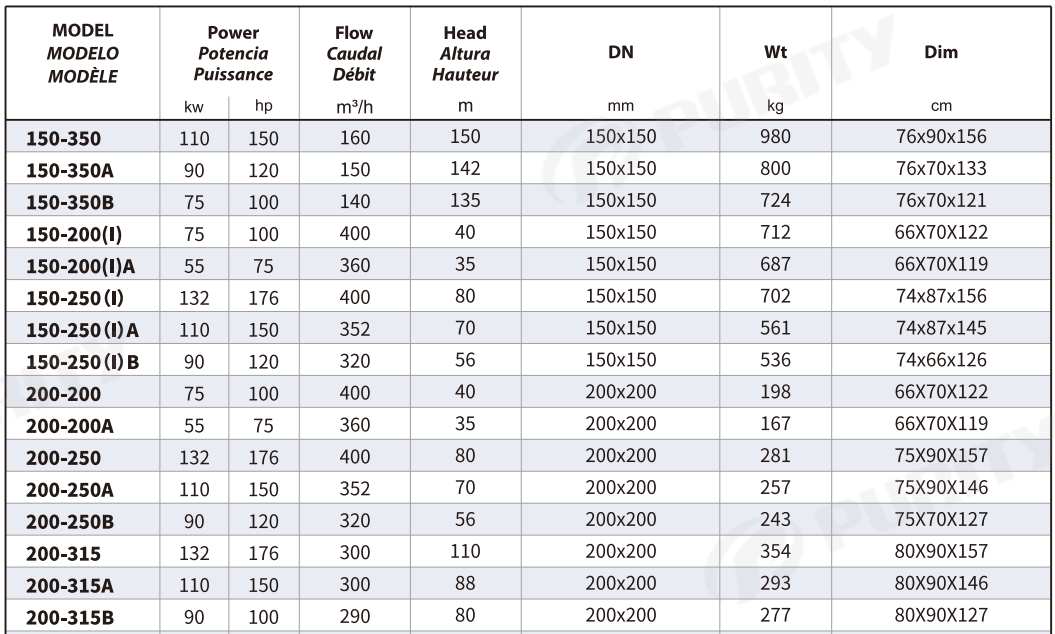

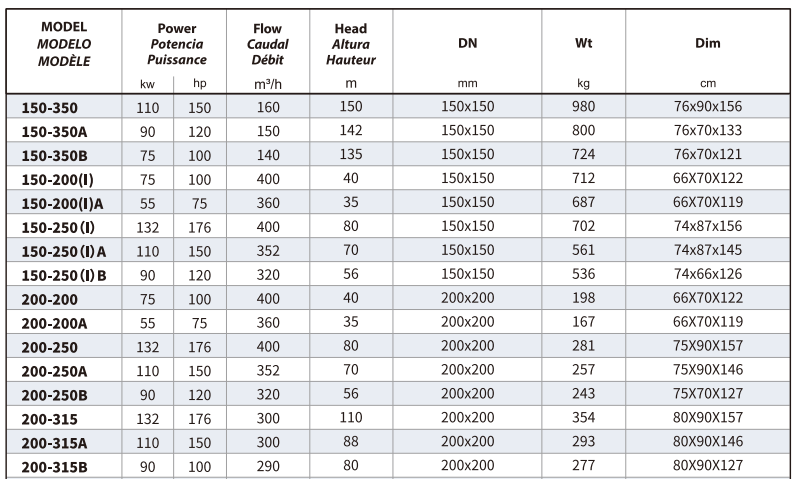

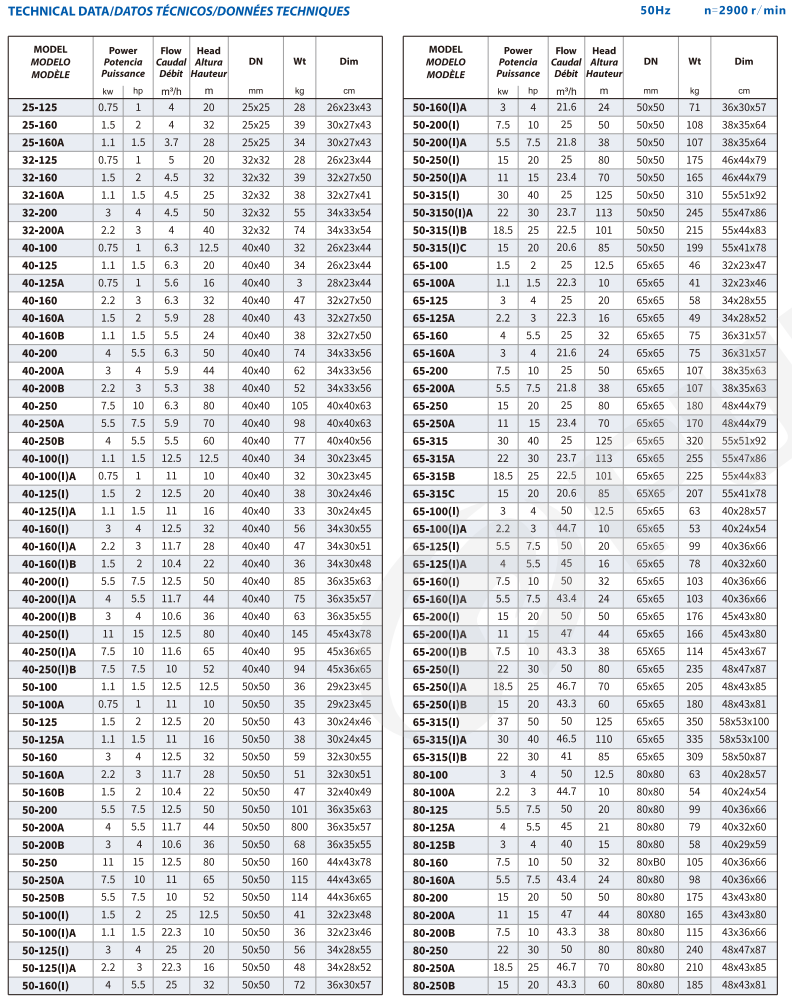

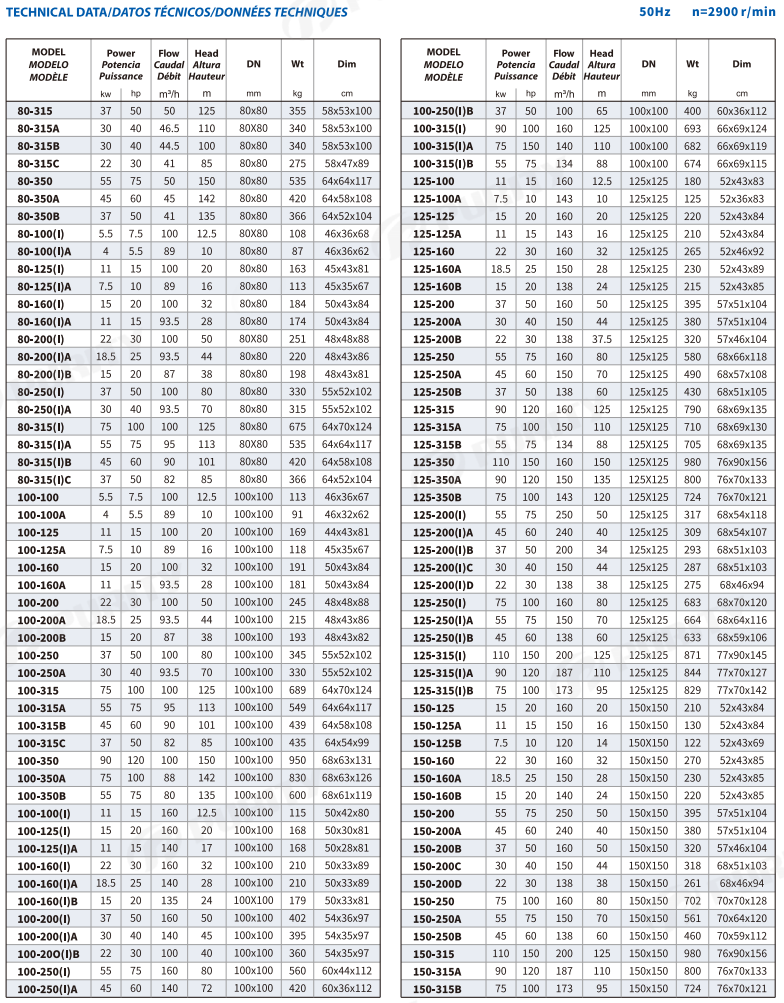

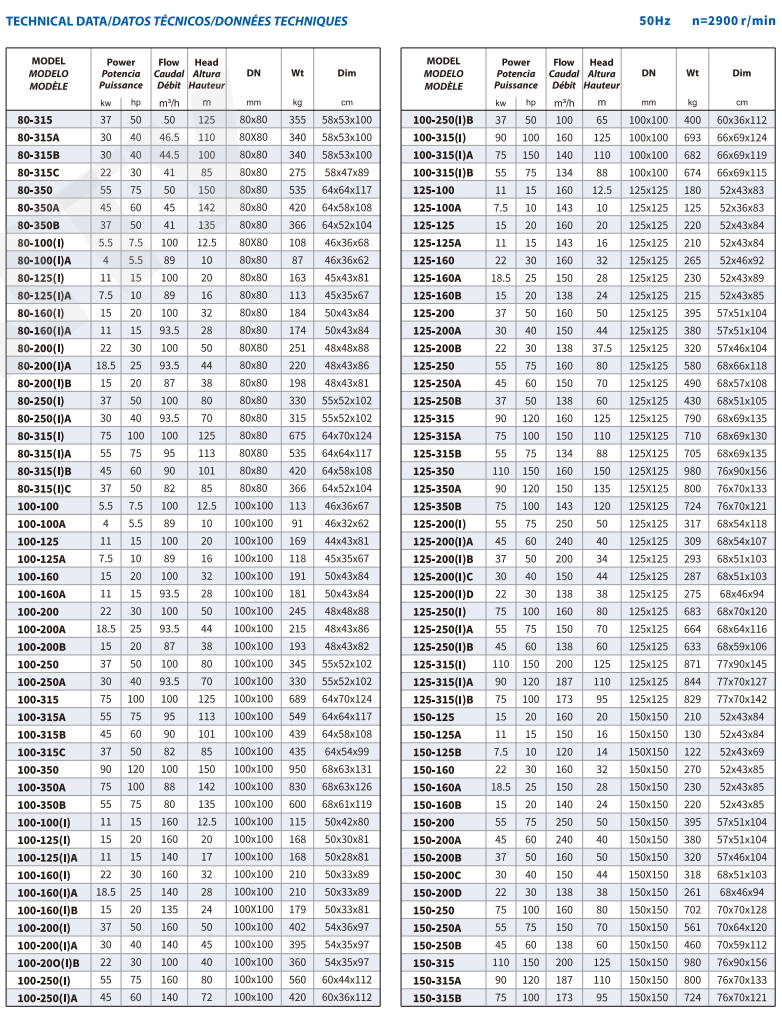

TECHNICAL DATA / DATOS TéCNICOS 50Hz n=2900 1/min
TECHNICAL DATA / DATOS TéCNICOS 50Hz n=2900 1/min
TECHNICAL DATA / DATOS TéCNICOS 50Hz n=1450 1/min
TECHNICAL DATA / DATOS TéCNICOS 50Hz n=1450 1/min
MATERIAL DESCRIPTION
|
No. |
Description |
Material |
No. |
Description |
Material |
No. |
Description |
Material |
|
1 |
Pump Case |
Cast iron |
4 |
Connection |
Cast iron |
7 |
Water Deflector |
Rubber |
|
2 |
Impeller |
SS304/Cast iron |
5 |
Base |
Cast iron |
8 |
Shaft |
SS304/45# Steel |
|
3 |
Mechanical Seal |
SiC/Carbon/SS304 |
6 |
Motor |
IP55 Class F |
9 |
Impeller Key |
Iron |
Spare Parts
Packaging & Shipping
Our Exhibition
Certifications
Product Description
TECHNICAL DESCRIPTION
New centrifugal pump
Original design by PURITY (patented)
YE3 high efficient motor, with protection IP55 class F
Pump case with anti-corrosive coating
Impeller in stainless steel AISI 304 or cast iron
Shaft in stainless steel AISI 304 or galvanized iron
Quality bearing, wear resistance mechanical seal
APPLICATIONS
Suitable for use with clean water and liquids that are not chemically
aggressive towards the materials from which the pump is made.
The centrifugal pumps are recommended for use in water supply,
cleaning sets, pressure boosting, firefighting sets, irrigation, industrial
applications, water circulation in climatisation sets, agricultural.
USING LIMITS
Liquid temperature between -10℃ and +120℃
Ambient temperature up to +50℃
Max. working pressure 16 bar
Continuous service S1

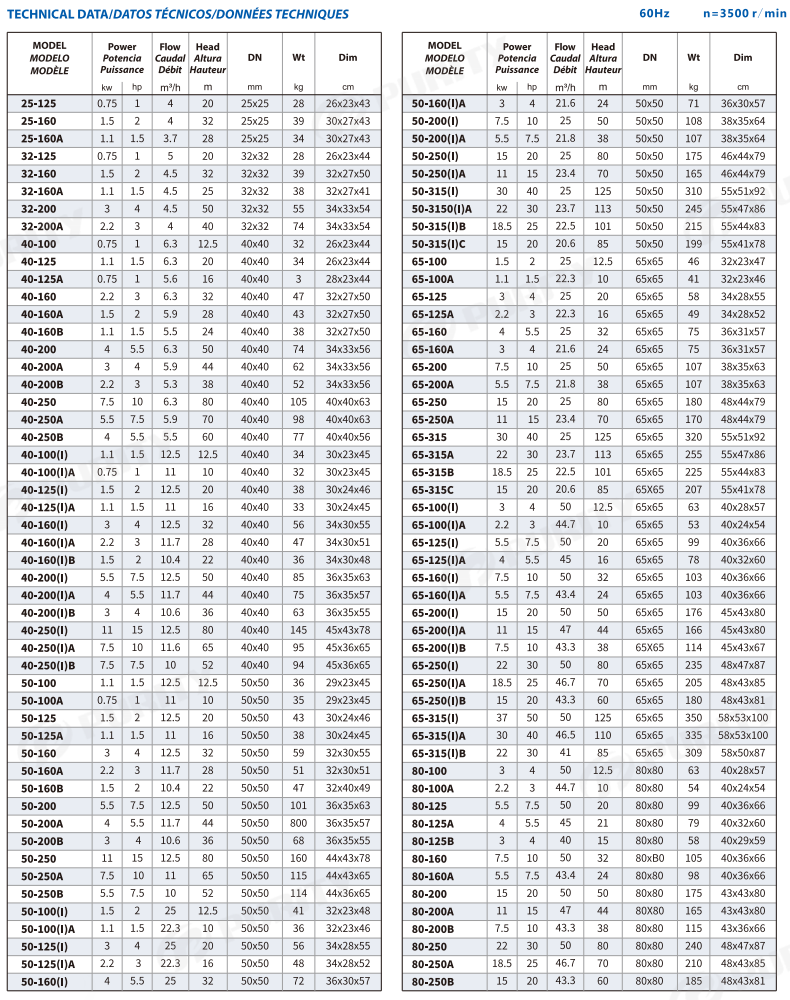

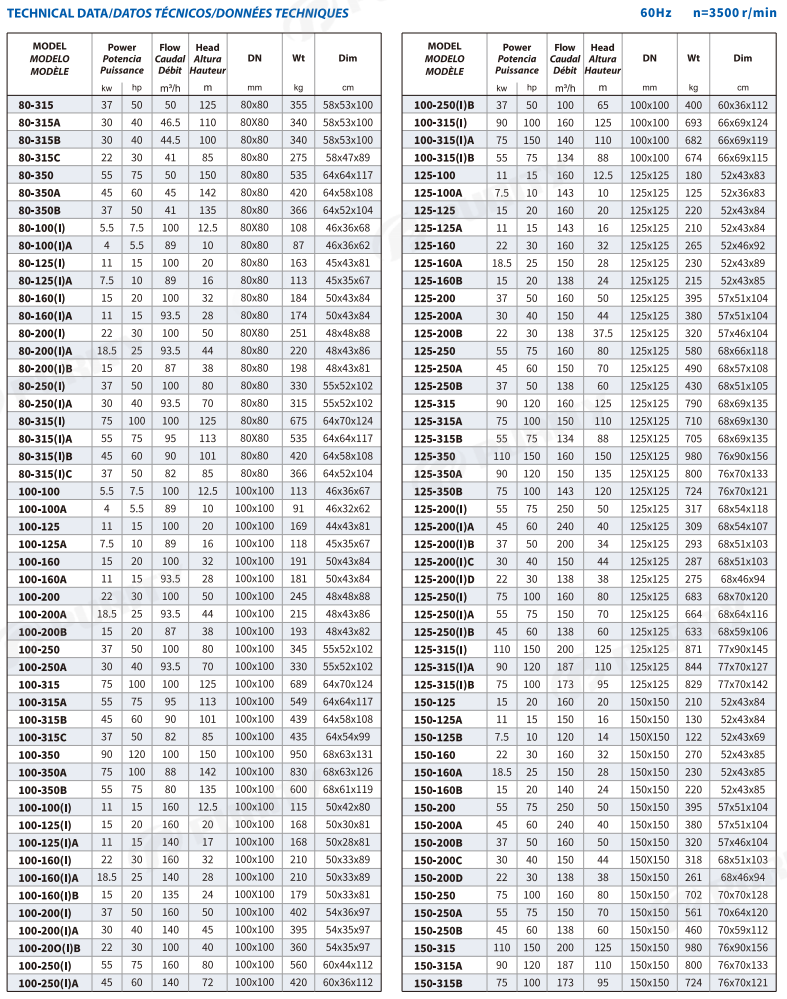

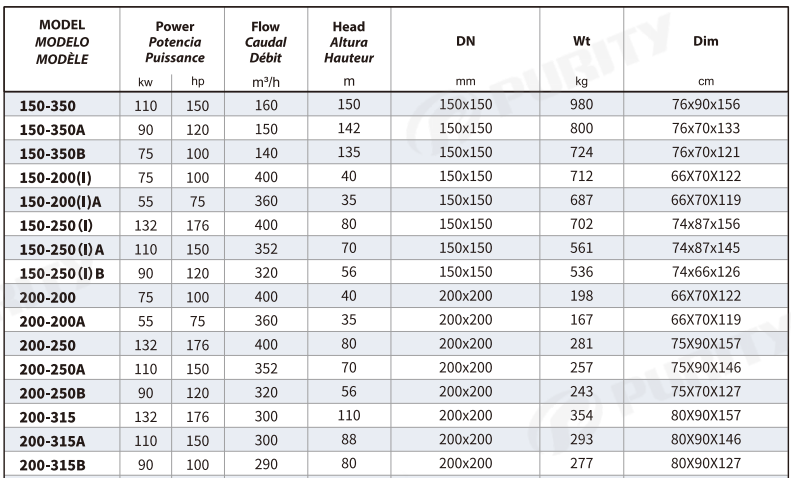

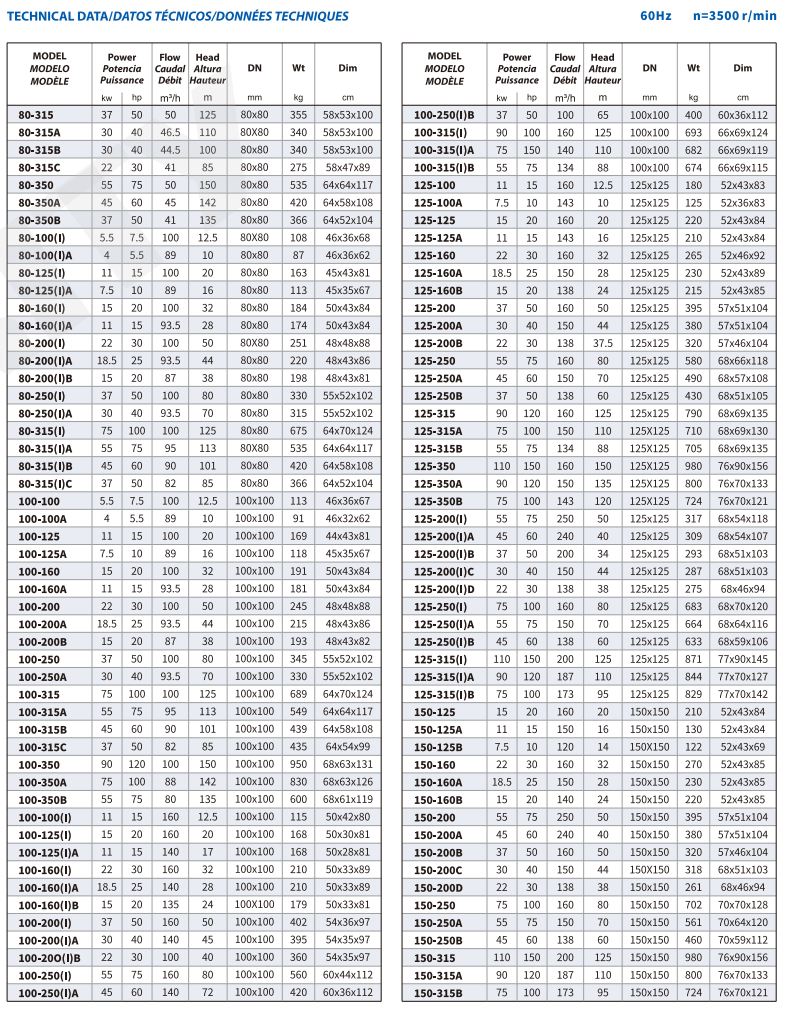

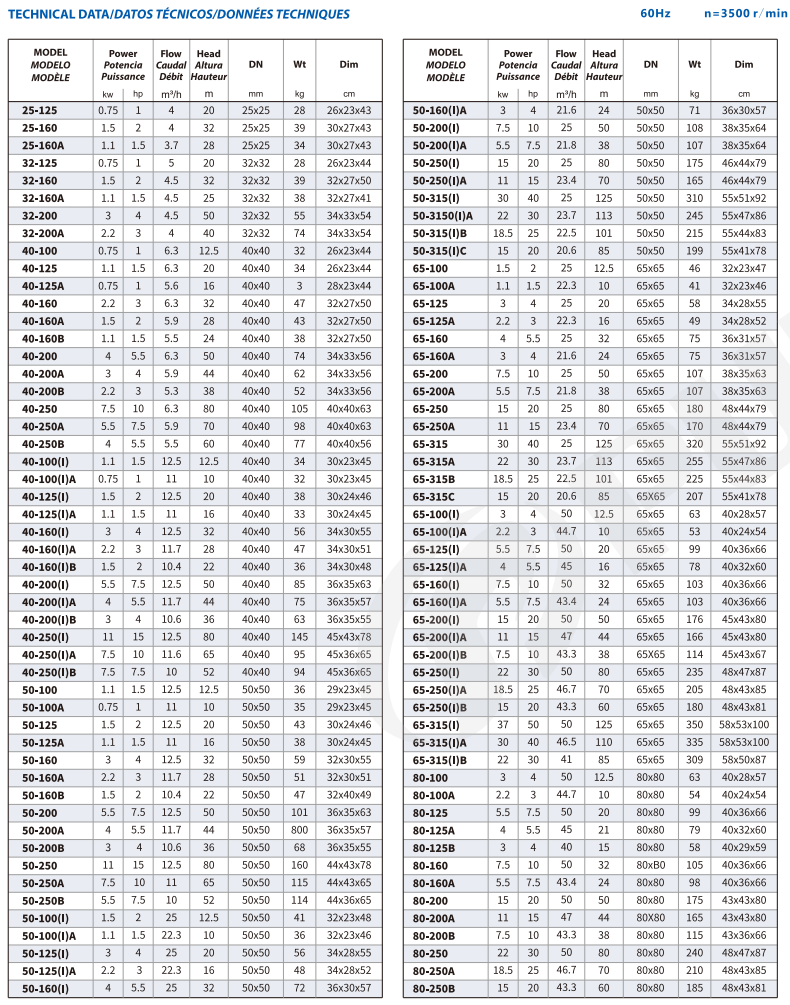

TECHNICAL DATA / DATOS TéCNICOS 60Hz n=3500 1/min
TECHNICAL DATA / DATOS TéCNICOS 60Hz n=3500 1/min
TECHNICAL DATA / DATOS TéCNICOS 60Hz n=1750 1/min
TECHNICAL DATA / DATOS TéCNICOS 60Hz n=1750 1/min

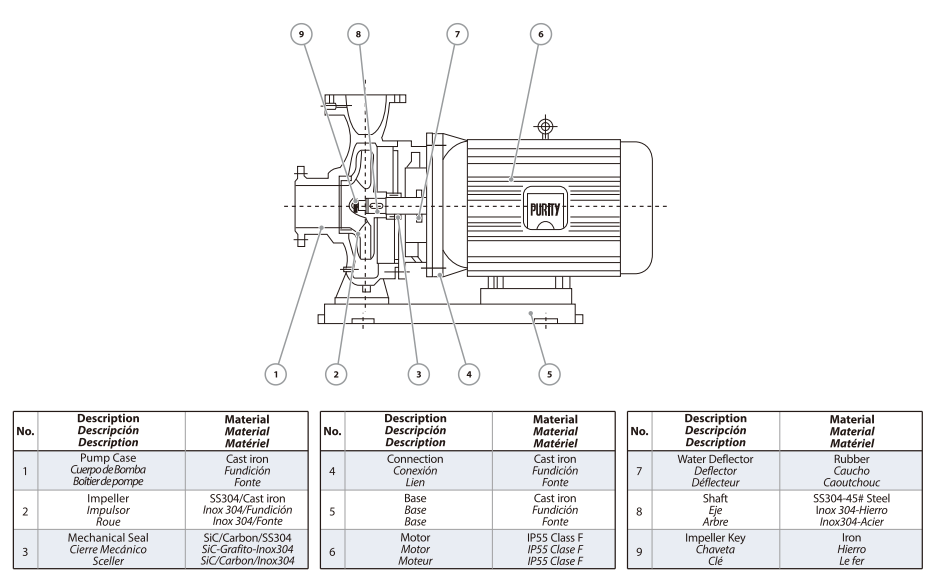

MATERIAL DESCRIPTION
|
No. |
Description |
Material |
No. |
Description |
Material |
No. |
Description |
Material |
|
1 |
Pump Case |
Cast iron |
4 |
Connection |
Cast iron |
7 |
Water Deflector |
Rubber |
|
2 |
Impeller |
SS304/Cast iron |
5 |
Base |
Cast iron |
8 |
Shaft |
SS304/45# Steel |
|
3 |
Mechanical Seal |
SiC/Carbon/SS304 |
6 |
Motor |
IP55 Class F |
9 |
Impeller Key |
Iron |
