NEW/NUEVO
TECHNICAL DESCRIPTION
· New double impeller centrifugal pump
· Original design by PURITY
· Both square motor & round motor available
· YE3 high efficient motor, with protection IP55 class F
· Pump case with anti-corrosive coating
· Double impeller in brass
· Shaft in stainless steel AISI 304 or galvanized iron
· Suction and discharge port in G20 thread
· Quality NSK bearing, wear resistance mechanical seal
USING LIMITS
· Liquid temperature between -10℃ and +120℃
· Ambient temperature up to +50℃
· Max. working pressure 16 bar
· Continuous service S1
APPLICATIONS
· Suitable for use with clean water and liquids that are not chemically aggressive towards the materials from which the pump is made.
· The high efficiency and adaptability of these pumps to even the most unusual of applications, makes them ideal for use in the domestic, civil and industrial sectors; in particular for the distribution of water in combination with pressure sets, for pressure boosting and in fire-fighting sets.
NEW/NUEVO
TECHNICAL DESCRIPTION
· New double impeller centrifugal pump
· Original design by PURITY
· Both square motor & round motor available
· YE3 high efficient motor, with protection IP55 class F
· Pump case with anti-corrosive coating
· Double impeller in brass
· Shaft in stainless steel AISI 304 or galvanized iron
· Suction and discharge port in G20 thread
· Quality NSK bearing, wear resistance mechanical seal
USING LIMITS
· Liquid temperature between -10℃ and +120℃
· Ambient temperature up to +50℃
· Max. working pressure 16 bar
· Continuous service S1
APPLICATIONS
· Suitable for use with clean water and liquids that are not chemically aggressive towards the materials from which the pump is made.
· The high efficiency and adaptability of these pumps to even the most unusual of applications, makes them ideal for use in the domestic, civil and industrial sectors; in particular for the distribution of water in combination with pressure sets, for pressure boosting and in fire-fighting sets.

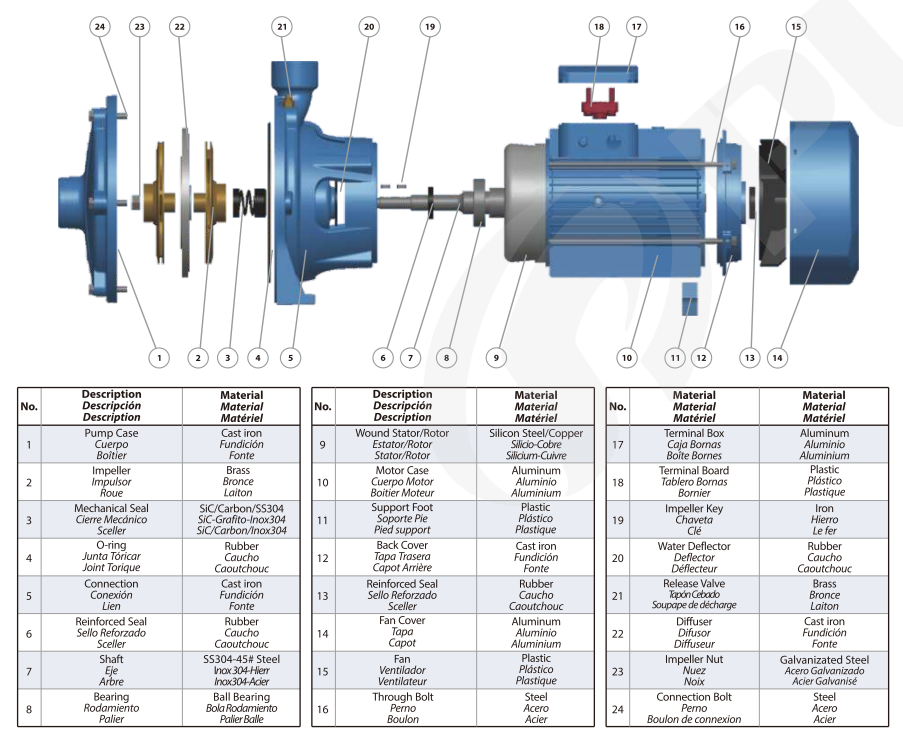

| No. | Description | Material | No. | Description | Material | No. | Description | Material | |
| Descripción | Material | Descripción | Material | Descripción | Material | ||||
| 1 | Pump Case | Cast iron | 9 | Wound Stator/Rotor | Silicon Steel/Copper | 17 | Terminal Box | Aluminum | |
| Cuerpo de Bomba | Fundición | Estator / Rotor | Acero al Silicio/Cobre | Caja de Bornes | Aluminio | ||||
| 2 | Impeller | Brass | 10 | Motor Case | Aluminum | 18 | Terminal Board | Plastic | |
| Impulsor | Bronce | Cuerpo de Motor | Aluminio | Tablero de Bornes | Plástico | ||||
| 3 | Mechanical Seal | SiC/Carbon/SS304 | 11 | Support Foot | Plastic | 19 | Impeller Key | Iron | |
| Cierre Mecánico | SiC-Grafito-Inox304 | Soporte Pie | Plástico | Chaveta Impulsor | Hierro | ||||
| 4 | O-ring | Rubber | 12 | Back Cover | Cast iron | 20 | Water Deflector | Rubber | |
| Junta Tórica | Caucho | Tapa Trasera | Fundición | Deflector | Caucho | ||||
| 5 | Connection | Cast iron | 13 | Reinforced Seal | Rubber | 21 | Release Valve | Brass | |
| Conexión | Fundición | Sello Reforzado | Caucho | Tapón Cebado | Bronce | ||||
| 6 | Reinforced Seal | Rubber | 14 | Fan Cover | Aluminum | 22 | Diffuser | Cast iron | |
| Sello Reforzado | Caucho | Tapa Ventilador | Aluminio | Difusor | Fundición | ||||
| 7 | Shaft | SS304/45# Steel | 15 | Fan | Plastic | 23 | Impeller Nut | Galvanizated Steel | |
| Eje | Inox 304/45# Hierro | Ventilador | Plástico | Tuerca de Impulsor | Acero Galvanizado | ||||
| 8 | Bearing | Ball Bearing | 16 | Through Bolt | Steel | 24 | Connection Bolt | Steel | |
| Rodamiento | Bola Rodamiento | Perno | Acero | Perno | Acero | ||||
