PT2735

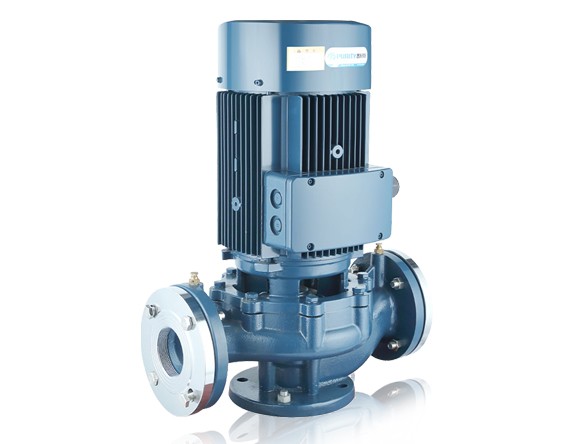

[PT]series vertical inline circulation pump for industrial water supply from purity pump in taizhou city

TECHNICAL DESCRIPTION
· New pump design for fire fighting
· Original design by PURITY (patented)
· Both square motor & round motor available
· YE3 high efficient motor, with protection IP55 class F
· Pump case with anti-corrosive coating
· Impeller in stainless steel AISI 304 or brass
· Shaft in stainless steel AISI 304
· Galvanized counter flange with bolts, nuts and gaskets
· Quality NSK bearing, wear resistance mechanical seal
· Models for capacities from 80-5000 US GPM

INQUIRE


TECHNICAL DESCRIPTION
New EN733 standard centrifugal pump
Original design by PURITY (patented)
Both square motor & round motor available
YE3 high efficient motor, with protection IP55 class F
Pump case with anti-corrosive coating
Impeller in stainless steel AISI 304 or cast iron
Shaft in stainless steel AISI 304 or galvanized iron
Galvanized counter flange with bolts, nuts and gaskets
Quality NSK bearing, wear resistance mechanical seal

APPLICATIONS
Suitable for use with clean water and liquids that are not chemically
aggressive towards the materials from which the pump is made.
The EN733 centrifugal pumps are recommended for use in water supply,
cleaning sets, pressure boosting, firefighting sets, irrigation, industrial
applications, water circulation in climatisation sets, agricultural.

USING LIMITS
Liquid temperature between -10℃ and +120℃
Ambient temperature up to +50℃
Max. working pressure 16 bar
Continuous service S1





Purity Pump Co., Ltd. is a specialized manufacturer and supplier of high-quality

industrial pumps, exporting to global market in competitive prices. We provide

variousreliable pumps for projects.Our main products are centrifugal pumps, fire

pumps and system, industrial pumps and agricultural pumps.


Our products and services have been deployed in more than 55 countries.

And we supply water pumps for many large projects like National Olympic Stadium.

We also supply centrifugal and fire pumps to some well-known pump companies all

over the world.






TECHNICAL DESCRIPTION
New EN733 standard centrifugal pump
Original design by PURITY (patented)
Both square motor & round motor available
YE3 high efficient motor, with protection IP55 class F
Pump case with anti-corrosive coating
Impeller in stainless steel AISI 304 or cast iron
Shaft in stainless steel AISI 304 or galvanized iron
Galvanized counter flange with bolts, nuts and gaskets
Quality NSK bearing, wear resistance mechanical seal

APPLICATIONS
Suitable for use with clean water and liquids that are not chemically
aggressive towards the materials from which the pump is made.
The EN733 centrifugal pumps are recommended for use in water supply,
cleaning sets, pressure boosting, firefighting sets, irrigation, industrial
applications, water circulation in climatisation sets, agricultural.

USING LIMITS
Liquid temperature between -10℃ and +120℃
Ambient temperature up to +50℃
Max. working pressure 16 bar
Continuous service S1





Purity Pump Co., Ltd. is a specialized manufacturer and supplier of high-quality

industrial pumps, exporting to global market in competitive prices. We provide

variousreliable pumps for projects.Our main products are centrifugal pumps, fire

pumps and system, industrial pumps and agricultural pumps.


Our products and services have been deployed in more than 55 countries.

And we supply water pumps for many large projects like National Olympic Stadium.

We also supply centrifugal and fire pumps to some well-known pump companies all

over the world.
