PST EN733 horizontal centrifugal pump  for water
  • PST EN733 horizontal centrifugal pump  for water
  • PST EN733 horizontal centrifugal pump  for water
  • PST EN733 horizontal centrifugal pump  for water
  • PST EN733 horizontal centrifugal pump  for water

PST2739

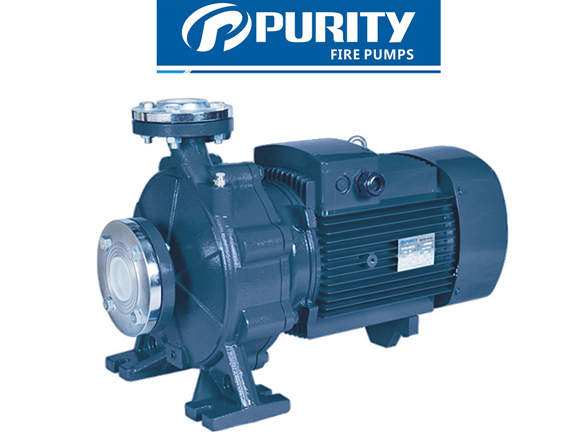

PST EN733 horizontal centrifugal pump for water

TECHNICAL DESCRIPTION
· New EN733 standard centrifugal pump
· Original design by PURITY (patented)
· Both square motor & round motor available
· YE3 high efficient motor, with protection IP55 class F
· Pump case with anti-corrosive coating
· Impeller in stainless steel AISI 304 or cast iron
· Shaft in stainless steel AISI 304 or galvanized iron
· Galvanized counter flange with bolts, nuts and gaskets
· Quality NSK bearing, wear resistance mechanical seal

INQUIRE

Product Description




TECHNICAL DESCRIPTION
New EN733 standard centrifugal pump
Original design by PURITY (patented)
Both square motor & round motor available
YE3 high efficient motor, with protection IP55 class F
Pump case with anti-corrosive coating
Impeller in stainless steel AISI 304 or cast iron
Shaft in stainless steel AISI 304 or galvanized iron
Galvanized counter flange with bolts, nuts and gaskets
Quality NSK bearing, wear resistance mechanical seal


APPLICATIONS
Suitable for use with clean water and liquids that are not chemically
aggressive towards the materials from which the pump is made.
The EN733 centrifugal pumps are recommended for use in water supply,
cleaning sets, pressure boosting, firefighting sets, irrigation, industrial
applications, water circulation in climatisation sets, agricultural.


USING LIMITS
Liquid temperature between -10℃ and +120℃
Ambient temperature up to +50℃
Max. working pressure 16 bar
Continuous service S1

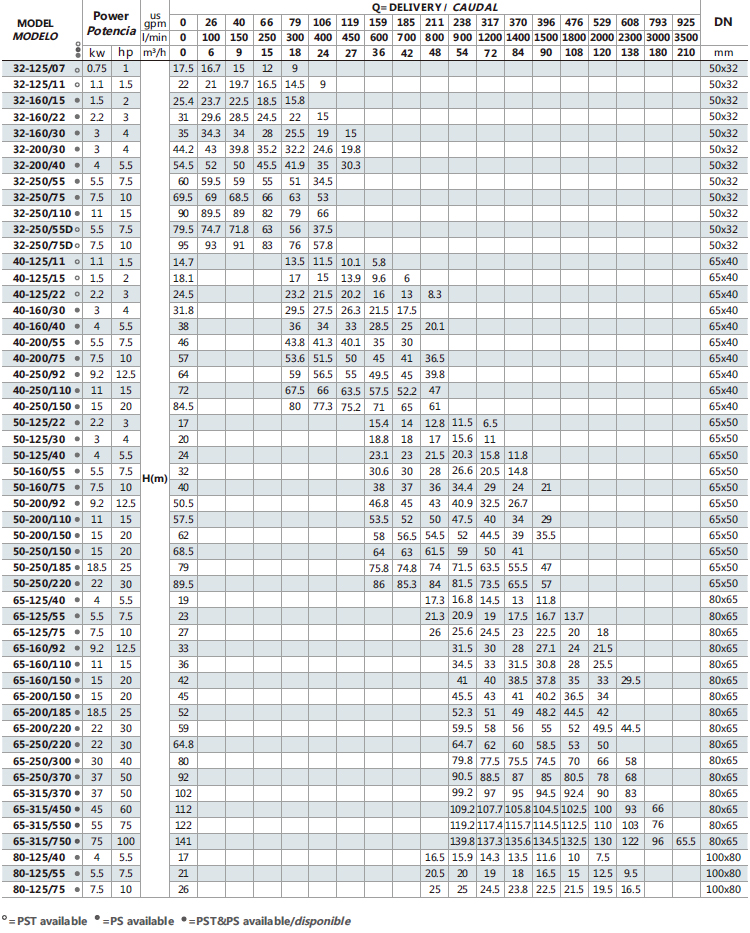

TECHNICAL DATA / DATOS TéCNICOS                                                         50Hz   n=2900  1/min


TECHNICAL DATA / DATOS TéCNICOS                                                         50Hz   n=2900  1/min







Production Line





Packaging & Shipping





Our Exhibition





Certifications




Product Description




TECHNICAL DESCRIPTION
New EN733 standard centrifugal pump
Original design by PURITY (patented)
Both square motor & round motor available
YE3 high efficient motor, with protection IP55 class F
Pump case with anti-corrosive coating
Impeller in stainless steel AISI 304 or cast iron
Shaft in stainless steel AISI 304 or galvanized iron
Galvanized counter flange with bolts, nuts and gaskets
Quality NSK bearing, wear resistance mechanical seal


APPLICATIONS
Suitable for use with clean water and liquids that are not chemically
aggressive towards the materials from which the pump is made.
The EN733 centrifugal pumps are recommended for use in water supply,
cleaning sets, pressure boosting, firefighting sets, irrigation, industrial
applications, water circulation in climatisation sets, agricultural.


USING LIMITS
Liquid temperature between -10℃ and +120℃
Ambient temperature up to +50℃
Max. working pressure 16 bar
Continuous service S1

TECHNICAL DATA / DATOS TéCNICOS                                   60Hz   n=3500  1/min




TECHNICAL DATA / DATOS TéCNICOS             60Hz   n=3500  1/min







Production Line





Packaging & Shipping





Our Exhibition





Certifications
