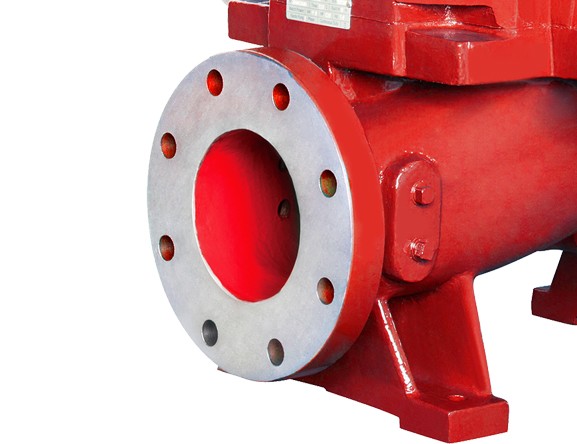

PSCF series Split Case Fire Pump from purity pump with large capacity
  • PSCF series Split Case Fire Pump from purity pump with large capacity
  • PSCF series Split Case Fire Pump from purity pump with large capacity
  • PSCF series Split Case Fire Pump from purity pump with large capacity
  • PSCF series Split Case Fire Pump from purity pump with large capacity

PSCF2670

PSCF series Split Case Fire Pump from purity pump with large capacity

TECHNICAL DESCRIPTION
· New pump design for fire fighting
· Original design by PURITY (patented)
· Both square motor & round motor available
· YE3 high efficient motor, with protection IP55 class F
· Pump case with anti-corrosive coating
· Impeller in stainless steel AISI 304 or brass
· Shaft in stainless steel AISI 304
· Galvanized counter flange with bolts, nuts and gaskets
· Quality NSK bearing, wear resistance mechanical seal
· Models for capacities from 80-5000 US GPM

INQUIRE




PSCF series split case fire pump

Performance Data:

Max. Flow: 4500m3/h

Max. Head: 225m

Power range: 0.75-250kw(1-340hp)

DN: 80-500MM

Advantage:Double suction    Large capacity



TECHNICAL DESCRIPTION
New split case pump
Original design by PURITY (patented)
Available complete with electric motor or diesel engine
Easily back pull-out from driver
Pump case with anti-corrosive coating HT250
Impeller in stainless steel AISI 304 or HT250
Shaft in stainless steel AISI 304 or galvanized iron
Quality bearing,mechanical seal/gland packing

APPLICATIONS
Suitable for use with clean water and liquids that are not chemically
aggressive towards the materials from which the pump is made.
The split case pumps are recommended for use in water supply, cleaning
sets, pressure boosting, firefighting sets, irrigation, industrial applications,
water circulation in climatisation sets, agricultural.


USING LIMITS
Liquid temperature between -10℃ and +120℃ L
Ambient temperature up to +50℃ A
Max.working pressure 25 bar M
Continuous service S1

0

Purity Pump Co., Ltd. is a specialized manufacturer and supplier of high-quality

industrial pumps, exporting to global market in competitive prices. We provide various
reliable pumps for projects.Our main products are centrifugal pumps, fire pumps and

system, industrial pumps and agricultural pumps.

Our products and services have been deployed in more than 55 countries. And we
supply water pumps for many large projects like National Olympic Stadium. We also

supply centrifugal and fire pumps to some well-known pump companies all over the

world.



PSCF series split case fire pump

Performance Data:

Max. Flow: 4500m3/h

Max. Head: 225m

Power range: 0.75-250kw(1-340hp)

DN: 80-500MM

Advantage:Double suction    Large capacity



TECHNICAL DESCRIPTION
New split case pump
Original design by PURITY (patented)
Available complete with electric motor or diesel engine
Easily back pull-out from driver
Pump case with anti-corrosive coating HT250
Impeller in stainless steel AISI 304 or HT250
Shaft in stainless steel AISI 304 or galvanized iron
Quality bearing,mechanical seal/gland packing

APPLICATIONS
Suitable for use with clean water and liquids that are not chemically
aggressive towards the materials from which the pump is made.
The split case pumps are recommended for use in water supply, cleaning
sets, pressure boosting, firefighting sets, irrigation, industrial applications,
water circulation in climatisation sets, agricultural.


USING LIMITS
Liquid temperature between -10℃ and +120℃ L
Ambient temperature up to +50℃ A
Max.working pressure 25 bar M
Continuous service S1

0

Purity Pump Co., Ltd. is a specialized manufacturer and supplier of high-quality

industrial pumps, exporting to global market in competitive prices. We provide various
reliable pumps for projects.Our main products are centrifugal pumps, fire pumps and

system, industrial pumps and agricultural pumps.

Our products and services have been deployed in more than 55 countries. And we
supply water pumps for many large projects like National Olympic Stadium. We also

supply centrifugal and fire pumps to some well-known pump companies all over the

world.
